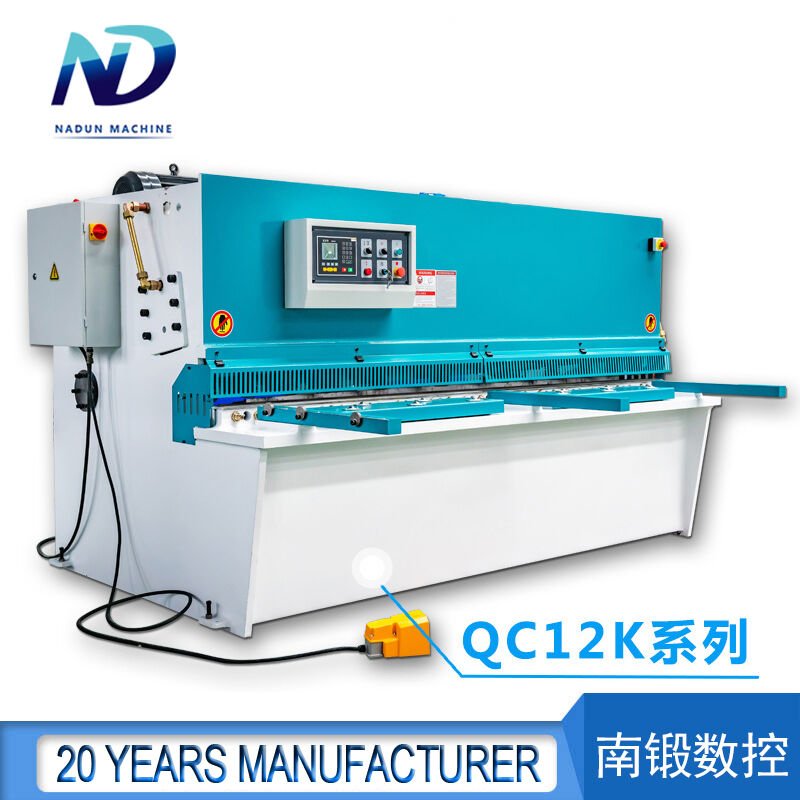

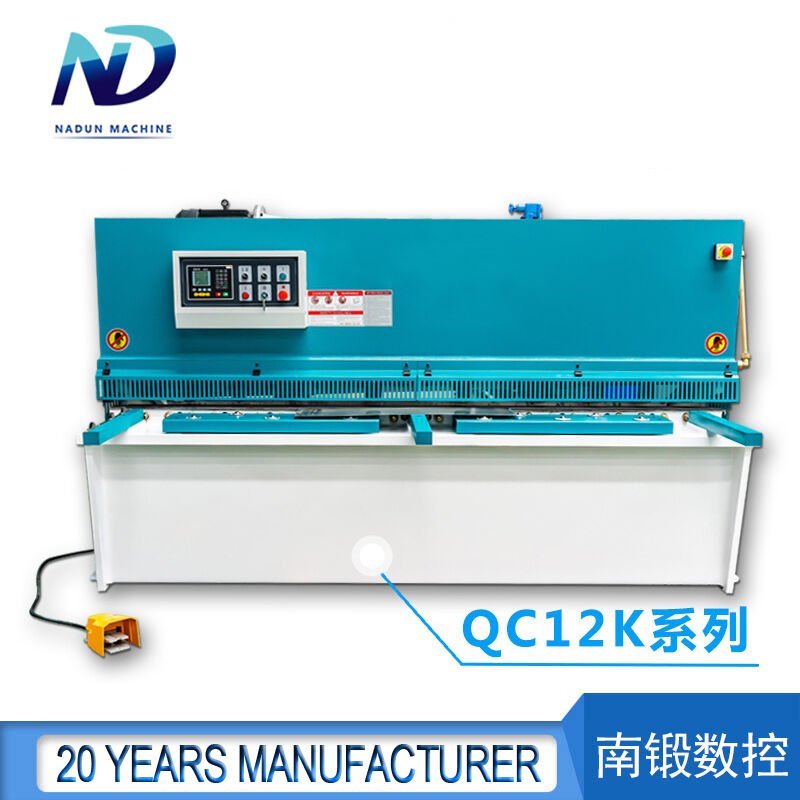

Nadun Swing beam hydraulic shearing machine with E21 Control system
Nadun Swing beam hydraulic shearing machine with E21 Control system
Nadun Swing beam hydraulic shearing machine with E21 Control system
Nadun Swing beam hydraulic shearing machine with E21 Control system

Nadun Swing beam hydraulic shearing machine with E21 Control system

Product Overview

Nadun Swing beam hydraulic shearing machine with E21 Control system details

1.The whole machine is welded with steel plates and driven by hydraulic system with accumulator return, making it easy to operate, reliable in performance, and aesthetically pleasing. The machine comes with a digital control system as a standard feature.

2.The blade gap adjustment is indicated by a signboard, allowing for easy and quick adjustment. There are also light alignment devices and cutting stroke control devices, which make adjustments convenient and fast.

3.The worktable is equipped with rolling material support balls to reduce scratching on the sheet metal and frictional resistance.

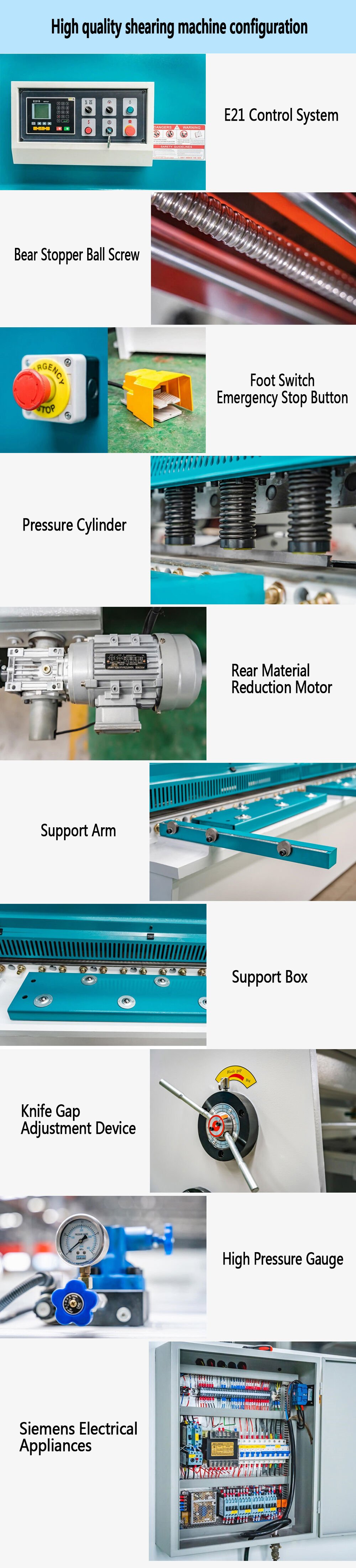

Detail photos

Nadun Swing beam hydraulic shearing machine with E21 Control system manufacture

Specifications

Model Cutting Thickness Cutting Length Cutting Angel Material Strength Stopper Adjust Range Stroke Times Motor power Dimension
TYPE (mm) (mm) (°) (KN/CM) (mm) (times/minute) (kw) LxWxH(mm)
4×2500 4 2500 1°30' ≤450 20-500 16 5.5 3040×1550x1550
4×3200 4 3200 1°30' ≤450 20-500 13 5.5 3840x1550x1550
4x4000 4 4000 1°30' ≤450 20-600 10 5.5 4600×1700x1700
4x6000 4 6000 1°30' ≤450 20-800 5 7.5 6460x2100x3200
6×2500 6 2500 1°30' ≤450 20-500 15 7.5 3040x1710x1620
6×3200 6 3200 1°30' ≤450 20-500 12 7.5 3840×1710×1620
6×4000 6 4000 1°30' ≤450 20-600 9 7.5 4620x1850x1700
6x5000 6 5000 1°30' ≤450 20-600 8 7.5 5410×1710×1620
6×6000 6 6000 1°30' ≤450 20-800 5 11 6480×2100×2300
8×2500 8 2500 1°30' ≤450 20-500 11 7.5 3040x1700x1700
8×3200 8 3200 1°30' ≤450 20-500 8 7.5 3860x1700x1700
8x4000 8 4000 1°30' ≤450 20-600 8 7.5 4640x1700v1700
8x5000 8 5000 1°30' ≤450 20-600 8 7.5 5400x2400×2000
8x6000 8 6000 1°30' ≤450 20-800 8 11 6480×2100×2350
10×2500 10 2500 1°30' ≤450 20-500 10 11 3040x1800x1700
10x3200 10 3200 1°30' ≤450 20-500 10 11 3860×2000x1700
10x4000 10 4000 1°30' ≤450 20-600 10 11 4650x2100×2000
10x6000 10 6000 1°30' ≤450 20-800 10 15 6500×2100×2300
12×2500 12 2500 ≤450 20-600 12 18.5 3140×2050×2000
12×3200 12 3200 ≤450 20-600 10 18.5 3880×2150×2000
12×4000 12 4000 ≤450 20-600 10 18.5 4680×2150×2100
12x5000 12 5000 ≤450 20-600 6 18.5 3245x1900x1900
12x6000 12 6000 ≤450 20-1000 5 18.5 6900×2600×2700
16×2500 16 2500 2°30' ≤450 20-600 10 22 3140x2150x2000
16×3200 16 3200 2°30' ≤450 20-600 10 22 3880×2150×2000
16×4000 16 4000 2°30' ≤450 20-800 10 22 4650x2150×2200
16×5000 16 5000 ≤450 20-1000 6 22 5900×2600×2700
16×6000 16 6000 ≤450 20-1000 5 22 6900x2700×2700
20×2500 20 2500 ≤450 20-800 8 22 3440×2300x2500
20x3200 20 3200 ≤450 20-800 8 22 4150x2350×2700
20×4000 20 4000 ≤450 20-1000 5 22 4850x2600×2400
20×6000 20 6000 ≤450 20-1000 4 30 6700x3000x3000
25×2500 25 2500 ≤450 20-1000 8 37 3200×2700×2900
25×3200 25 3200 ≤450 20-1000 5 37 4200×2400x2500
30×2500 30 2500 ≤450 20-1000 4 37 3300×2900x3000
30×3200 30 3200 3°30' ≤450 20-1000 4 40 4200×2500×2600
40×2500 40 2500 ≤450 20-1000 3 55 3200×3300×3200
40×3200 40 3200 ≤450 20-1000 3 55 4300x3300×3000

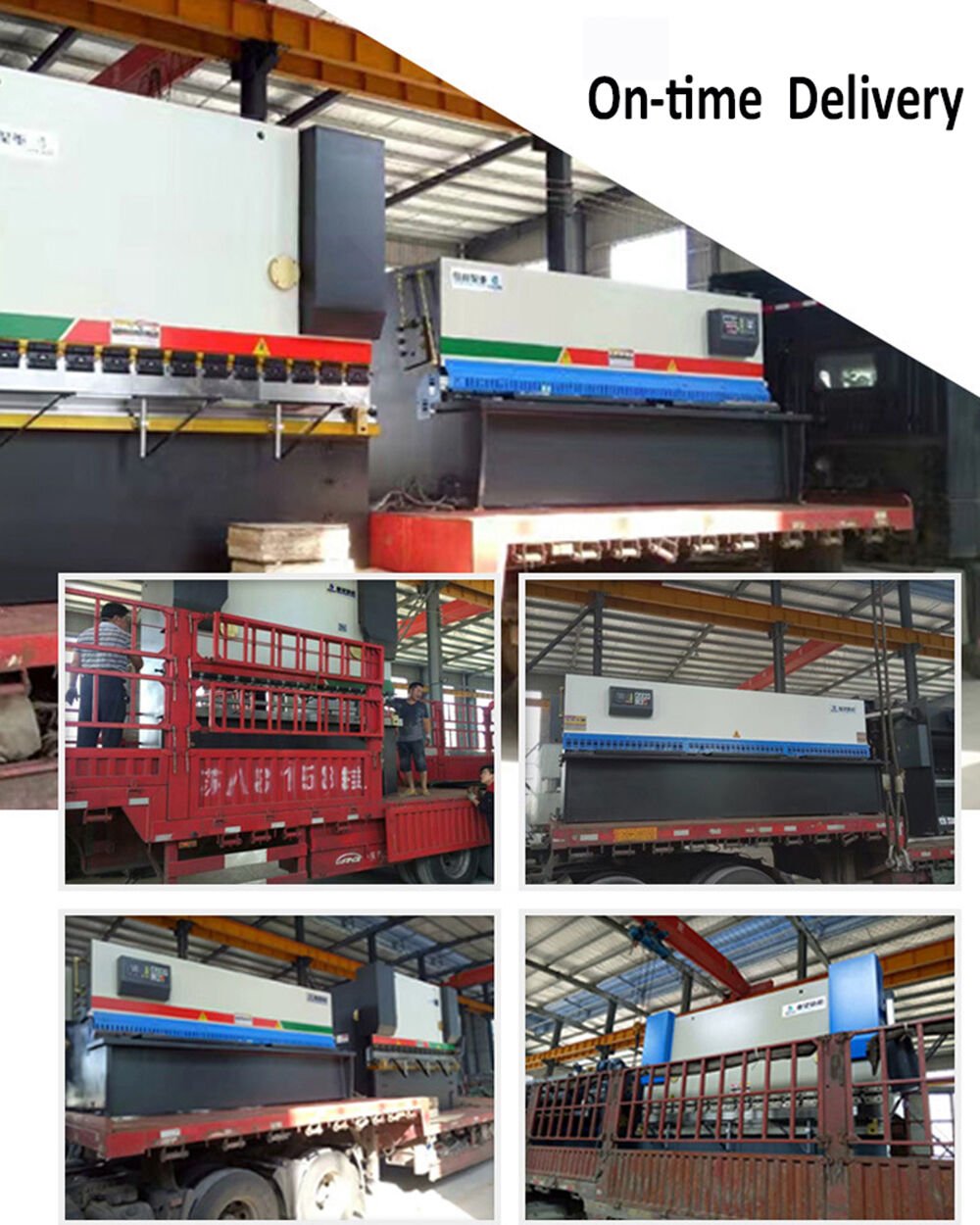

Packaging & Shipping

Nadun Swing beam hydraulic shearing machine with E21 Control system manufacture

Company Profile

Nadun Machinery Manufacture Co., Ltd. is a company specializing in the production of hydraulic presses, punch presses, shearing machines, bending machines, and other machinery. Our products are widely used in various industries such as automobile manufacturing, home appliances, and hardware processing.
Our company has a team of experienced professionals who consistently strive for excellence in their work. We have a strong research and development team that constantly innovates and improves our products to meet the ever-changing market demands. Our products are known for their high quality, excellent performance, and long service life.

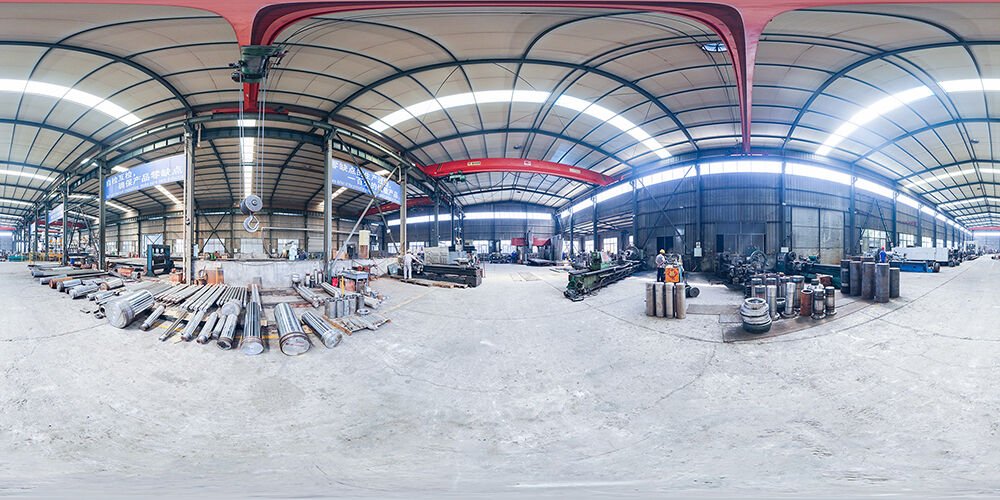

Nadun Swing beam hydraulic shearing machine with E21 Control system supplierNadun Swing beam hydraulic shearing machine with E21 Control system factory

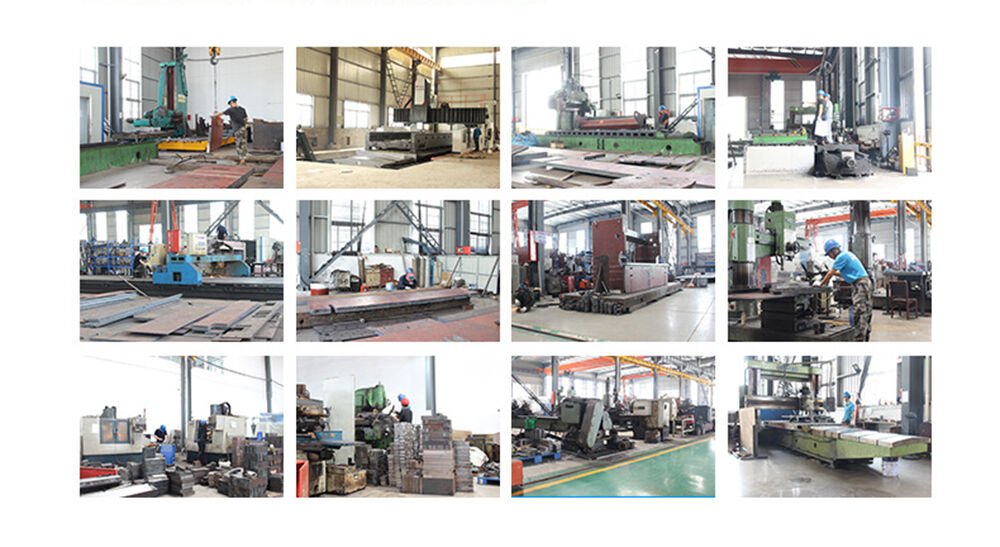

Nadun Swing beam hydraulic shearing machine with E21 Control system factory

Customer Visit

Nadun Swing beam hydraulic shearing machine with E21 Control system details

FAQ

1.Can you provide me with the relevant documentation?
Yes, we can provide you with most documentation including Certificates of Analysis/Conformance, insurance, origin, and other export documents where required.

2.What is the average lead time?
For samples, the lead time is about 30 days. For mass production, the lead time is 30-60 days after receiving the deposit payment. Our lead times become effective when we have received your deposit and have your final approval for your products. If our lead times do not work with your deadline, please discuss your requirements with your sales representative. In most cases, we are able to accommodate your needs.

3.What payment methods do you accept?
We accept payment via bank transfer, Western Union, or PayPal. The payment terms are typically a 30% deposit in advance, with the remaining 70% balance due against the copy of B/L.

4.What is the product warranty?
We warranty our materials and workmanship. Our commitment is to your satisfaction with our products. Whether in warranty or not, it is our company culture to address and resolve all customer issues to everyone's satisfaction.

5.Do you guarantee safe and secure delivery of products?
Yes, we always use high-quality export packaging to ensure the safe and secure delivery of our products. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature-sensitive items. However, specialist packaging or non-standard packing requirements may incur an additional charge.

6.How about the shipping fees?
The shipping cost depends on the method you choose to receive your goods. Express delivery is usually the quickest but also the most expensive option. Seafreight is the best solution for large amounts. We can provide you with detailed freight rates once we know the details of the amount, weight, and shipping method. Please contact us for further information.
