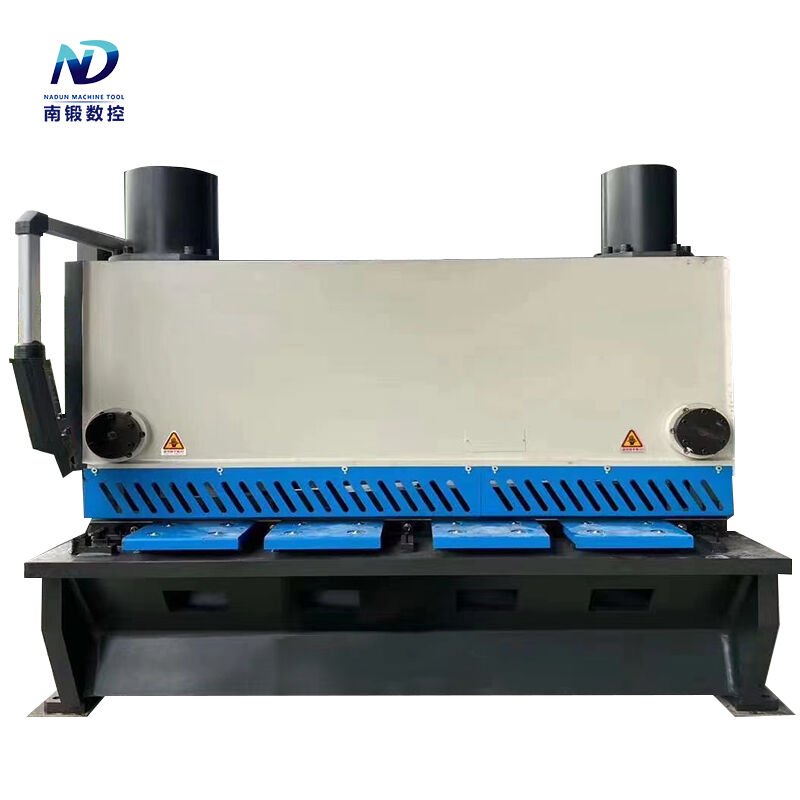

hydraulic sheet cutting machine 16*2500

Product Overview

hydraulic sheet cutting machine 16*2500 supplier

Features

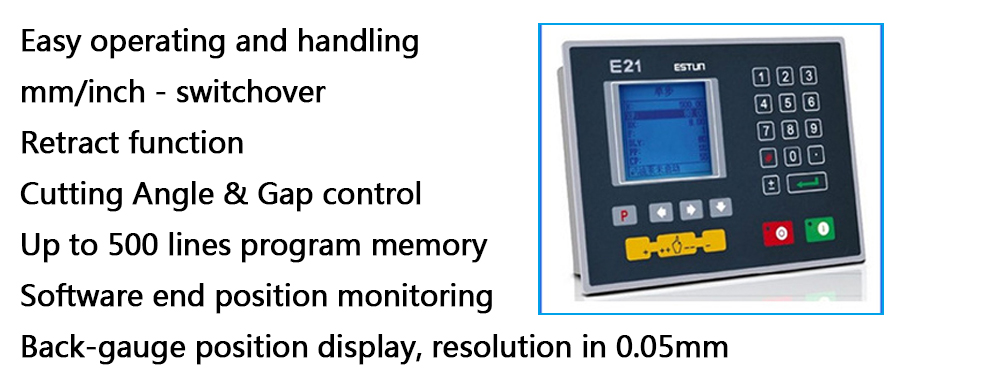

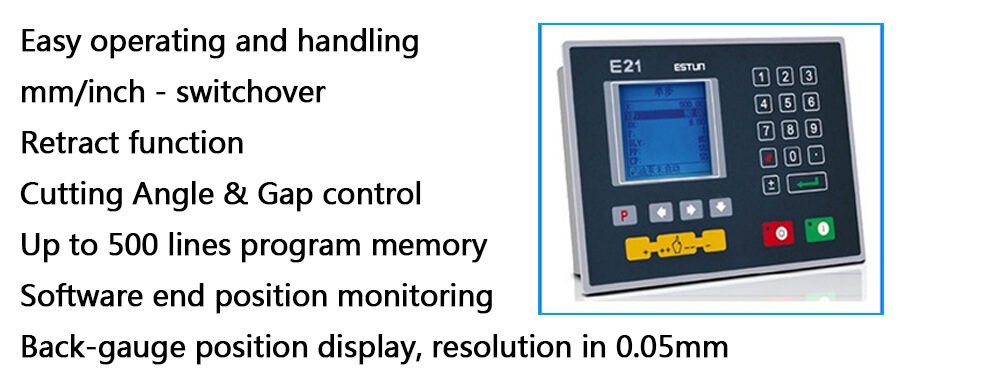

1.The 20mm shearing machine is constructed from high-quality steel plates, which are welded together to form a sturdy and durable structure. The hydraulic system is equipped with an accumulator return, ensuring smooth and reliable operation. The hydraulic system is also easy to operate, and the machine comes with a digital control system as a standard feature. This allows for precise and accurate cutting, making it an ideal choice for various industries.

2.The blade gap adjustment system is designed to be user-friendly and easy to operate. It is indicated by a signboard, which makes it easy to adjust the gap between the blades quickly and accurately. Additionally, the machine is equipped with light alignment devices and cutting stroke control devices, which ensure that the cutting process is convenient and fast. These features make it easy for operators to achieve accurate cuts with minimal effort.

3.The worktable is designed with rolling material support balls, which help reduce scratching on the sheet metal and frictional resistance. This ensures that the sheet metal remains in good condition during the cutting process, resulting in high-quality finished products. The support balls are also adjustable, allowing for customization based on the size and shape of the sheet metal being cut. The worktable is also designed to be easily removable, making it easy to clean and maintain.

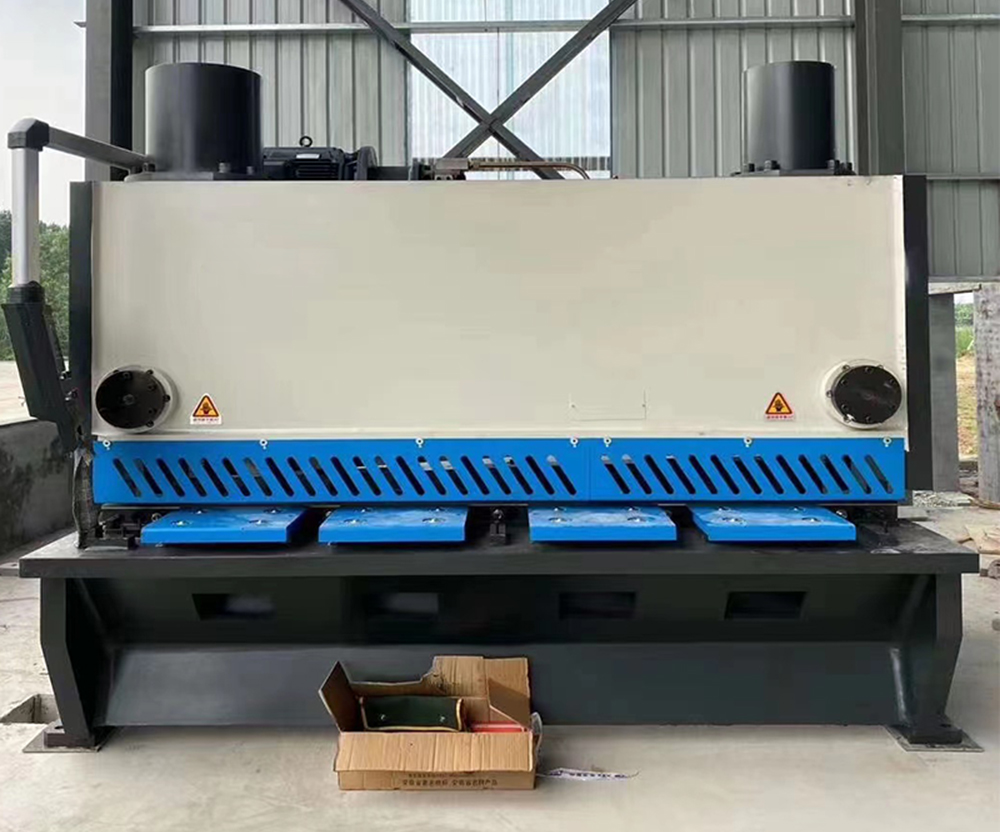

hydraulic sheet cutting machine 16*2500 details

hydraulic sheet cutting machine 16*2500 supplier

Specification

Mold	Cutting Thickness (mm)	Cutting Length (mm)	Angle Range (°)	Backgauge Stroke (mm)	Dimensions (mm×mm×mm)	Main Motor (KW)
6×2500	6	2500	1-3	750	3140×1740×2040	7.5
6×3200	6	3200	1-3	750	3750×1770×2150	7.5
6×4000	6	4000	1-3	750	4830×1840×2150	11
6×5000	6	5000	1-3	750	5830×1840×2150	11
6×6000	6	6000	1-3	750	6480×2100×2300	11
8×2500	8	2500	1-3	750	3040×1700×1700	11
8×3200	8	3200	1-3	750	3860×1700×1700	11
8×4000	8	4000	1-3	750	4640×1700×1700	11
8×5000	8	5000	1-3	750	5400×2400×2000	11
8×6000	8	6000	1-3	750	6480×2100×2350	11
8×8000	8	8000	1-3	750	8580×2130×2350	11
10×2500	10	2500	1-3	750	3040×1800×1700	15
10×3200	10	3200	1-3	750	3850×1830×1900	15
10×4000	10	4000	1-3	750	4650×2100×2000	15
10×5000	10	5000	1-3	750	5750×2100×2000	15
10×6000	10	6000	1-3	750	6500×2100×2300	15
10×8000	10	8000	1-3	750	8800×2100×2300	15
12×2500	12	2500	1-3	750	3285×1830×2390	15
12×3200	12	3200	1-3	750	3855×1830×2390	18.5
12×4000	12	4000	1-3	1000	4850×1830×2390	18.5
12×6000	12	6000	1-3	1000	6850×1930×2650	18.5
12×8000	12	8000	1-3	1000	8950×2130×2850	18.5
12×9000	12	9000	1-3	1000	9980×2300×2950	18.5
12×10000	12	10000	1-3	1000	11050×2500×3100	18.5
16×2500	16	2500	1-3	1000	3440×1940×2830	22
16×3200	16	3200	1-3	1000	4010×1940×2830	22
16×4000	16	4000	1-3	1000	5010×1980×2830	22
16×5000	16	5000	1-3	1000	5900×2600×2830	22
16×6000	16	6000	1-3	1000	6900×2700×2830	22
16×8000	16	8000	1-3	1000	8900×2900×3430	22
20×2500	20	2500	1-3	1000	3440×1900×2830	30
20×3200	20	3200	1-3	1000	4010×1900×2830	30
20×4000	20	4000	1-3	1000	4850×2600×2900	30
20×6000	20	6000	1-3	1000	6700×3000×3000	30
30×2500	30	2500	1-3	1000	3440×1900×2830	37
30×3200	30	3200	1-3	1000	4200×1900×3000	37
40×2500	40	2500	1-3	1000	3440×2000×3000	37

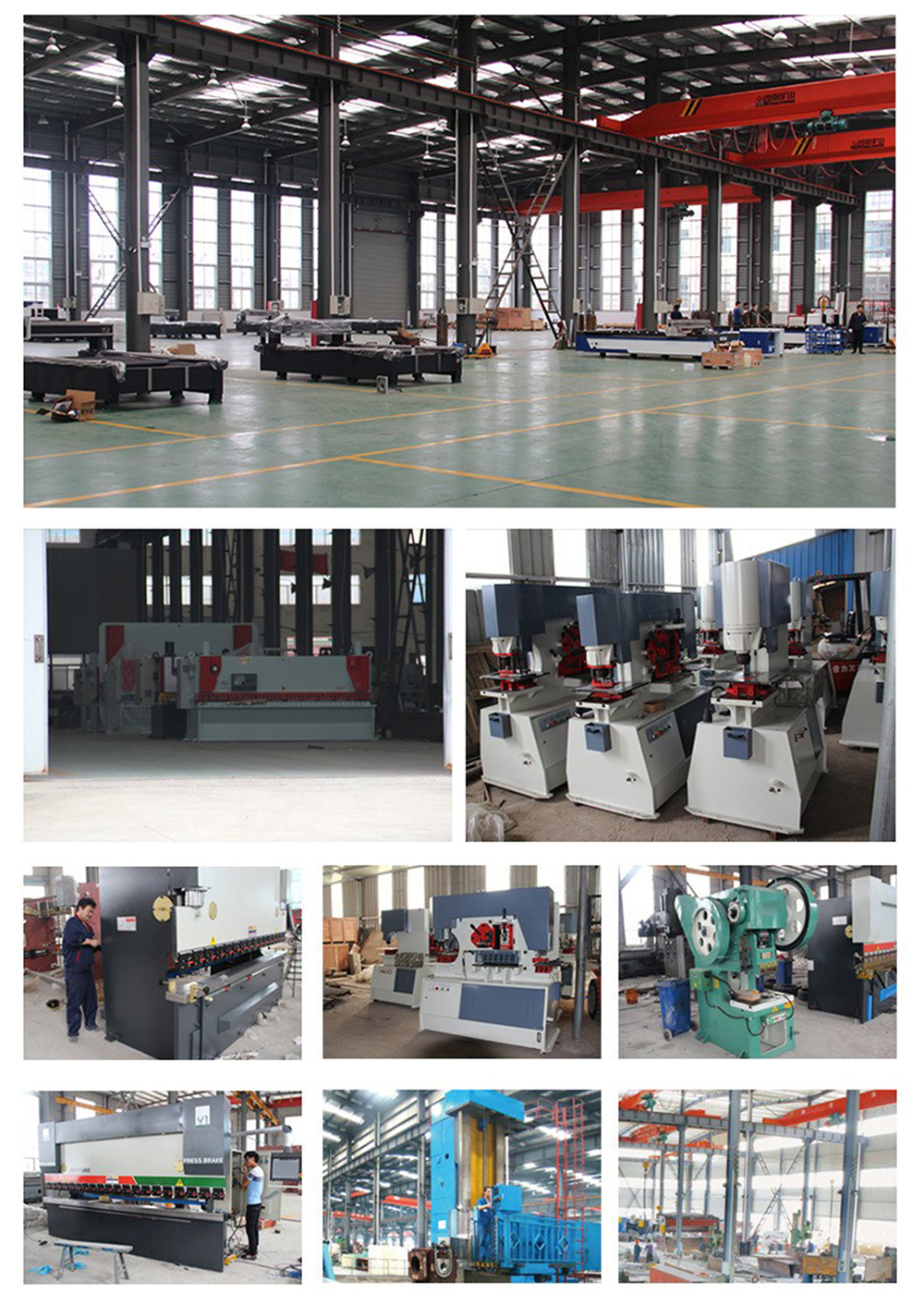

Company Profile

Nadun Machinery Manufacture Co., Ltd. specializes in manufacturing hydraulic presses, punch presses, shearing machines, bending machines, and other machinery that find wide applications in various industries such as automobile manufacturing, home appliances, and hardware processing

Our team of experienced professionals is committed to delivering excellence in their work. With a strong research and development team, we continuously innovate and upgrade our products to cater to the changing market demands. Our products are renowned for their superior quality, outstanding performance, and extended service life

At Nadun Machinery Manufacture Co., Ltd., we take immense pride in our dedication to providing exceptional products and services. Our stringent quality control procedures ensure that each product surpasses our customers' expectations. Furthermore, we provide tailored solutions to meet each customer's specific requirements

We understand that our success is intertwined with our customers' success. Hence, we strive to forge robust relationships with our customers, providing them with the necessary support and guidance to accomplish their objectives

If you're interested in learning more about our products or services, please don't hesitate to contact us. We eagerly anticipate the opportunity to collaborate with you and provide you with the most exceptional solutions for your needs.

hydraulic sheet cutting machine 16*2500 supplier

hydraulic sheet cutting machine 16*2500 details

Packaging & Shipping

The products are packaged internally with moisture-proof and anti-rust plastic materials, and externally with wooden packaging. We also offer exclusive container transportation for our customers.

FAQ

1.Could you furnish me with the relevant documentation?
Certainly, we are able to supply various documentation, including Certificates of Analysis/Conformance, insurance certificates, certificates of origin, and any other required export documents.

2.What's the typical lead time?
For samples, the lead time averages around 30 days. Regarding mass production, it usually takes 30-60 days after receipt of the deposit payment. Our lead times commence upon receipt of your deposit and your final product approval. If our lead times don't align with your timeline, please communicate your needs with your sales representative. In most instances, we can accommodate your requirements.

3.What payment methods are accepted?
We accept payment via bank transfers, Western Union, or PayPal. Our usual payment terms involve a 30% deposit upfront, followed by the remaining 70% balance against a copy of the Bill of Lading (B/L).

4.What kind of product warranty is provided?
We stand by the quality of our materials and workmanship. Our commitment centers on ensuring your satisfaction with our products. Whether within the warranty period or not, our company culture entails addressing and resolving all customer concerns to the contentment of all parties.

5.Can you guarantee the secure delivery of products?
Absolutely, we consistently employ high-quality export packaging methods to ensure the safe and secure delivery of our products. We also employ specialized hazard packaging for dangerous goods and validated cold storage containers for temperature-sensitive items. It's worth noting that specific or non-standard packing requirements may result in an additional charge.

6.How are shipping fees determined?
Shipping costs are contingent on the chosen method for receiving your goods. Express delivery is often the quickest albeit pricier option, while seafreight is preferable for larger quantities. We can furnish you with comprehensive freight rates once we have information regarding the quantity, weight, and shipping method. Kindly get in touch with us for further details.
