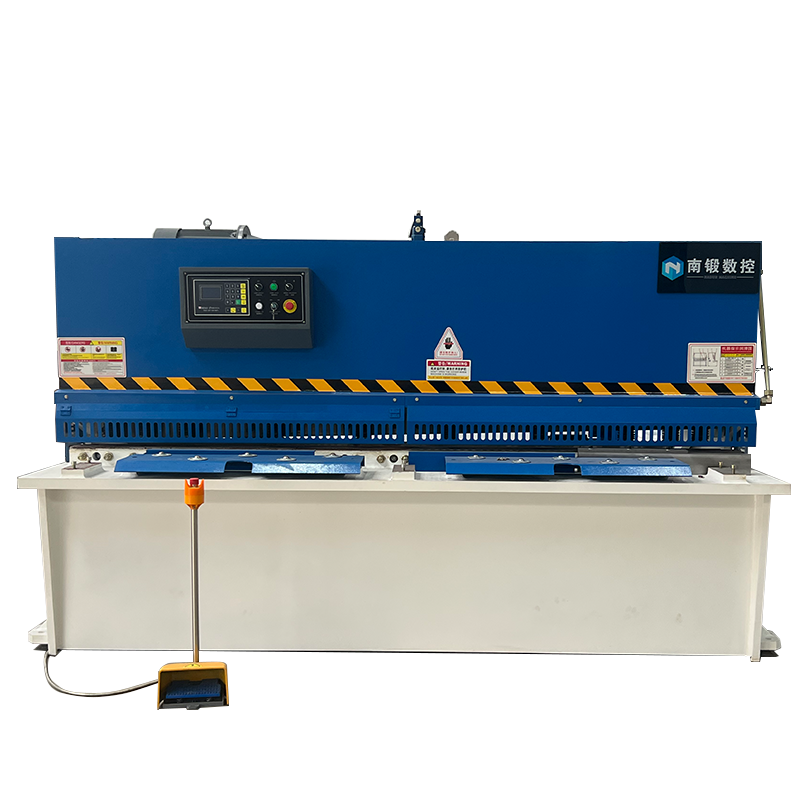

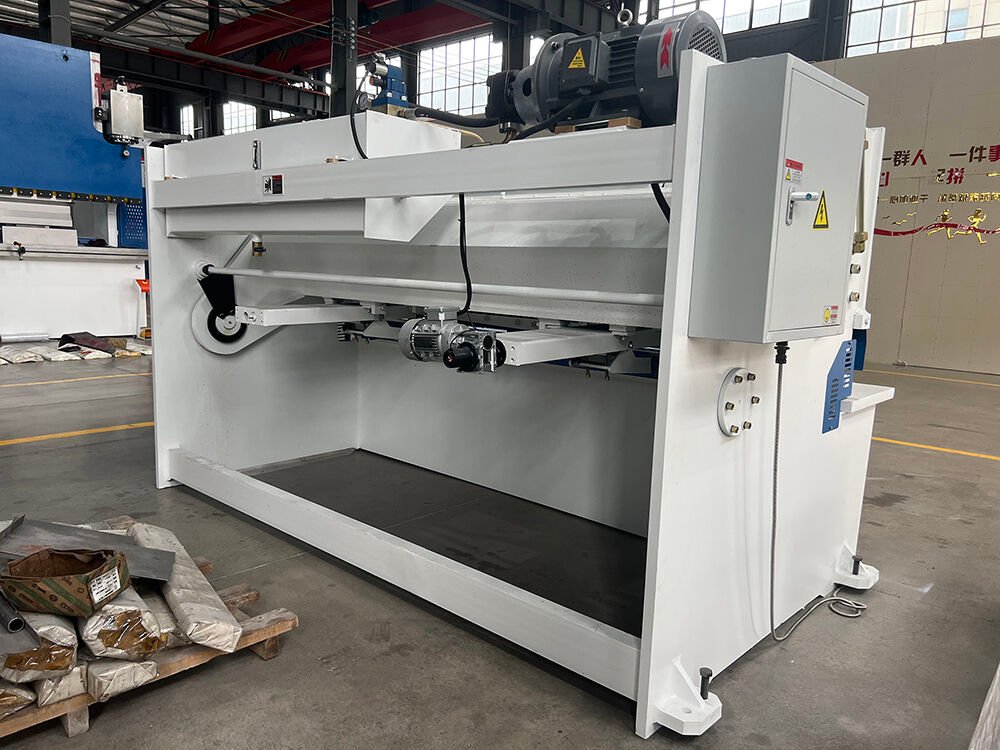

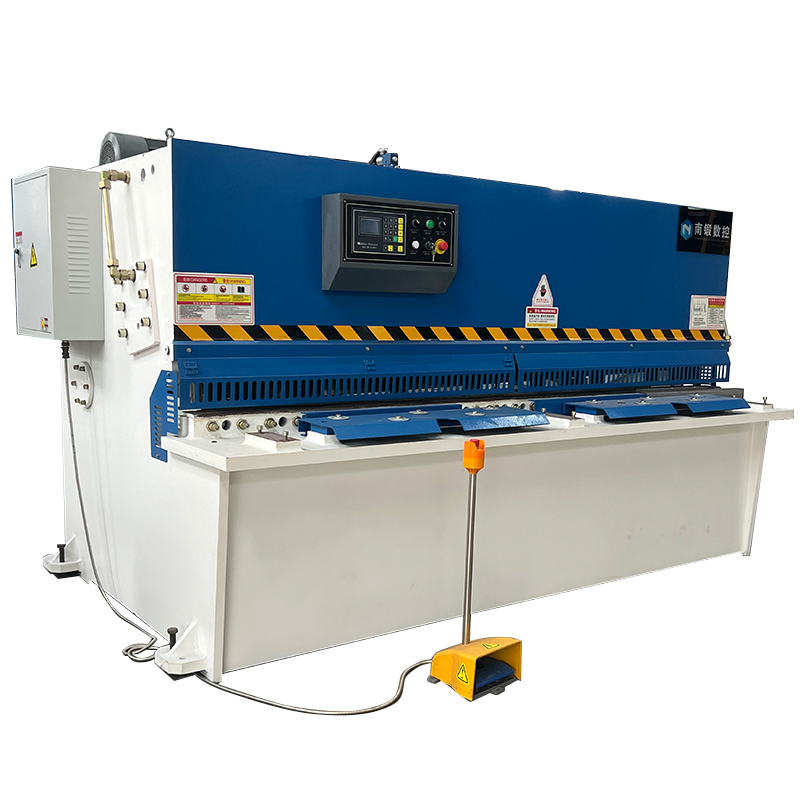

Nadun NC Hydraulic swing beam shearing machine

Nadun NC Hydraulic swing beam shearing machine

Product Overview

Nadun NC Hydraulic swing beam shearing machine factory

Nadun NC Hydraulic swing beam shearing machine manufacture

Main Features

1.Totally EU streamlined design, Monoblock by welding robots & apparatus and stress relief process by Annealing treatment.
2.Adopt integrated hydraulic system, more-reliable and easy for maintenance.
3.The ZW-HOPES Hydraulic Guillotine is a Variable Rake Action machine which is produced in a variety of cutting lengths & capacity options.
4.The distance of the back-gauge is adjusted by the motor and is well adjustment is displayed by E21S.
5.Equipped with lighting-alignment, so as to align when shearing. The stroke of knife beam can be adjusted in stepless mode.
6.Electric interlocker have been designed for the machine to ensure the operation safety.

Standard Equipment

E21S control System
Powered Back gauge X-axis
Cutting Angle & Gap by E21S control
Huade Hydraulic System
Nanjing JINLI Main Motor
Telemecaniques/Renowned French brand Electrics
Hydraulic & Electrical overload protection
Top blade with two cutting edges and bottom blade with four cutting edges.
Front finger Protection
South Korea Kacon Foot Switch

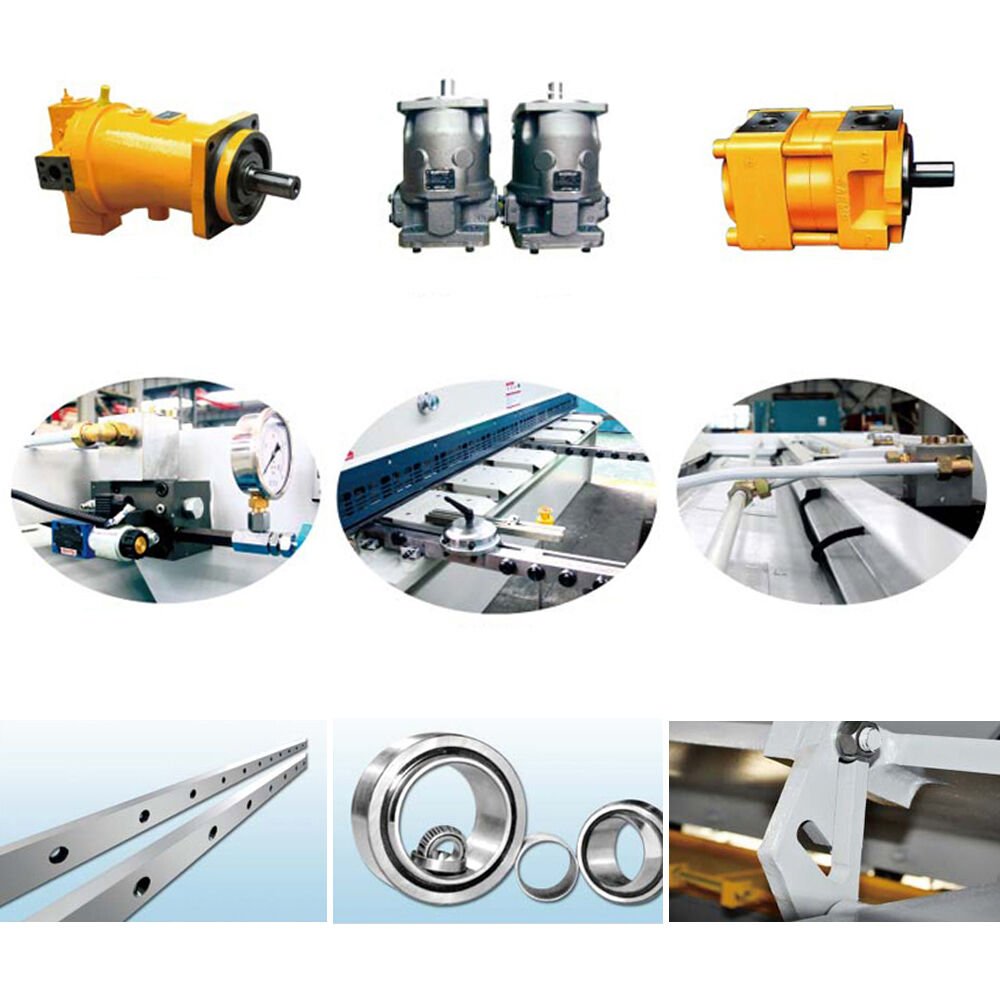

Details and accessories

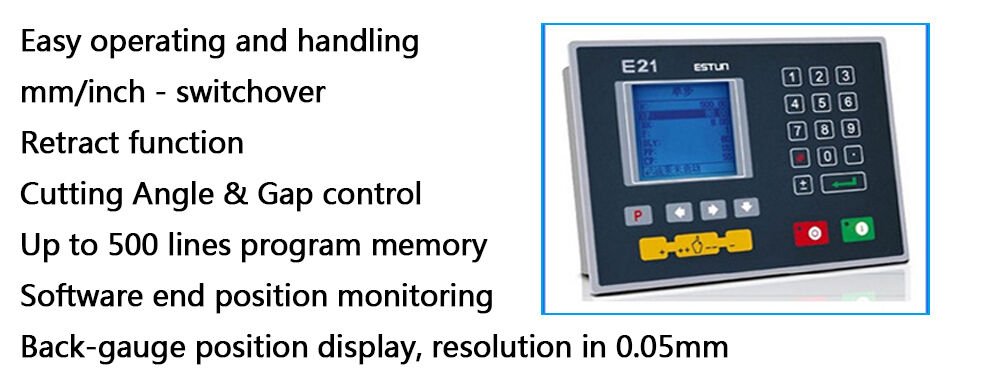

E21S control System

Nadun NC Hydraulic swing beam shearing machine manufacture

Specifications

Model	Cutting Thickness	Cutting Length	Cutting Angel	Material Strength	Stopper Adjust Range	Stroke Times	Motor power	Dimension
TYPE	(mm)	(mm)	(°)	(KN/CM)	(mm)	(times/minute)	(kw)	LxWxH(mm)
4×2500	4	2500	1°30'	≤450	20-500	16	5.5	3040×1550x1550
4×3200	4	3200	1°30'	≤450	20-500	13	5.5	3840x1550x1550
4x4000	4	4000	1°30'	≤450	20-600	10	5.5	4600×1700x1700
4x6000	4	6000	1°30'	≤450	20-800	5	7.5	6460x2100x3200
6×2500	6	2500	1°30'	≤450	20-500	15	7.5	3040x1710x1620
6×3200	6	3200	1°30'	≤450	20-500	12	7.5	3840×1710×1620
6×4000	6	4000	1°30'	≤450	20-600	9	7.5	4620x1850x1700
6x5000	6	5000	1°30'	≤450	20-600	8	7.5	5410×1710×1620
6×6000	6	6000	1°30'	≤450	20-800	5	11	6480×2100×2300
8×2500	8	2500	1°30'	≤450	20-500	11	7.5	3040x1700x1700
8×3200	8	3200	1°30'	≤450	20-500	8	7.5	3860x1700x1700
8x4000	8	4000	1°30'	≤450	20-600	8	7.5	4640x1700v1700
8x5000	8	5000	1°30'	≤450	20-600	8	7.5	5400x2400×2000
8x6000	8	6000	1°30'	≤450	20-800	8	11	6480×2100×2350
10×2500	10	2500	1°30'	≤450	20-500	10	11	3040x1800x1700
10x3200	10	3200	1°30'	≤450	20-500	10	11	3860×2000x1700
10x4000	10	4000	1°30'	≤450	20-600	10	11	4650x2100×2000
10x6000	10	6000	1°30'	≤450	20-800	10	15	6500×2100×2300
12×2500	12	2500	2°	≤450	20-600	12	18.5	3140×2050×2000
12×3200	12	3200	2°	≤450	20-600	10	18.5	3880×2150×2000
12×4000	12	4000	2°	≤450	20-600	10	18.5	4680×2150×2100
12x5000	12	5000	2°	≤450	20-600	6	18.5	3245x1900x1900
12x6000	12	6000	2°	≤450	20-1000	5	18.5	6900×2600×2700
16×2500	16	2500	2°30'	≤450	20-600	10	22	3140x2150x2000
16×3200	16	3200	2°30'	≤450	20-600	10	22	3880×2150×2000
16×4000	16	4000	2°30'	≤450	20-800	10	22	4650x2150×2200
16×5000	16	5000	2°	≤450	20-1000	6	22	5900×2600×2700
16×6000	16	6000	2°	≤450	20-1000	5	22	6900x2700×2700
20×2500	20	2500	3°	≤450	20-800	8	22	3440×2300x2500
20x3200	20	3200	3°	≤450	20-800	8	22	4150x2350×2700
20×4000	20	4000	3°	≤450	20-1000	5	22	4850x2600×2400
20×6000	20	6000	3°	≤450	20-1000	4	30	6700x3000x3000
25×2500	25	2500	3°	≤450	20-1000	8	37	3200×2700×2900
25×3200	25	3200	3°	≤450	20-1000	5	37	4200×2400x2500
30×2500	30	2500	3°	≤450	20-1000	4	37	3300×2900x3000
30×3200	30	3200	3°30'	≤450	20-1000	4	40	4200×2500×2600
40×2500	40	2500	4°	≤450	20-1000	3	55	3200×3300×3200
40×3200	40	3200	4°	≤450	20-1000	3	55	4300x3300×3000

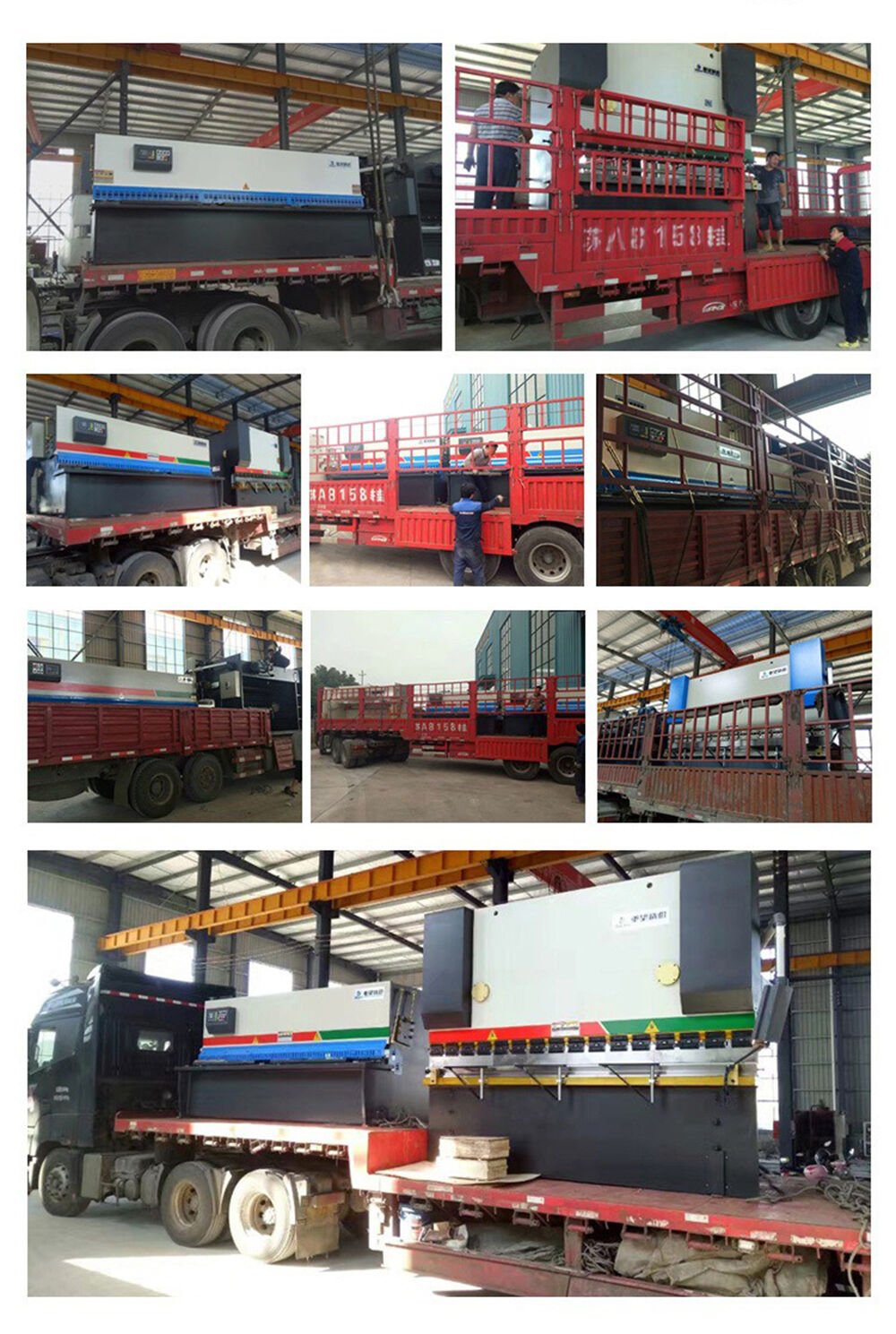

Packaging & Shipping

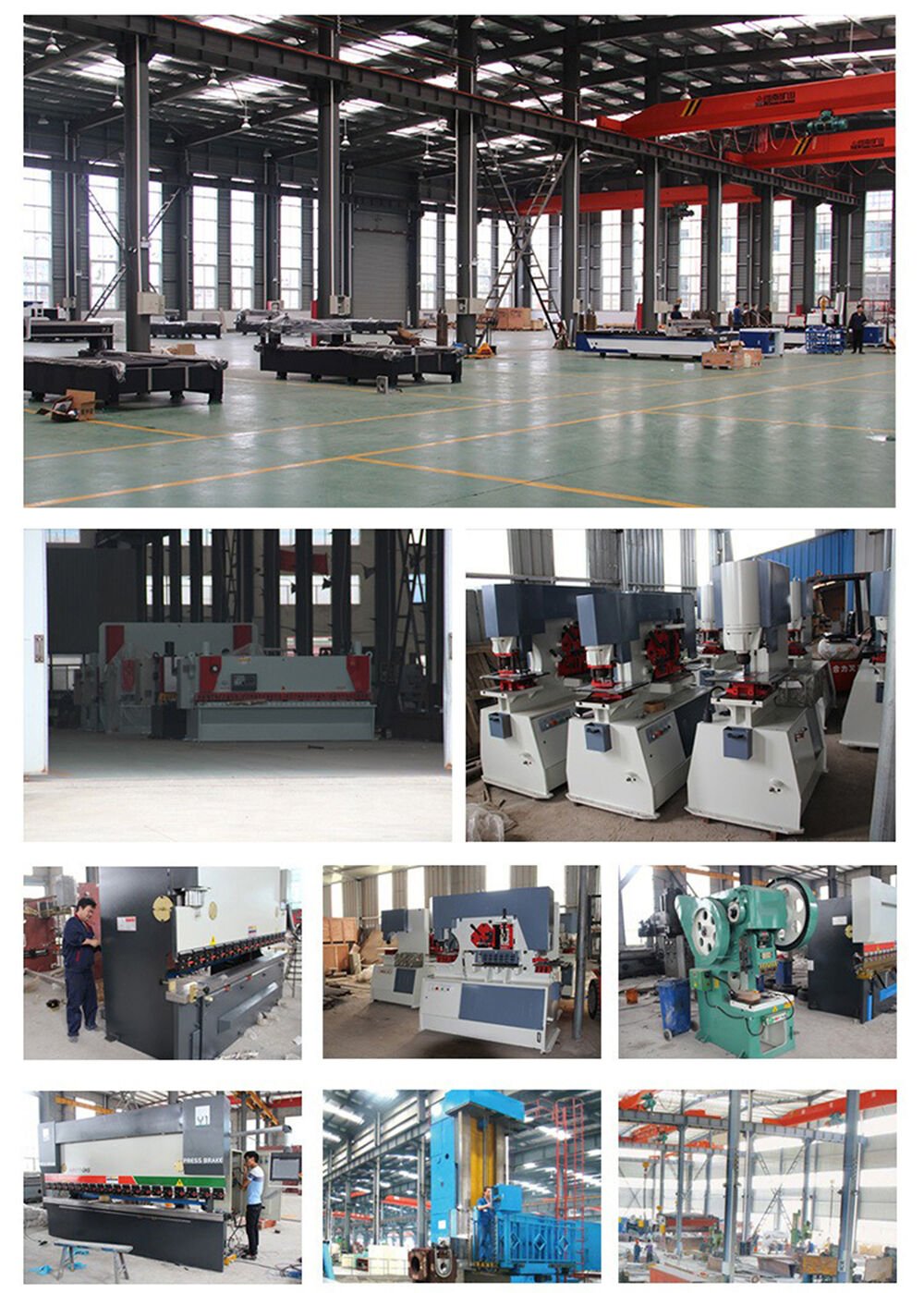

Company Profile

Nadun Machinery Manufacture Co., Ltd. is a company specializing in the production of hydraulic presses, punch presses, shearing machines, bending machines, and other machinery. Our products are widely used in various industries such as automobile manufacturing, home appliances, and hardware processing.

Our company has a team of experienced professionals who consistently strive for excellence in their work. We have a strong research and development team that constantly innovates and improves our products to meet the ever-changing market demands. Our products are known for their high quality, excellent performance, and long service life.

Certifications

FAQ

Q1: How can you get the after-service?
A: We provide one year guarantee.
We will send you the spare parts if the problems caused by us.
Any problem, you can call us directly.

Q2: Can I have a visit to your factory before the order?
A: Sure, welcome to inspect our factory.
Our factory address: No219 Xingye Road Tengzhou City Shandong Province
We can pick you up in the Tengzhou station
Hotel booking service is available .

Q3:Are you a factory or trade company?
A: We are manufacturer with own factory , export proportion 50~60%.

Q4:How can i trust your company?
A:We have professional design, we can provide you suitable suggestion and lowest price
1. Assessed by third party, national patents and CE, ISO for all equipment, .
2. Welcome to inspect anytime.
3. Trade Assurance is available.
