Product Overview

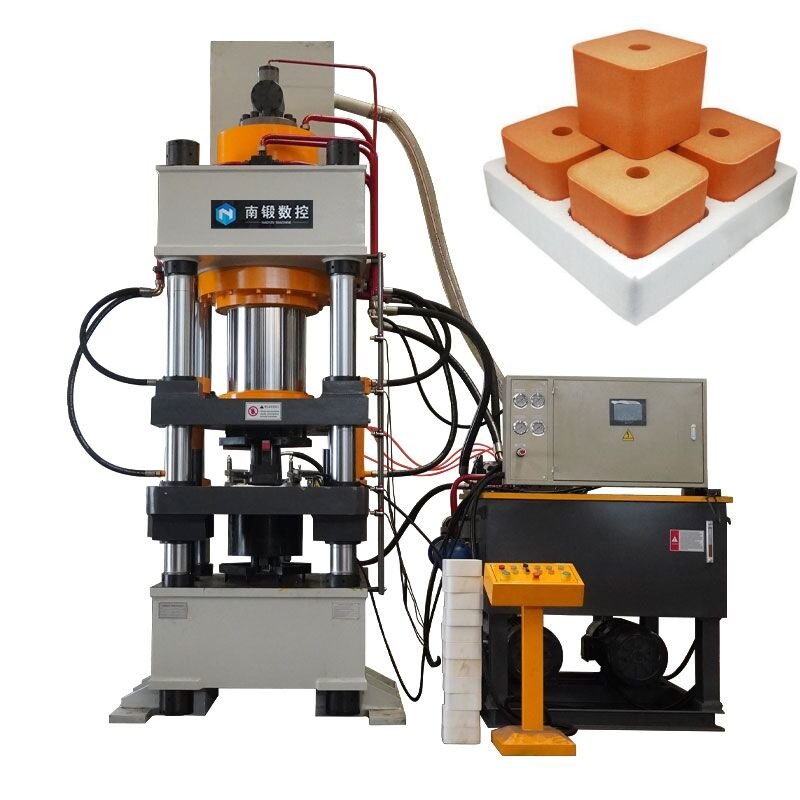

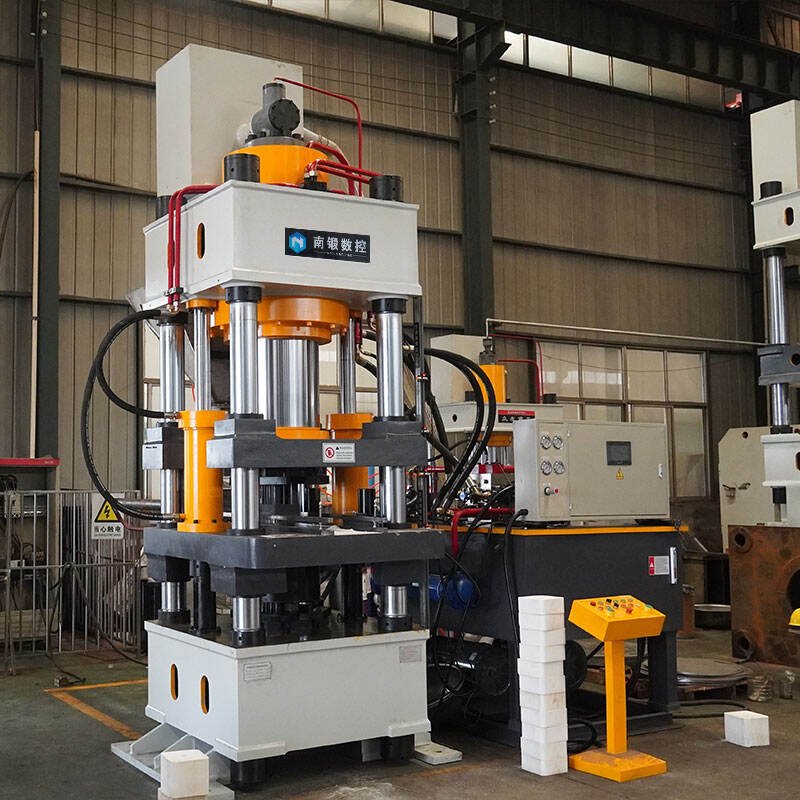

Nadun 500T Automatic Animal Salt Mineral Licking Salt Block Press Machine

Nadun 100 Ton metal deep drawing machine supplier

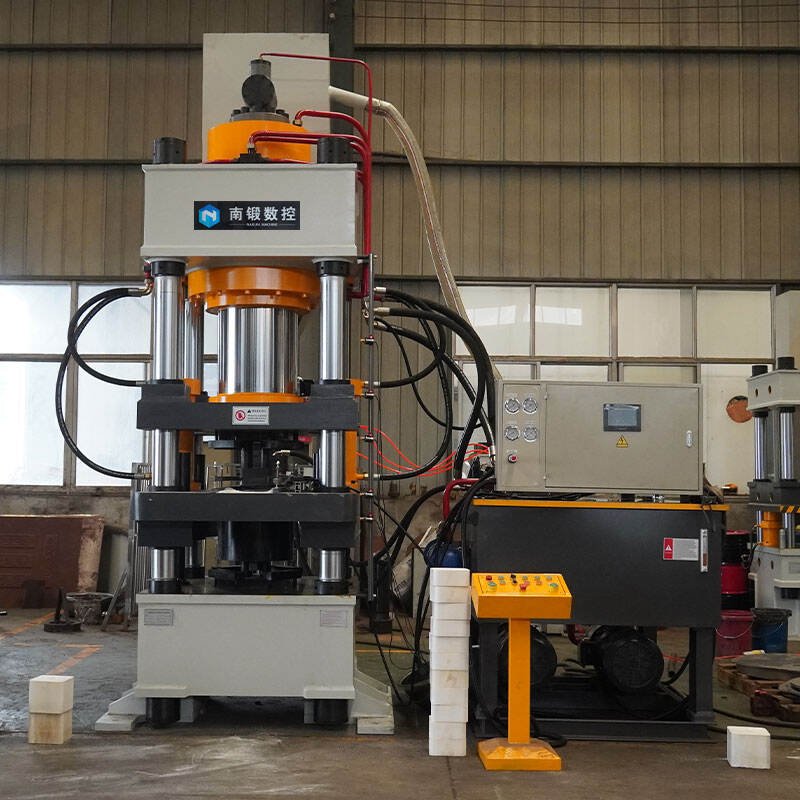

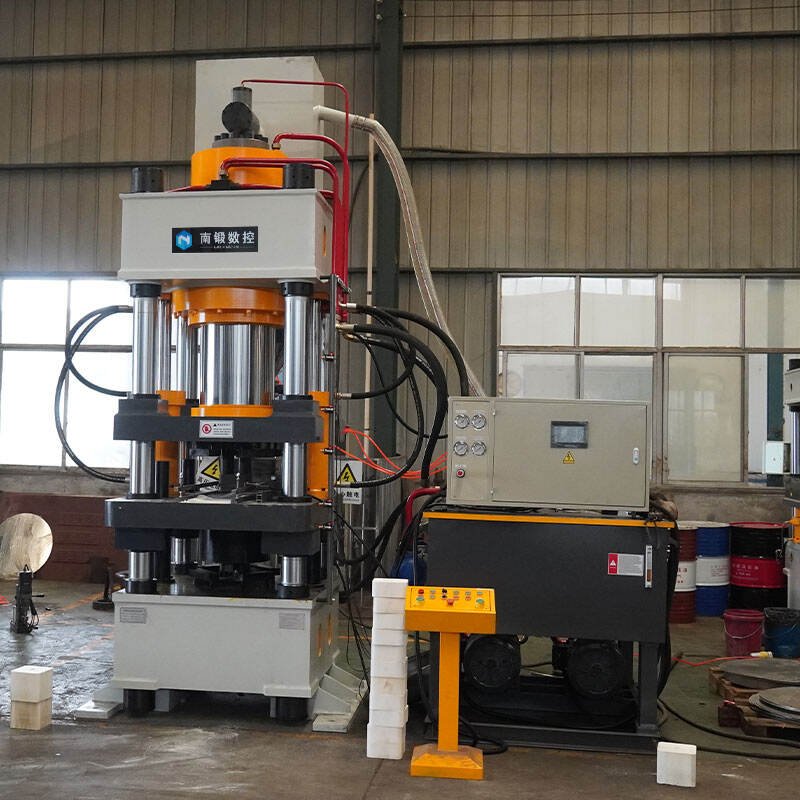

The Nadun 500 ton animal salt mineral licking block hydraulic press machine is a powerful and versatile industrial equipment with a maximum pressing force of 500 tons. It offers smooth and stable operation with advanced hydraulic technology and features adjustability for greater control over the production process. It is built with high-quality materials and components for durability and safety, including emergency stop buttons and safety guards. This machine is a reliable and efficient choice for achieving high-quality results quickly and efficiently.

Nadun 100 Ton metal deep drawing machine details

Highly Customizable

In addition to our standard models, our machines can be customized with various brands and types of components according to your specific requirements, achieving a high degree of customization.

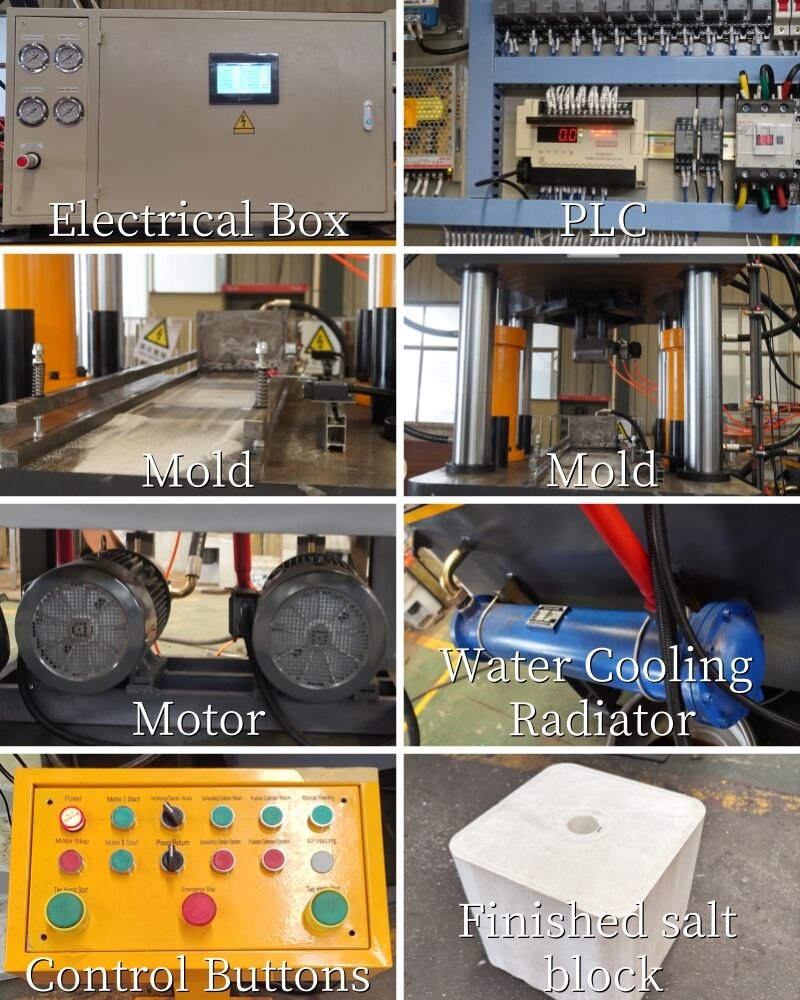

Details Images

Nadun 100 Ton metal deep drawing machine manufacture

Main Piston Rod

Nadun 100 Ton metal deep drawing machine supplier

Mold,Column

The electrical cabinet integrates hydraulic pressure gauges, adjustment knobs and temperature switch.

Independent Pump Station, Electrical Cabinet, and Mobile Control Console

Nadun Hot Sale 500t Salt Blocks Making Machine supplier

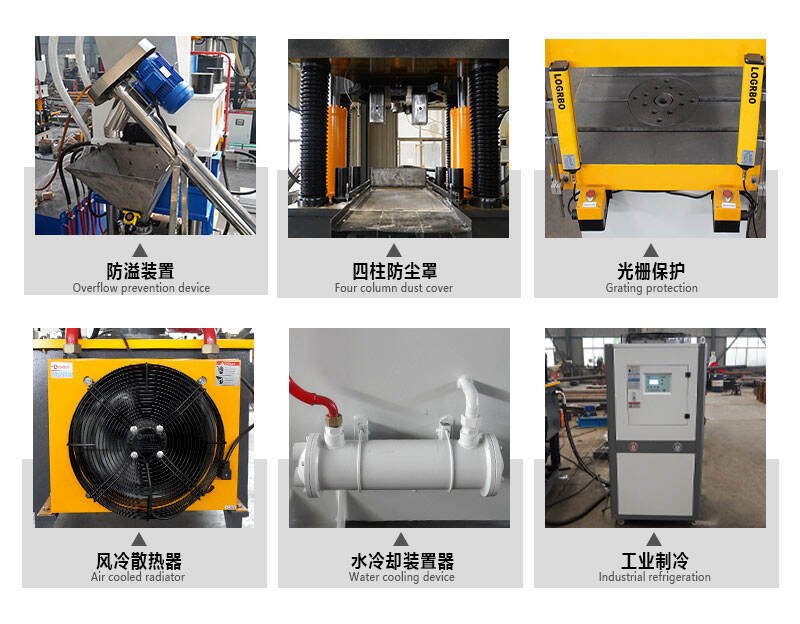

Cooling Device

Specification

item	value
Slide Stroke (mm)	900
Machine Type	Four-column Three-beam Hydraulic Press
Ejector Force (kN)	1600
Return Force (kN)	1000kN
System	Normal
Condition	New
Place of Origin	China
Brand Name	Nadun
Year	2024
Voltage	380V/Optional
Weight (T)	20T
Model Number	YZ79-500T
Motor Power (kw)	44kw
Key Selling Points	Competitive Price
Warranty	1 Year
Applicable Industries	Building Material Shops, Garment Shops, Machinery Repair Shops, Manufacturing Plant, Energy & Mining, Construction works
Showroom Location	None
Marketing Type	Ordinary Product
Machinery Test Report	Provided
Video outgoing-inspection	Provided
Warranty of core components	1 Year
Core Components	Bearing, Motor, Pump, Pressure vessel
Hydraulic Pressure	25 Mpa
Opening Height	1850 mm
Effective Table Area	1600*1760 mm

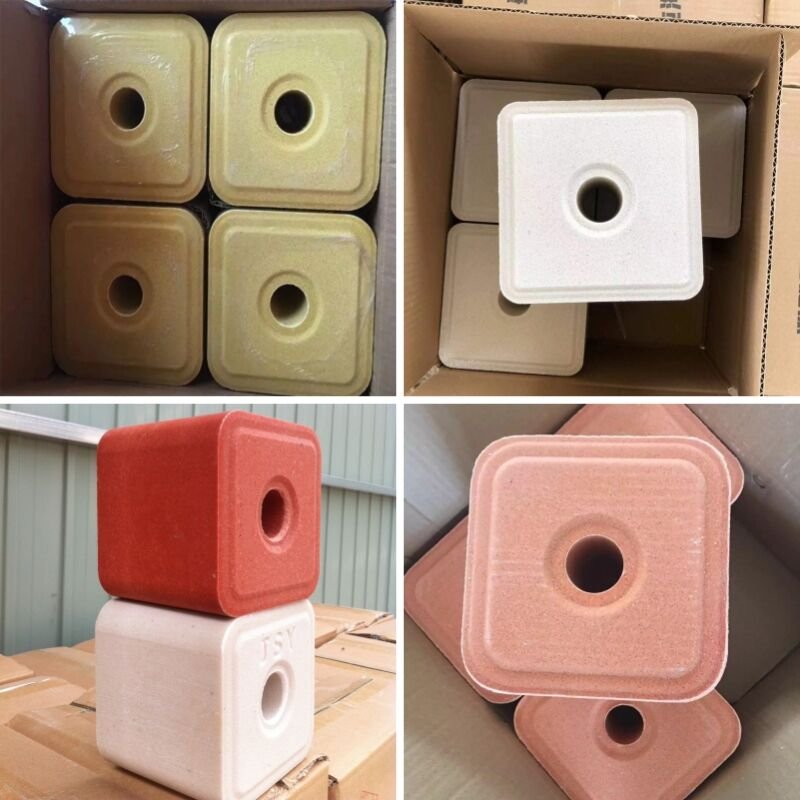

For making weight of salt block	5-10kg

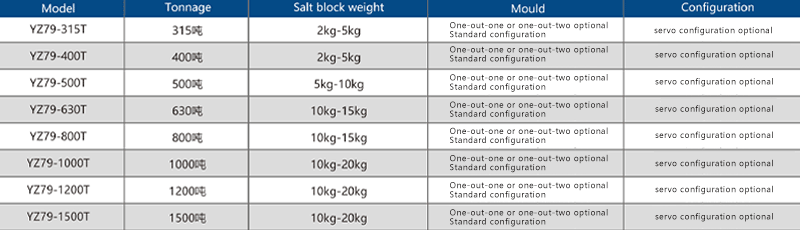

Product Paramenters

Parameter	Unit	YZ79-200T	YZ79-315T	YZ79-500T	YZ79-630T	YZ79-800T
Nominal force	KN	2000	3150	5000	6300	8000
Hydraulic system maximum pressure	Mpa	25	25	25	25	25
Max opening height of the slide	mm	500	700	800	800	800
Max stroke of the slide	mm	360	400	500	500	500
Workbench effective area	mm	1000x1000	1000x1000	1100x1100	1100x1100	1200x1200
Ejector cylinder nominal force	KN	100	100	200	200	400
the stroke of the eject	mm	160	160	200	200	200
For making weight of salt block	kg	2-3kg	3-5kg	5-10kg	10-15kg	15-20kg

The aforementioned table details the standard specifications for our YZ79 series of deep drawing hydraulic presses, with the 500-ton model being the emphasized variant. Additionally, we are capable of tailoring machinery to meet diverse types and applications as per your specific needs.

Certifications

CE Certification
