The bending machine is a machine that can bend thin plates. Its structure mainly includes a bracket, a workbench and a clamping plate. The workbench is placed on the bracket. The workbench consists of a base and a pressure plate. The base is connected to the clamping plate through a hinge. The base consists of a base shell, a coil and a cover plate. The coil is placed in the depression of the base shell, and the top of the depression is covered with a cover plate. When in use, the coil is energized by a wire, and after energization, a gravitational force is generated on the pressure plate, thereby clamping the thin plate between the pressure plate and the base. Due to the use of electromagnetic force clamping, the pressure plate can be made into a variety of workpiece requirements, and can process workpieces with side walls, which is easy to operate.
Features
1. All-steel welded structure, high mechanical strength and good rigidity. Hydraulic upper transmission, stable operation.
2. Mechanical stopper, torsion shaft synchronization, high precision.
3. Back stop distance, upper slide stroke, electric adjustment, manual fine-tuning device, digital display.
4. The upper die is equipped with a deflection compensation mechanism, and the lower deflection compensation mechanism can be used for machine tools with a capacity of 250 tons and a length of more than 4000mm.
Details

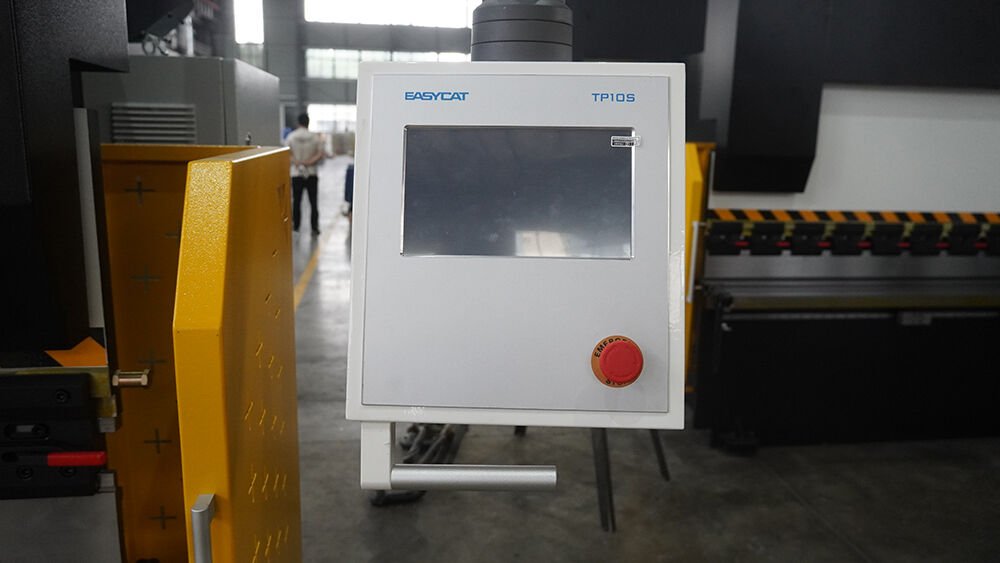

TP10S Control System
1. 10-inch high-definition color touch screen
2. Menu-based programming interface
3. Equipped with servo motor
4. CANopen bus control method, completely eliminating interference positioning error
5. Supports angle programming, the system automatically calculates the bending depth of the plate
6. Slider position control
7. Back gauge position control
8. Pressure holding time setting
9. 20 programs, each program has 20 steps
10. Soft limit function
11. Power-off memory
Specification
Type | Nominal force | Worktable length | Poles distance | Throat depth | Slider travel | Max open (mm) | Power (KN) | Weight | Dimension (mm) |
(KN) | (mm) | (mm) | (mm) | (mm) | |||||
40t/2200 | 400 | 2200 | 1850 | 230 | 100 | 320 | 5.5 | 2750 | 2200*1200*1900 |
40t/2500 | 400 | 2500 | 1850 | 230 | 100 | 320 | 5.5 | 3000 | 2500*1200*1900 |
50t/2500 | 500 | 2500 | 1850 | 230 | 100 | 320 | 5.5 | 3400 | 2500*1200*2000 |
63t/2500 | 630 | 2500 | 1900 | 250 | 100 | 320 | 5.5 | 4000 | 2500*1300*2210 |
63t/3200 | 630 | 3200 | 2560 | 250 | 100 | 320 | 5.5 | 4800 | 3200*1300*2210 |
80t/2500 | 800 | 2500 | 1990 | 300 | 100 | 320 | 7.5 | 5000 | 2500*1400*2300 |
80t/3200 | 800 | 3200 | 2560 | 320 | 100 | 350 | 7.5 | 6000 | 3200*1500*2300 |
80t/4000 | 800 | 4000 | 3200 | 320 | 100 | 350 | 7.5 | 7000 | 4000*1500*2400 |
100t/2500 | 1000 | 2500 | 1990 | 320 | 120 | 350 | 7.5 | 6000 | 2500*1600*2400 |
100t/3200 | 1000 | 3200 | 2600 | 320 | 150 | 400 | 7.5 | 6800 | 3200*1600*2600 |
100t/4000 | 1000 | 4000 | 3200 | 320 | 150 | 400 | 7.5 | 8000 | 4000*1600*2600 |
125t/3200 | 1250 | 3200 | 2600 | 320 | 150 | 400 | 11 | 7000 | 3200*1600*2600 |
125t/4000 | 1250 | 4000 | 3200 | 320 | 150 | 400 | 11 | 8500 | 4000*1600*2600 |
160t/3200 | 1600 | 3200 | 2580 | 320 | 200 | 460 | 11 | 10000 | 3200*1700*2700 |
160t/4000 | 1600 | 4000 | 2900 | 320 | 200 | 460 | 11 | 11000 | 4000*1700*2800 |
160t/5000 | 1600 | 5000 | 3900 | 320 | 200 | 460 | 11 | 13500 | 5000*1900*3100 |
160t/6000 | 1600 | 6000 | 4900 | 320 | 200 | 460 | 11 | 18500 | 6300*1900*3200 |
200t/3200 | 2000 | 3200 | 2480 | 320 | 200 | 460 | 11 | 11000 | 3200*1950*2800 |
200t/4000 | 2000 | 4000 | 2900 | 320 | 200 | 460 | 11 | 12500 | 4000*1950*2800 |
200t/5000 | 2000 | 5000 | 3900 | 320 | 200 | 460 | 11 | 14000 | 5000*1950*3000 |
200t/6000 | 2000 | 6000 | 4900 | 320 | 200 | 460 | 11 | 20000 | 6000*1950*3300 |
250t/3200 | 2500 | 3200 | 2450 | 400 | 250 | 590 | 18.5 | 18500 | 3250*2000*3200 |
250t/4000 | 2500 | 4000 | 2900 | 400 | 250 | 590 | 18.5 | 20000 | 4000*2000*3400 |
250t/5000 | 2500 | 5000 | 3900 | 400 | 250 | 590 | 18.5 | 23000 | 5000*2000*3400 |
250t/6000 | 2500 | 6000 | 4900 | 400 | 250 | 590 | 18.5 | 27000 | 6000*2000*3400 |
300t/3200 | 3000 | 3200 | 2450 | 400 | 250 | 590 | 22 | 20500 | 3200*2000*3450 |
300t/4000 | 3000 | 4000 | 2900 | 400 | 250 | 590 | 22 | 22000 | 4000*2000*3450 |
300t/5000 | 3000 | 5000 | 3900 | 400 | 250 | 590 | 22 | 25000 | 5000*2000*3450 |
300t/6000 | 3000 | 6000 | 4900 | 400 | 250 | 590 | 22 | 28500 | 6000*2000*3450 |
400t/3200 | 4000 | 3200 | 2400 | 400 | 250 | 590 | 30 | 22500 | 3200*2180*3400 |
400t/4000 | 4000 | 4000 | 2900 | 400 | 250 | 590 | 30 | 25000 | 4000*2180*3400 |
400t/5000 | 4000 | 5000 | 3900 | 400 | 250 | 590 | 30 | 29000 | 5000*2180*3500 |
400t/6000 | 4000 | 6000 | 4900 | 400 | 250 | 590 | 30 | 34000 | 6000*2180*3800 |
500t/5000 | 5000 | 5000 | 3900 | 400 | 250 | 590 | 45 | 42000 | 5050*3500*3700 |
500t/6000 | 5000 | 6000 | 4900 | 400 | 320 | 590 | 45 | 54000 | 6050*3500*3700 |
600t/5000 | 6000 | 4000 | 2900 | 400 | 320 | 590 | 55 | 44000 | 4050*4500*3700 |
600t/6000 | 6000 | 6000 | 4900 | 400 | 320 | 590 | 55 | 60000 | 6050*4500*3700 |
Packaging & Shipping

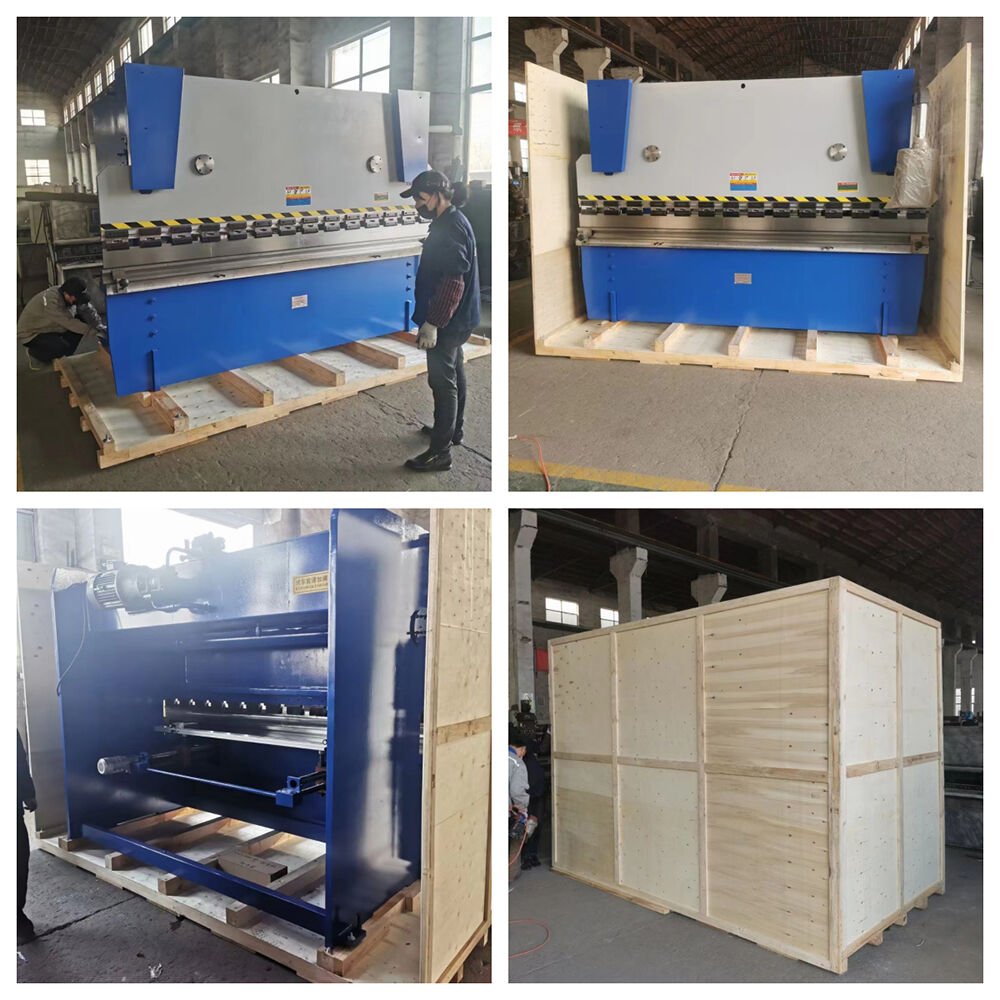

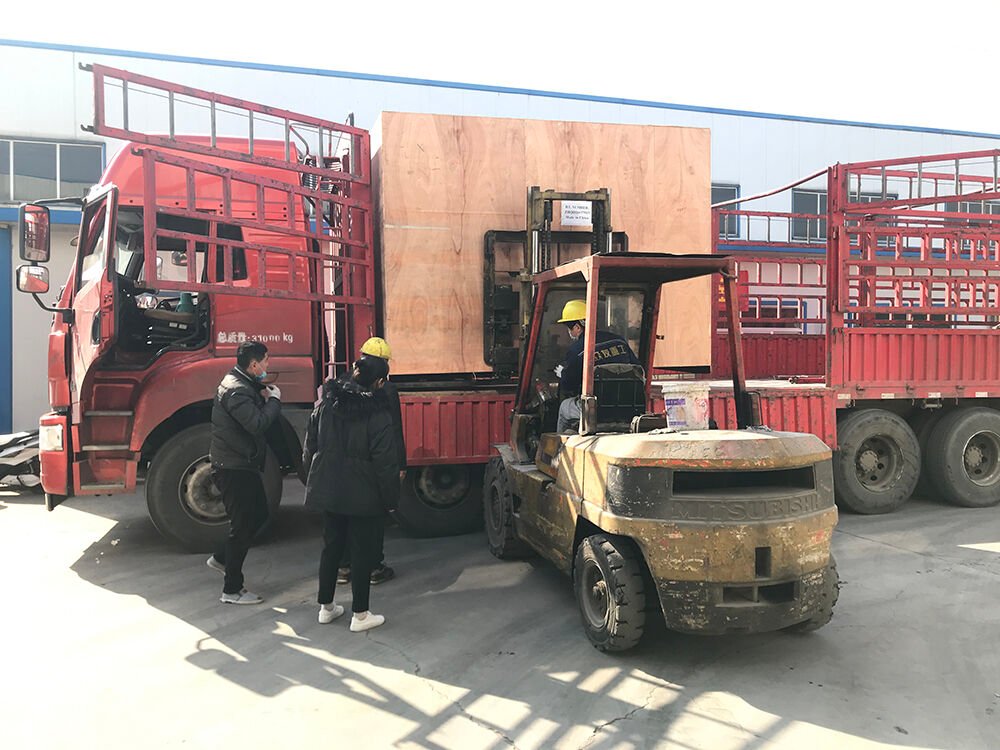

We use internal packaging made of moisture-resistant plastic to prevent rust, along with external packaging made of wood. This ensures that the product remains well-protected during transport. Additionally, we exclusively use container transport to further minimize the risk of damage or contamination.
