Nadun 400t Automatic Animal Salt Mineral Licking Block Hydraulic Press Machine

Nadun 400t Automatic Animal Salt Mineral Licking Block Hydraulic Press Machine

Model	Tonnage	Salt block weight	Mould	Configuration
YZ79-315T	315T	2kg-5kg	Prgss one piece at a time or two pleces at a time optioal	ordinary/servo press optional
YZ79-400T	400T	2kg-5kg	Prgss one piece at a time or two pleces at a time optioal	ordinary/servo press optional
YZ79-500T	500T	5kg-10kg	Prgss one piece at a time or two pleces at a time optioal	ordinary/servo press optional
YZ79-630T	630T	10kg-15kg	Prgss one piece at a time or two pleces at a time optioal	ordinary/servo press optional
YZ79-800T	800T	10kg-15kg	Prgss one piece at a time or two pleces at a time optioal	ordinary/servo press optional
YZ79-1000T	1000T	10kg-20kg	Prgss one piece at a time or two pleces at a time optioal	ordinary/servo press optional
YZ79-1200T	1200T	10kg-20kg	Prgss one piece at a time or two pleces at a time optioal	ordinary/servo press optional
YZ79-1500T	1500T	10kg-20kg	Prgss one piece at a time or two pleces at a time optioal	ordinary/servo press optional

Product Overview

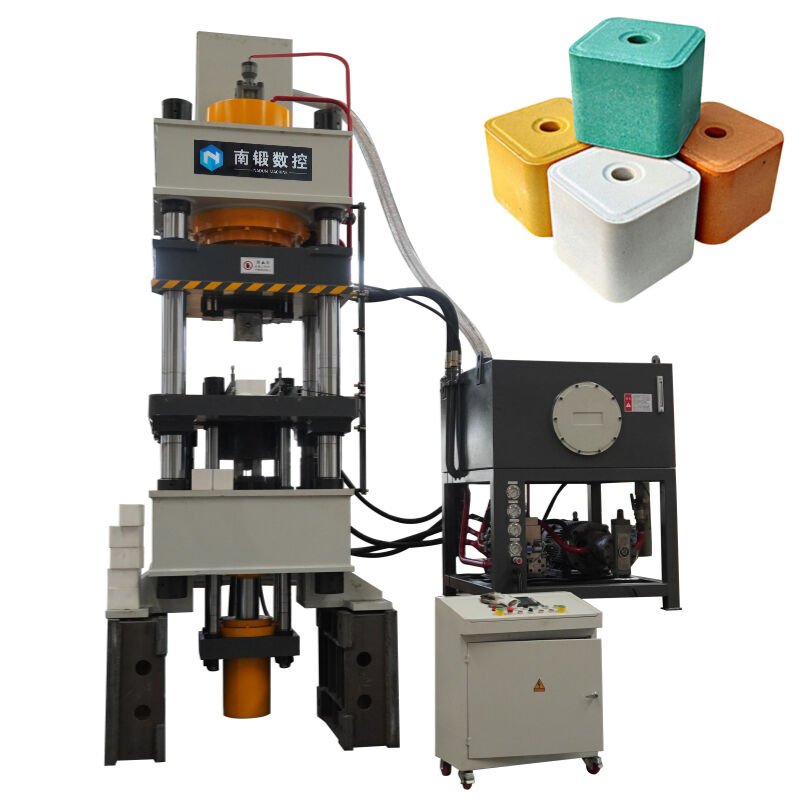

Nadun 400T Automatic Animal Salt Mineral Licking Block Hydraulic Press Machine

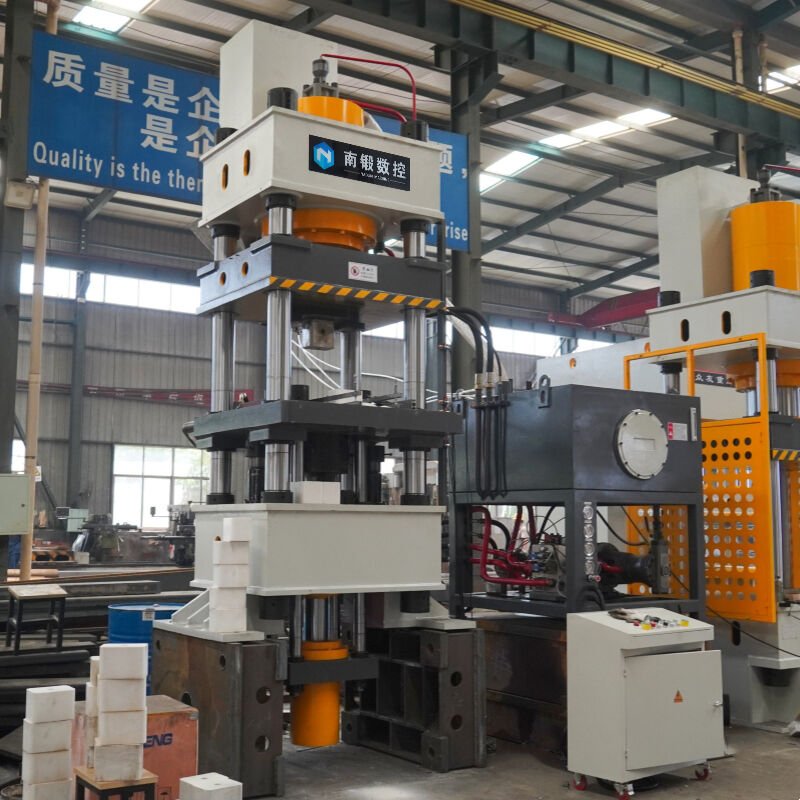

Automatic Animal Salt Mineral Licking Block Hydraulic Press Machine (2).jpg

The Nadun 200 ton animal salt mineral licking block hydraulic press machine is a powerful and versatile industrial equipment with a maximum pressing force of 200 tons. It offers smooth and stable operation with advanced hydraulic technology and features adjustability for greater control over the production process. It is built with high-quality materials and components for durability and safety, including emergency stop buttons and safety guards. This machine is a reliable and efficient choice for achieving high-quality results quickly and efficiently.

Highly Customizable

In addition to our standard models, our machines can be customized with various brands and types of components according to your specific requirements, achieving a high degree of customization.

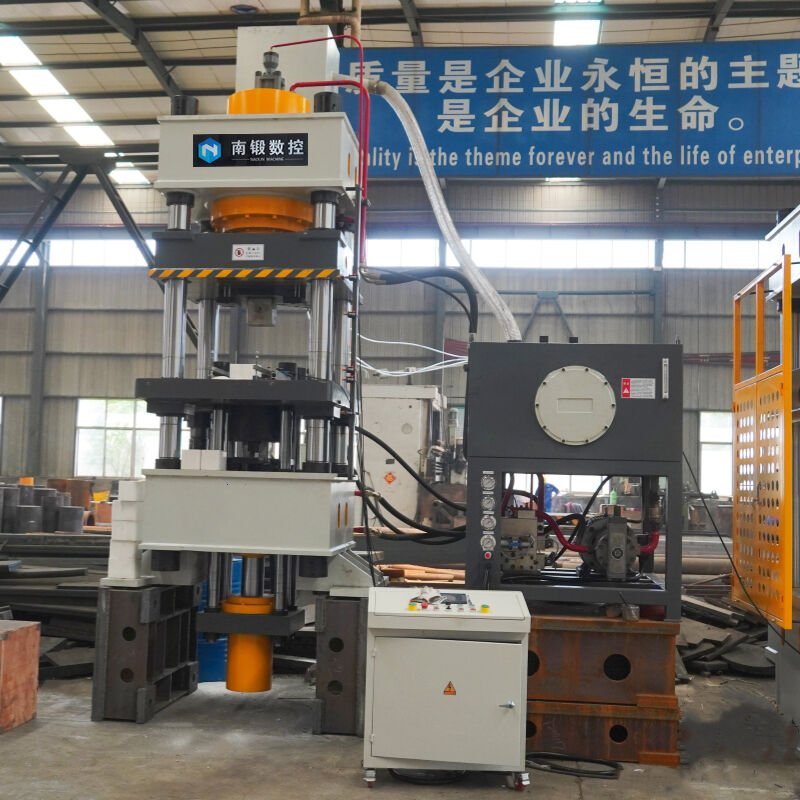

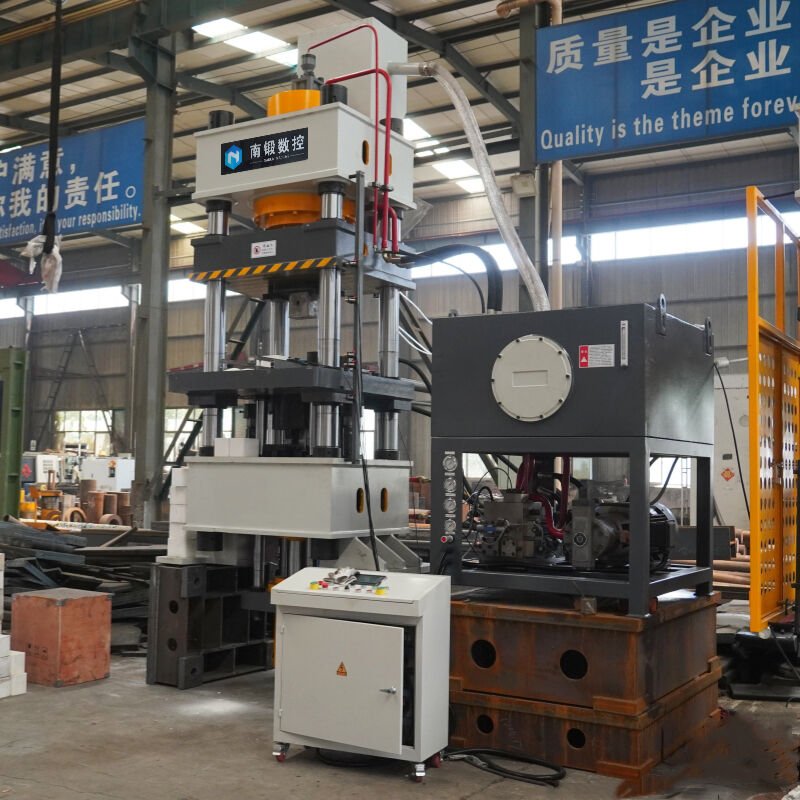

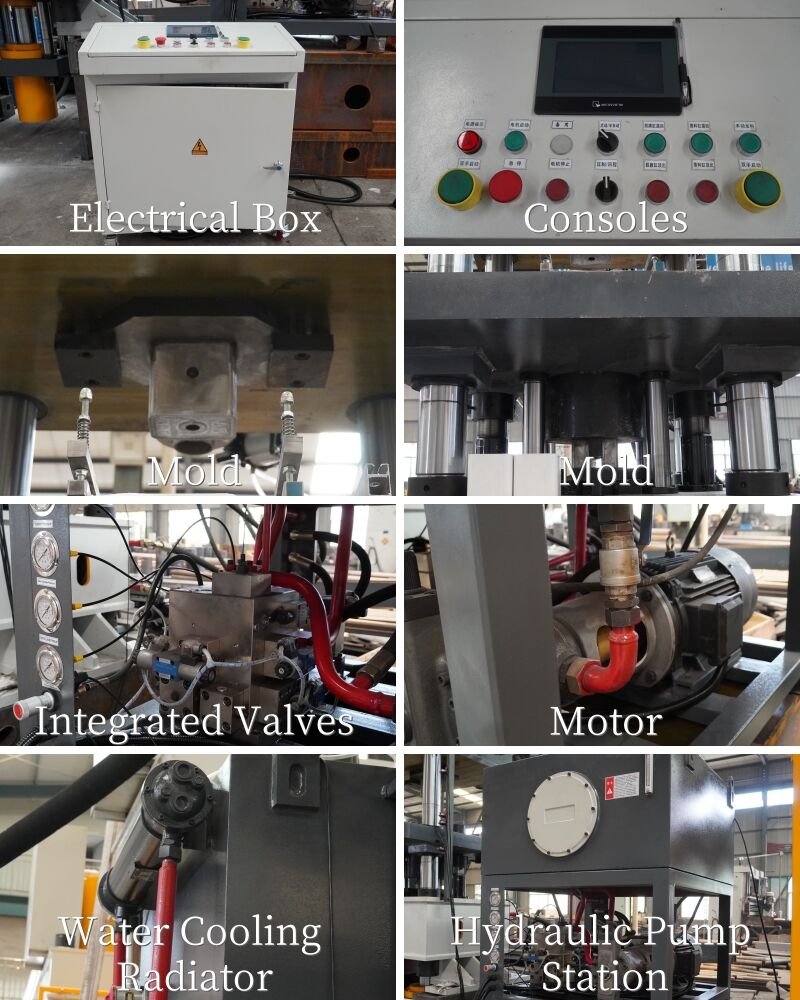

Details Images

Automatic Animal Salt Mineral Licking Block Hydraulic Press Machine (5).jpg

Specification

item	value
Slide Stroke (mm)	600
Machine Type	Four-column Three-beam Hydraulic Press
Ejector Force (kN)	360
Return Force (kN)	200kN
System	Normal
Condition	New
Place of Origin	China
Brand Name	Nadun
Year	2024
Voltage	380V/Optional
Weight (T)	10T
Model Number	YZ79-200T
Motor Power (kw)	11kw
Key Selling Points	Competitive Price
Warranty	1 Year
Applicable Industries	Building Material Shops, Garment Shops, Machinery Repair Shops, Manufacturing Plant, Energy & Mining, Construction works
Showroom Location	None
Marketing Type	Ordinary Product
Machinery Test Report	Provided
Video outgoing-inspection	Provided
Warranty of core components	1 Year
Core Components	Bearing, Motor, Pump, Pressure vessel
Hydraulic Pressure	25 Mpa
Opening Height	500 mm
Effective Table Area	1000*1000 mm
Hydraulic Cushion Ejection Force	100 KN
Ejection Stroke	160 mm
For making weight of salt block	2-3kg

Product Paramenters

Parameter	Unit	YZ79-200	YZ79-315	YZ79-500	YZ79-630	YZ79-800
Nominal force	KN	2000	3150	5000	6300	8000
Hydraulic system maximum pressure	Mpa	25	25	25	25	25
Max opening height of the slide	mm	500	700	800	800	800
Max stroke of the slide	mm	360	400	500	500	500
Workbench effective area	mm	1000x1000	1000x1000	1100x1100	1100x1100	1200x1200
Ejector cylinder nominal force	KN	100	100	200	200	400
the stroke of the eject	mm	160	160	200	200	200
For making weight of salt block	kg	2-3kg	3-5kg	5-10kg	10-15kg	15-20kg

The aforementioned table details the standard specifications for our YZ79 series of deep drawing hydraulic presses, with the 200-ton model being the emphasized variant. Additionally, we are capable of tailoring machinery to meet diverse types and applications as per your specific needs.

Certifications

CE Certification
