Place of Origin: |
Tengzhou China |
|
Brand Name: |
Nadun |
|
Model Number: |
YM-200T |
|
Certification: |
CE ISO |
|
Minimum Order Quantity: |
1 |
|
Packaging Details: |
The sample includes a hydraulic press and mold. Please contact us for more details. |
|
Delivery Time: |
15-45 day |
|
Payment Terms: |
L/C D/P D/A T/T |
|
Supply Ability: |
50set/m |

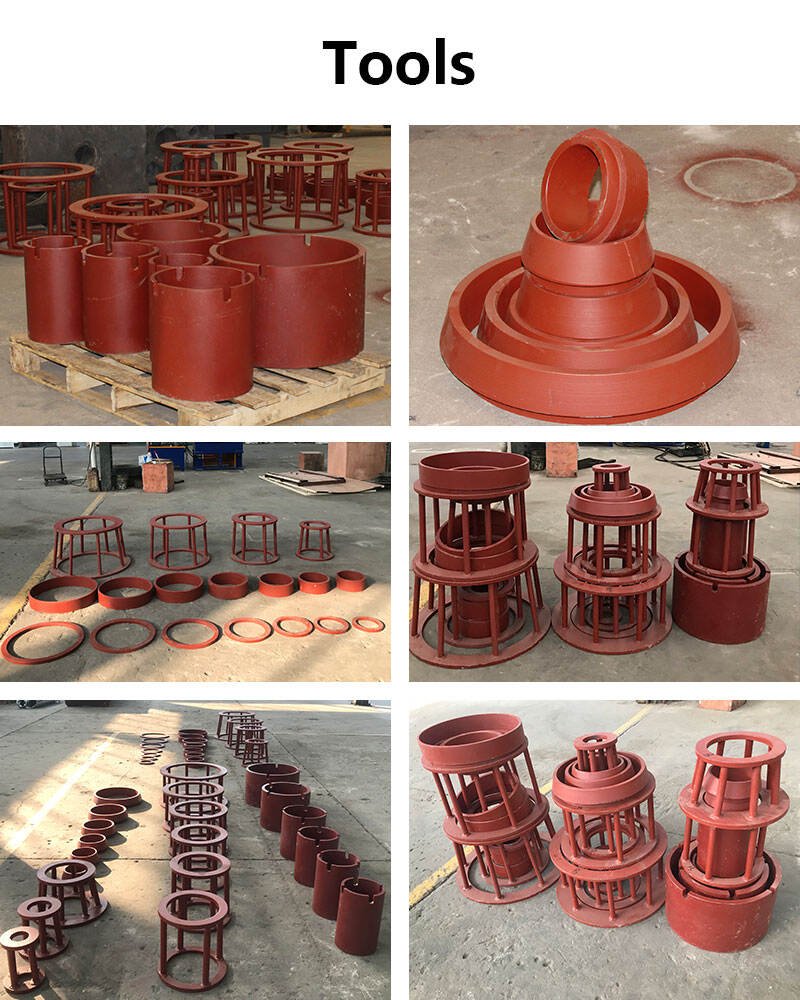

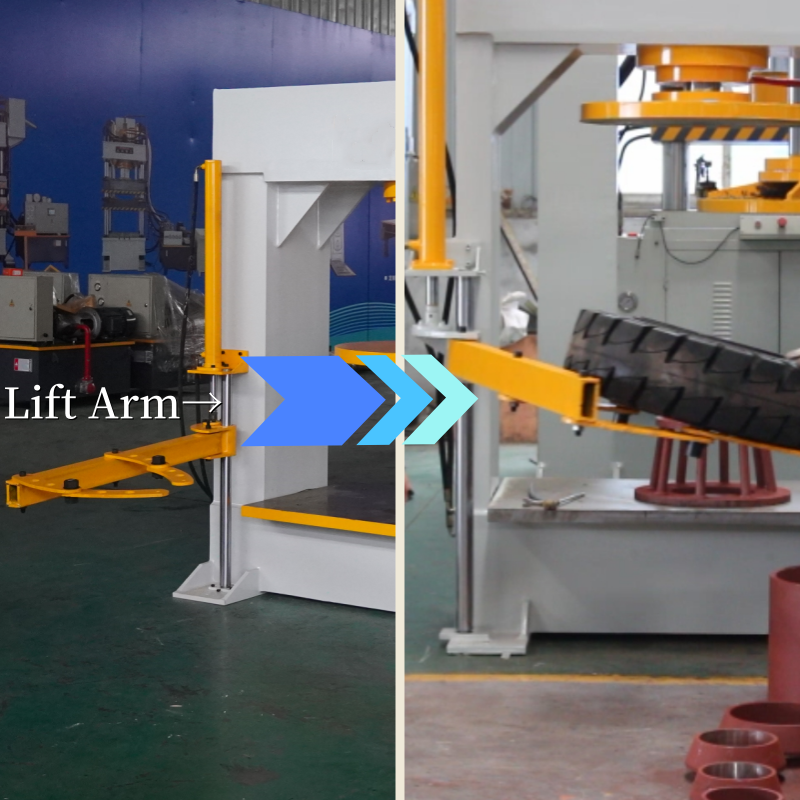

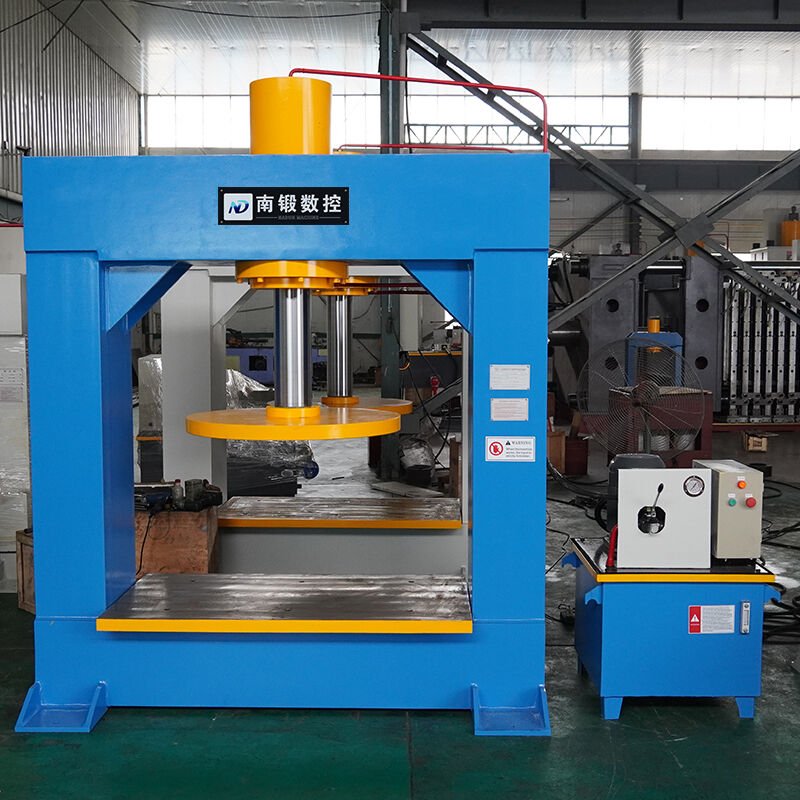

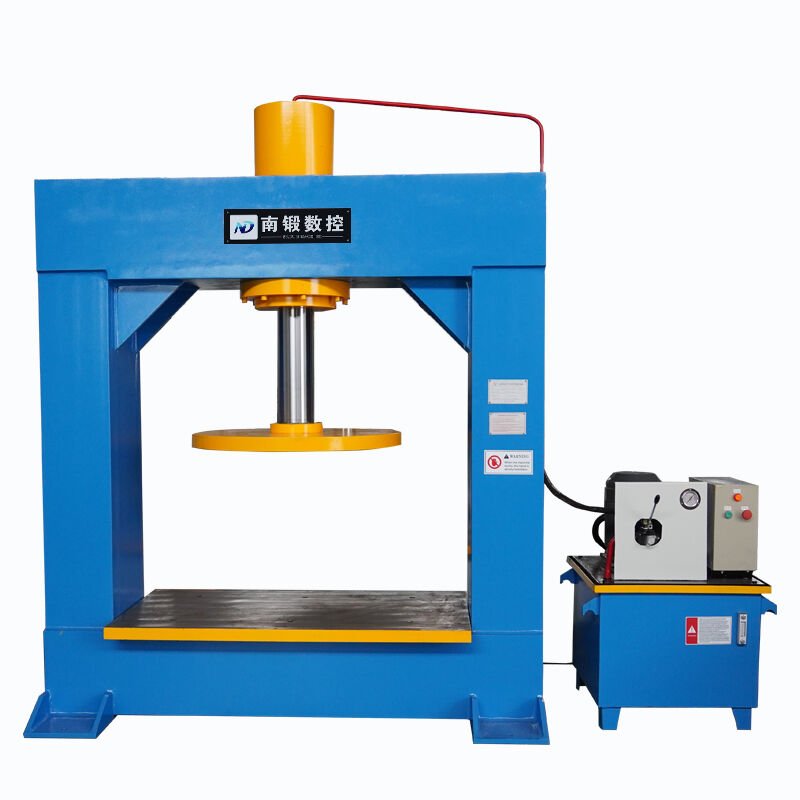

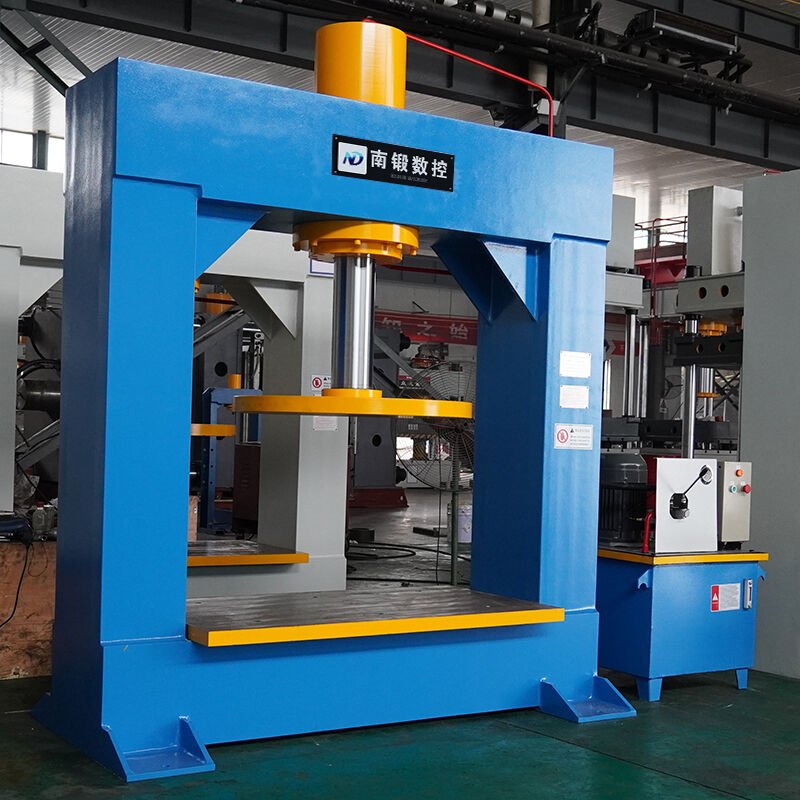

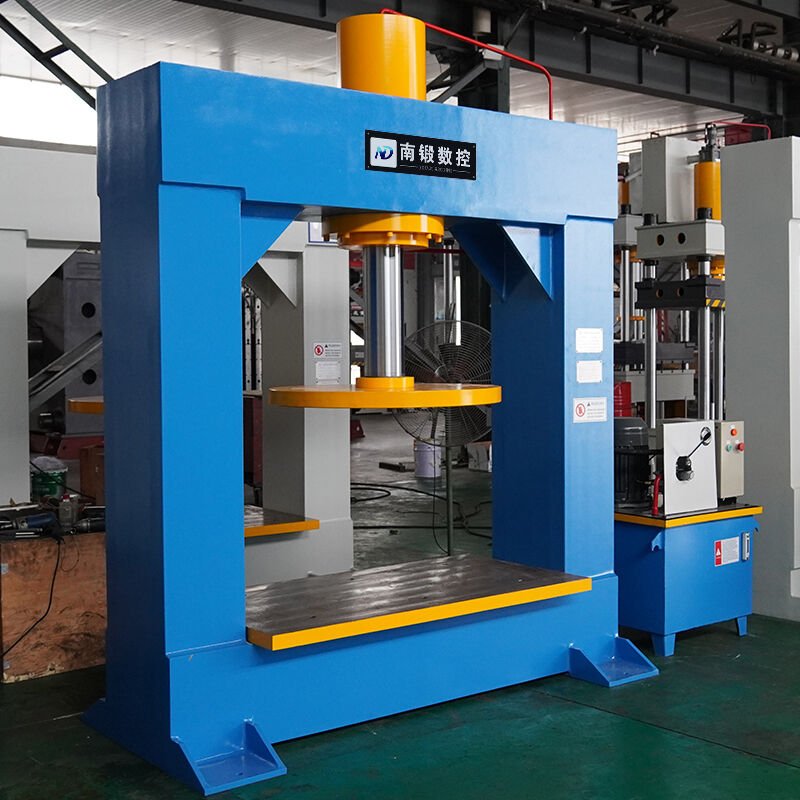

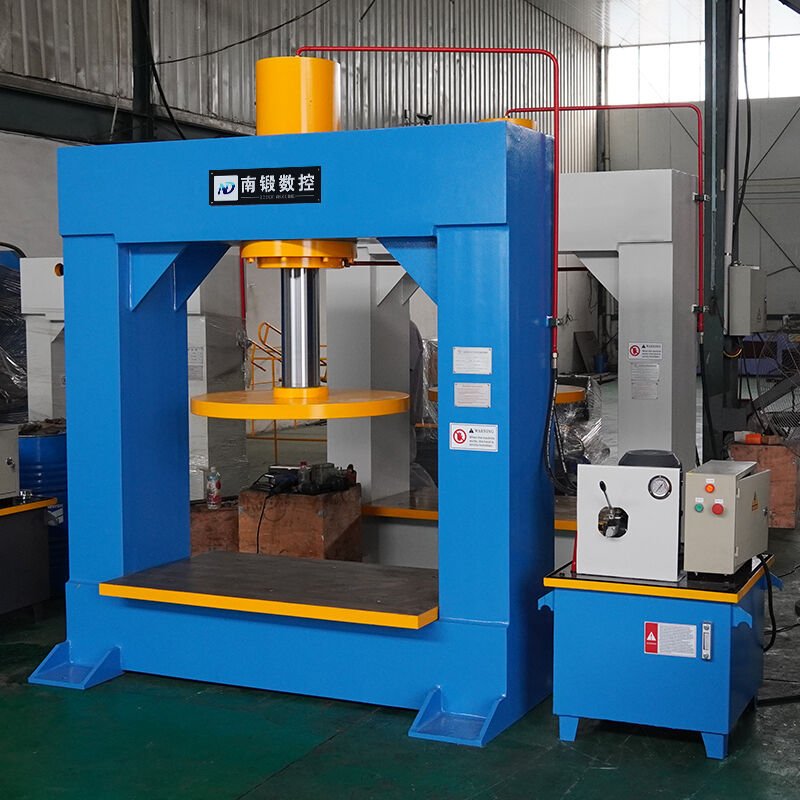

Nadun 200ton tire press for pressing and disassembling solid tires. Hydraulic lift arms can be configured for easy handling of tires. We also provide molds.
This is a standard parameter, but we also offer a customised service.
|
System Pressure (MPa) |
Effective Table (mm) |
Stroke (mm) |
Opening (mm) |
Motor Power (KW) |
|
|
YM-100T |
31.5 |
1000*800 |
500 |
1100 |
5.5 |
|
YM-120T |
31.5 |
1000*800 |
600 |
1100 |
5.5 |
|
YM-160T |
31.5 |
1500*800 |
600 |
1100 |
5.5 |
|
YM-200T |
31.5 |
1500*800 |
600 |
1200 |
5.5 |
|
YM-250T |
31.5 |
2000*800 |
600 |
1200 |
5.5 |
