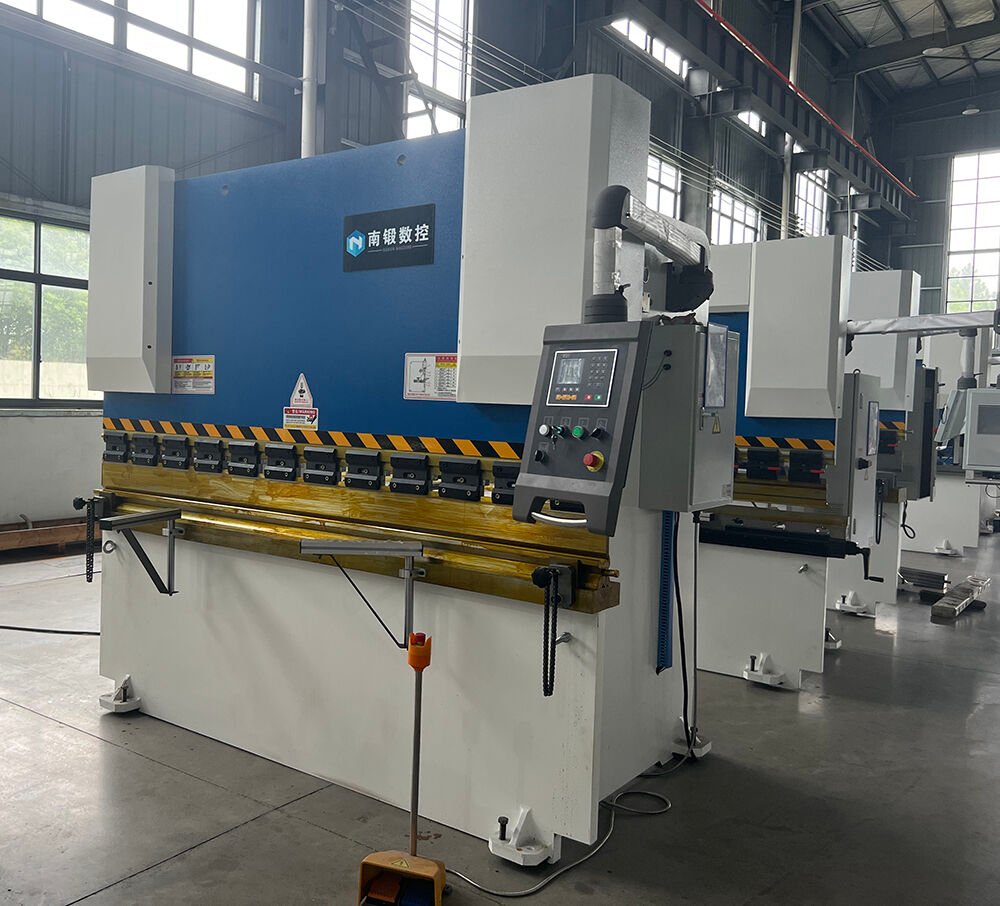

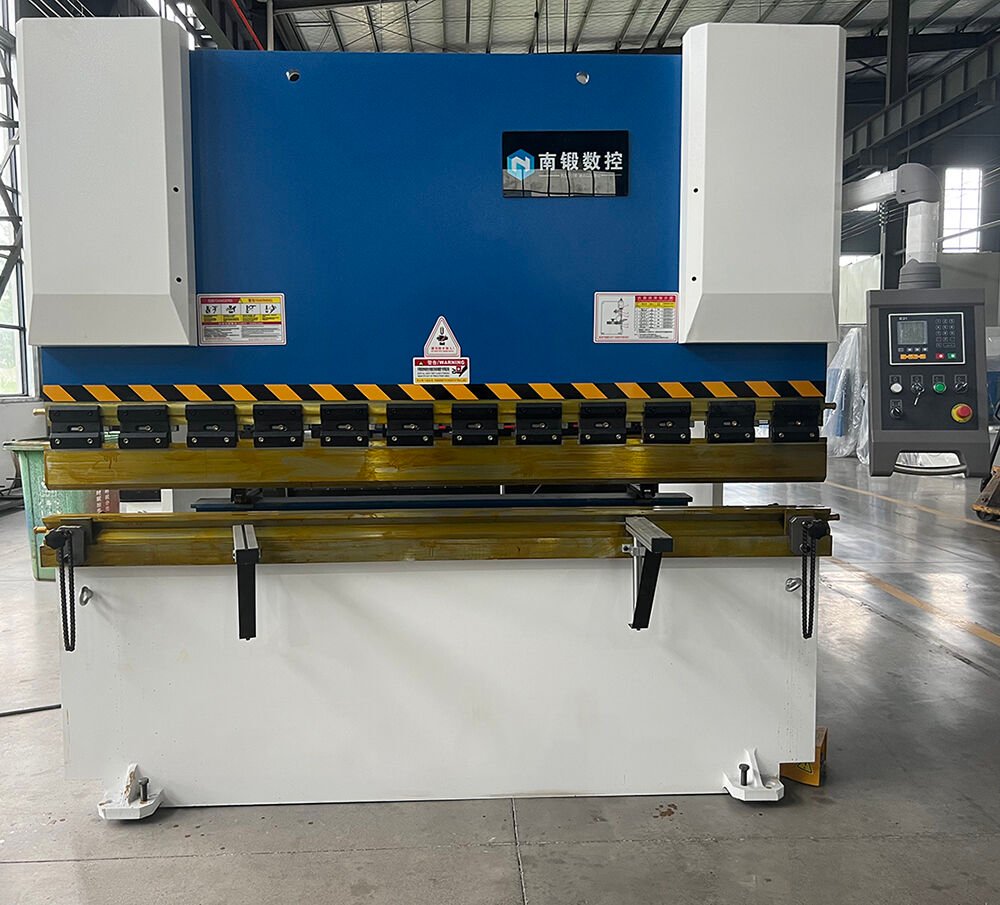

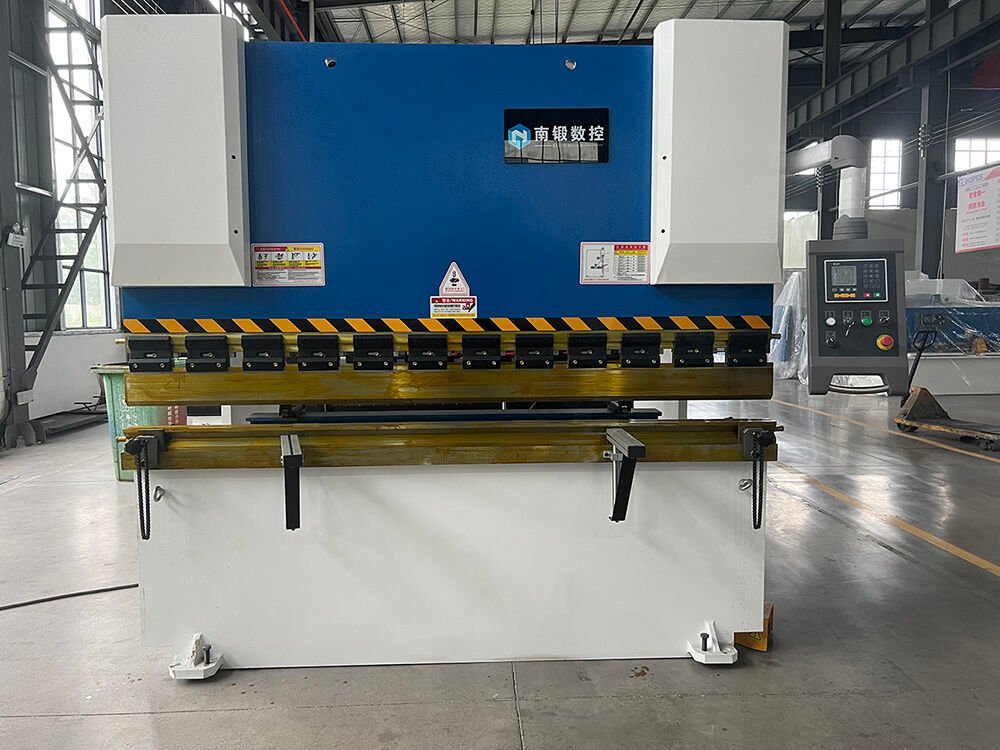

This bending Machine is a new CNC bending machine launched by Nadun Machinery in 2024, and is suitable for manufacturers with high precision and cost performance requirements. Nadun Electro-hydraulic CNC Bending Machine is our most popular model by volume and a true workhorse, which is constructed of high-quality parts and offers serious reliability. Y1 & Y2 Synchronization technology ensure high approach, bend and return speeds. It`s bending length capability and pressure range can be customized to meet various producing requirements.

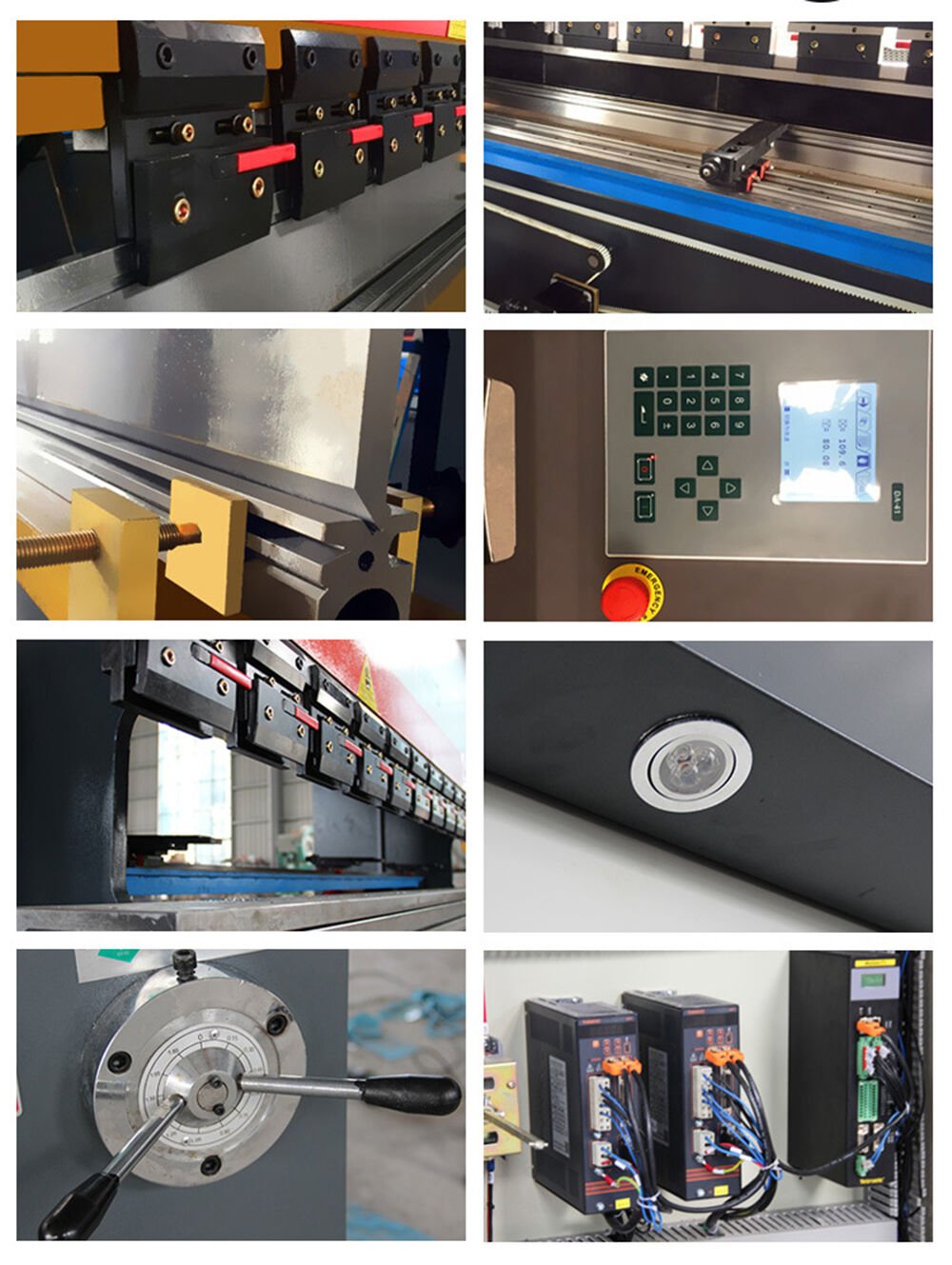

Detail Photos
Parameters
Type | Nominal force | Worktable length | Poles distance | Throat depth | Slider travel | Max open (mm) | Power (KN) | Weight | Dimension (mm) |
(KN) | (mm) | (mm) | (mm) | (mm) | |||||
40t/2200 | 400 | 2200 | 1850 | 230 | 100 | 320 | 5.5 | 2750 | 2200*1200*1900 |
40t/2500 | 400 | 2500 | 1850 | 230 | 100 | 320 | 5.5 | 3000 | 2500*1200*1900 |
50t/2500 | 500 | 2500 | 1850 | 230 | 100 | 320 | 5.5 | 3400 | 2500*1200*2000 |
63t/2500 | 630 | 2500 | 1900 | 250 | 100 | 320 | 5.5 | 4000 | 2500*1300*2210 |
63t/3200 | 630 | 3200 | 2560 | 250 | 100 | 320 | 5.5 | 4800 | 3200*1300*2210 |
80t/2500 | 800 | 2500 | 1990 | 300 | 100 | 320 | 7.5 | 5000 | 2500*1400*2300 |
80t/3200 | 800 | 3200 | 2560 | 320 | 100 | 350 | 7.5 | 6000 | 3200*1500*2300 |
80t/4000 | 800 | 4000 | 3200 | 320 | 100 | 350 | 7.5 | 7000 | 4000*1500*2400 |
100t/2500 | 1000 | 2500 | 1990 | 320 | 120 | 350 | 7.5 | 6000 | 2500*1600*2400 |
100t/3200 | 1000 | 3200 | 2600 | 320 | 150 | 400 | 7.5 | 6800 | 3200*1600*2600 |
100t/4000 | 1000 | 4000 | 3200 | 320 | 150 | 400 | 7.5 | 8000 | 4000*1600*2600 |
125t/3200 | 1250 | 3200 | 2600 | 320 | 150 | 400 | 11 | 7000 | 3200*1600*2600 |
125t/4000 | 1250 | 4000 | 3200 | 320 | 150 | 400 | 11 | 8500 | 4000*1600*2600 |
160t/3200 | 1600 | 3200 | 2580 | 320 | 200 | 460 | 11 | 10000 | 3200*1700*2700 |
160t/4000 | 1600 | 4000 | 2900 | 320 | 200 | 460 | 11 | 11000 | 4000*1700*2800 |
160t/5000 | 1600 | 5000 | 3900 | 320 | 200 | 460 | 11 | 13500 | 5000*1900*3100 |
160t/6000 | 1600 | 6000 | 4900 | 320 | 200 | 460 | 11 | 18500 | 6300*1900*3200 |
200t/3200 | 2000 | 3200 | 2480 | 320 | 200 | 460 | 11 | 11000 | 3200*1950*2800 |
200t/4000 | 2000 | 4000 | 2900 | 320 | 200 | 460 | 11 | 12500 | 4000*1950*2800 |
200t/5000 | 2000 | 5000 | 3900 | 320 | 200 | 460 | 11 | 14000 | 5000*1950*3000 |
200t/6000 | 2000 | 6000 | 4900 | 320 | 200 | 460 | 11 | 20000 | 6000*1950*3300 |
250t/3200 | 2500 | 3200 | 2450 | 400 | 250 | 590 | 18.5 | 18500 | 3250*2000*3200 |
250t/4000 | 2500 | 4000 | 2900 | 400 | 250 | 590 | 18.5 | 20000 | 4000*2000*3400 |
250t/5000 | 2500 | 5000 | 3900 | 400 | 250 | 590 | 18.5 | 23000 | 5000*2000*3400 |
250t/6000 | 2500 | 6000 | 4900 | 400 | 250 | 590 | 18.5 | 27000 | 6000*2000*3400 |
300t/3200 | 3000 | 3200 | 2450 | 400 | 250 | 590 | 22 | 20500 | 3200*2000*3450 |
300t/4000 | 3000 | 4000 | 2900 | 400 | 250 | 590 | 22 | 22000 | 4000*2000*3450 |
300t/5000 | 3000 | 5000 | 3900 | 400 | 250 | 590 | 22 | 25000 | 5000*2000*3450 |
300t/6000 | 3000 | 6000 | 4900 | 400 | 250 | 590 | 22 | 28500 | 6000*2000*3450 |
400t/3200 | 4000 | 3200 | 2400 | 400 | 250 | 590 | 30 | 22500 | 3200*2180*3400 |
400t/4000 | 4000 | 4000 | 2900 | 400 | 250 | 590 | 30 | 25000 | 4000*2180*3400 |
400t/5000 | 4000 | 5000 | 3900 | 400 | 250 | 590 | 30 | 29000 | 5000*2180*3500 |
400t/6000 | 4000 | 6000 | 4900 | 400 | 250 | 590 | 30 | 34000 | 6000*2180*3800 |
500t/5000 | 5000 | 5000 | 3900 | 400 | 250 | 590 | 45 | 42000 | 5050*3500*3700 |
500t/6000 | 5000 | 6000 | 4900 | 400 | 320 | 590 | 45 | 54000 | 6050*3500*3700 |
600t/5000 | 6000 | 4000 | 2900 | 400 | 320 | 590 | 55 | 44000 | 4050*4500*3700 |
600t/6000 | 6000 | 6000 | 4900 | 400 | 320 | 590 | 55 | 60000 | 6050*4500*3700 |
Packaging & Shipping
We are committed to safeguarding our products with a robust packaging and transportation strategy. Internally, we use moisture-resistant plastic packaging with anti-rust properties to protect items from environmental factors that could affect quality. Externally, our products are encased in sturdy wooden packaging for added security during shipping. We also employ specialized container transport methods to enhance safety. This careful approach to packaging and transportation reflects our unwavering dedication to delivering high-quality products to our valued customers.
Company Profile

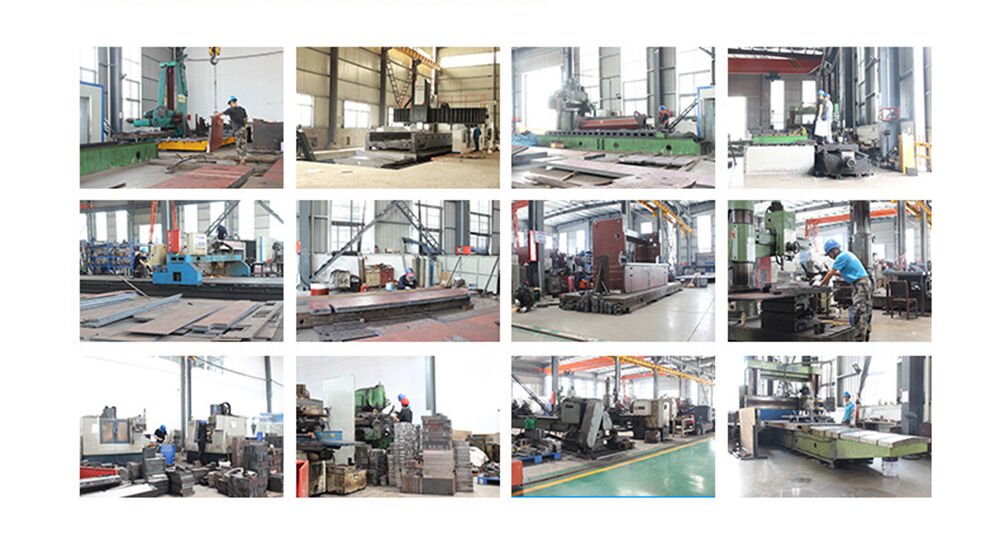

Our company takes pride in its cutting-edge processing equipment, such as large-scale CNC machines and gantry machining centers. We hold prestigious certifications like ISO, CE, and SGS, and have numerous patents and certificates for product innovation.
Our product range includes manual and CNC lathes, saw machines, drill machines, milling machines, machining centers, CNC milling machines, and grinders. Every machine undergoes a meticulous multi-step machining process and rigorous quality inspections during production.
We employ advanced testing methods and inspection techniques to ensure that all machines meet our high standards before sale. Our unwavering commitment to quality reflects our dedication to delivering exceptional products to our customers.
Certifications
FAQ
1.Can you provide me with the relevant documentation?
Yes, we can provide you with most documentation including Certificates of Analysis/Conformance, insurance, origin, and other export documents where required.
2.What is the average lead time?
For samples, the lead time is about 30 days. For mass production, the lead time is 30-60 days after receiving the deposit payment. Our lead times become effective when we have received your deposit and have your final approval for your products. If our lead times do not work with your deadline, please discuss your requirements with your sales representative. In most cases, we are able to accommodate your needs.
3.What payment methods do you accept?
We accept payment via bank transfer, Western Union, or PayPal. The payment terms are typically a 30% deposit in advance, with the remaining 70% balance due against the copy of B/L.
4.What is the product warranty?
We warranty our materials and workmanship. Our commitment is to your satisfaction with our products. Whether in warranty or not, it is our company culture to address and resolve all customer issues to everyone's satisfaction.
5.Do you guarantee safe and secure delivery of products?
Yes, we always use high-quality export packaging to ensure the safe and secure delivery of our products. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature-sensitive items. However, specialist packaging or non-standard packing requirements may incur an additional charge.
6.How about the shipping fees?
The shipping cost depends on the method you choose to receive your goods. Express delivery is usually the quickest but also the most expensive option. Sea freight is the best solution for large amounts. We can provide you with detailed freight rates once we know the details of the amount, weight, and shipping method. Please contact us for further information.
