Movable Worktable Nadun 63T Gantry Hydraulic Press Machine

Product Overview

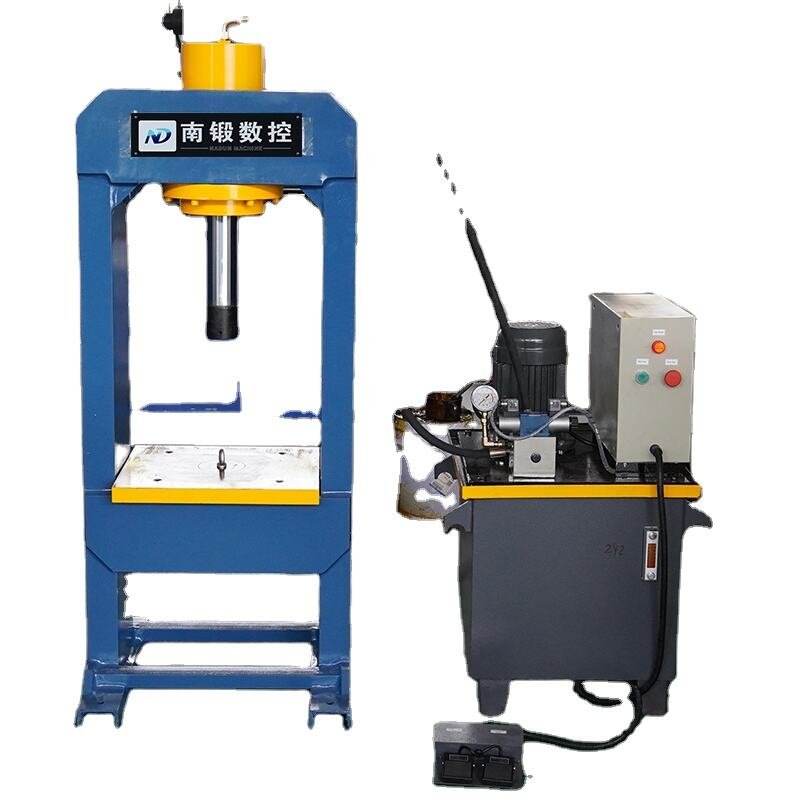

NADUN 63 Ton High-quality H frame Hydraulic Press

Movable Worktable Nadun 63T Gantry Hydraulic Press Machine manufacture

Experience the epitome of heavy-duty metalworking and manufacturing with the H Frame 63 Ton Hydraulic Press. Engineered for robust performance, this machine is designed to handle the most demanding tasks in metalworking and manufacturing with ease.

Details Images

Movable Worktable Nadun 63T Gantry Hydraulic Press Machine manufacture

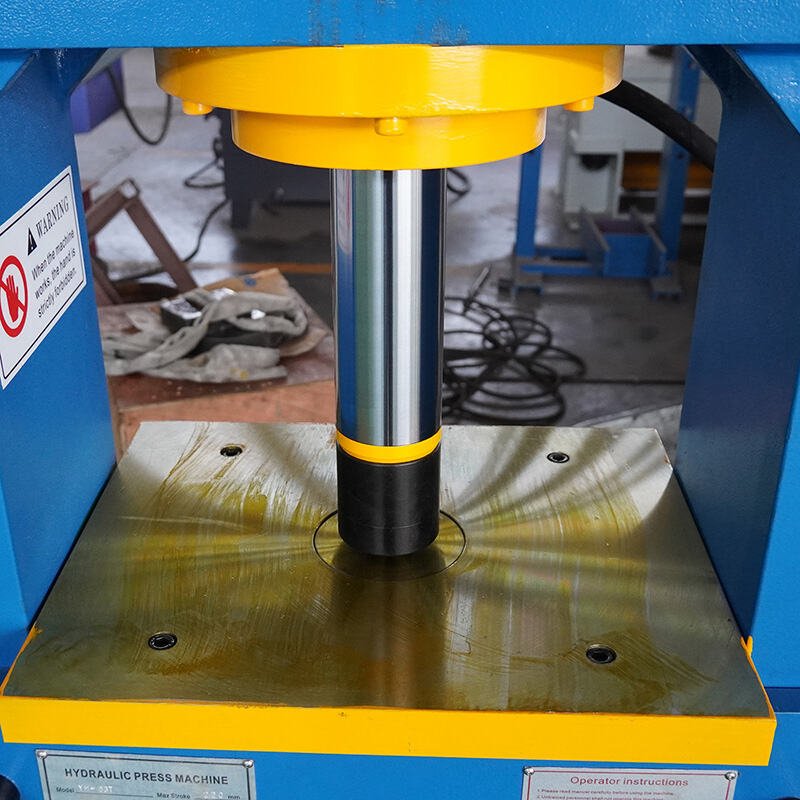

Piston rod

Piston rod :Sturdy and versatile element that transmits force in hydraulic systems.

Movable Worktable Nadun 63T Gantry Hydraulic Press Machine details

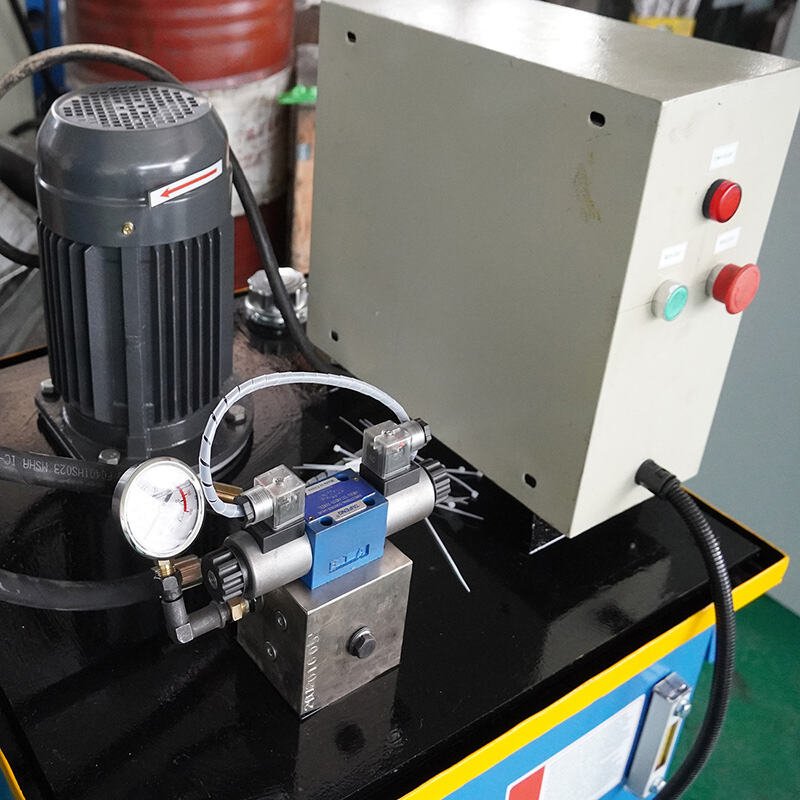

Electromotor

Electromotor is an electric motor that converts electrical energy into mechanical power. It is commonly used to drive machinery.

Movable Worktable Nadun 63T Gantry Hydraulic Press Machine factory

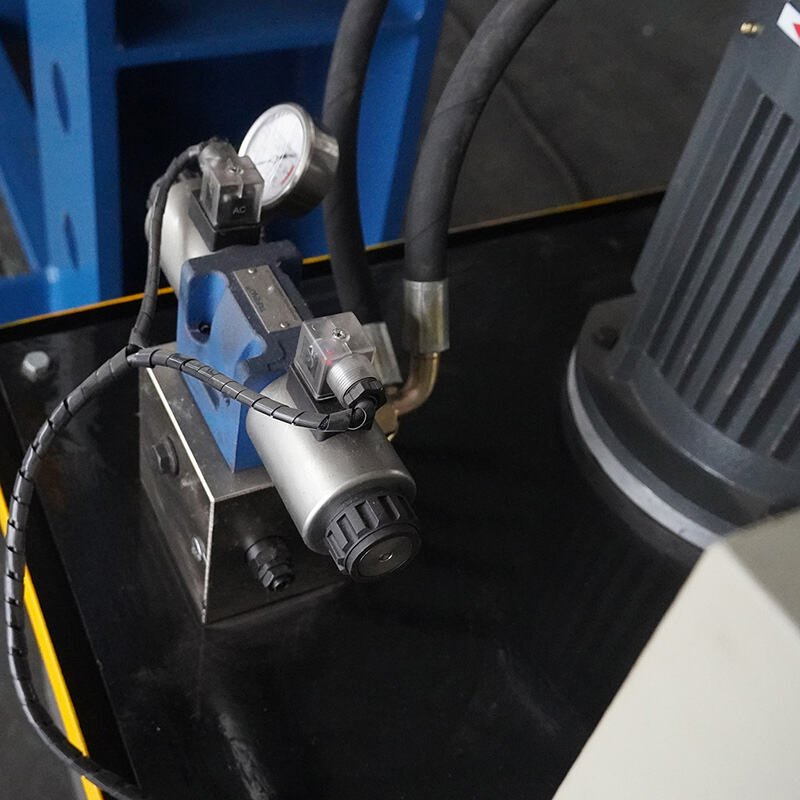

Hydraulic pump unit

Hydraulic pump unit uses mechanical power to generate hydraulic energy, transferring fluids under pressure to power machinery.
This system is highly efficient and durable.

Use Characteristics

This machine can be preset pressure;
Can be used for production and processing;
Correction of deformed workpiece;
Disassembly and assembly of various tightly matched parts;
Calibration of various sheet metal profiles.

Product Parameter

Parameters	Units	YM-20T	YM-40T	YM-63T	YM-100T
Nominal Force	kn	200	400	630	1000
System Pressure	mpa	31.5	31.5	31.5	31.5
Slide Stroke	mm	200	200	220	220
Opening Height (Daylight)	mm	560	560	560	600
Worktable Size	mm	450×400	500×400	600×450	700×500
Blanking hole diameter	mm	∅60	∅80	∅100	∅140

Compared with the traditional hydraulic machine, the energy saving effect is remarkable. According to the processing technology and the production cycle, the servo drive hydraulic machine can save 30%~70% compared with the traditional hydraulic machine.
