Movable Worktable Nadun 200T Gantry Hydraulic Press Machine

Product Overview

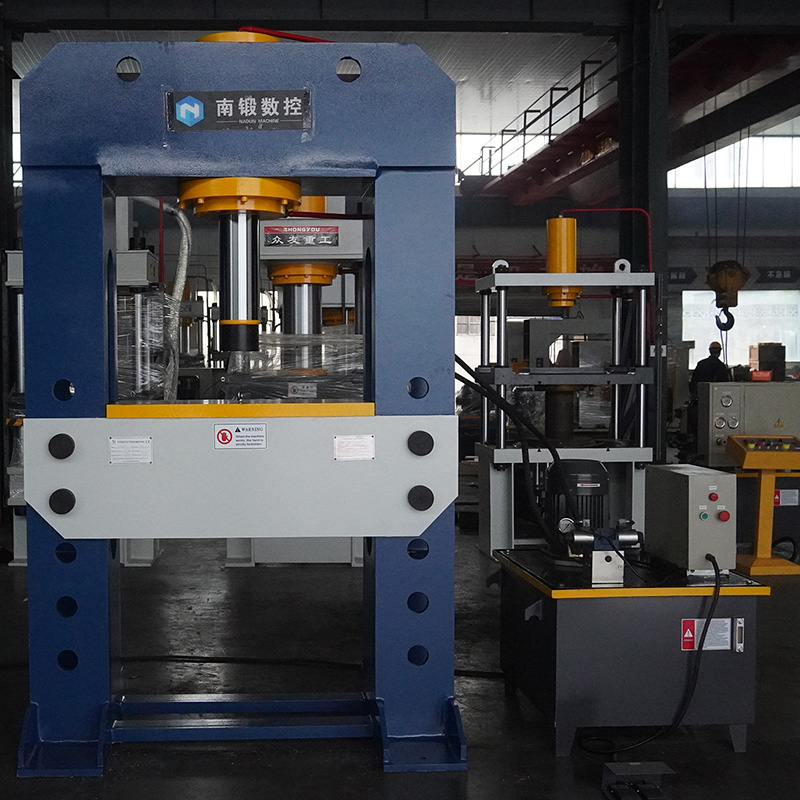

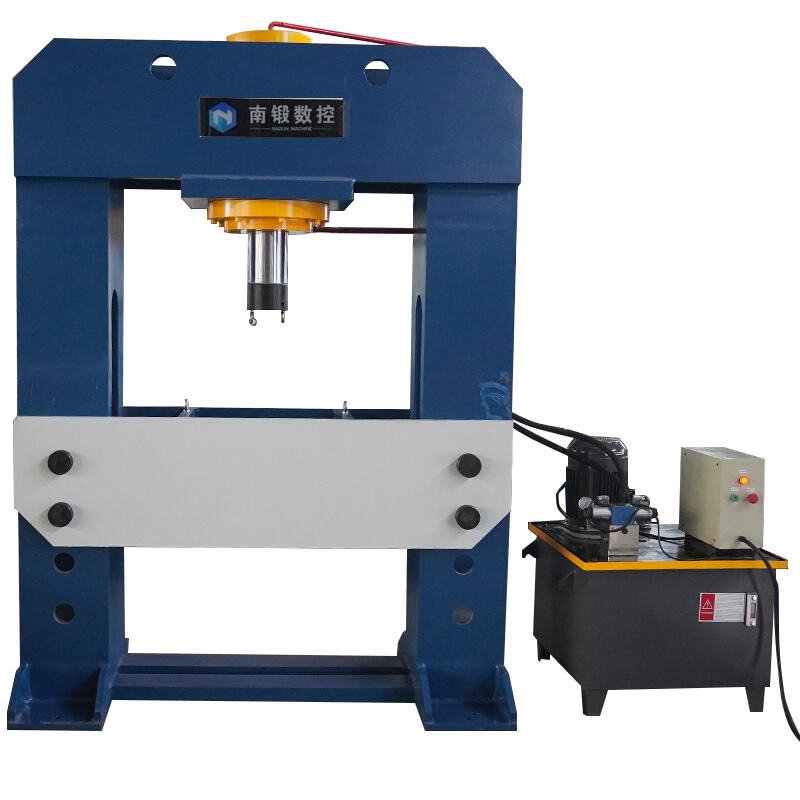

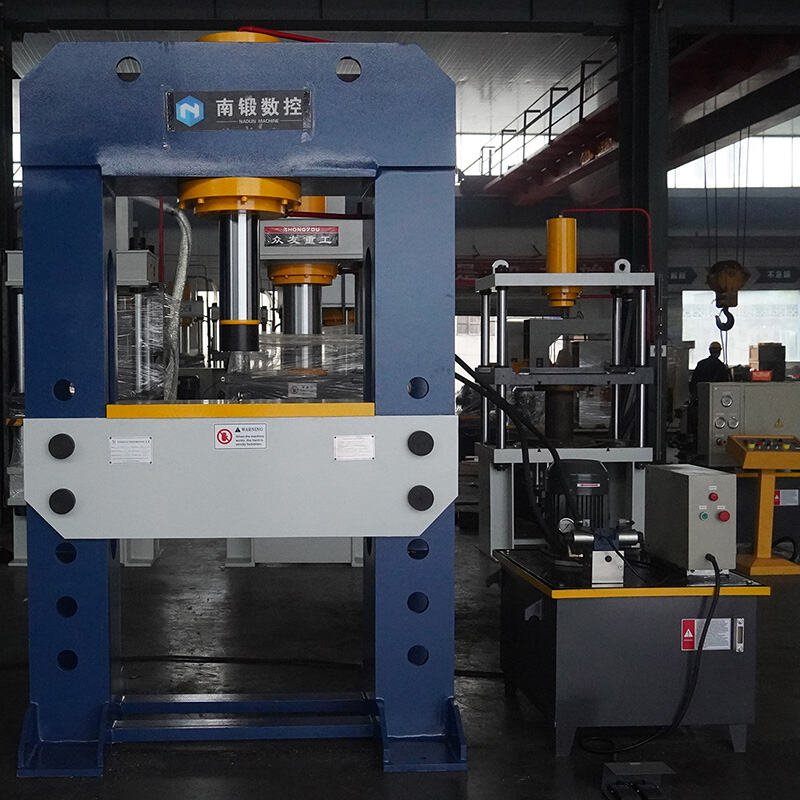

NADUN 200 Ton High-quality H frame Hydraulic Press

Movable Worktable Nadun 200T Gantry Hydraulic Press Machine details

Our 200 tons H frame hydraulic press machine offers exceptional performance in a compact, user-friendly design. With advanced features like precise control of pressure and speed, as well as a robust and durable construction, this machine is a reliable and efficient choice for a wide range of industrial applications. Backed by our commitment to excellence and customer satisfaction, you can trust that our hydraulic press machine will meet all of your manufacturing needs.

Details Images

Movable Worktable Nadun 200T Gantry Hydraulic Press Machine manufacture

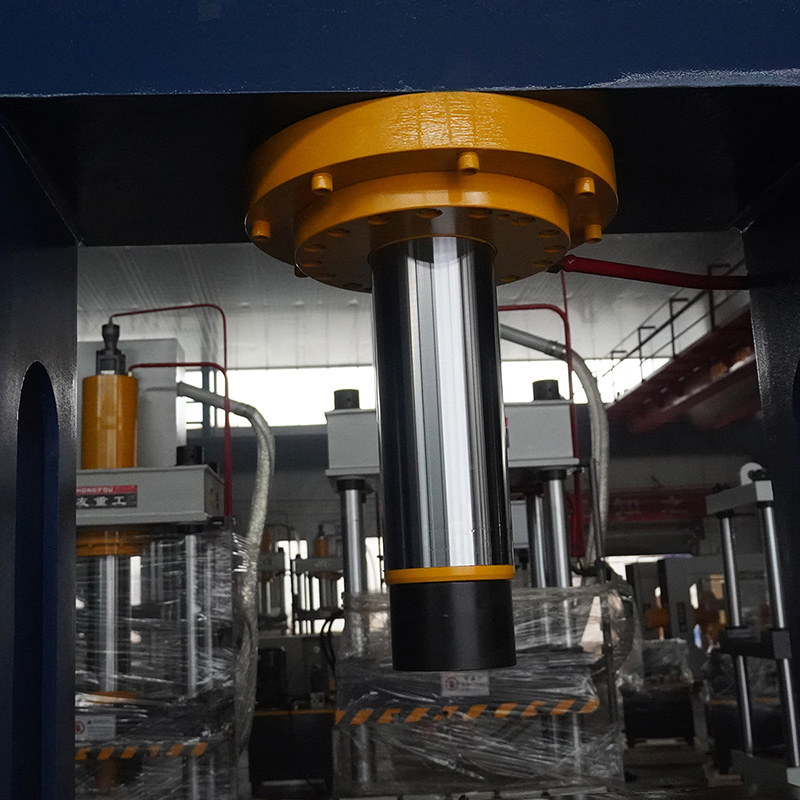

Piston rod

Piston rod :Sturdy and versatile element that transmits force in hydraulic systems.

Movable Worktable Nadun 200T Gantry Hydraulic Press Machine manufacture

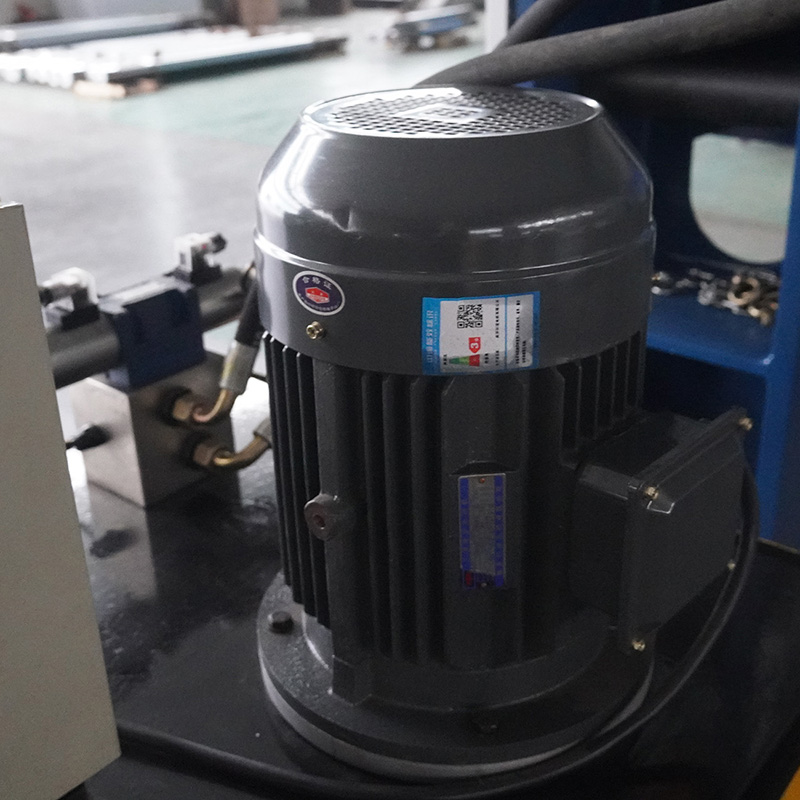

Electromotor

Electromotor is an electric motor that converts electrical energy into mechanical power. It is commonly used to drive machinery.

Movable Worktable Nadun 200T Gantry Hydraulic Press Machine manufacture

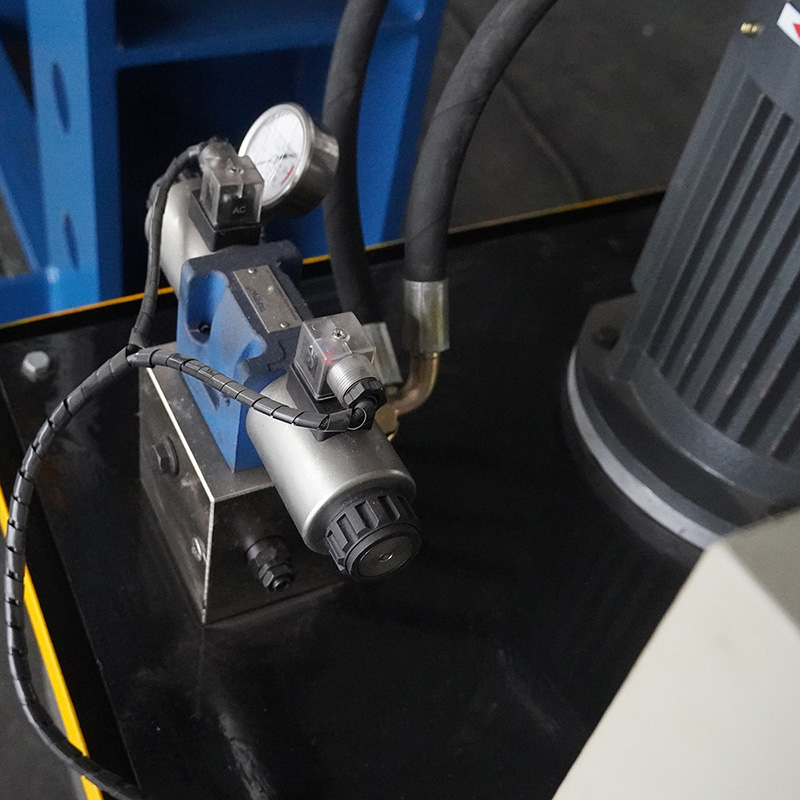

Hydraulic pump unit

Hydraulic pump unit uses mechanical power to generate hydraulic energy, transferring fluids under pressure to power machinery.
This system is highly efficient and durable.

Use Characteristics

This machine can be preset pressure;
Can be used for production and processing;
Correction of deformed workpiece;
Disassembly and assembly of various tightly matched parts;
Calibration of various sheet metal profiles.

Product Parameter

Parameters（蓝白）	Units	HP-100T	HP-200T	HP-300T	HP-400T
Nominal Force	KN	1000	2000	3000	4000
System Pressure	Mpa	31.5	31.5	31.5	31.5
Slide Stroke	mm	250	300	300	300
Opening Height (Daylight)	mm	250/385/520/655	300/435/570/705	300/435/570/705	300/435/570/705
Worktable Size	mm	980×440	1000×500	1200×700	1200×800
Dimensions	mm	1720×700×2015/ 650×650×500	1610×900×2300/ 750×750×500	1950×950×2570/ 900×900×500	2050×990×2760/ 750×750×500

Compared with the traditional hydraulic machine, the energy saving effect is remarkable. According to the processing technology and the production cycle, the servo drive hydraulic machine can save 30%~70% compared with the traditional hydraulic machine.
