Product Overview

Nadun Industrial Hydraulic Pressing: Leading in 63-Ton Hydraulic Press for Sheet Metal and Heavy-Duty Applications

Nadun Industrial Hydraulic Pressing: Leading with the 63-Ton Hydraulic Press for Sheet Metal and Heavy-Duty Applications. With its commanding capacity, this industrial hydraulic pressing solution stands at the forefront, excelling in both sheet metal operations and heavy-duty tasks. Elevate your manufacturing processes with the reliability and innovation of Nadun Industrial Hydraulic Pressing - a symbol of excellence in hydraulic pressing technology, catering to diverse and demanding applications.

Detail Photos

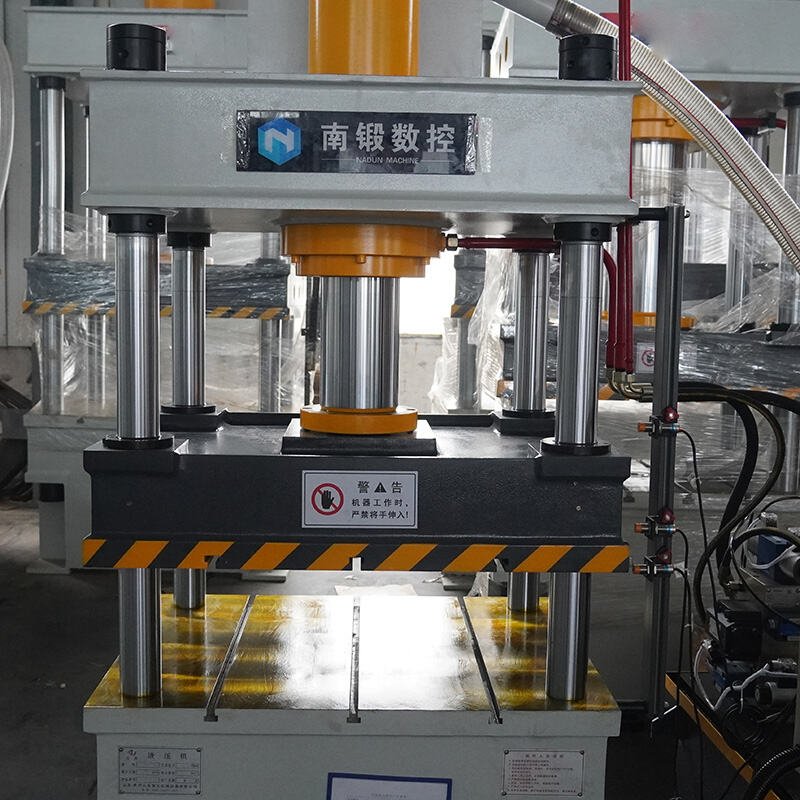

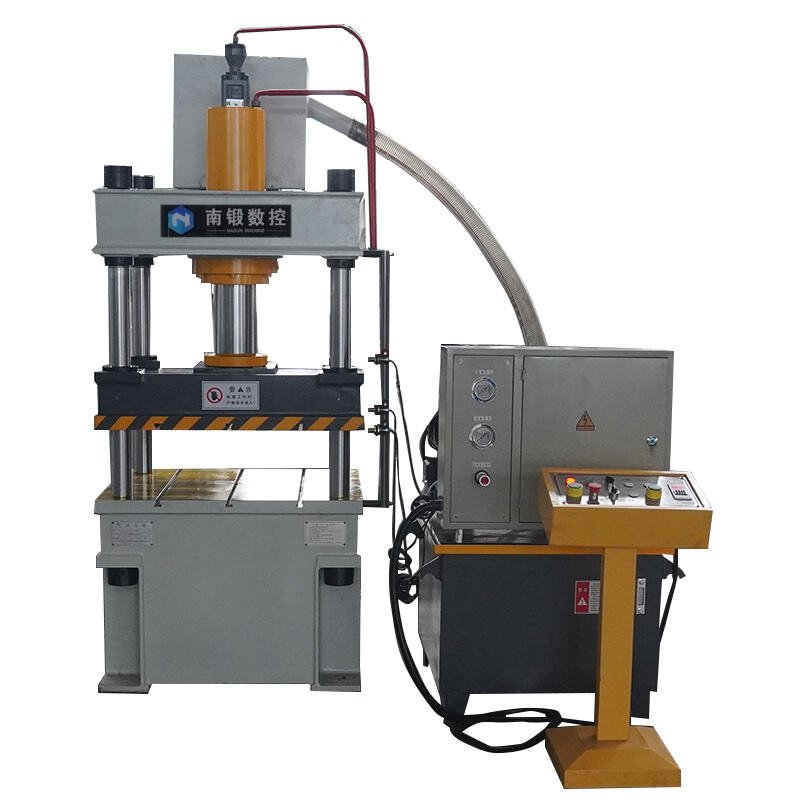

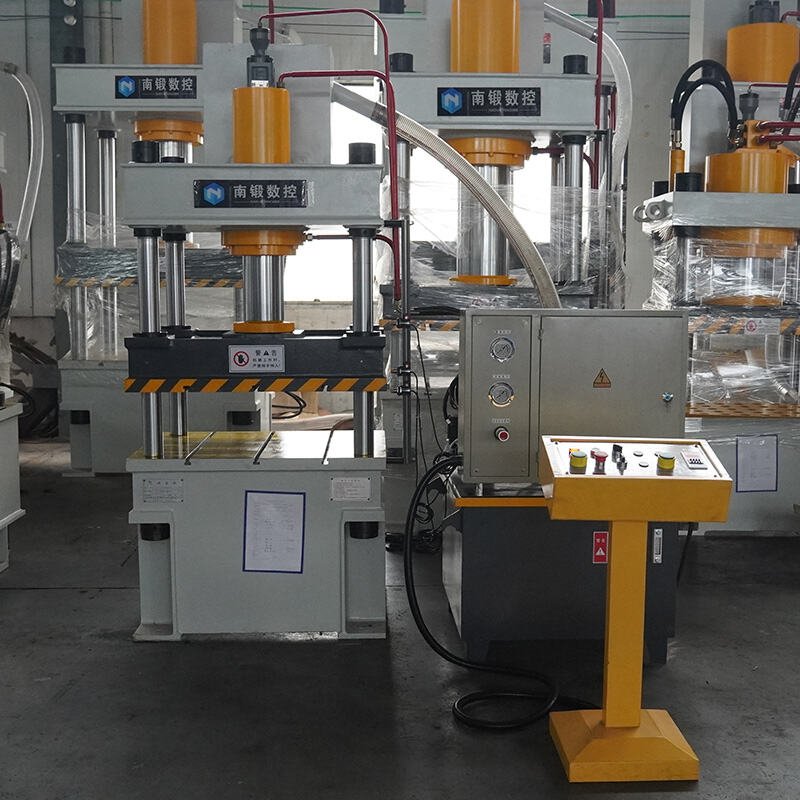

The following pictures are actual shots of the 63 hydraulic press machine.

Manufacturer Direct Sale of 63 Tons Three-Beam Four-Column Hydraulic Press manufacture

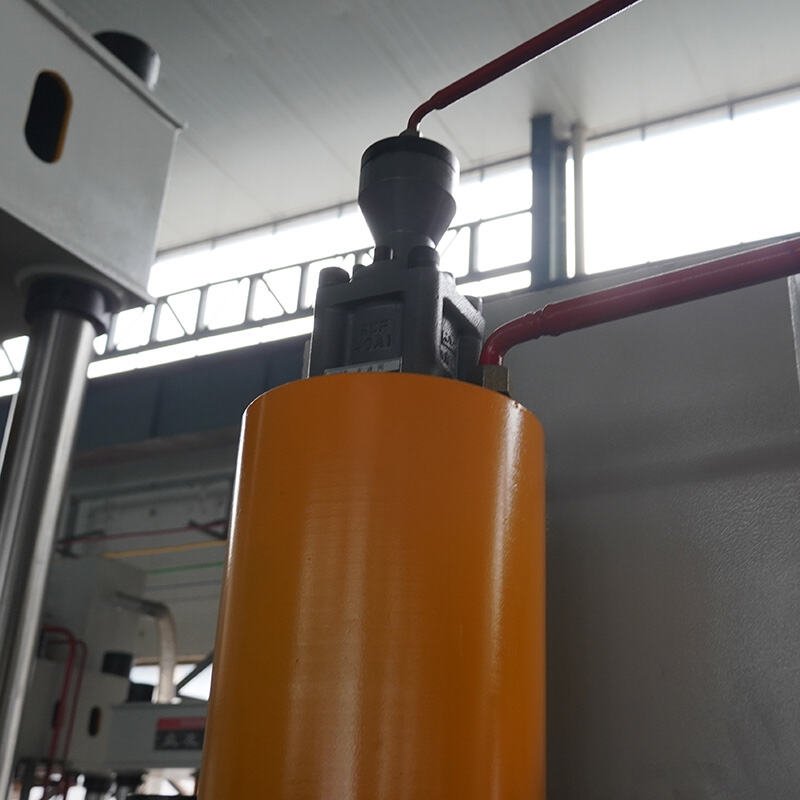

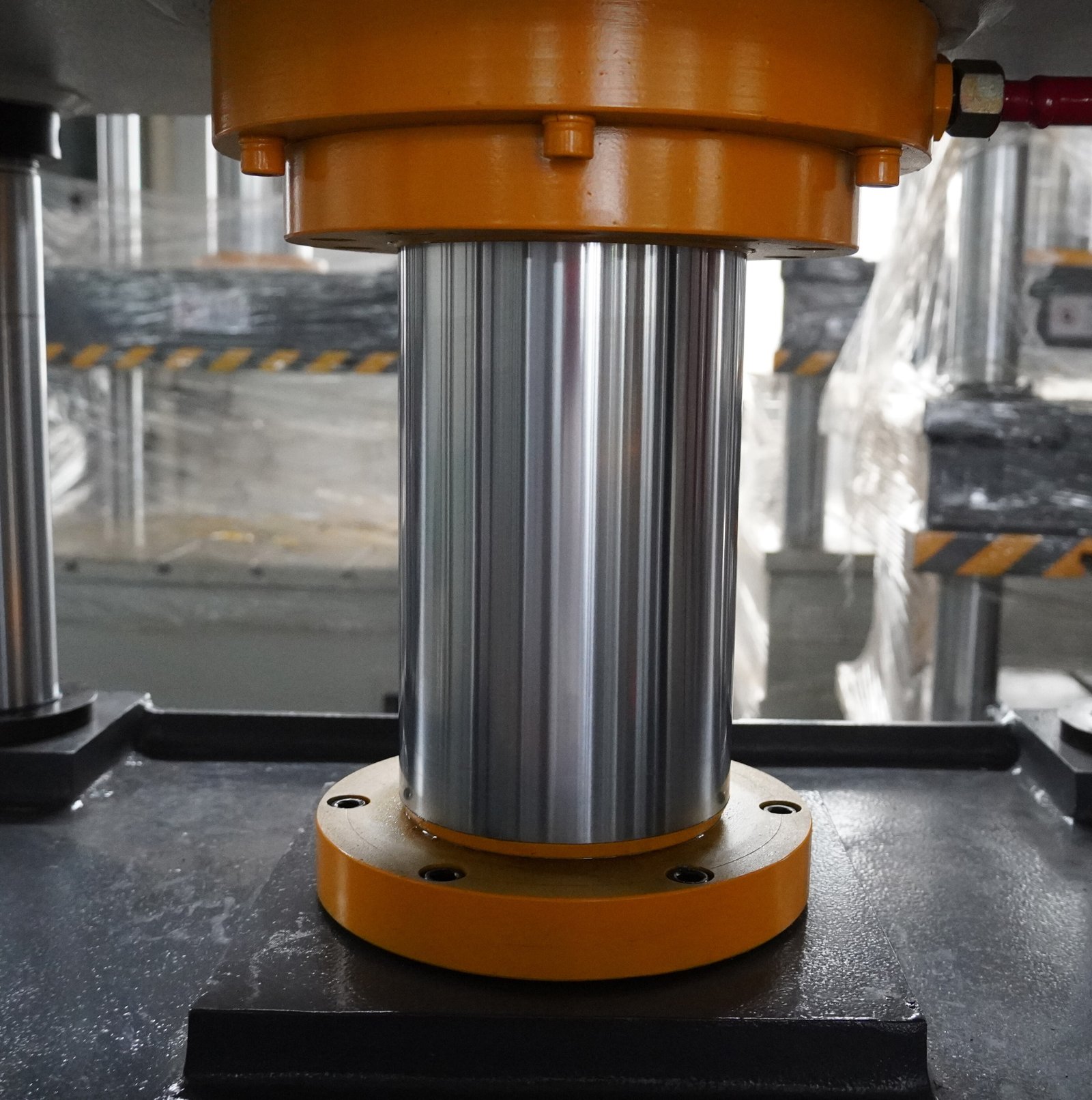

Main Piston Rod

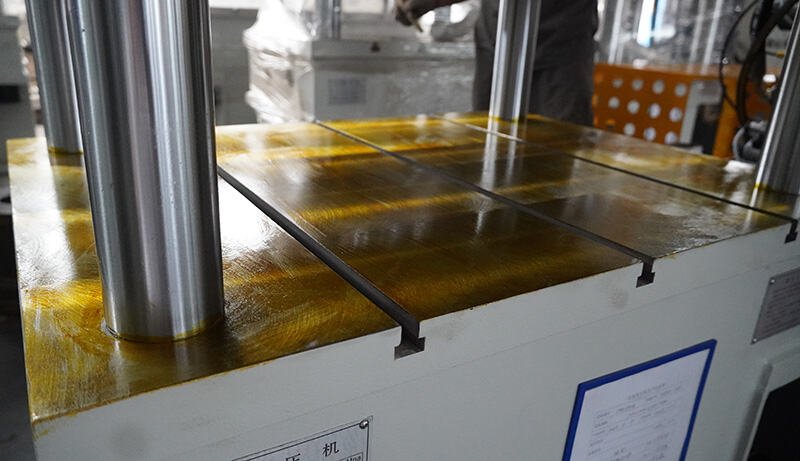

Slider and T-Slots

Manufacturer Direct Sale of 63 Tons Three-Beam Four-Column Hydraulic Press supplier

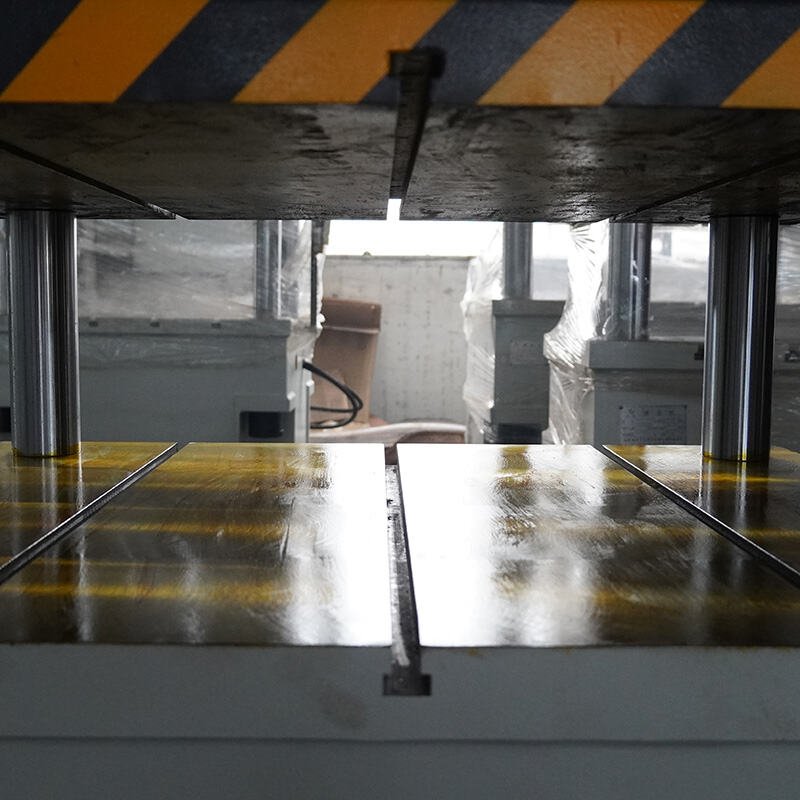

T-Slots

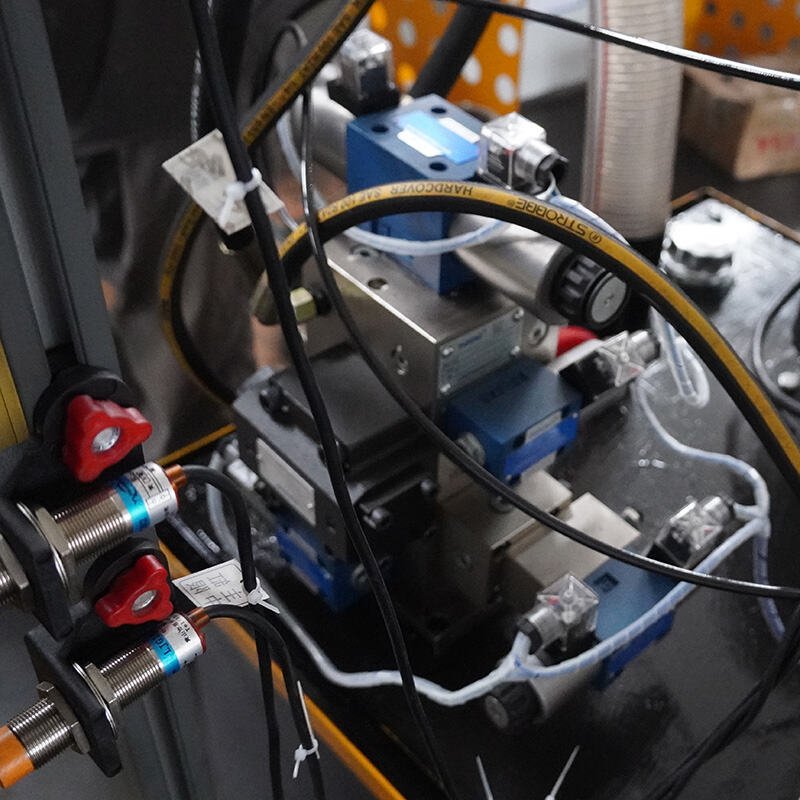

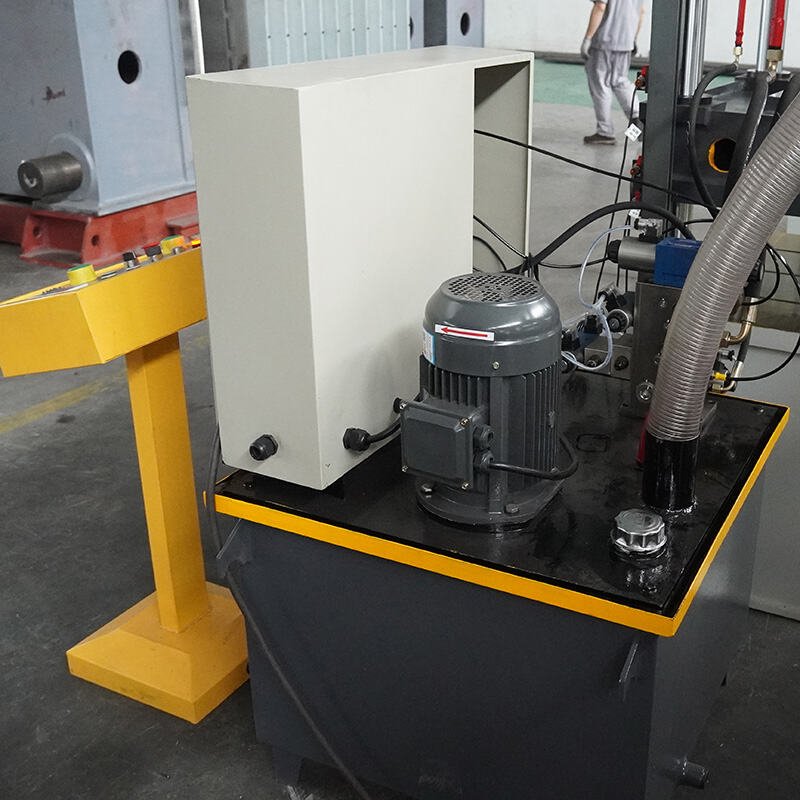

Independent Pump Station, Electrical Cabinet, and Mobile Control Console

Manufacturer Direct Sale of 63 Tons Three-Beam Four-Column Hydraulic Press details

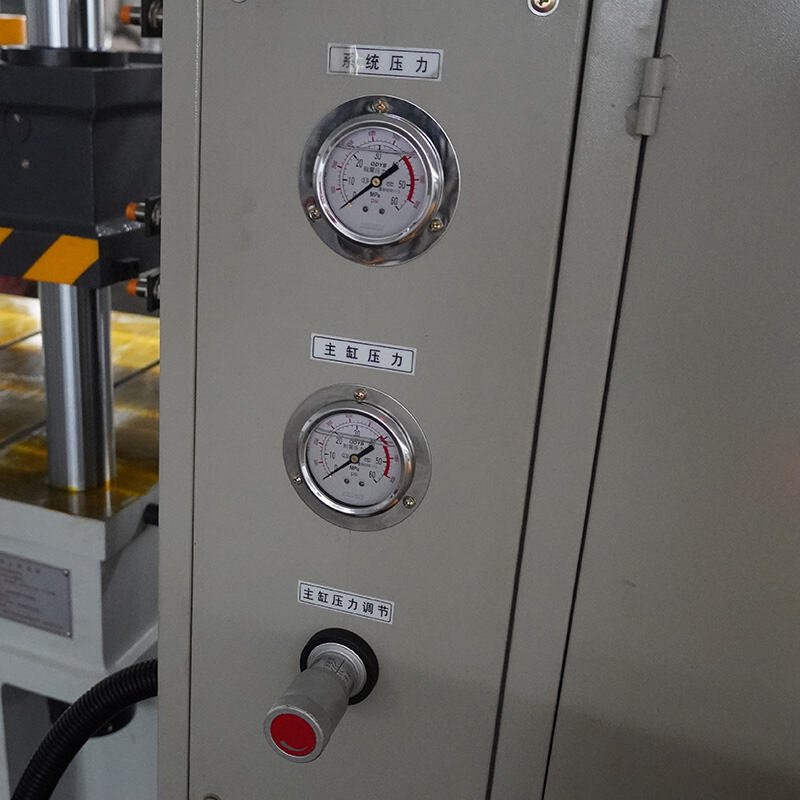

The electrical cabinet integrates hydraulic pressure gauges, adjustment knobs and temperature switch.

Standard configuration

SPECIFICATION	UNIT	YQ32-63T	YQ32-100TA	YQ32-100TB	YQ32-200TA	YQ32-200TB	YQ32-315TA	YQ32-315TB
Nominal force	KN	630	1000	1000	2000	2000	3150	3150
Max.System pressure	Mpa	25	25	25	25	25	25	25
Max.Open height	mm	700	800	900	1200	900	1250	1000
Max.Stroke of slider	mm	400	500	600	700	600	800	600
Effective table size	mm	610x500	630x550	750x700	1000x1000	800x800	1260x1160	800x800
Down speed	mm/s	180	120	120	100	100	100	100
Pressing speed	mm/s	11-22	7-15	7-15	7-18	7-18	7-11.5	7-11.5
Return speed	mm/s	100	120	120	70	70	60	60
Ejection cylinder force	KN	100	200	200	400	400	630	630
Stroke of ejectioncylinder	mm	160	200	200	220	220	300	300

SPECIFICATION	UNIT	YQ32-400T	YQ32-500T	YQ32-630T	YQ32-800T	YQ32-1000T	YQ32-1250T	YQ32-1600T
Nominal force	KN	4000	5000	6300	8000	10000	12500	16000
Max.System pressure	Mpa	25	25	25	25	25	25	25
Max.Open heigh	mm	1250	1500	1500	1800	1600	1600	1800
Max.Stroke of slider	mm	800	900	900	1000	900	900	1000
Effective table size	mm	1260x1160	1400x1400	1600x1600	1500x1500	1500x1500	1800x1600	1600x1600
Down speed	mm/s	100	100	80	80	80	80	80
Pressings pee	mm/s	5-9	8-15	6-12	8-17	6-13	7-15	8-17
Return speed	mm/s	55	70	60	70	70	70	70
Ejection cylinder force	KN	630	1000	1000	1000	1000	1000	1600
Stroke of ejectioncylinder	mm	300	300	300	350	350	350	350

PS:All machines mentioned in the above table can be customized.

Features

Industrial Expertise: Demonstrates industry leadership in hydraulic pressing, excelling with a powerful 315-ton capacity.
High Force Capability: Equipped with substantial force, it excels in sheet metal and heavy-duty applications.
Precise Sheet Metal Forming: Engineered for accurate results in shaping various sheet metals.
Versatile Heavy-Duty Operations: Proficiently handles demanding applications across industries.
Tailored Solutions: Customizes processes to specific production needs, enhancing adaptability.
Efficient Production: Designed for smooth operations, contributing to increased efficiency.
Sturdy Construction: Crafted with durable materials for reliable and consistent performance.
User-Friendly Experience: Intuitive controls simplify setup, operation, and monitoring.
Reduced Maintenance: High-quality components result in minimal upkeep, reducing downtime.
Operator Safety: Incorporates safety features to ensure well-being and compliance.
Technical Support: Supported by expert technicians for seamless setup and operation.
Quality Outcomes: Ensures high-quality results meeting industry standards.
Cost-Effective Efficiency: Optimizes processes for economic viability and productivity.
Trusted Solution: Nadun Industrial Hydraulic Pressing leads with precision and reliability in hydraulic pressing, making it a trusted choice for diverse sheet metal and heavy-duty applications.

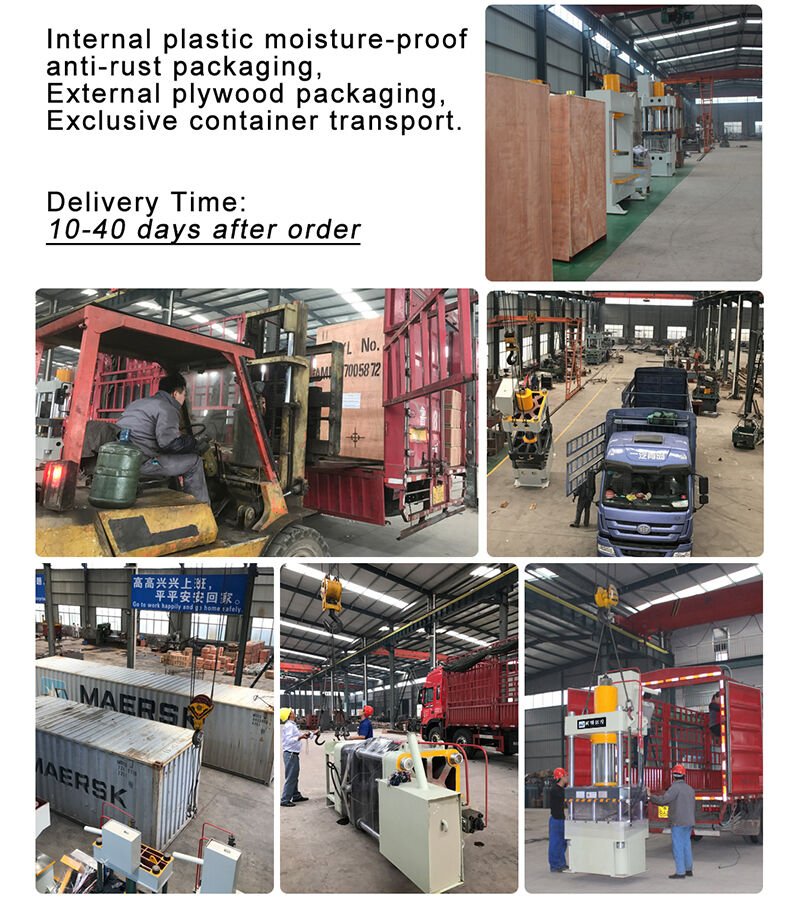

Packaging & Shipping

Manufacturer Direct Sale of 63 Tons Three-Beam Four-Column Hydraulic Press manufacture

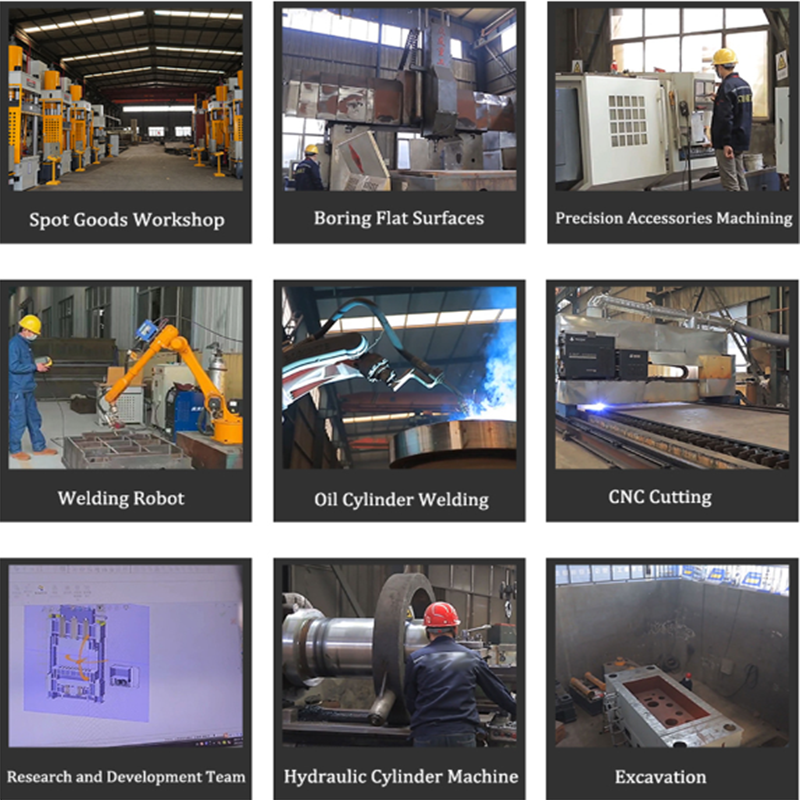

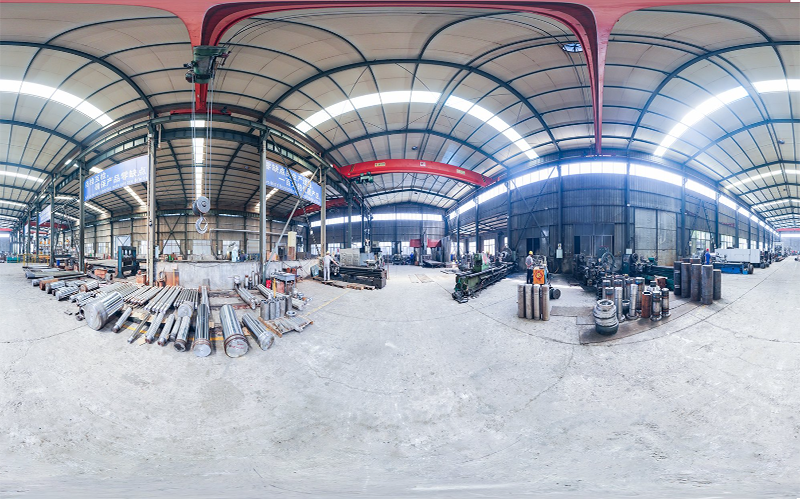

Company Profile

We are a formidable company.

Manufacturer Direct Sale of 63 Tons Three-Beam Four-Column Hydraulic Press factory

Manufacturer Direct Sale of 63 Tons Three-Beam Four-Column Hydraulic Press supplier Customer Visit

Manufacturer Direct Sale of 63 Tons Three-Beam Four-Column Hydraulic Press details

Manufacturer Direct Sale of 63 Tons Three-Beam Four-Column Hydraulic Press factory

Manufacturer Direct Sale of 63 Tons Three-Beam Four-Column Hydraulic Press manufacture With an experience spanning nearly two decades, we specialize in the production of hydraulic press machines and guillotine machines, equipping us with the expertise and confidence to navigate upcoming endeavors. Our triumph is rooted in our unwavering dedication to stringent quality standards, and our proficient team, enriched with extensive knowledge. By consistently enhancing our internal procedures, we have consistently delivered machines of unparalleled quality, establishing Nadun as a frontrunner in the sector. The superiority of our machinery underscores our steadfast commitment to excellence, ensuring complete customer satisfaction.
