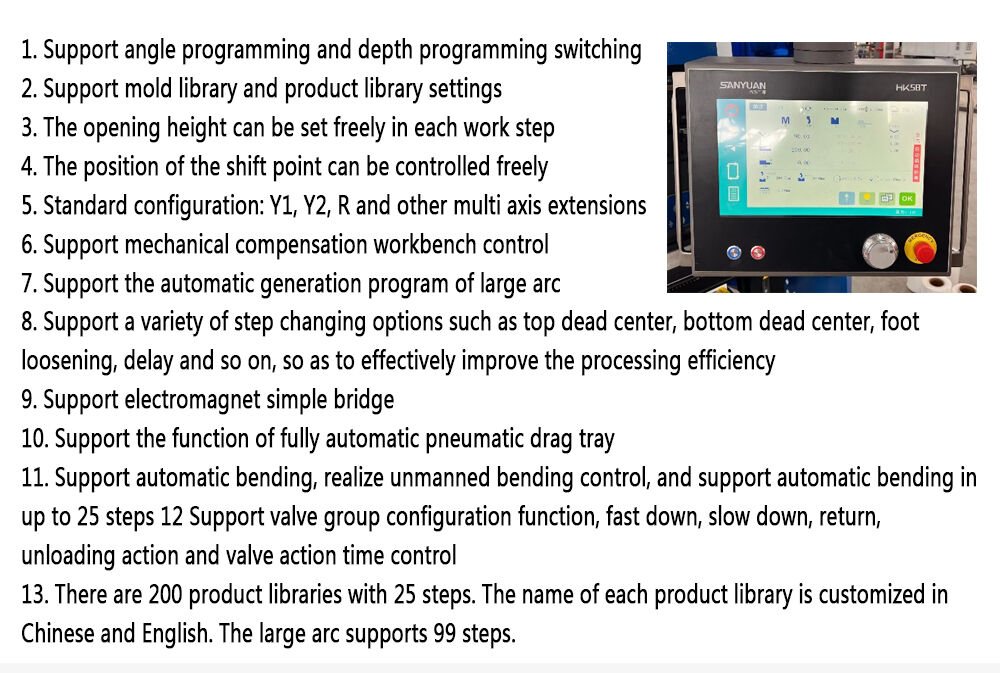

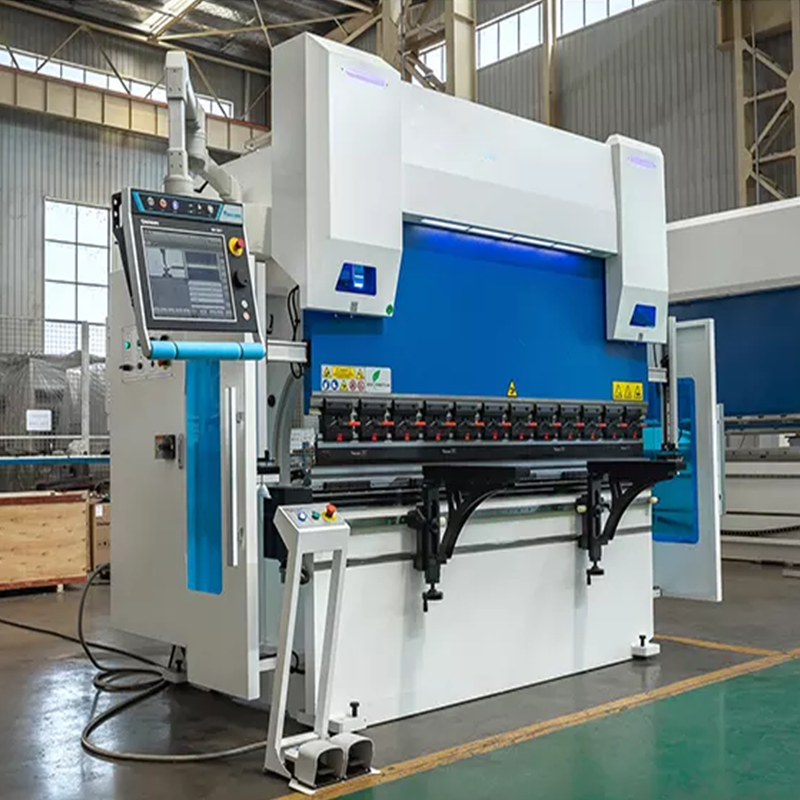

Electro-hydraulic bending machine with HK58T control system

Product Overview

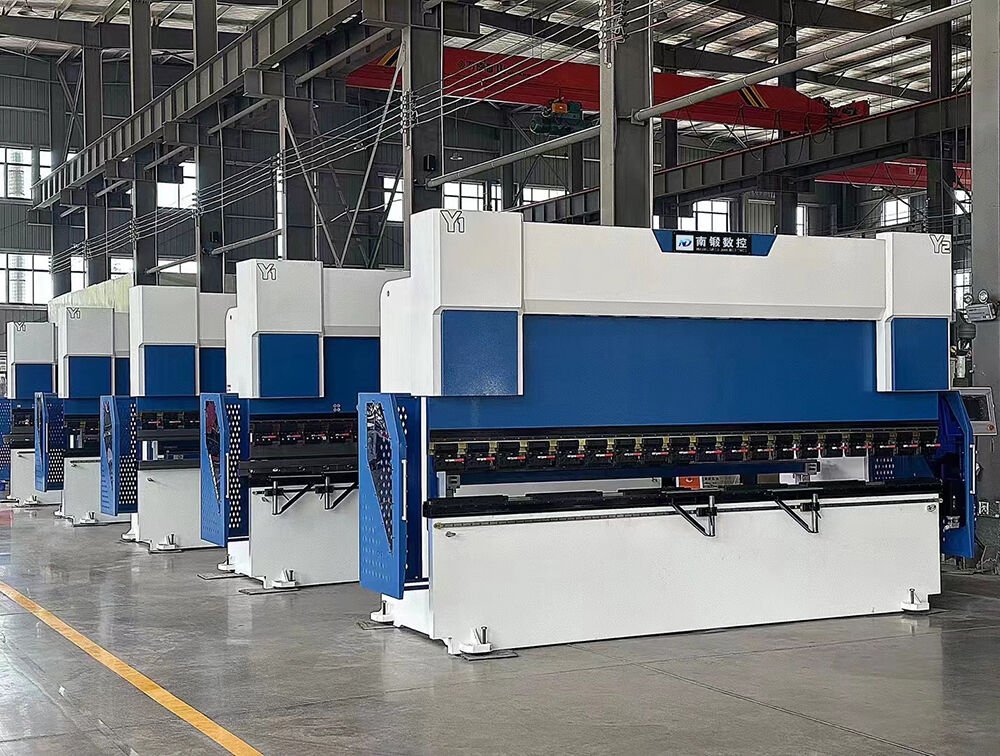

Electro-hydraulic bending machine with HK58T control system factory

Nadun Machinery Manufacture Co., Ltd. is proud to offer our 250 ton hydraulic press brake. This powerful machine is capable of handling a wide range of bending applications, with a maximum bending length of up to 6000mm and a maximum stroke of 250mm. Our press brake is equipped with advanced features such as a CNC controller, precision back gauge, and hydraulic crowning system to ensure accurate and consistent bending results. With a sturdy frame and reliable hydraulic system, our press brake is built to withstand heavy use and provide long-lasting performance. Choose Nadun for quality and reliability in your bending operations.

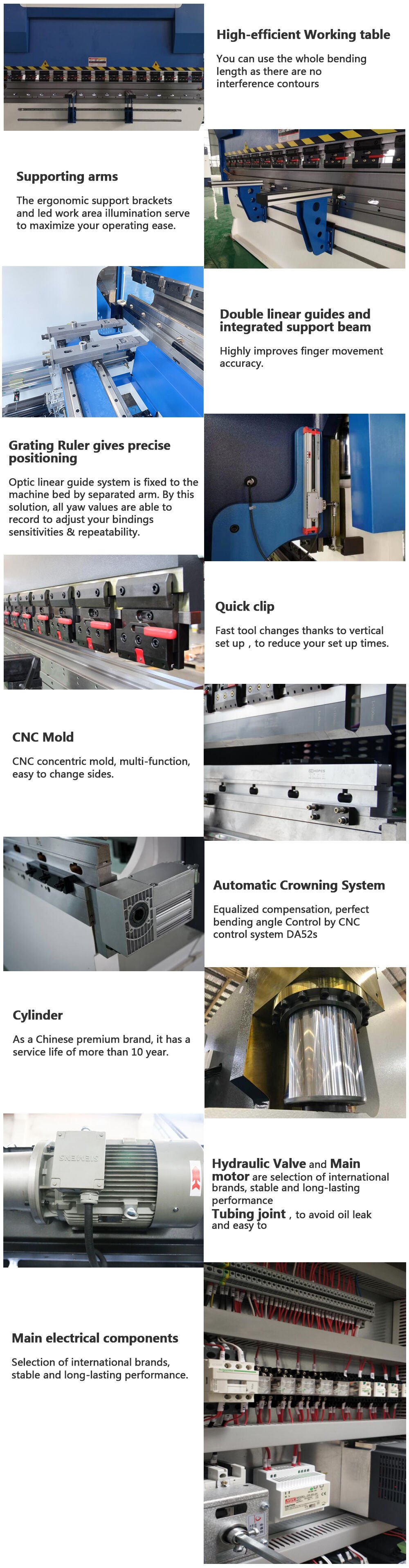

Details

Parameters

Type	Nominal force	Worktable length	Poles distance	Throat depth	Slider travel	Max open (mm)	Power (KN)	Weight	Dimension (mm)
Type	(KN)	(mm)	(mm)	(mm)	(mm)	Max open (mm)	Power (KN)	Weight	Dimension (mm)
40t/2200	400	2200	1850	230	100	320	5.5	2750	220012001900
40t/2500	400	2500	1850	230	100	320	5.5	3000	250012001900
50t/2500	500	2500	1850	230	100	320	5.5	3400	250012002000
63t/2500	630	2500	1900	250	100	320	5.5	4000	250013002210
63t/3200	630	3200	2560	250	100	320	5.5	4800	320013002210
80t/2500	800	2500	1990	300	100	320	7.5	5000	250014002300
80t/3200	800	3200	2560	320	100	350	7.5	6000	320015002300
80t/4000	800	4000	3200	320	100	350	7.5	7000	400015002400
100t/2500	1000	2500	1990	320	120	350	7.5	6000	250016002400
100t/3200	1000	3200	2600	320	150	400	7.5	6800	320016002600
100t/4000	1000	4000	3200	320	150	400	7.5	8000	400016002600
125t/3200	1250	3200	2600	320	150	400	11	7000	320016002600
125t/4000	1250	4000	3200	320	150	400	11	8500	400016002600
160t/3200	1600	3200	2580	320	200	460	11	10000	320017002700
160t/4000	1600	4000	2900	320	200	460	11	11000	400017002800
160t/5000	1600	5000	3900	320	200	460	11	13500	500019003100
160t/6000	1600	6000	4900	320	200	460	11	18500	630019003200
200t/3200	2000	3200	2480	320	200	460	11	11000	320019502800
200t/4000	2000	4000	2900	320	200	460	11	12500	400019502800
200t/5000	2000	5000	3900	320	200	460	11	14000	500019503000
200t/6000	2000	6000	4900	320	200	460	11	20000	600019503300
250t/3200	2500	3200	2450	400	250	590	18.5	18500	325020003200
250t/4000	2500	4000	2900	400	250	590	18.5	20000	400020003400
250t/5000	2500	5000	3900	400	250	590	18.5	23000	500020003400
250t/6000	2500	6000	4900	400	250	590	18.5	27000	600020003400
300t/3200	3000	3200	2450	400	250	590	22	20500	320020003450
300t/4000	3000	4000	2900	400	250	590	22	22000	400020003450
300t/5000	3000	5000	3900	400	250	590	22	25000	500020003450
300t/6000	3000	6000	4900	400	250	590	22	28500	600020003450
400t/3200	4000	3200	2400	400	250	590	30	22500	320021803400
400t/4000	4000	4000	2900	400	250	590	30	25000	400021803400
400t/5000	4000	5000	3900	400	250	590	30	29000	500021803500
400t/6000	4000	6000	4900	400	250	590	30	34000	600021803800
500t/5000	5000	5000	3900	400	250	590	45	42000	505035003700
500t/6000	5000	6000	4900	400	320	590	45	54000	605035003700
600t/5000	6000	4000	2900	400	320	590	55	44000	405045003700
600t/6000	6000	6000	4900	400	320	590	55	60000	605045003700

Packaging & Shipping

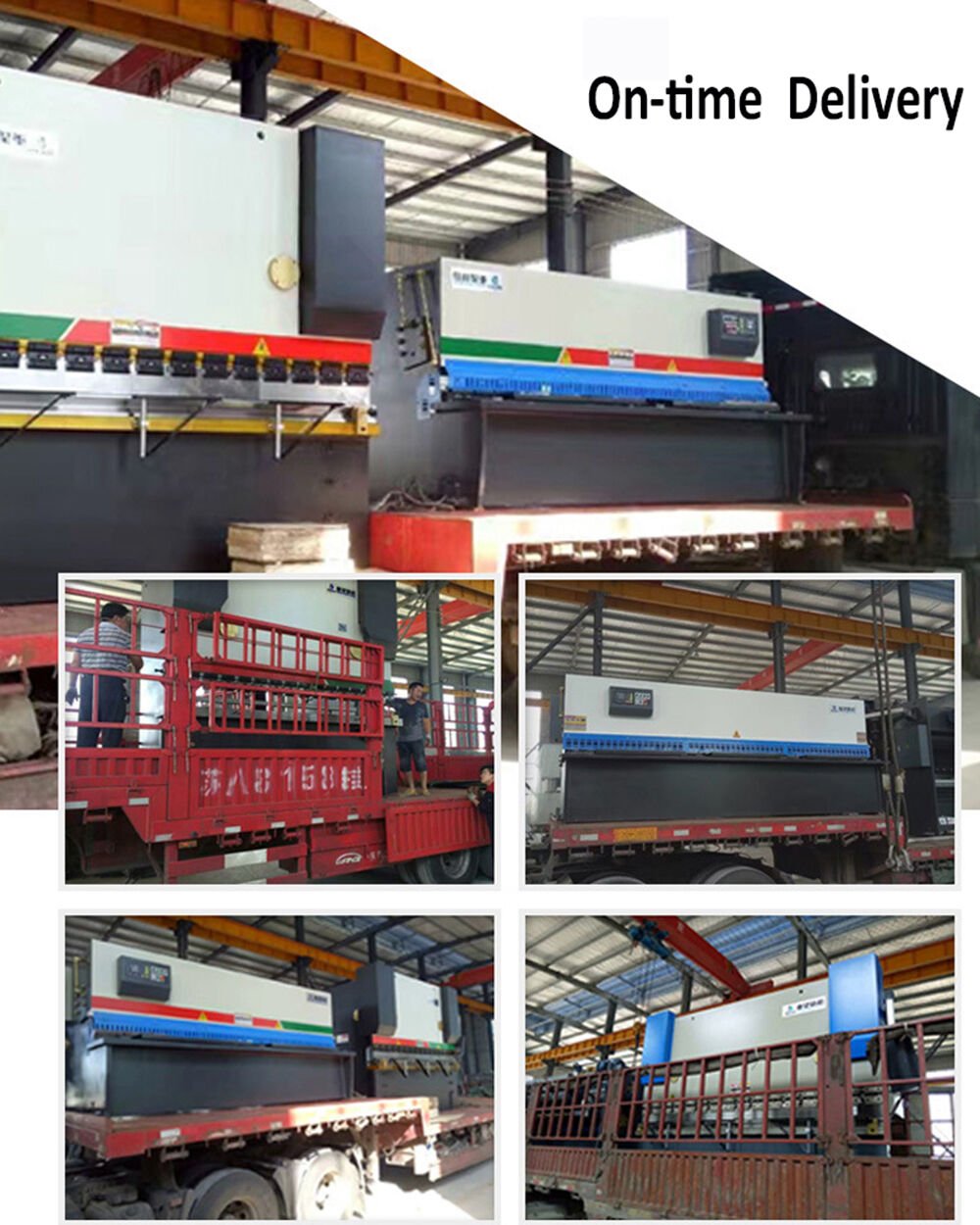

We are committed to safeguarding our products with a robust packaging and transportation strategy. Internally, we use moisture-resistant plastic packaging with anti-rust properties to protect items from environmental factors that could affect quality. Externally, our products are encased in sturdy wooden packaging for added security during shipping. We also employ specialized container transport methods to enhance safety. This careful approach to packaging and transportation reflects our unwavering dedication to delivering high-quality products to our valued customers.

Company Profile

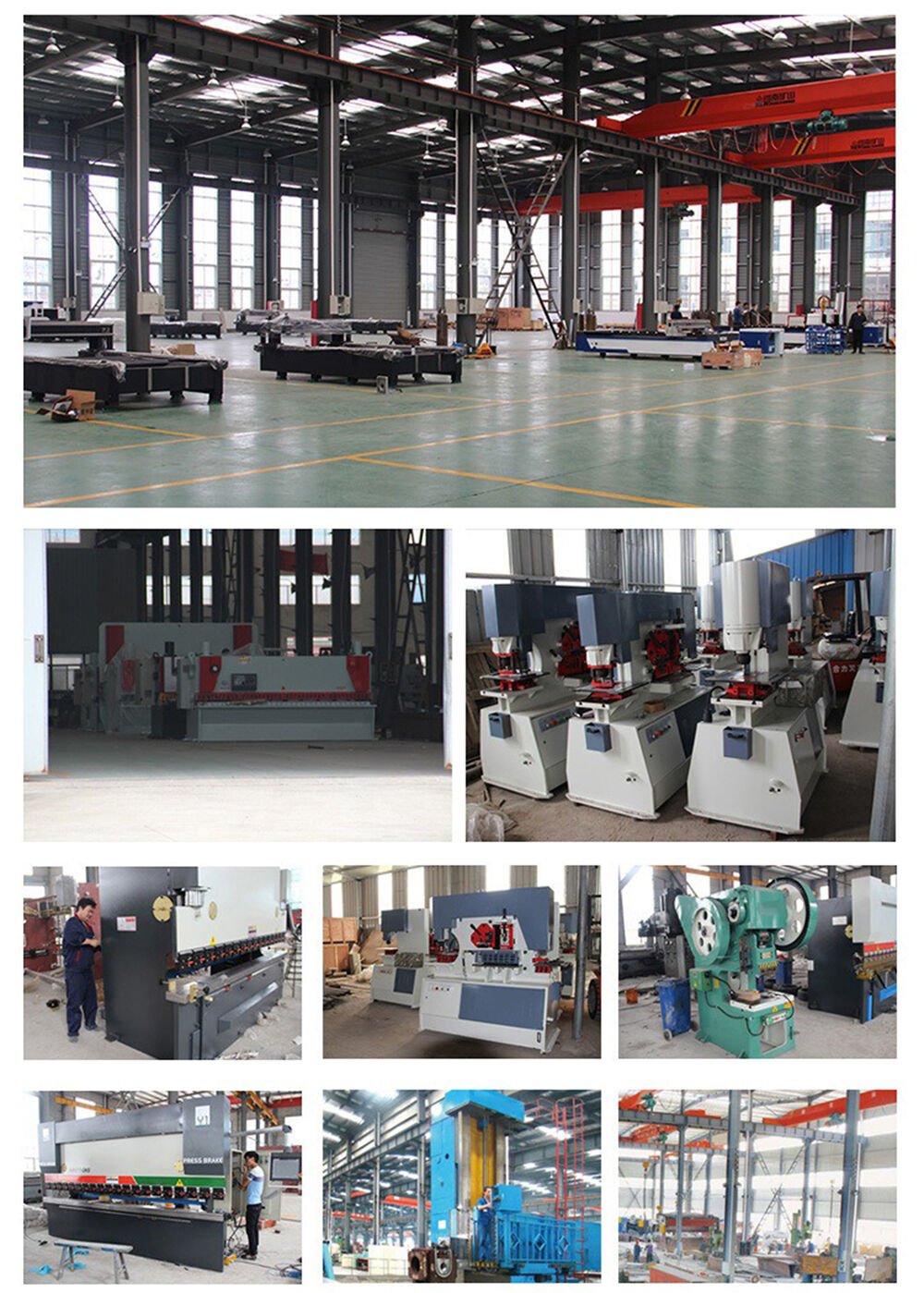

Our company boasts a range of advanced processing equipment, including large-scale CNC floor-standing boring and milling machines and CNC gantry machining centers. We have obtained ISO, CE, SGS, and other certifications, in addition to several product innovation patents and honorary certificates.

Our product line comprises a vast array of machines, such as manual lathes, CNC lathes, saw machines, machine tools, drill machines, milling machines, machining centers, CNC milling machines, grinders, and more. Each machine undergoes a meticulous multi-step machining process and strict measurement and assembly procedures, with quality inspections and mutual inspections conducted throughout each production step.

We employ advanced inspection techniques and have complete testing methods to ensure that all machines are 100% qualified before being sold. At our company, we are committed to delivering high-quality machines that meet the most demanding specifications.

FAQ

Q1: What is your after-sales service policy?
A: We offer a one-year guarantee and will provide spare parts if any problems arise due to our manufacturing. You can contact us directly with any issues.

Q2: Can I visit your factory before placing an order?
A: Absolutely, we welcome you to inspect our factory. Our factory is located at No. 219 Xingye Road, Tengzhou City, Shandong Province. We can arrange to pick you up from Tengzhou station and offer hotel booking services.

Q3: Are you a factory or trading company?
A: We are a manufacturer with our own factory, and approximately 50-60% of our production is exported.

Q4: How can I trust your company?
A: We have a professional design team that can provide suitable suggestions and the best prices for our equipment. We have been assessed by third-party organizations and have obtained national patents and CE, ISO certifications for all our equipment. You are welcome to inspect our factory at any time, and we also offer Trade Assurance.
