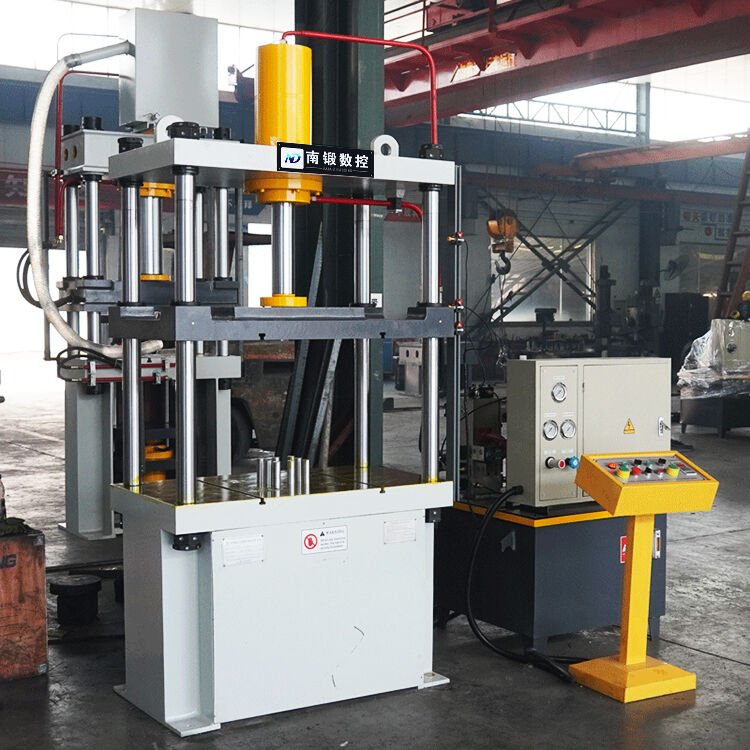

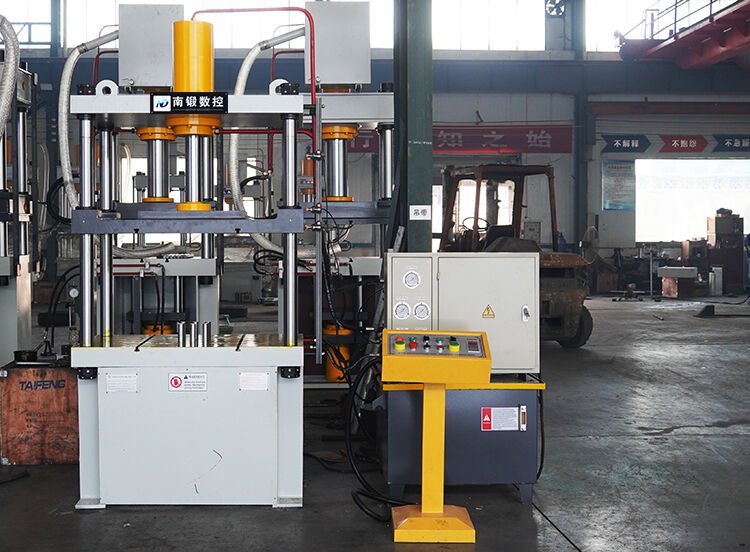

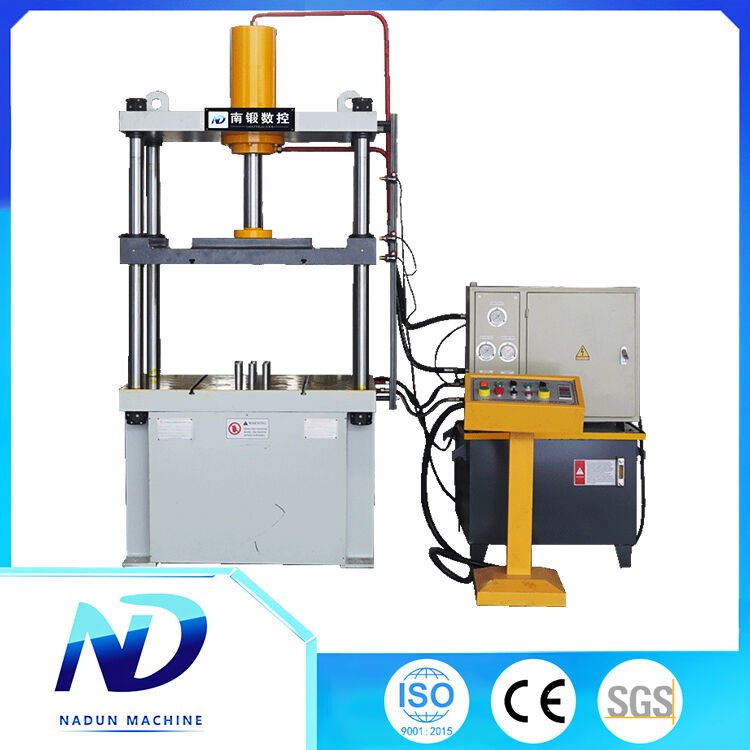

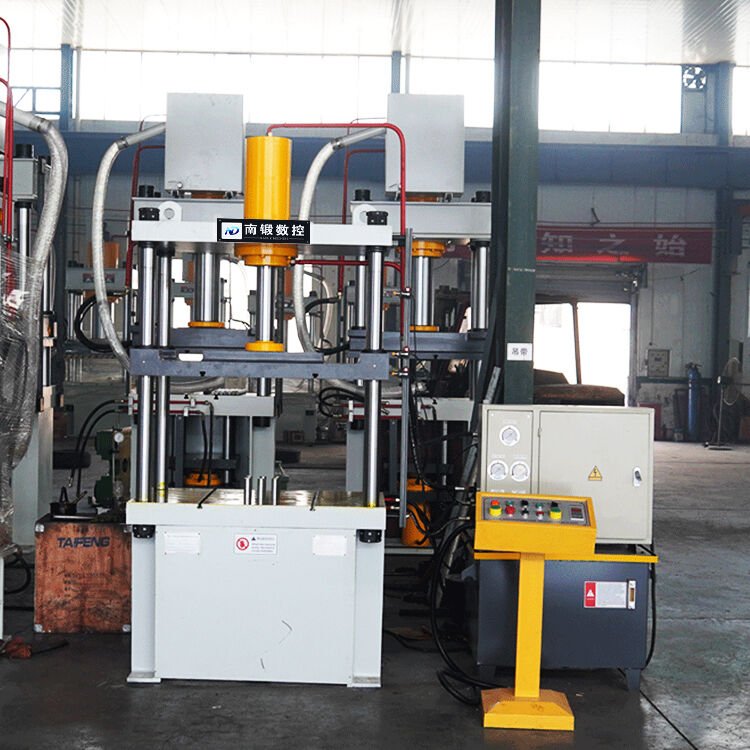

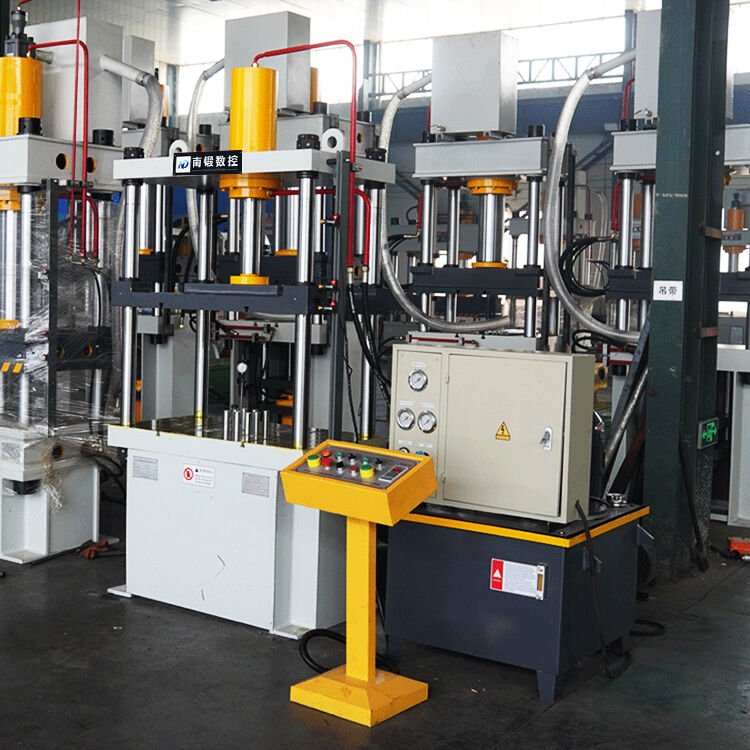

50ton metal deep drawing hydraulic press machine for wheelbarrow stainless steel sinks stamping 50 ton

The thin sheet metal forming and stretching hydraulic press is primarily used for metal thin sheet stretching, blanking, and punching processes. It also possesses the conventional functions of a general-purpose hydraulic press, making it widely applicable. When equipped with a hydraulic buffer, it can complete post-stretching punching or post-punching flanging processes. This equipment is widely used in various fields, including automotive, motorcycle, household appliances, petrochemical, rail transportation, aerospace, and aviation. This series of hydraulic presses is available in two structural forms: four-column and frame.

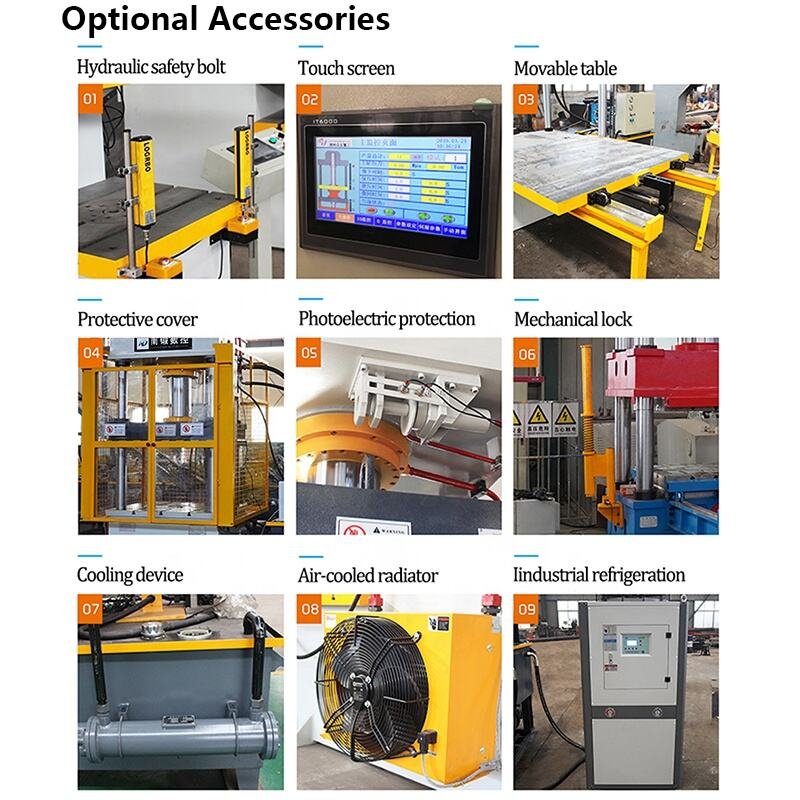

It can be configured according to user requirements with hydraulic pads, micro-adjustment mold devices, quick mold change devices, etc.

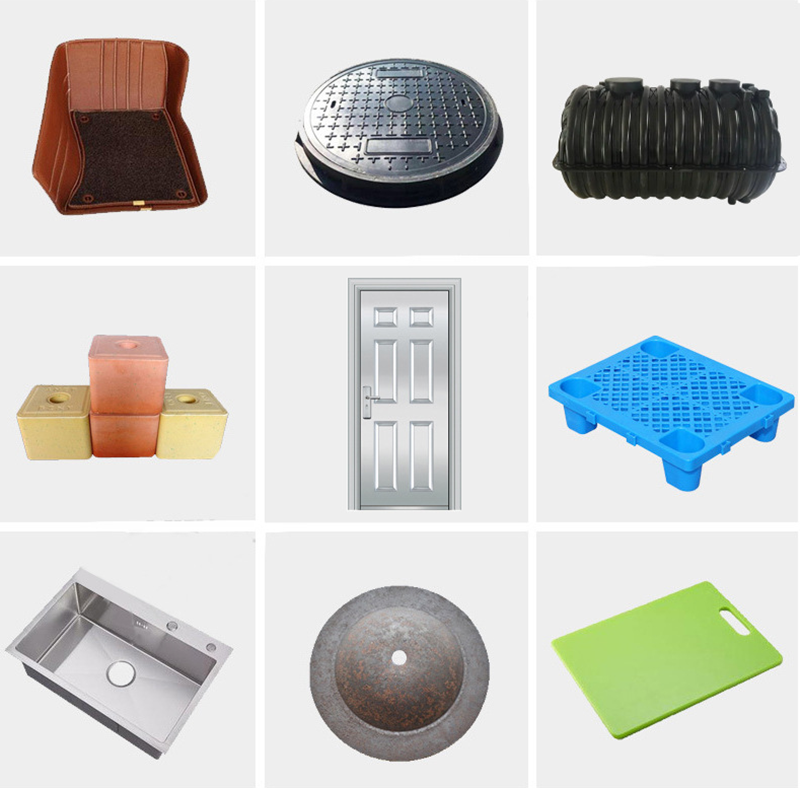

The YD27 series sheet metal stretching and forming hydraulic press can be used to produce the products shown above.

Highly Customizable

In addition to our standard models, our machines can be customized with various brands and types of components according to your specific requirements, achieving a high degree of customization.

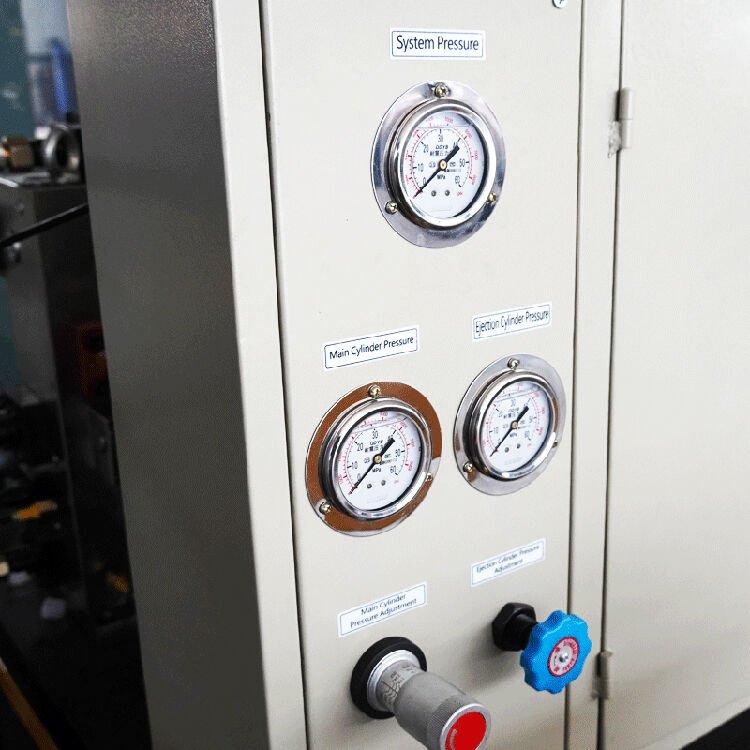

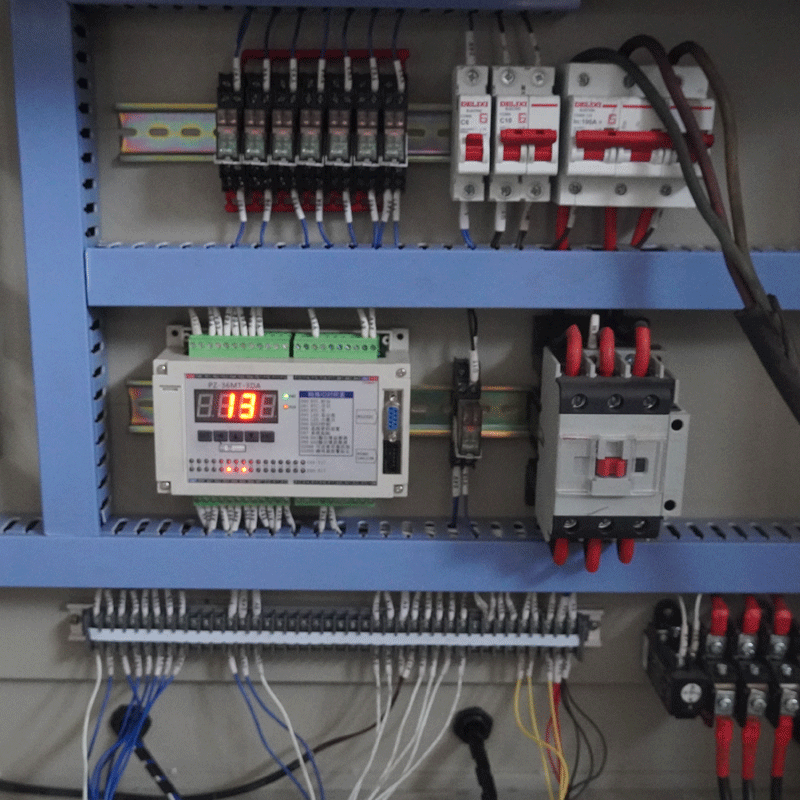

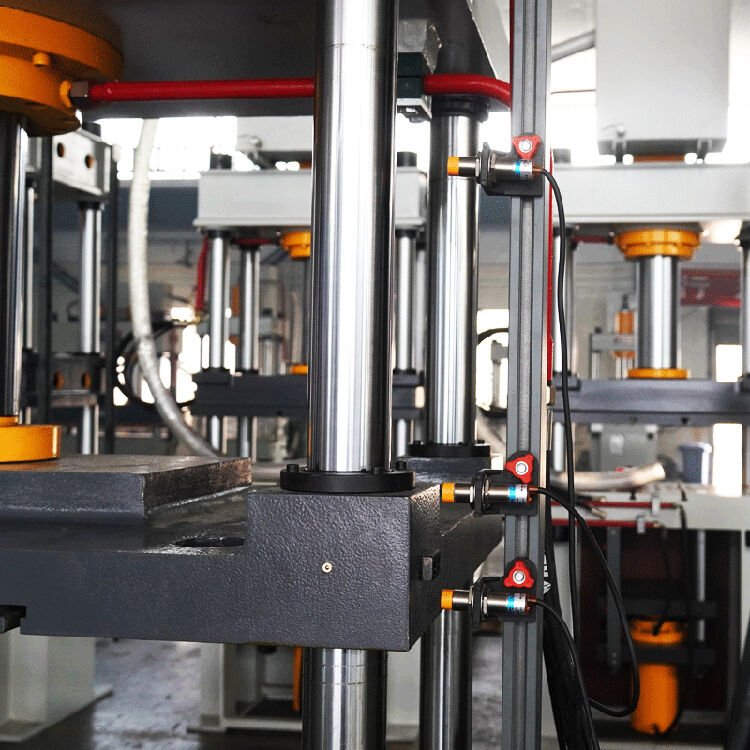

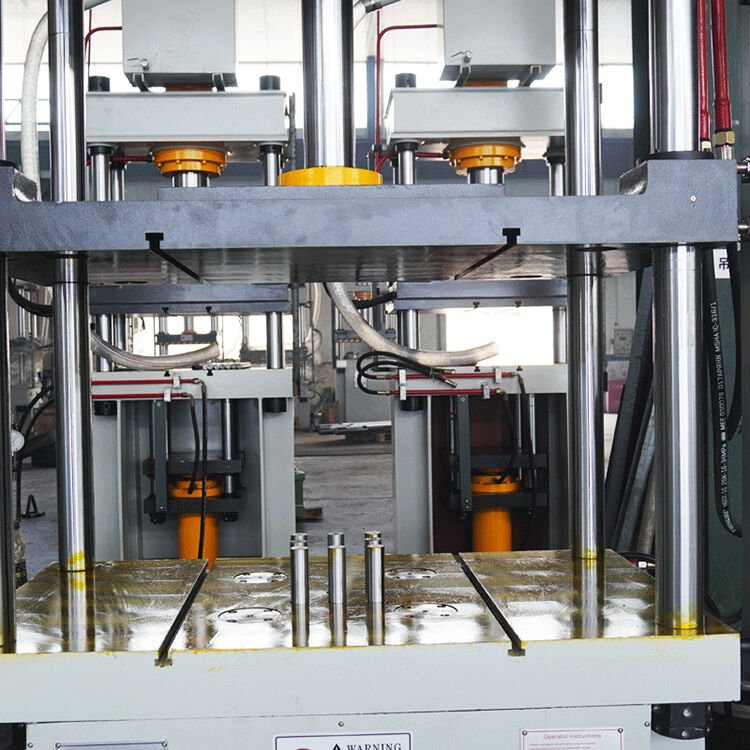

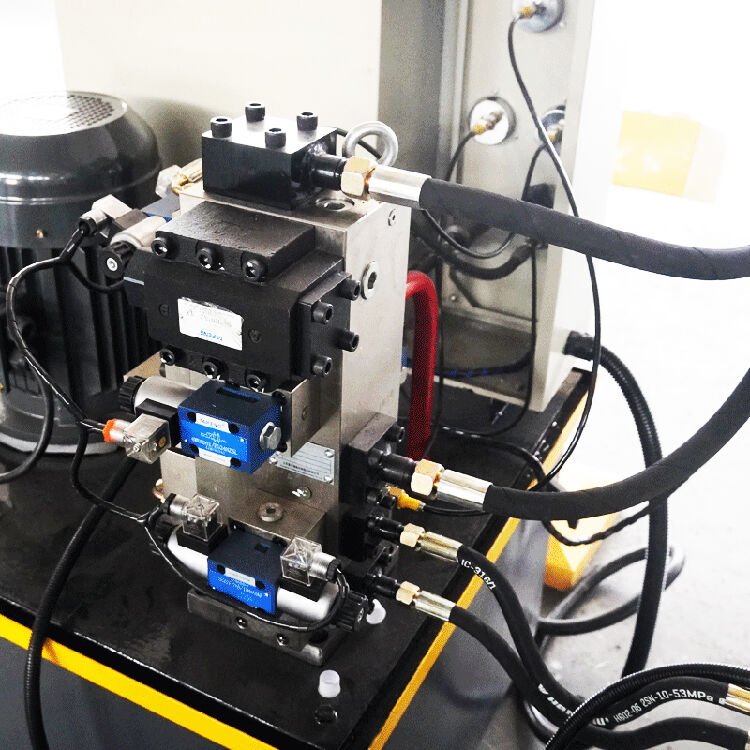

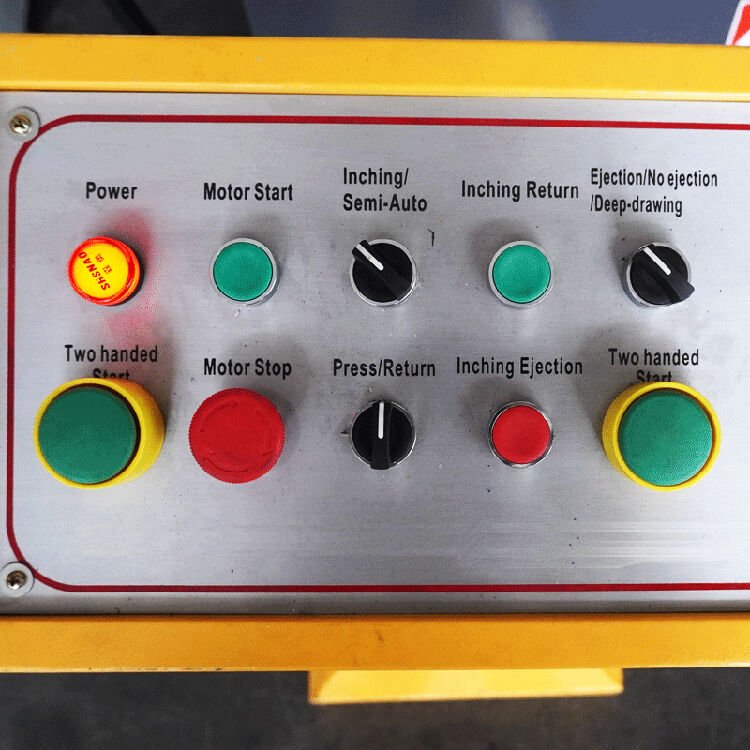

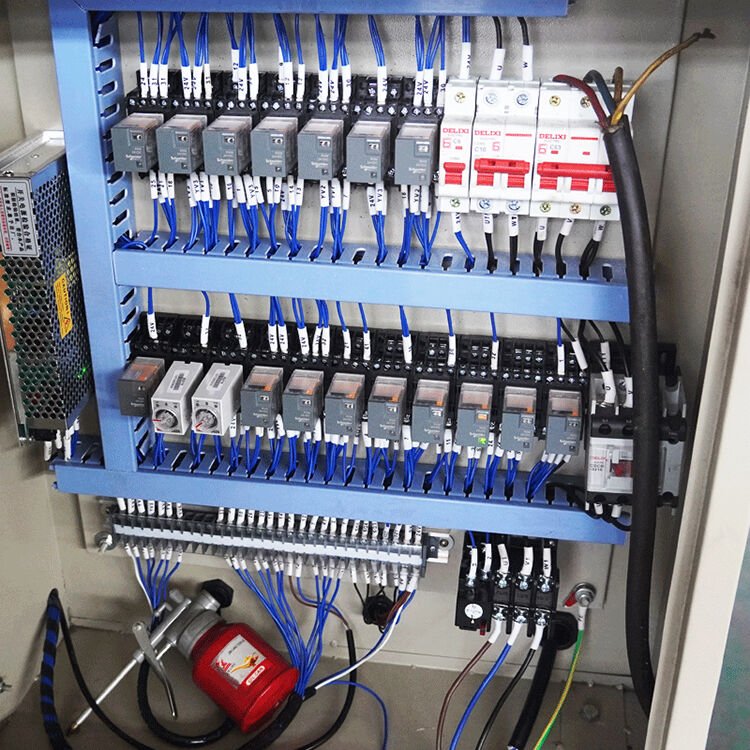

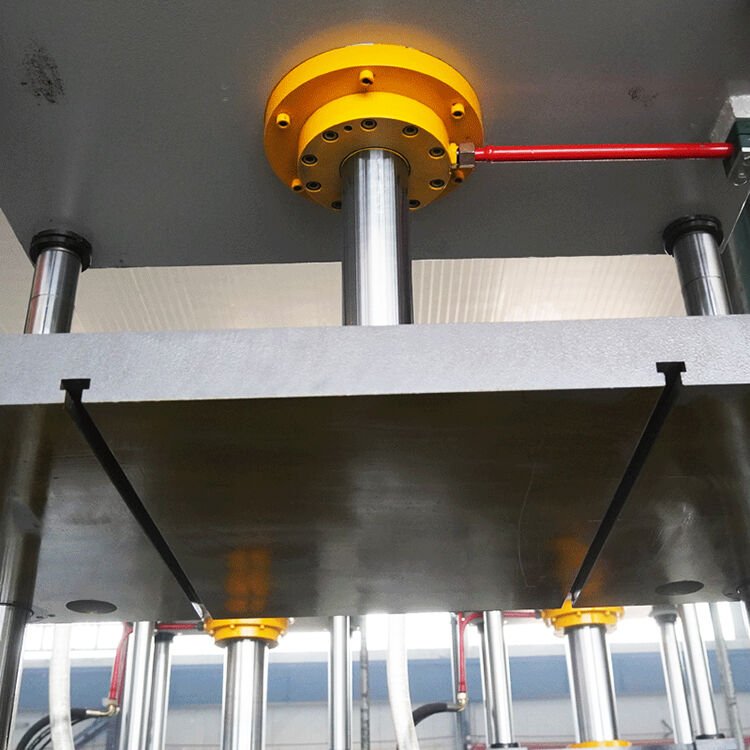

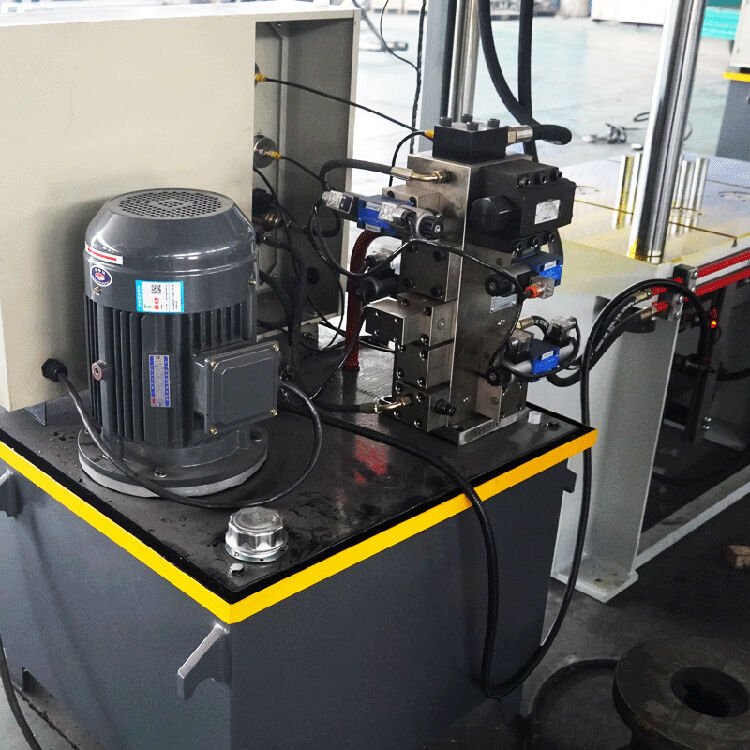

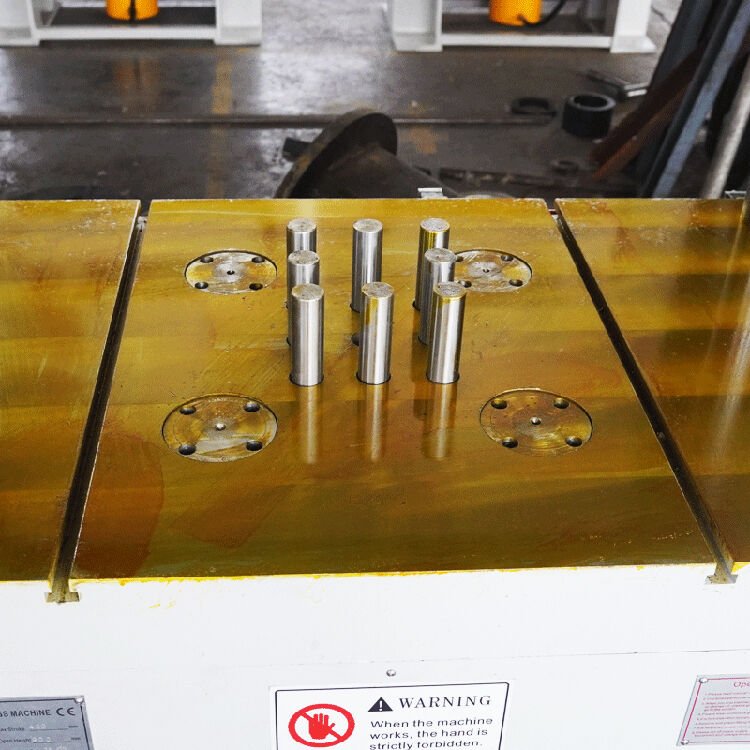

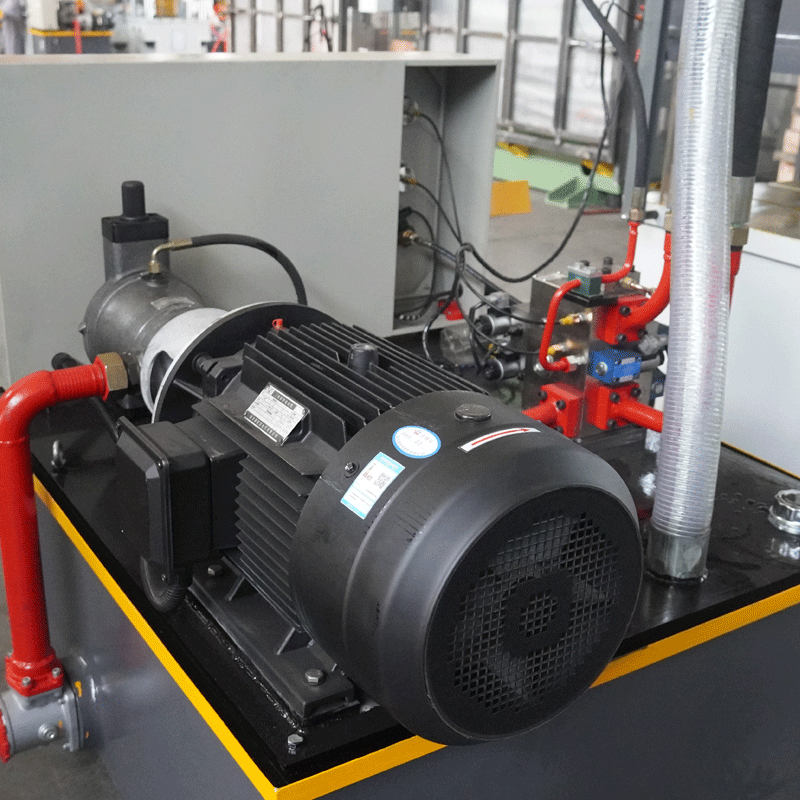

Details Images

Specification

item	value
Slide Stroke (mm)	500
Machine Type	Four-column Three-beam Hydraulic Press
Ejector Force (kN)	500
Return Force (kN)	150kN
System	Normal
Condition	New
Place of Origin	China
Brand Name	Nadun
Year	2024
Voltage	380V/Optional
Weight (T)	2.5T
Model Number	YD27-50T
Motor Power (kw)	5.5kw
Key Selling Points	Competitive Price
Warranty	1 Year
Applicable Industries	Building Material Shops, Garment Shops, Machinery Repair Shops, Manufacturing Plant, Energy & Mining, Construction works
Showroom Location	None
Marketing Type	Ordinary Product
Machinery Test Report	Provided
Video outgoing-inspection	Provided
Warranty of core components	1 Year
Core Components	Bearing, Motor, Pump, Pressure vessel
Hydraulic Pressure	25 Mpa
Opening Height	800 mm

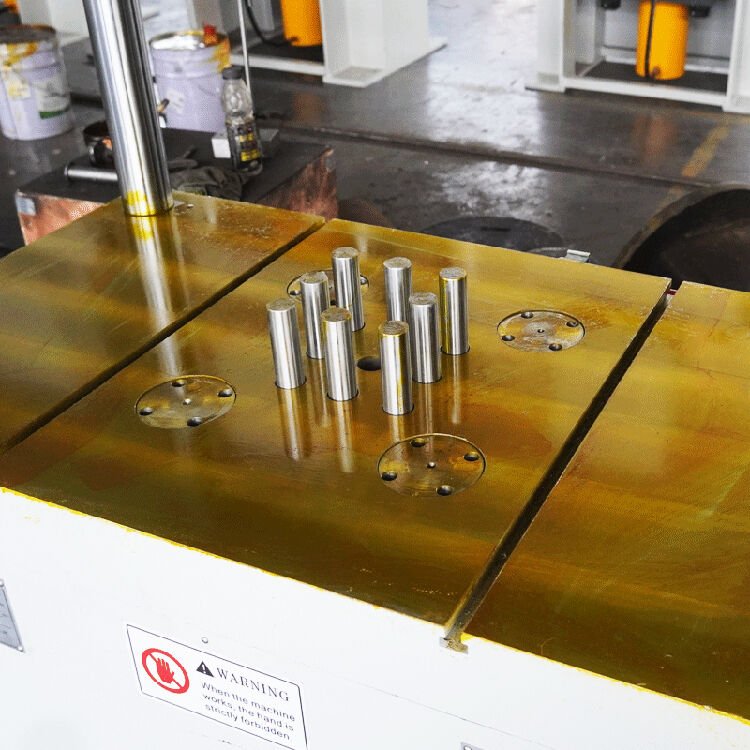

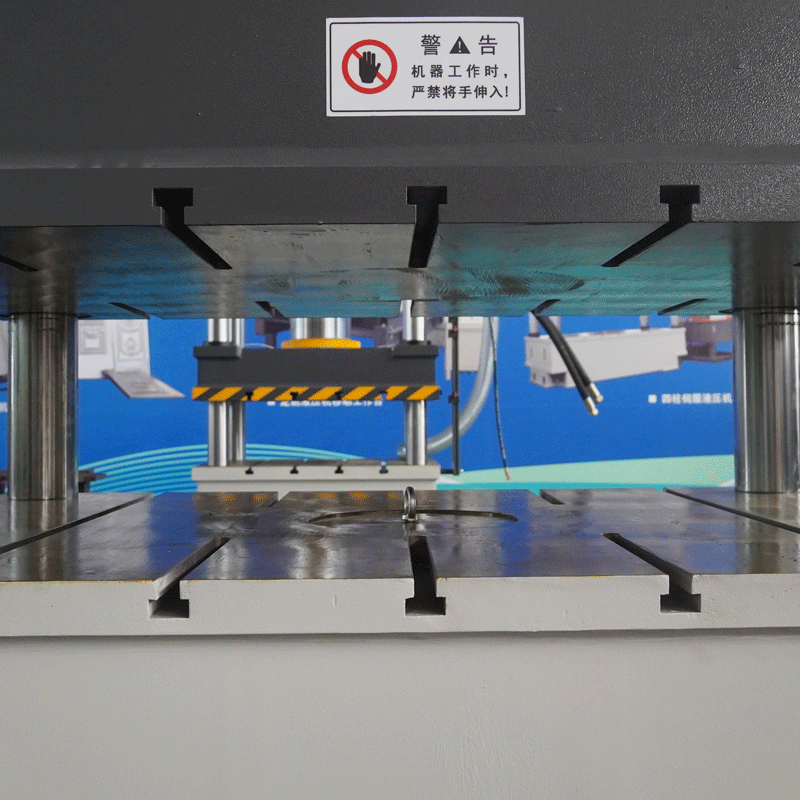

Effective Table Area	650*600 mm
Down Speed	90 mm/s
Pressing Speed	17 mm/s
Return Speed	110 mm/s

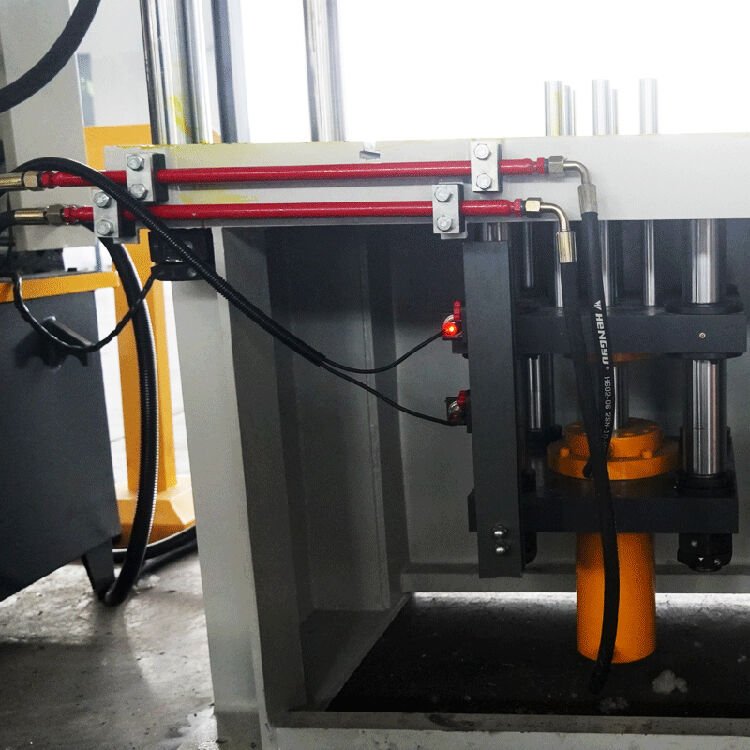

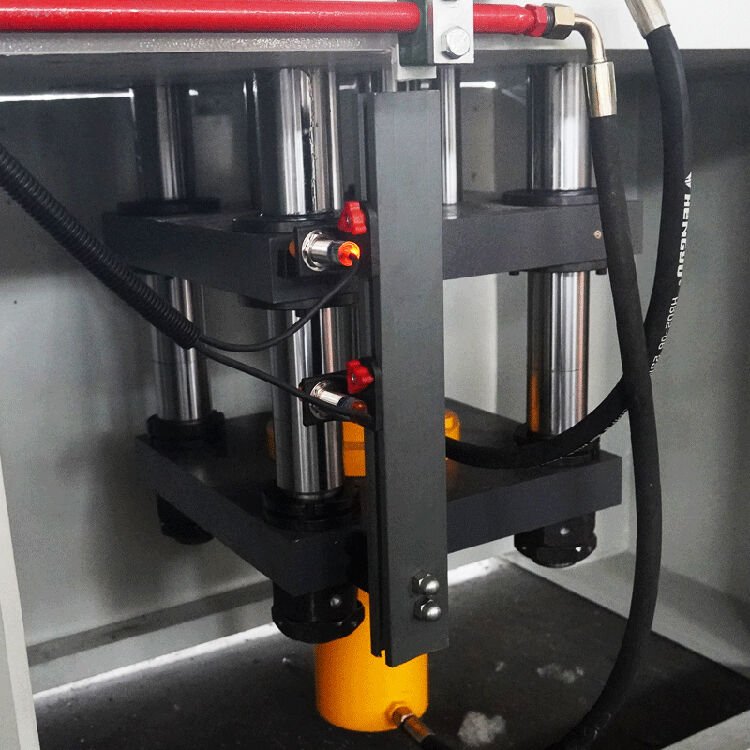

Hydraulic Cushion Ejection Force	500 KN
Ejection Stroke	300 mm
Hydraulic Cushion Area	400 mm
