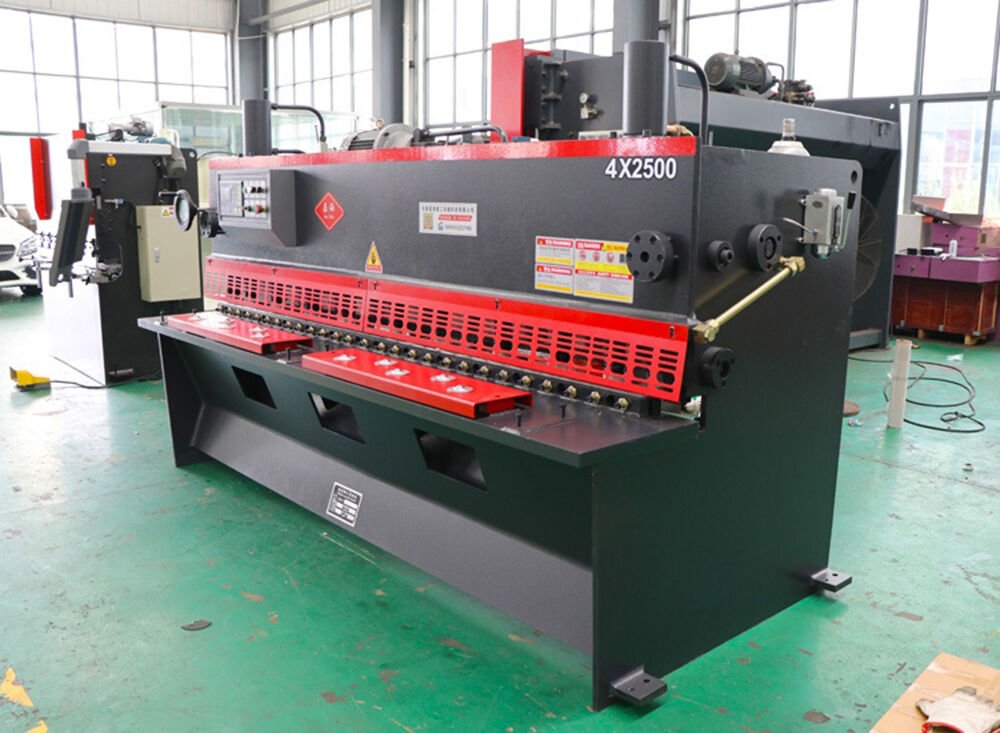

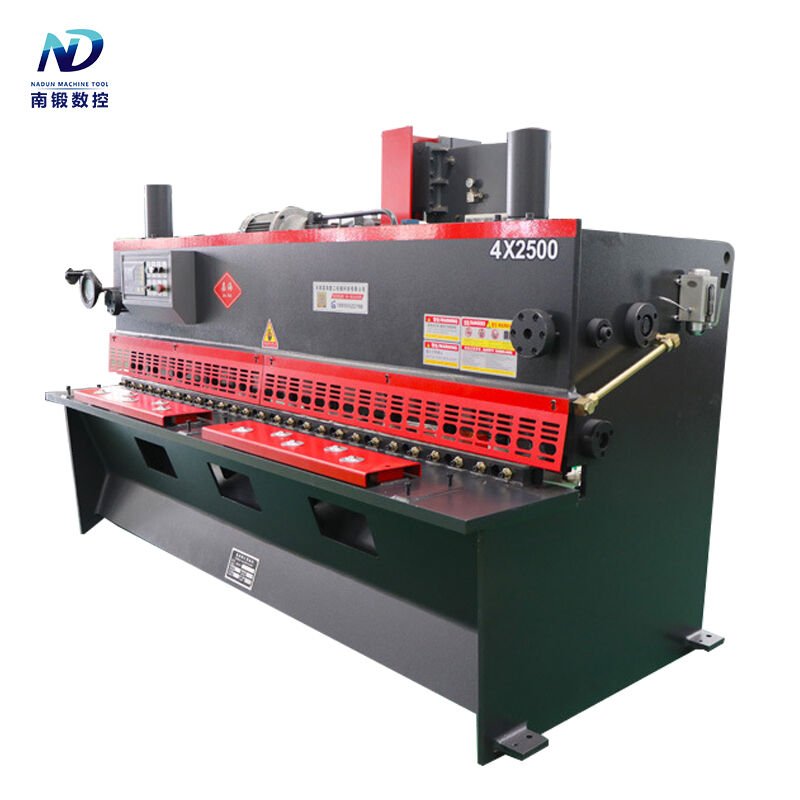

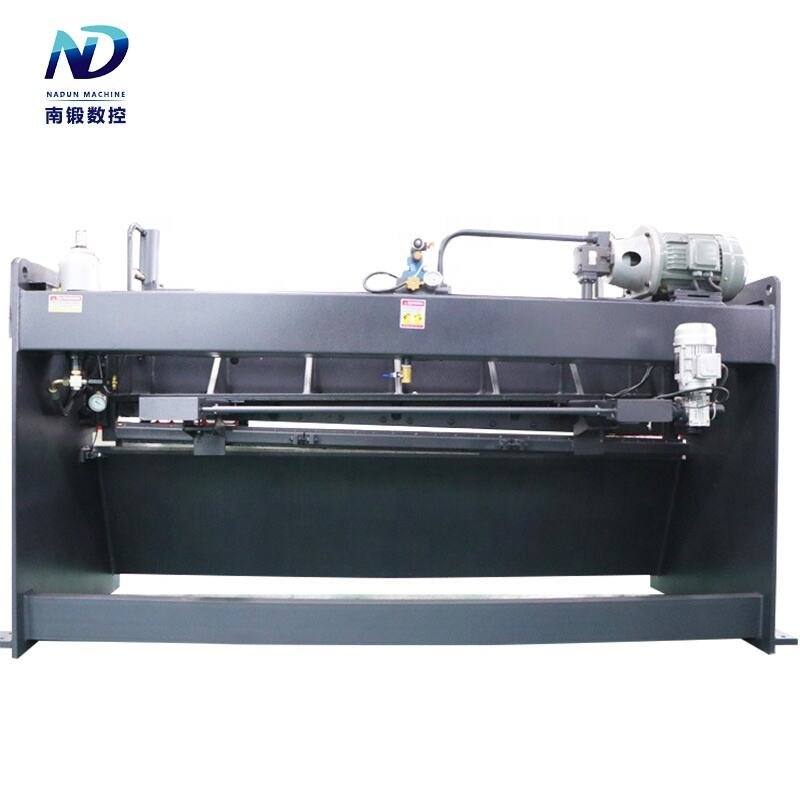

4*2500mm hydraulic guillotine shearing machine

4*2500mm hydraulic guillotine shearing machine

Product Overview

4*2500mm hydraulic guillotine shearing machine supplier

Main Features

1. Totally EU streamlined design, Monoblock by welding robots & apparatus and stress relief process by Annealing treatment.
2. Adopt integrated hydraulic system, more-reliable and easy for maintenance.
3. The ZW-HOPES Hydraulic Guillotine is a Variable Rake Action machine which is produced in a variety of cutting lengths & capacity options.
4. The distance of the back-gauge is adjusted by the motor and is well adjustment is displayed by E21S.
5. Equipped with lighting-alignment, so as to align when shearing. The stroke of knife beam can be adjusted in stepless mode.
6. Electric interlocker have been designed for the machine to ensure the operation safety.

Standard Equipment

E21S control System
Powered Back gauge X-axis
Cutting Angle & Gap by E21S control
Huade Hydraulic System
Nanjing JINLI Main Motor
Telemecaniques/Renowned French brand Electrics
Hydraulic & Electrical overload protection
Top blade with two cutting edges and bottom blade with four cutting edges.
Front finger Protection
South Korea Kacon Foot Switch

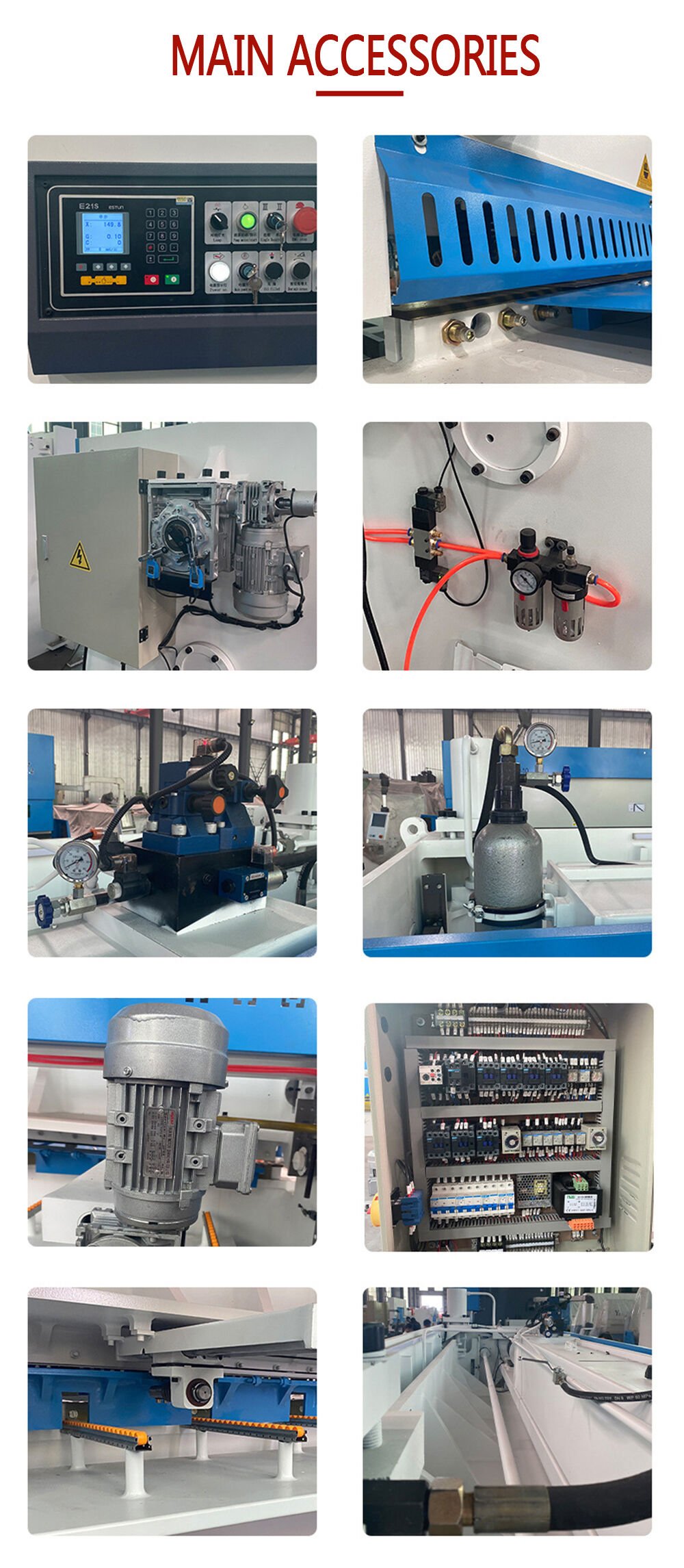

Details

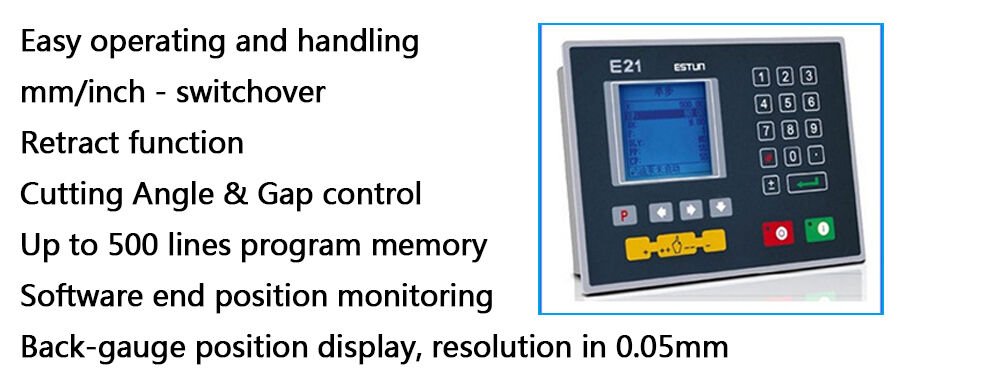

E21S Control System

Parameters

Mold	Cutting Thickness (mm)	Cutting Length (mm)	Angle Range (°)	Backgauge Stroke (mm)	Dimensions (mm×mm×mm)	Main Motor (KW)
6×2500	6	2500	1-3	750	3140×1740×2040	7.5
6×3200	6	3200	1-3	750	3750×1770×2150	7.5
6×4000	6	4000	1-3	750	4830×1840×2150	11
6×5000	6	5000	1-3	750	5830×1840×2150	11
6×6000	6	6000	1-3	750	6480×2100×2300	11
8×2500	8	2500	1-3	750	3040×1700×1700	11
8×3200	8	3200	1-3	750	3860×1700×1700	11
8×4000	8	4000	1-3	750	4640×1700×1700	11
8×5000	8	5000	1-3	750	5400×2400×2000	11
8×6000	8	6000	1-3	750	6480×2100×2350	11
8×8000	8	8000	1-3	750	8580×2130×2350	11
10×2500	10	2500	1-3	750	3040×1800×1700	15
10×3200	10	3200	1-3	750	3850×1830×1900	15
10×4000	10	4000	1-3	750	4650×2100×2000	15
10×5000	10	5000	1-3	750	5750×2100×2000	15
10×6000	10	6000	1-3	750	6500×2100×2300	15
10×8000	10	8000	1-3	750	8800×2100×2300	15
12×2500	12	2500	1-3	750	3285×1830×2390	15
12×3200	12	3200	1-3	750	3855×1830×2390	18.5
12×4000	12	4000	1-3	1000	4850×1830×2390	18.5
12×6000	12	6000	1-3	1000	6850×1930×2650	18.5
12×8000	12	8000	1-3	1000	8950×2130×2850	18.5
12×9000	12	9000	1-3	1000	9980×2300×2950	18.5
12×10000	12	10000	1-3	1000	11050×2500×3100	18.5
16×2500	16	2500	1-3	1000	3440×1940×2830	22
16×3200	16	3200	1-3	1000	4010×1940×2830	22
16×4000	16	4000	1-3	1000	5010×1980×2830	22
16×5000	16	5000	1-3	1000	5900×2600×2830	22
16×6000	16	6000	1-3	1000	6900×2700×2830	22
16×8000	16	8000	1-3	1000	8900×2900×3430	22
20×2500	20	2500	1-3	1000	3440×1900×2830	30
20×3200	20	3200	1-3	1000	4010×1900×2830	30
20×4000	20	4000	1-3	1000	4850×2600×2900	30
20×6000	20	6000	1-3	1000	6700×3000×3000	30
30×2500	30	2500	1-3	1000	3440×1900×2830	37
30×3200	30	3200	1-3	1000	4200×1900×3000	37
40×2500	40	2500	1-3	1000	3440×2000×3000	37

Company Profile

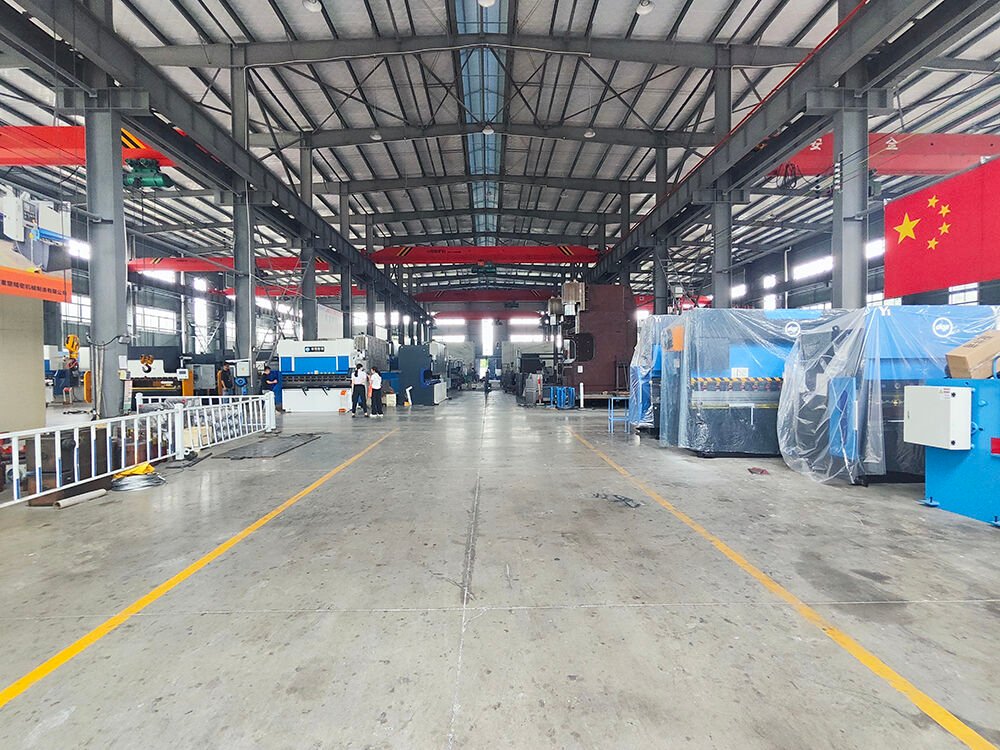

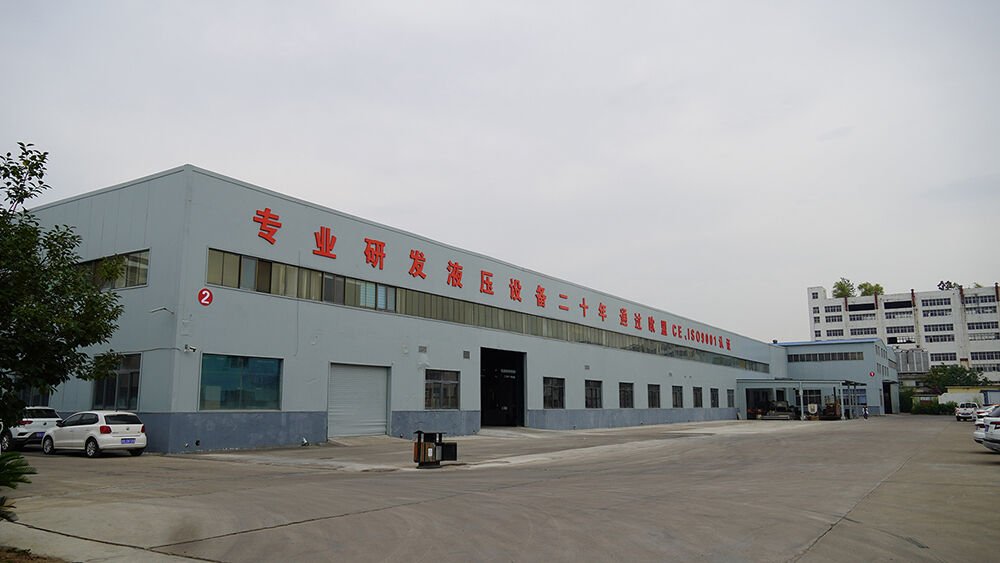

Nadun Machinery Manufacture Co., Ltd. is a company specializing in the production of hydraulic presses, punch presses, shearing machines, bending machines, and other machinery. Our products are widely used in various industries such as automobile manufacturing, home appliances, and hardware processing.

Our company has a team of experienced professionals who consistently strive for excellence in their work. We have a strong research and development team that constantly innovates and improves our products to meet the ever-changing market demands. Our products are known for their high quality, excellent performance, and long service life.

Certificates

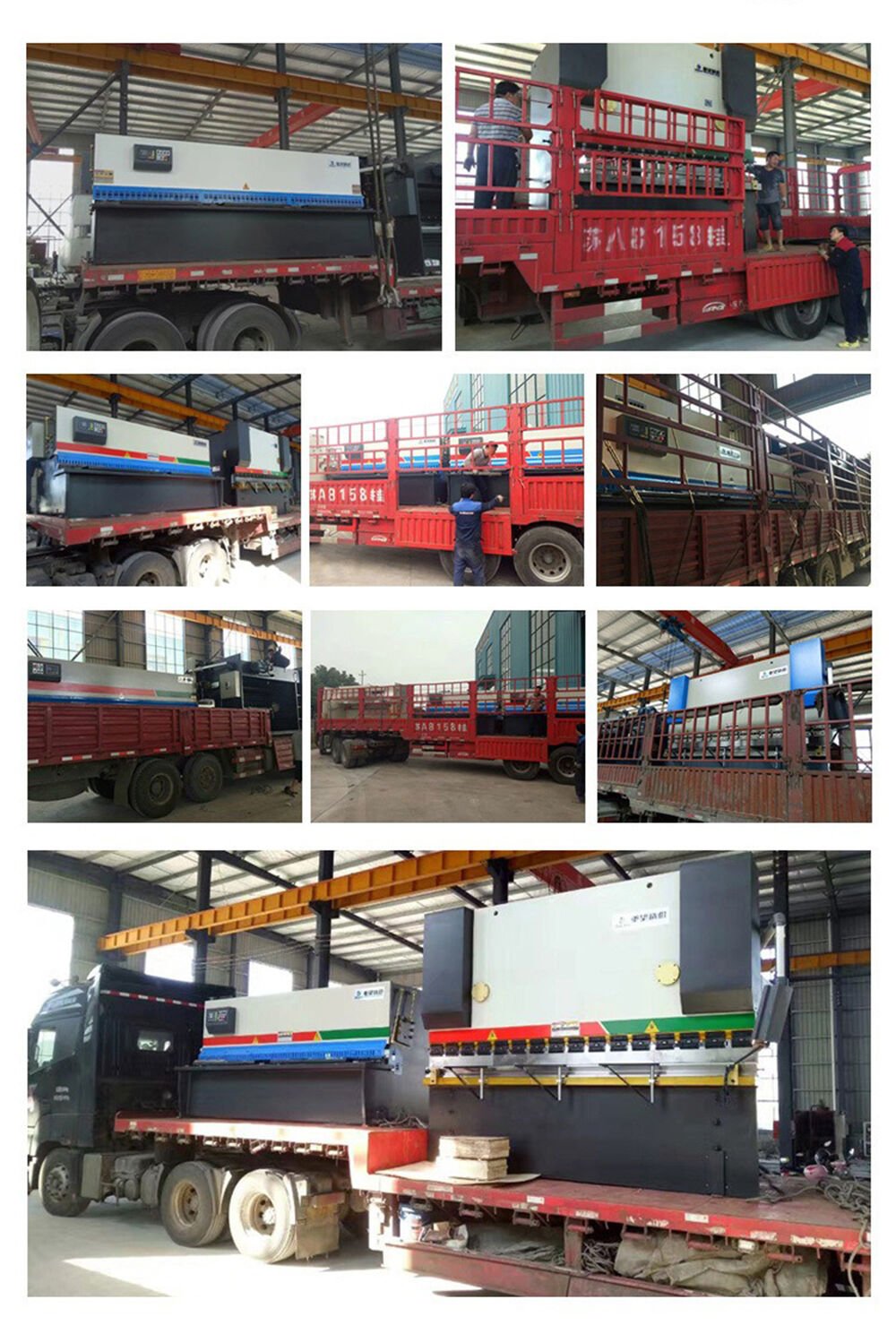

Packaging & Shipping

The products are packaged internally with moisture-proof and anti-rust plastic materials, and externally with wooden packaging. We also offer exclusive container transportation for our customers.

FAQ

1.Could you furnish me with the relevant documentation?
Certainly, we are able to supply various documentation, including Certificates of Analysis/Conformance, insurance certificates, certificates of origin, and any other required export documents.

2.What's the typical lead time?
For samples, the lead time averages around 30 days. Regarding mass production, it usually takes 30-60 days after receipt of the deposit payment. Our lead times commence upon receipt of your deposit and your final product approval. If our lead times don't align with your timeline, please communicate your needs with your sales representative. In most instances, we can accommodate your requirements.

3.What payment methods are accepted?
We accept payment via bank transfers, Western Union, or PayPal. Our usual payment terms involve a 30% deposit upfront, followed by the remaining 70% balance against a copy of the Bill of Lading (B/L).

4.What kind of product warranty is provided?
We stand by the quality of our materials and workmanship. Our commitment centers on ensuring your satisfaction with our products. Whether within the warranty period or not, our company culture entails addressing and resolving all customer concerns to the contentment of all parties.

5.Can you guarantee the secure delivery of products?
Absolutely, we consistently employ high-quality export packaging methods to ensure the safe and secure delivery of our products. We also employ specialized hazard packaging for dangerous goods and validated cold storage containers for temperature-sensitive items. It's worth noting that specific or non-standard packing requirements may result in an additional charge.
