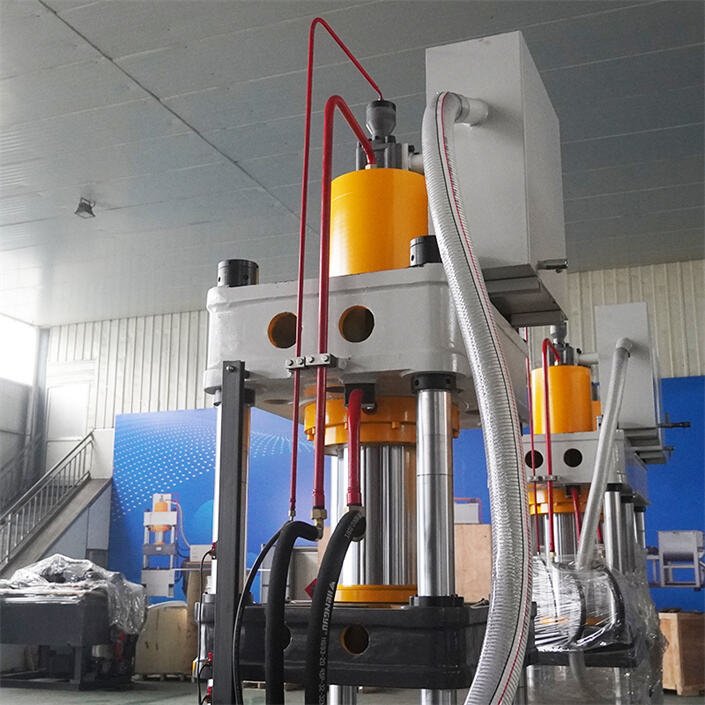

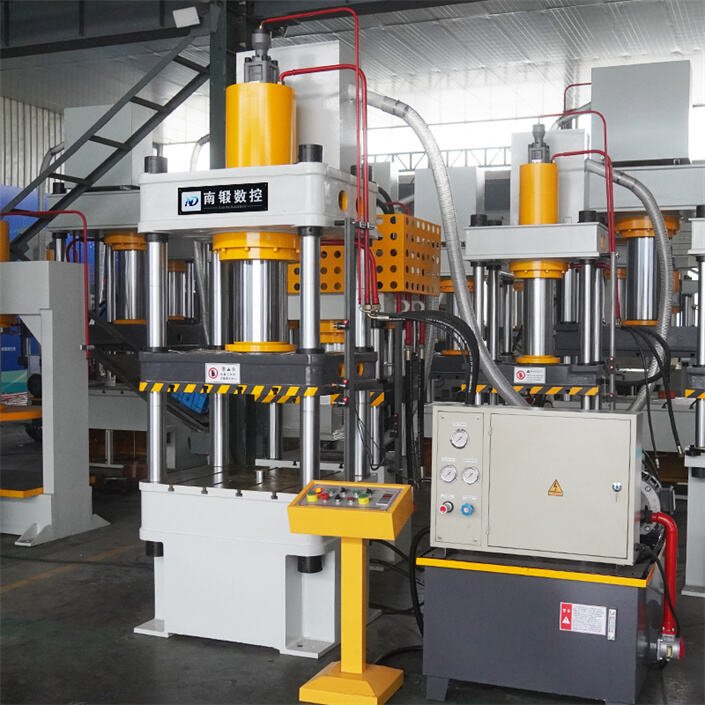

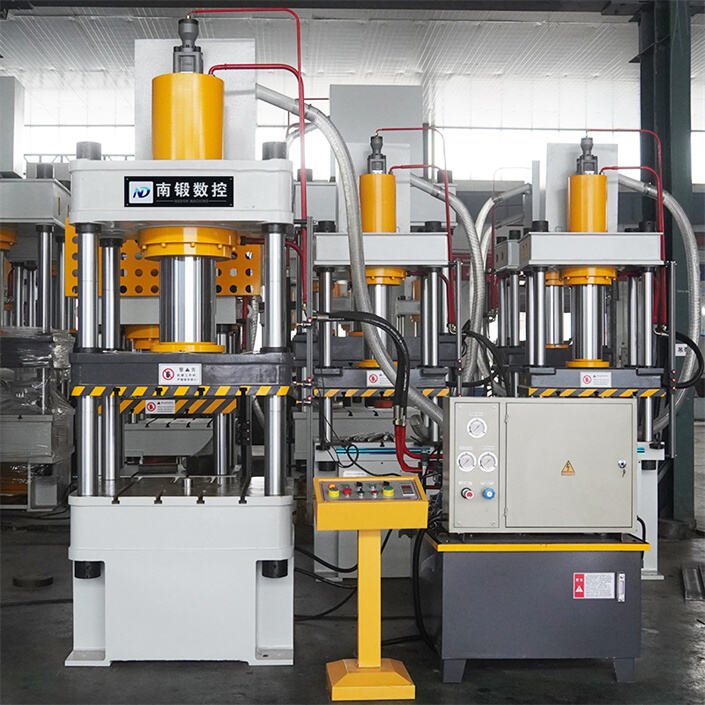

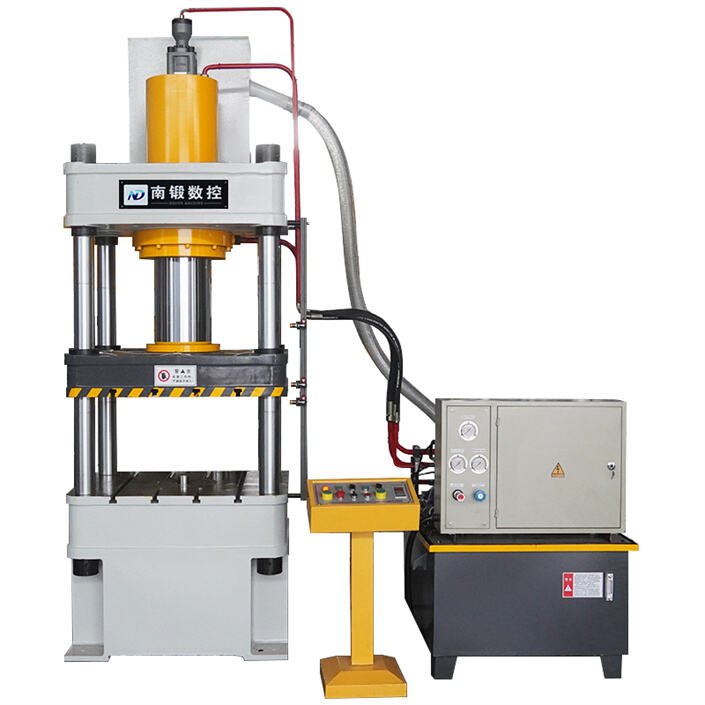

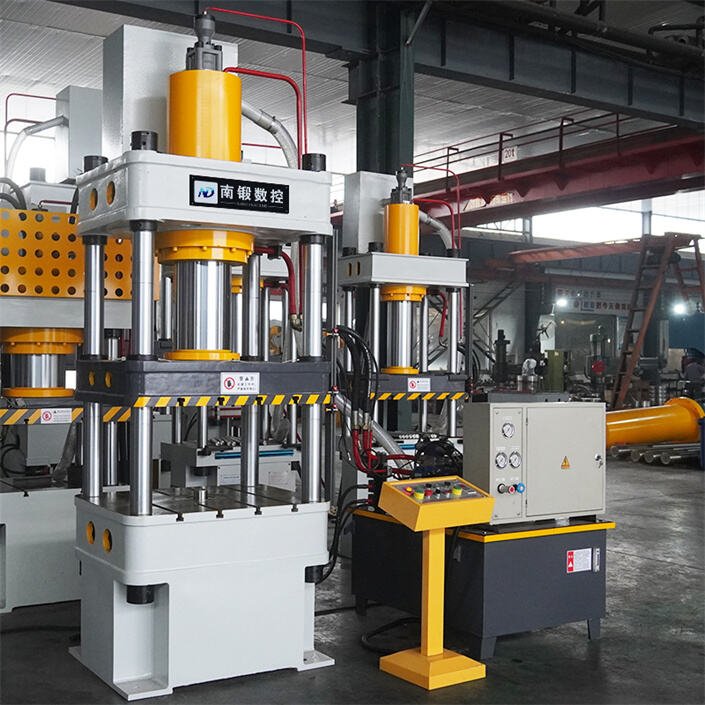

200-ton four-column metal forming hydraulic press
200-ton four-column metal forming hydraulic press
200-ton four-column metal forming hydraulic press
200-ton four-column metal forming hydraulic press
200-ton four-column metal forming hydraulic press
200-ton four-column metal forming hydraulic press
200-ton four-column metal forming hydraulic press
200-ton four-column metal forming hydraulic press
200-ton four-column metal forming hydraulic press
200-ton four-column metal forming hydraulic press
200-ton four-column metal forming hydraulic press
200-ton four-column metal forming hydraulic press

200-ton four-column metal forming hydraulic press

Product Overview

Place of Origin:Tengzhou City, Zaozhuang City, Shandong Province, China
Brand Name:Nadun
Model Number:YQ32-200T
Certification:CE,ISO 9001
Minimum Order Quantity:1
Price:9500
Packaging Details:Plastic Film or Wooden. Container Transportation.
Delivery Time:Within 30 to 60 days after ordering.
Payment Terms:30% deposit paid in advance, with the remaining 70% balance settled after submitting the bill of lading copy.
Supply Ability:50 sets/month


Quick Detail:

This product can also be referred to as a 200-ton four-column metal forming hydraulic press, a 200-ton four-column hydraulic punch press, or a 200-ton four-column hydraulic forming machine.

Main Applications:

The 200-ton four-column metal forming hydraulic press is widely used in the stretching, bending, blanking, and forming processes of metal sheets, pipes, and profiles. It is suitable for industries such as automobiles, motorcycles, household appliances, hardware, aerospace, and aviation. It is an ideal equipment for improving production efficiency, reducing labor intensity, and ensuring product quality.

Core Specifications:

- Rated force: 2000KN

- Maximum system pressure: 25Mpa

- Maximum die opening height: 1200mm

- Maximum stroke of slide: 700mm

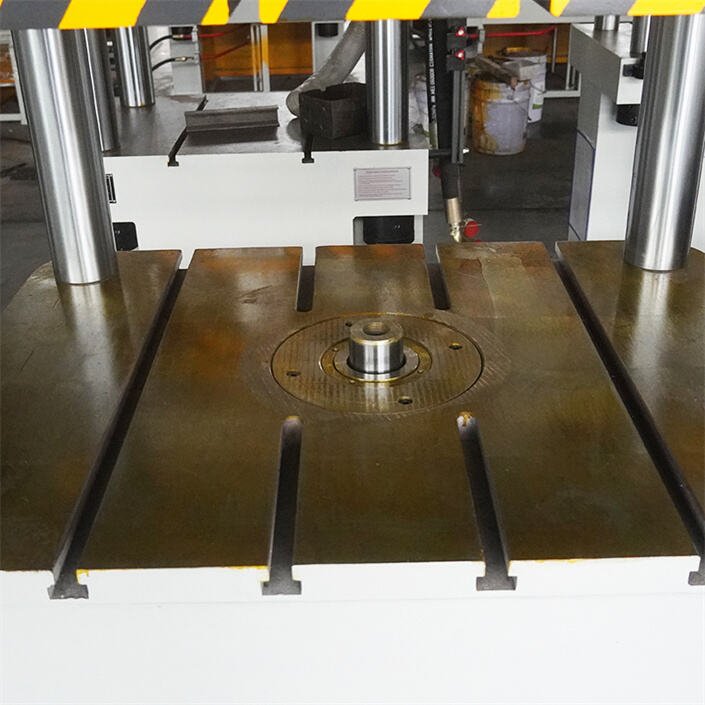

- Effective size of working table: 1000x1000mm

- Rapid down speed: 100mm/s

- Working speed: 7-18mm/s

- Return speed: 70mm/s

- Ejection cylinder force: 400KN

- Ejection cylinder stroke: 220mm

This product adopts advanced design concepts and manufacturing processes, featuring compact structure, stable performance, easy operation, and safety and reliability. Equipped with high-quality hydraulic and electrical control systems, it ensures efficient and precise operation of the equipment. Additionally, various accessories and molds can be customized according to customer requirements to meet different process requirements. We provide one-stop metal forming solutions to help enterprises enhance competitiveness!


Description:

Introducing our cutting-edge 200-ton four-column metal forming hydraulic press, engineered to redefine precision and efficiency in industrial metalworking. This powerhouse of innovation seamlessly combines robust construction with advanced hydraulic technology to deliver unparalleled performance and reliability.

Crafted with meticulous attention to detail, our hydraulic press boasts a formidable 200-ton capacity, making light work of even the most demanding metal forming tasks. The four-column design ensures exceptional stability and uniform pressure distribution, guaranteeing consistent results across every operation.

Equipped with state-of-the-art hydraulic systems, our press offers precise control over speed, force, and stroke, empowering operators to achieve the exact specifications required for each project. Whether shaping intricate components or executing heavy-duty forging processes, this press delivers uncompromising accuracy and repeatability, maximizing productivity while minimizing waste.

Designed for versatility, our hydraulic press accommodates a wide range of tooling setups, enabling seamless adaptation to diverse manufacturing requirements. From deep drawing to blanking, bending, and embossing, its adaptable design ensures optimal performance across various metal forming applications.

Safety is paramount in our design philosophy, and our hydraulic press is engineered with comprehensive safety features to protect both operators and equipment. With integrated emergency stop mechanisms, safeguarding devices, and robust structural reinforcements, operators can work with confidence, knowing that their safety is our top priority.

Applications:

Versatility meets efficiency with our 200-ton four-column metal forming hydraulic press, unlocking a myriad of applications across various industries. From automotive to aerospace, construction, and beyond, this versatile powerhouse caters to a wide spectrum of metal forming needs.

In the automotive sector, our hydraulic press excels in producing precision components such as chassis parts, engine components, and structural reinforcements. Its ability to seamlessly handle deep drawing, blanking, and forming operations ensures consistent quality and high productivity, meeting the stringent demands of modern automotive manufacturing.

In the aerospace industry, where precision and reliability are paramount, our hydraulic press plays a critical role in shaping complex components for aircraft and spacecraft. From forming intricate panels and fuselage sections to forging critical engine parts, its unparalleled accuracy and repeatability make it indispensable in the pursuit of aerospace excellence.

The construction sector benefits from the robust capabilities of our hydraulic press, leveraging its immense force and precision to fabricate structural elements, architectural features, and heavy-duty components. Whether shaping steel beams, extruding profiles, or forming customized fittings, its adaptability and efficiency streamline construction processes and enhance project outcomes.

Beyond these industries, our hydraulic press finds applications in a diverse range of sectors, including renewable energy, consumer goods, and industrial equipment manufacturing. Whether producing wind turbine components, household appliances, or machinery parts, its versatility and performance make it the go-to solution for metal forming challenges across the board.

With its unmatched capabilities and adaptability, our 200-ton four-column metal forming hydraulic press is not just a machineit's a catalyst for innovation, driving progress and excellence in metalworking applications worldwide.


Specifications:

SPECIFICATION

UNIT

YQ32-63T

YQ32-100TA

YQ32-100TB

YQ32-200TA

YQ32-200TB

YQ32-315TA

YQ32-315TB

Nominal force

KN

630

1000

1000

2000

2000

3150

3150

Max.System pressure

Mpa

25

25

25

25

25

25

25

Max.Open height

mm

700

800

900

1200

900

1250

1000

Max.Stroke of slider

mm

400

500

600

700

600

800

600

Effective table size

mm

610x500

630x550

750x700

1000x1000

800x800

1260x1160

800x800

Down speed

mm/s

180

120

120

100

100

100

100

Pressing speed

mm/s

11-22

7-15

7-15

7-18

7-18

7-11.5

7-11.5

Return speed

mm/s

100

120

120

70

70

60

60

Ejection cylinder force

KN

100

200

200

400

400

630

630

Stroke of ejectioncylinder

mm

160

200

200

220

220

300

300

SPECIFICATION

UNIT

YQ32-400T

YQ32-500T

YQ32-630T

YQ32-800T

YQ32-1000T

YQ32-1250T

YQ32-1600T

Nominal force

KN

4000

5000

6300

8000

10000

12500

16000

Max.System pressure

Mpa

25

25

25

25

25

25

25

Max.Open heigh

mm

1250

1500

1500

1800

1600

1600

1800

Max.Stroke of slider

mm

800

900

900

1000

900

900

1000

Effective table size

mm

1260x1160

1400x1400

1600x1600

1500x1500

1500x1500

1800x1600

1600x1600

Down speed

mm/s

100

100

80

80

80

80

80

Pressings pee

mm/s

5-9

8-15

6-12

8-17

6-13

7-15

8-17

Return speed

mm/s

55

70

60

70

70

70

70

Ejection cylinder force

KN

630

1000

1000

1000

1000

1000

1600

Stroke of ejectioncylinder

mm

300

300

300

350

350

350

350


Competitive Advantage:

Elevate your metal forming operations to new heights with our 200-ton four-column hydraulic press, setting the standard for performance, precision, and reliability in the industry. What sets us apart? Our competitive advantage lies in a combination of cutting-edge technology, meticulous craftsmanship, and unwavering commitment to customer satisfaction.

Unrivaled Precision: Our hydraulic press is engineered with precision in mind, offering unparalleled accuracy and repeatability across every operation. With advanced hydraulic systems and precise control over speed, force, and stroke, we empower operators to achieve the exact specifications required for each project, ensuring consistently superior results.

Exceptional Durability: Built to withstand the rigors of industrial metalworking, our hydraulic press boasts a robust construction and durable components designed for longevity and reliability. From heavy-duty forging processes to continuous production cycles, it delivers uncompromising performance, minimizing downtime and maximizing productivity.

Versatility Redefined: Versatility is the hallmark of our hydraulic press, accommodating a wide range of tooling setups and metal forming applications. Whether shaping intricate components, performing deep drawing operations, or executing heavy-duty blanking and bending tasks, its adaptable design ensures optimal performance across diverse manufacturing requirements.

Innovative Safety Features: Safety is paramount in our design philosophy, and our hydraulic press is equipped with comprehensive safety features to protect both operators and equipment. From integrated emergency stop mechanisms to safeguarding devices and robust structural reinforcements, we prioritize the well-being of our operators, providing peace of mind in every operation.

Customer-Centric Solutions: At the heart of our competitive advantage is our unwavering commitment to customer satisfaction. We work closely with our clients to understand their unique challenges and requirements, delivering tailored solutions that exceed expectations. From initial consultation to after-sales support, we are dedicated to providing an exceptional customer experience every step of the way.

Tag:

1. May I obtain the required documentation?

Certainly, we provide various documents including Certificates of Analysis/Conformance, insurance particulars, origin certificates, and other essential export paperwork.

2. What's the usual lead time?

For samples, it's approximately 30 days, and for mass production, it typically ranges between 30 to 60 days from when the deposit is received. Our lead times start upon deposit receipt and final product approval. If our lead times don't match your schedule, please consult your assigned sales representative. We strive to accommodate your requirements whenever feasible.

3. What payment methods do you accept?

We receive payments through bank transfer, Western Union, or PayPal. Our standard terms involve a 30% upfront deposit, with the remaining 70% balance payable upon presentation of the B/L copy.

4. What are the terms of product warranty?

Our commitment encompasses both materials and workmanship. Even beyond the warranty period, we endeavor to address and resolve all customer concerns to ensure complete satisfaction.

5. Can you guarantee the safe delivery of products?

Certainly, we utilize high-quality export packaging for secure delivery. Specialized packing is utilized for hazardous goods, and validated cold storage shippers are employed for temperature-sensitive items. However, specific packaging requirements may result in additional charges.

6. How are shipping costs determined?

Shipping expenses are contingent upon the selected delivery method. Express delivery is quicker but more costly, while sea freight is preferable for larger quantities. Detailed freight rates can be provided once we have specific order details such as quantity, weight, and preferred shipping method. Please don't hesitate to reach out to us for further clarification.
