500 ton servo hydraulic press machine

Place of Origin:	Tengzhou China
Brand Name:	Nadun
Model Number:	YQ32-500T
Certification:	CE ISO
Minimum Order Quantity:	1
Packaging Details:	The sample includes a hydraulic press and mold. Please contact us for more details.
Delivery Time:	15-45 day
Payment Terms:	L/C D/P D/A T/T
Supply Ability:	50set/m

Product Overview

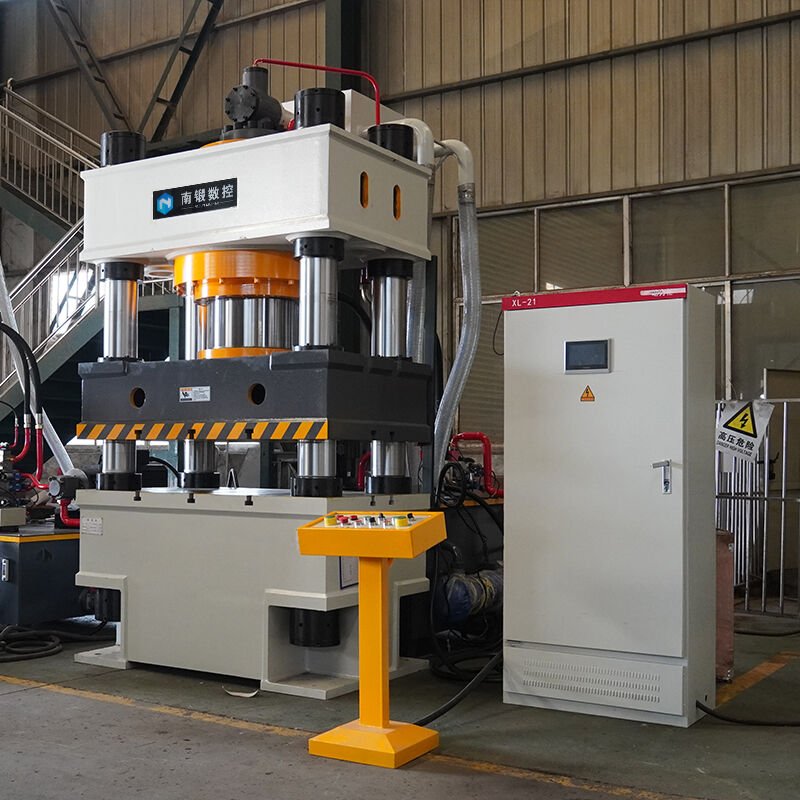

南锻500吨四柱带水冷1104921D 2024.12 (34)_副本.jpg

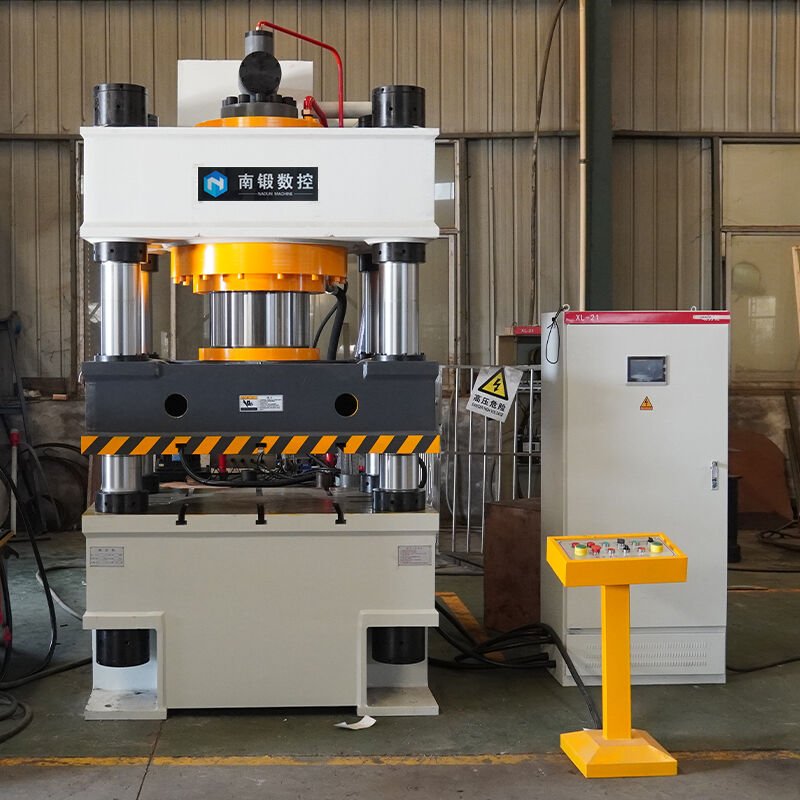

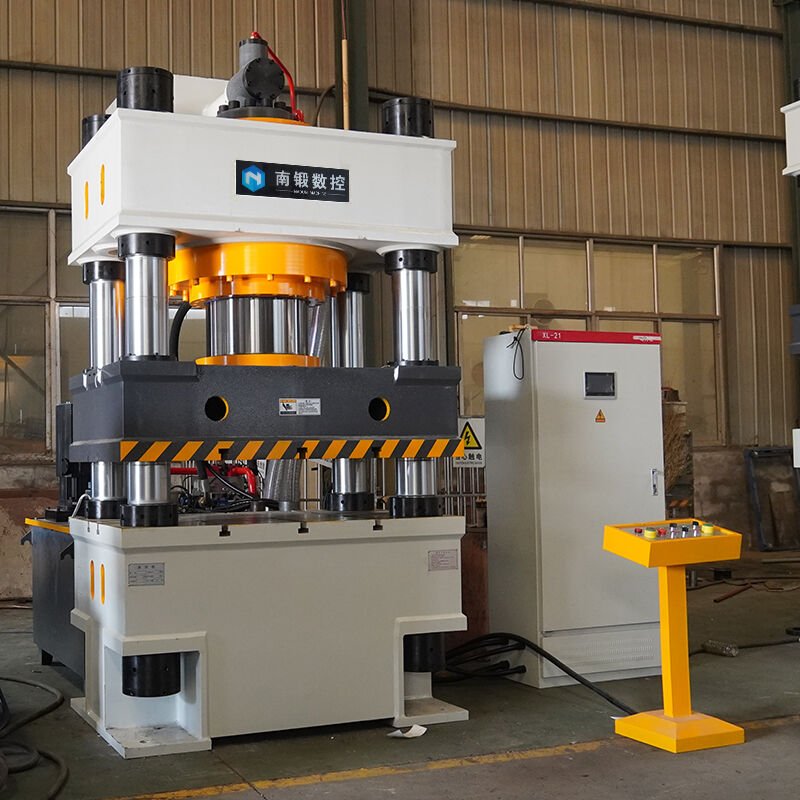

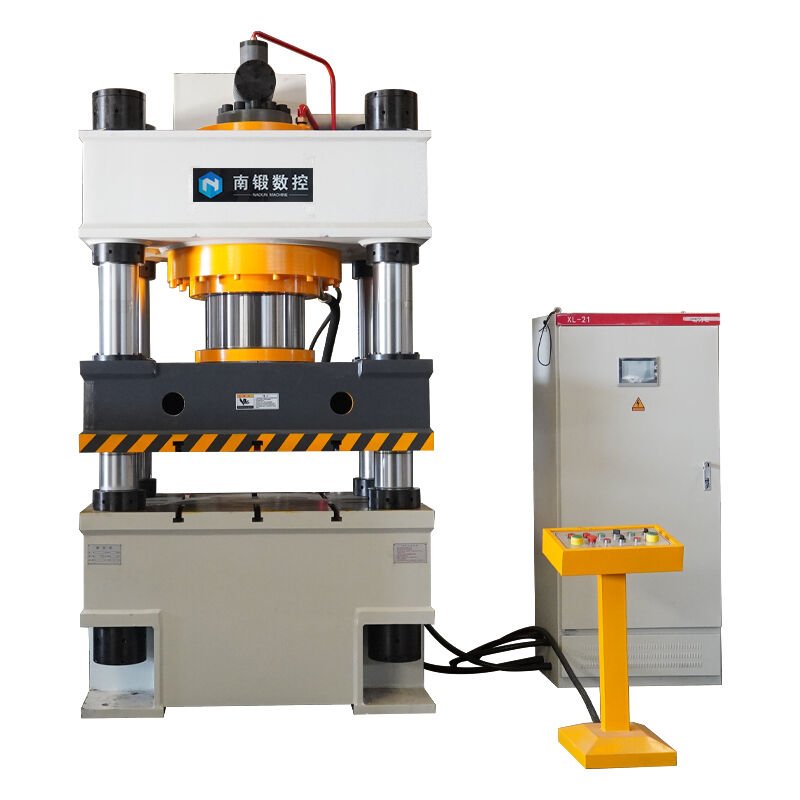

Nadun intelligent 500 tonne four-column hydraulic press with advanced servo control system and servo motor allows the hydraulic press to set different operating parameters to adapt to more pressing processes, and also accept external commands to work with other machines or production lines.The servo hydraulic press has higher pressing precision, more power saving and less noise than ordinary hydraulic press.The hydraulic system is installed with water-cooled radiator, which can effectively control the temperature of hydraulic oil and ensure the machine can work stably for a long time.

Parameters

YQ32 Technical Parameters
	Unit	YQ32—63	YQ32—100A	YQ32—100B	YQ32—200A	YQ32—200B	YQ32—315A	YQ32—315B
Nominal force	KN	630	1000	1000	2000	2000	3150	3150
Maximun system pressure	Mpa	25	25	25	25	25	25	25
Max.open height	mm	700	800	900	900	1100	1000	1250
Max Stroke of Slider	mm	400	500	600	600	700	600	800
Effective table size	mm	610×500	630×550	750×700	800×800	1000×1000	800×800	1260×1160
Down speed	mm/s	100	100	100	100	100	100	100
Pressing speed	mm/s	11～22	7～15	7～15	7～18	7～18	7～12	7～12
Return speed	mm/s	80	90	90	90	90	90	100
Ejection cylinder force	KN	100	200	200	400	400	630	630
Stroke of ejection cylinder	mm	160	200	200	200	200	300	300

	Unit	YQ32—400	YQ32—500	YQ32—630	YQ32—800	YQ32—1000	YQ32—1250	YQ32—1600
Nominal force	KN	4000	5000	6300	8000	10000	12500	16000
Maximun system pressure	Mpa	25	25	25	25	25	25	25
Max.open height	mm	1250	1500	1500	1500	1500	1500	1500
Max Stroke of Slider	mm	800	900	900	900	900	900	900
Effective table size	mm	1260×1160	1400×1400	1500×1500	1600×1600	1600×1600	1600×1600	1600×1600
Down speed	mm/s	100	150	150	180	180	180	190
Pressing speed	mm/s	5～11	10～18	9～18	9～18	10～18	6～15	6～14
Return speed	mm/s	100	180	200	180	220	200	220
Ejection cylinder force	KN	630	1000	1000	1000	1000	1000	1600
Stroke of ejection cylinder	mm	300	300	300	300	300	300	300

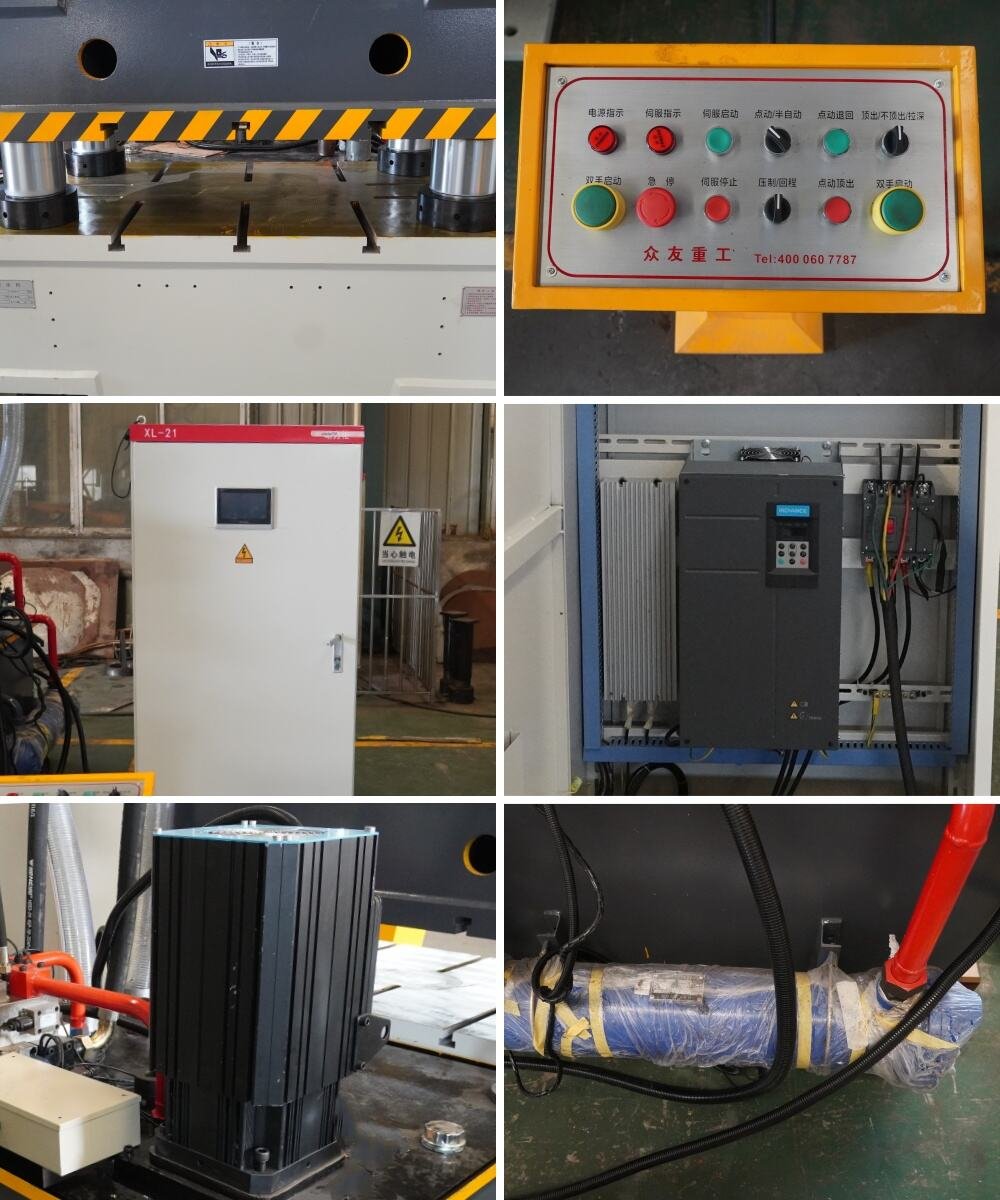

Equipment Details


Performance Characteristics

1. Three beams and four columns structure, stable and durable, large operating space
2. Push-button operation, easy to control

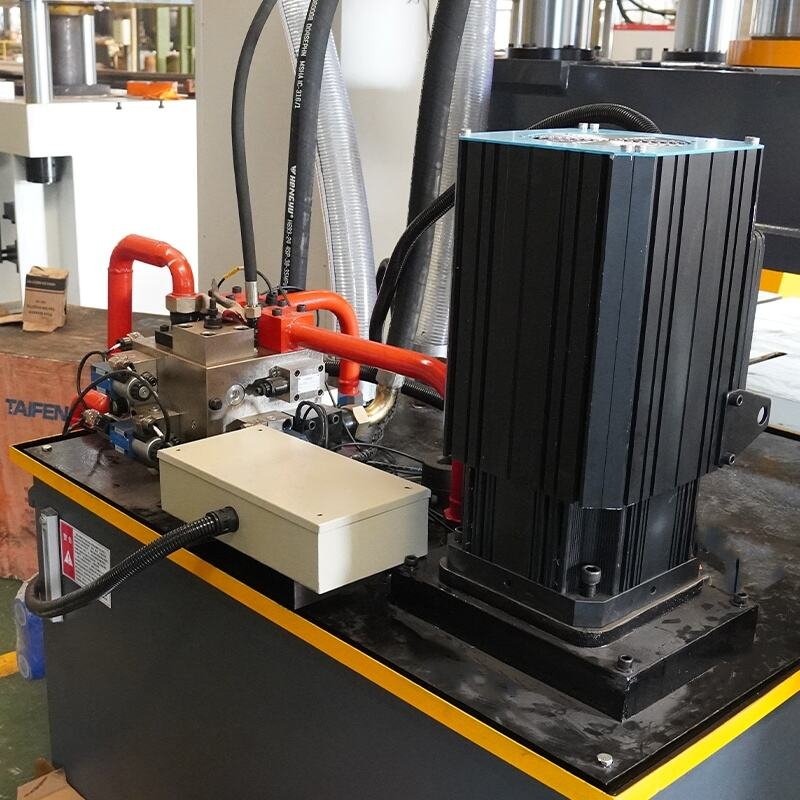

3. Installed servo system, greatly improve the degree of intelligence and production efficiency of the equipment.

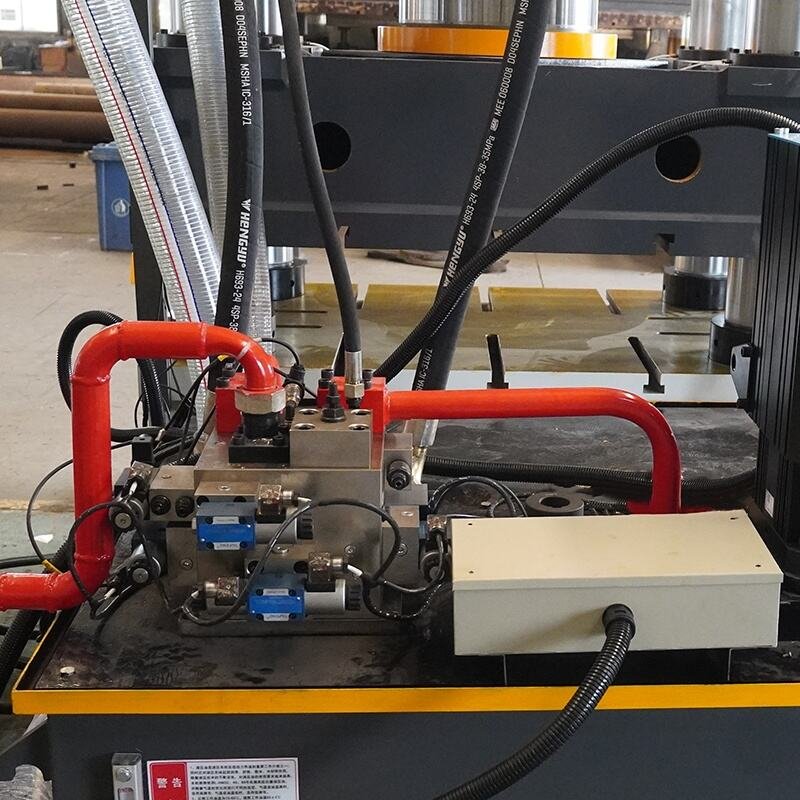

4. Installed water-cooled radiator, effectively control the temperature of hydraulic oil, to ensure that the equipment can be maintained for a long time in a high-intensity operating state.
