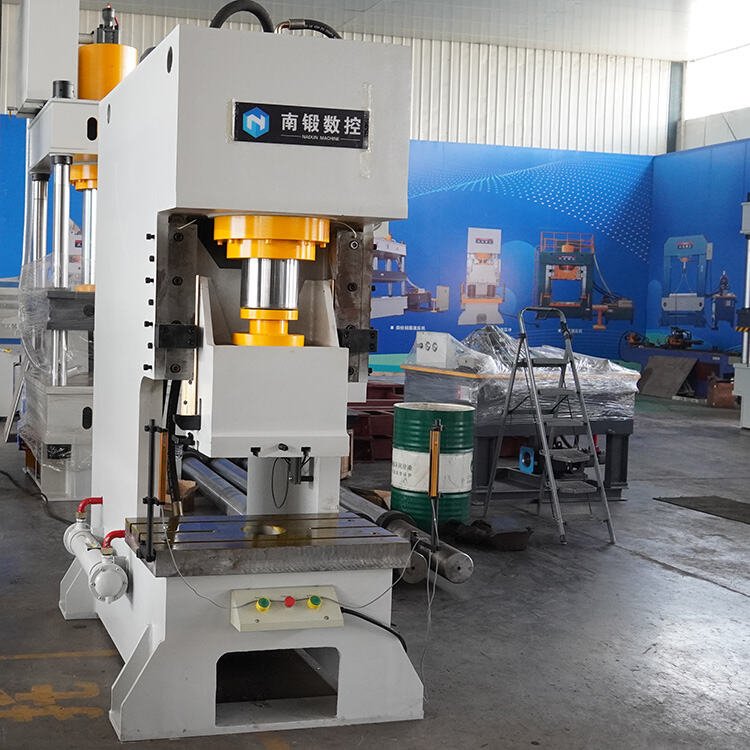

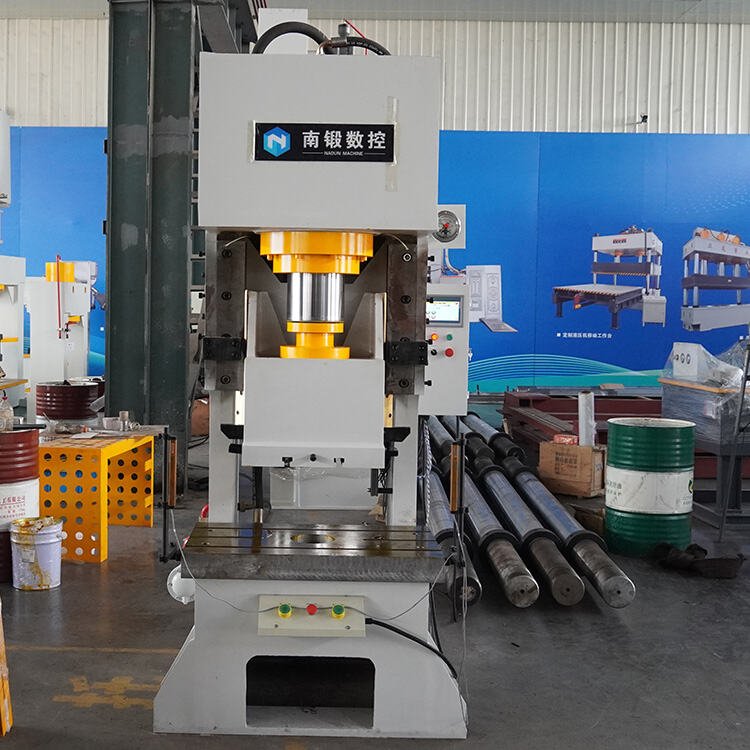

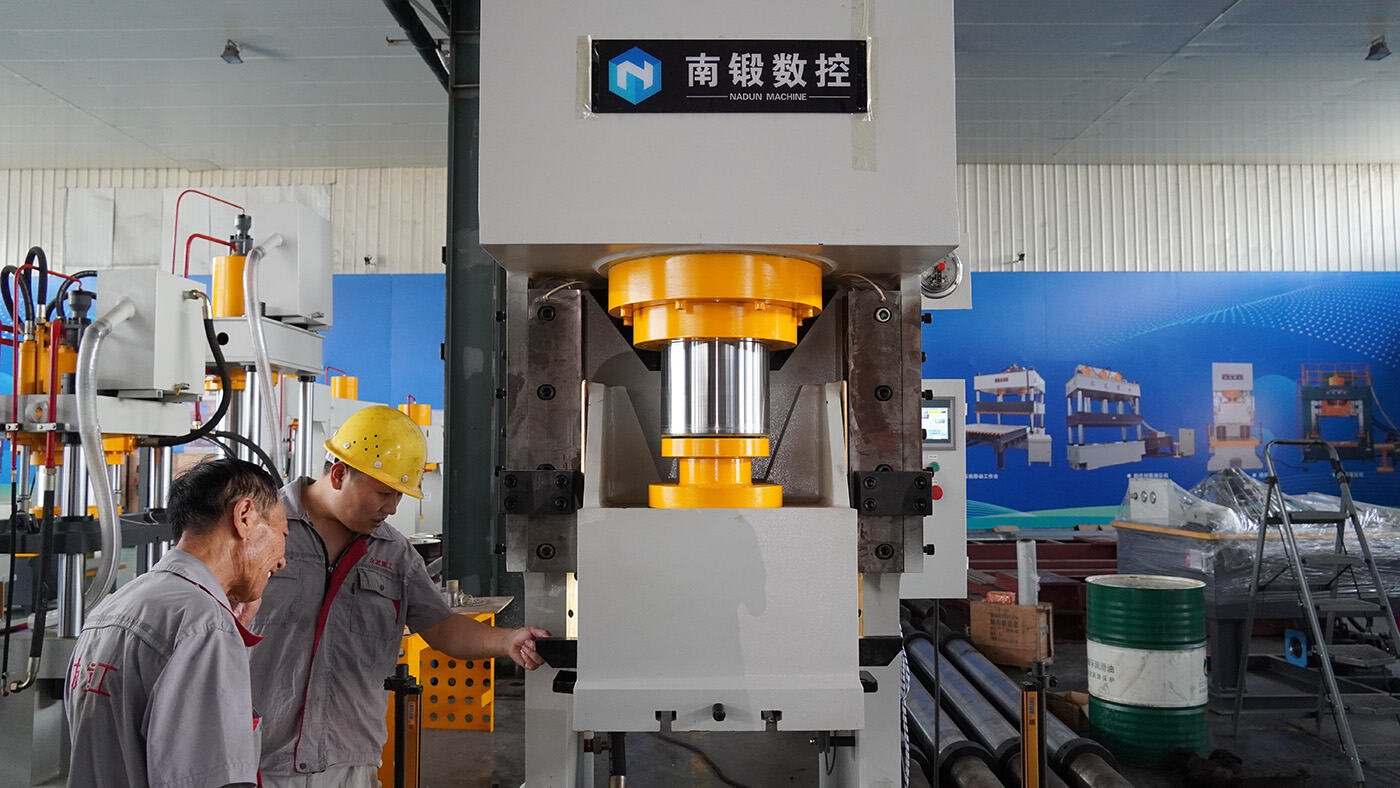

Product Preview
Structural Features:

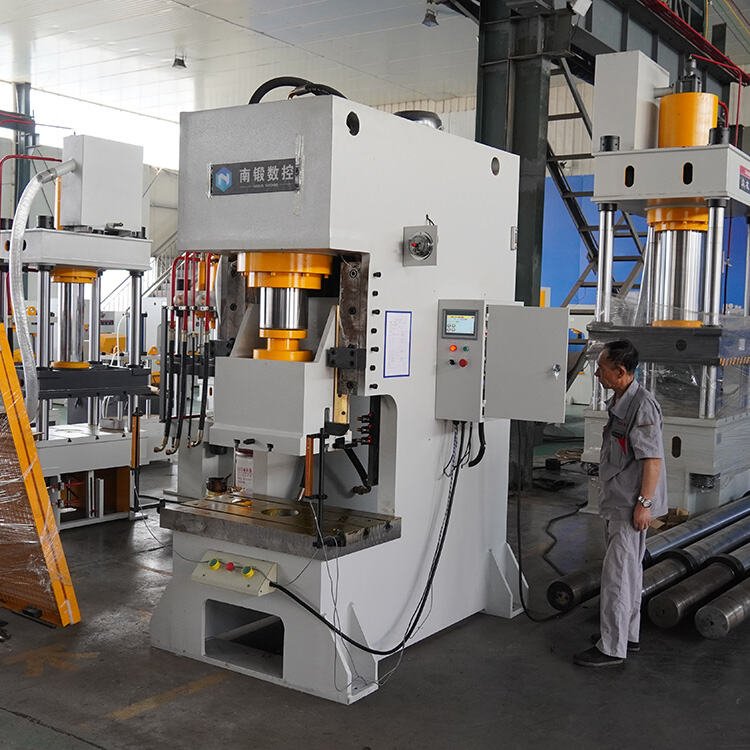

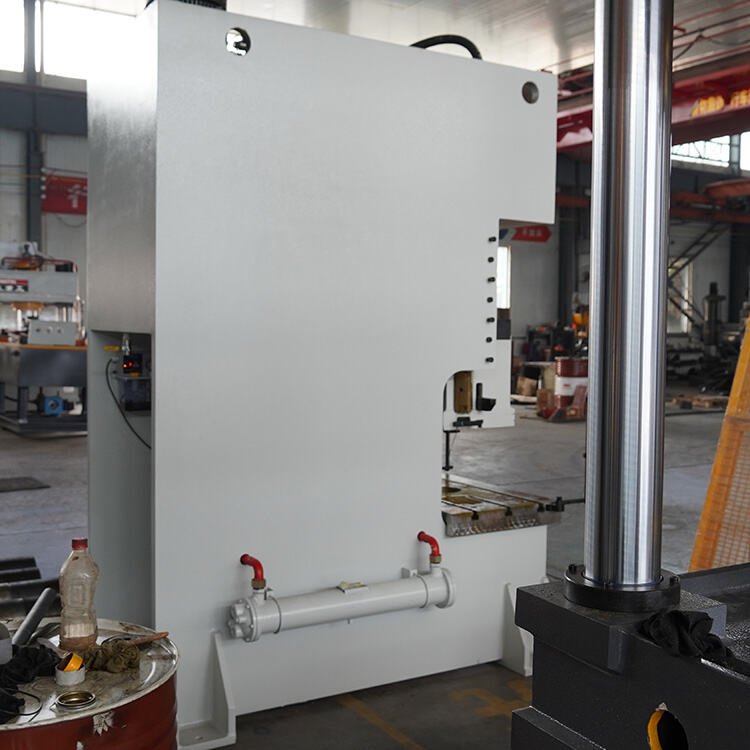

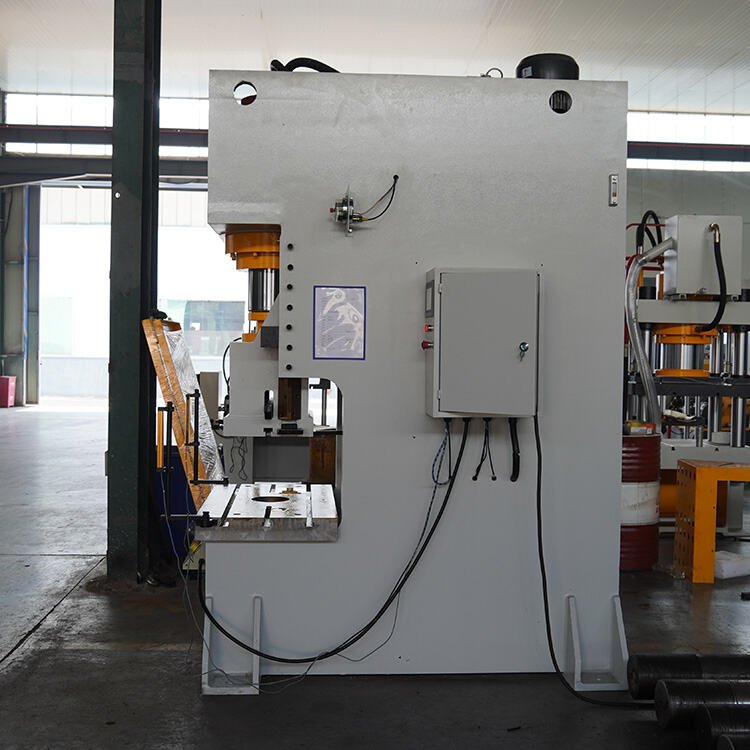

The machine body is welded from steel plates, providing good rigidity and more stable precision. The structure is compact and the appearance is aesthetically pleasing.

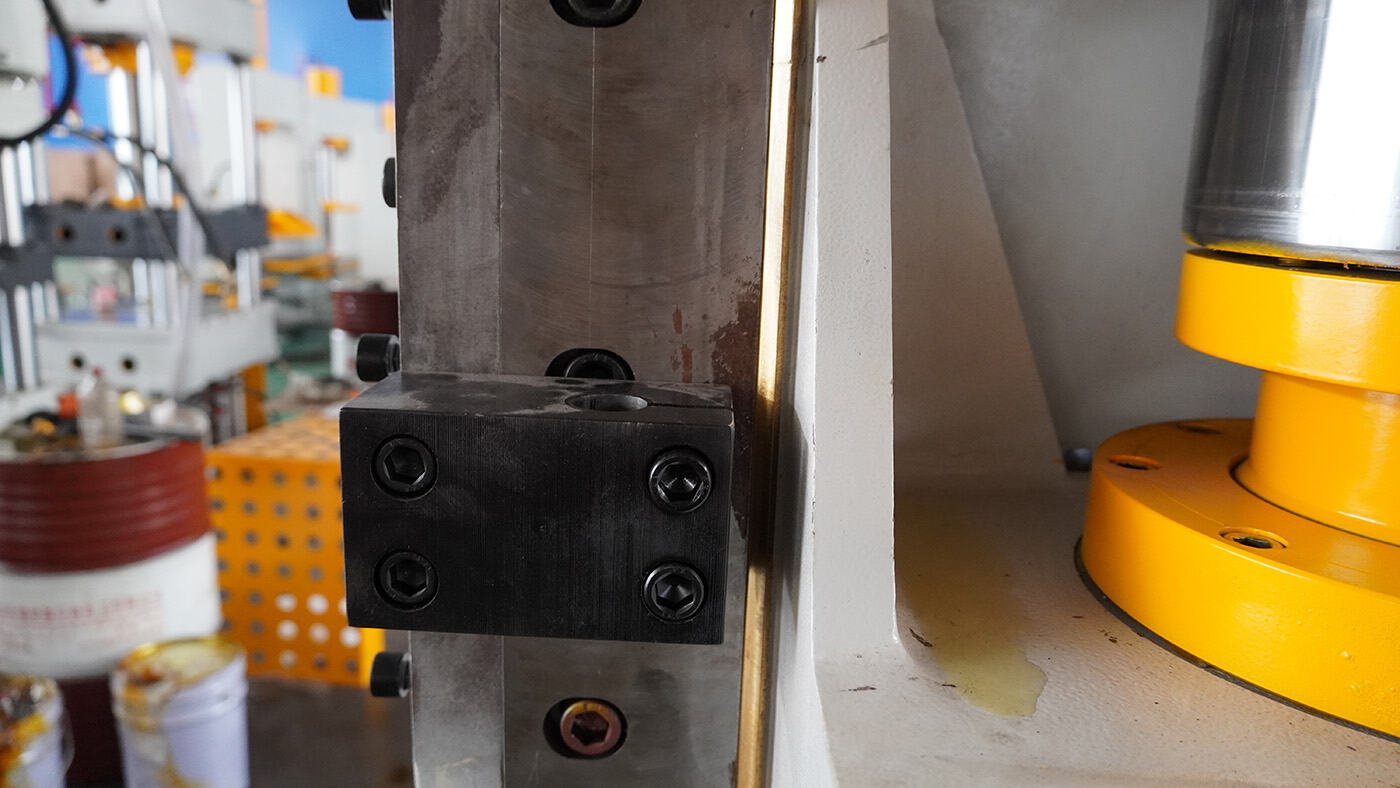

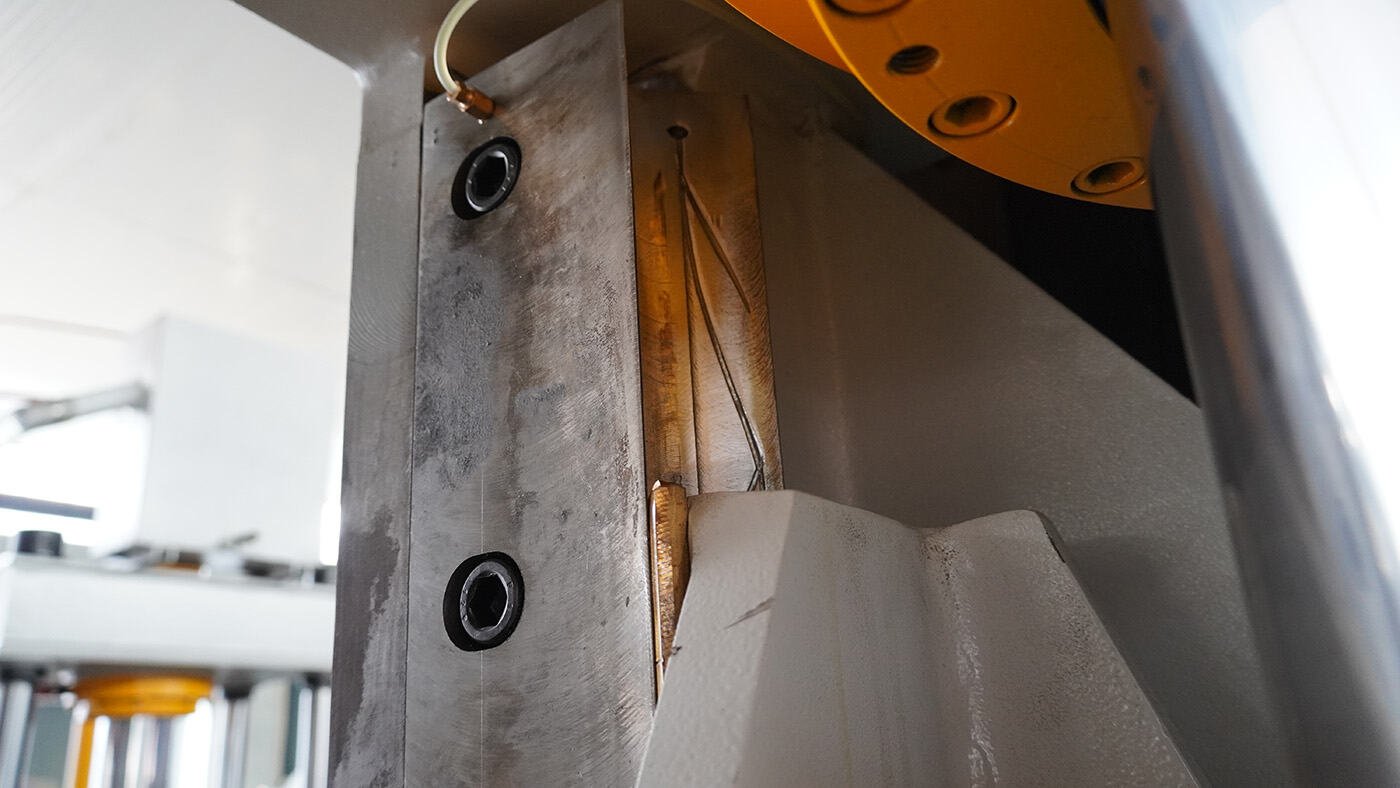

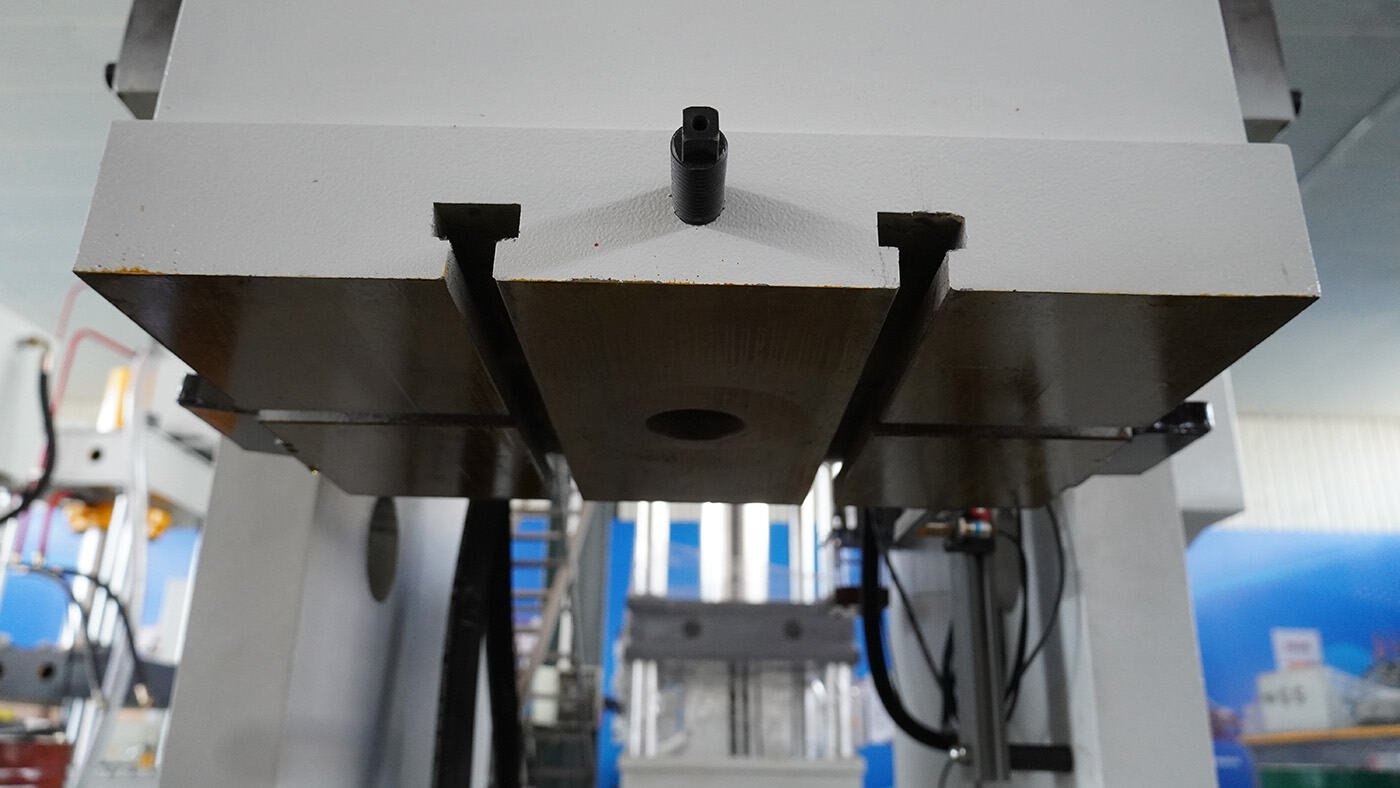

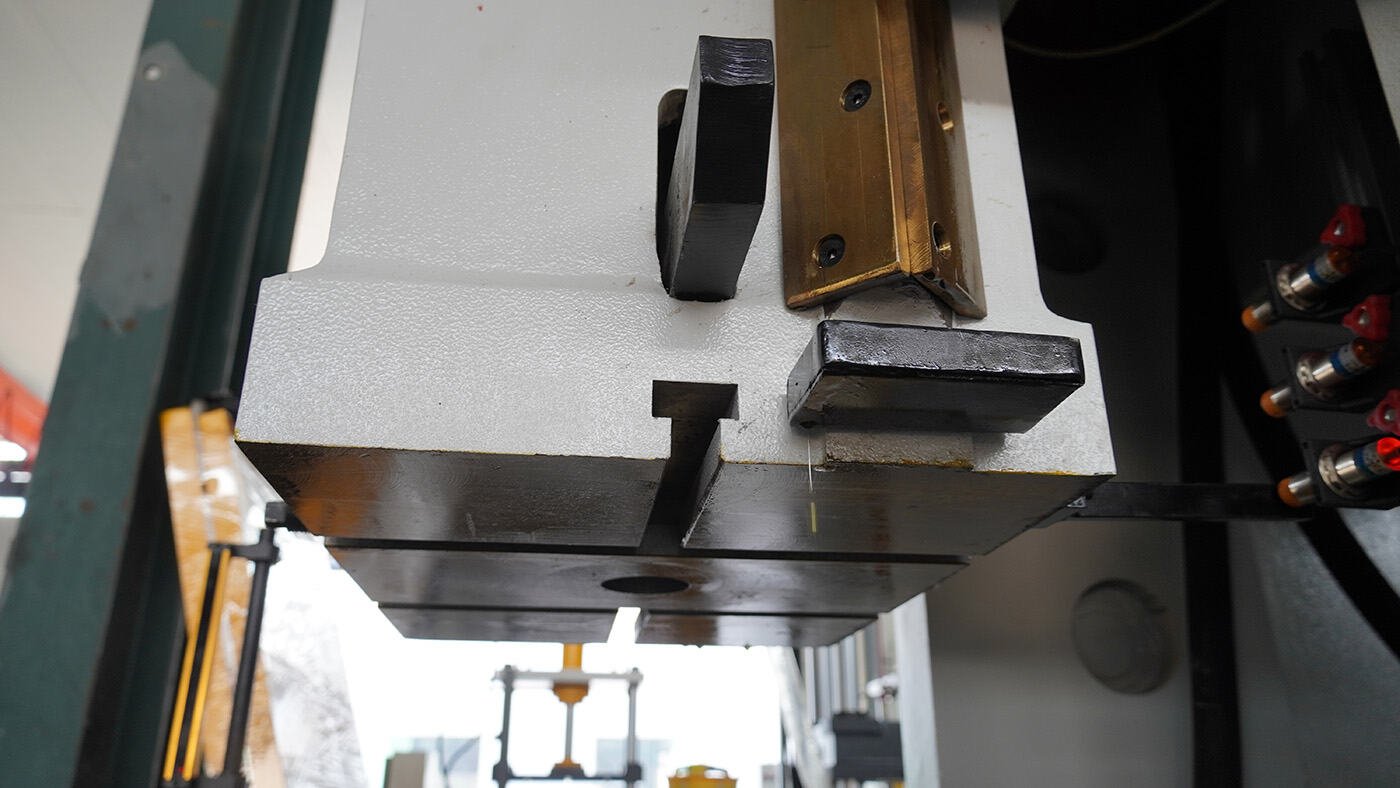

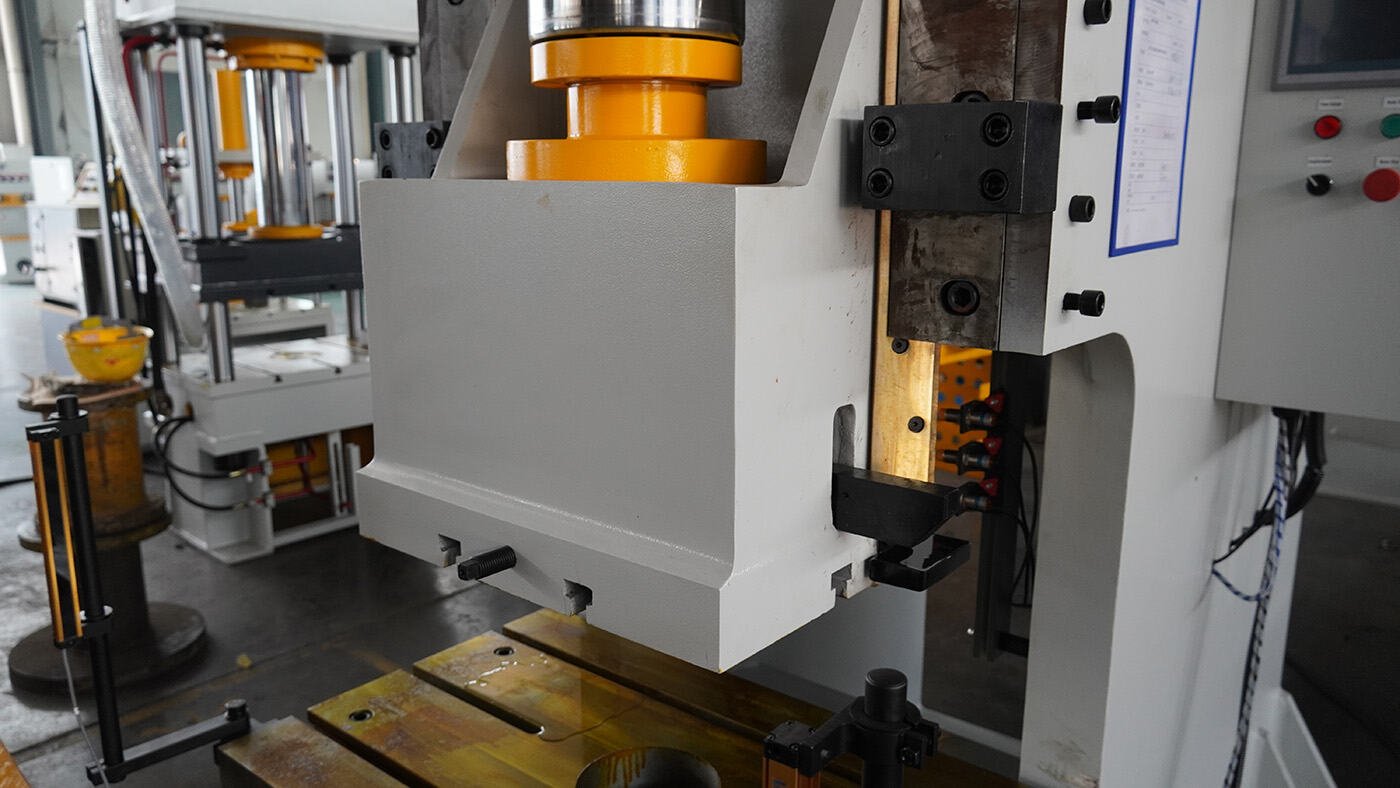

The slider adopts an extended rectangular hexahedron guide rail with bronze liners, offering high guiding accuracy.
Product Details
Product Specifications
| Parameter Name | Unit | YC21-63T | YC21-80T | YC21-100T | YC21-125T | YC21-160T | YC21-200T |
| Nominal Force | KN | 630 | 800 | 1000 | 1250 | 1600 | 2000 |
| Maximum System Pressure | Mpa | 25 | 25 | 25 | 25 | 25 | 25 |
| Open Height | mm | 400 | 500 | 500 | 500 | 600 | 600 |
| Effective Stroke | mm | 200 | 200 | 260 | 260 | 260 | 300 |

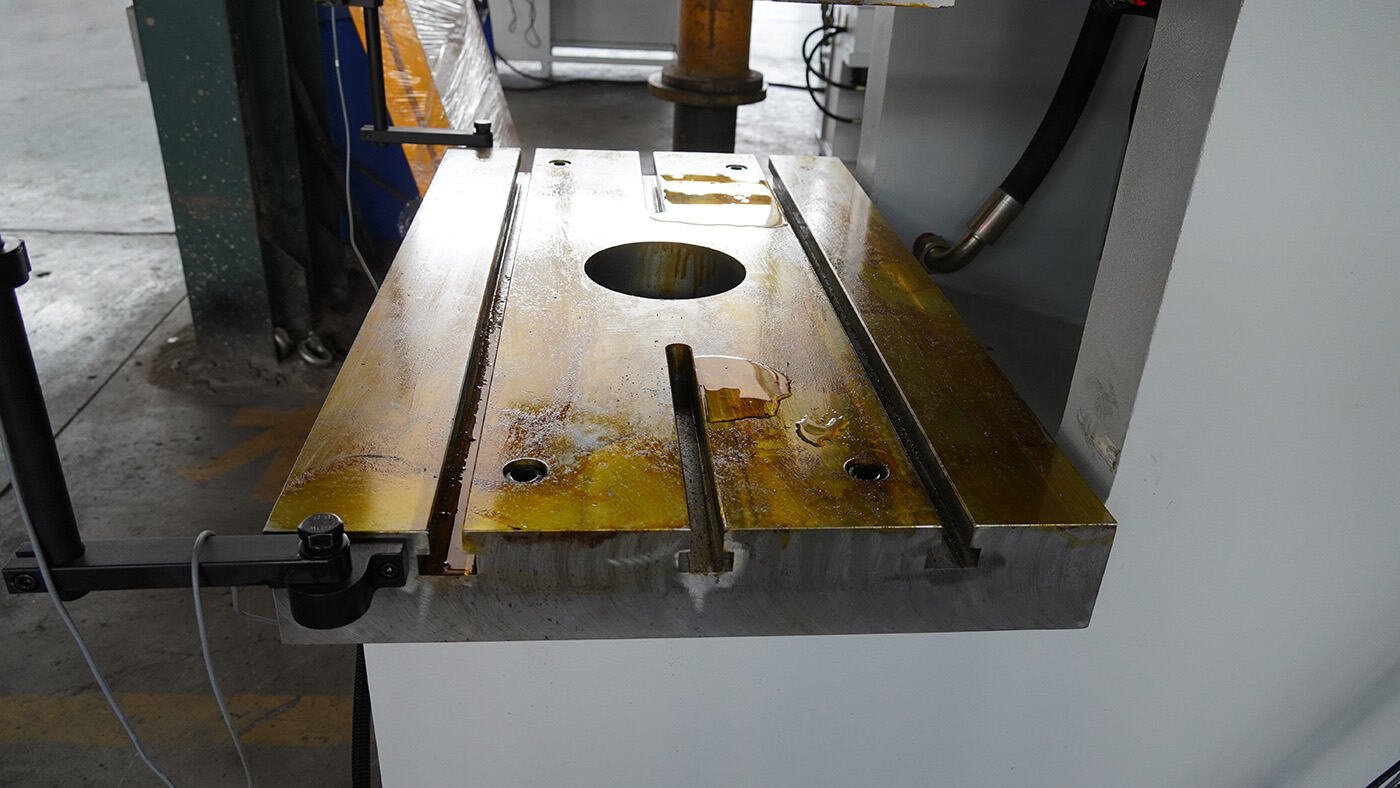

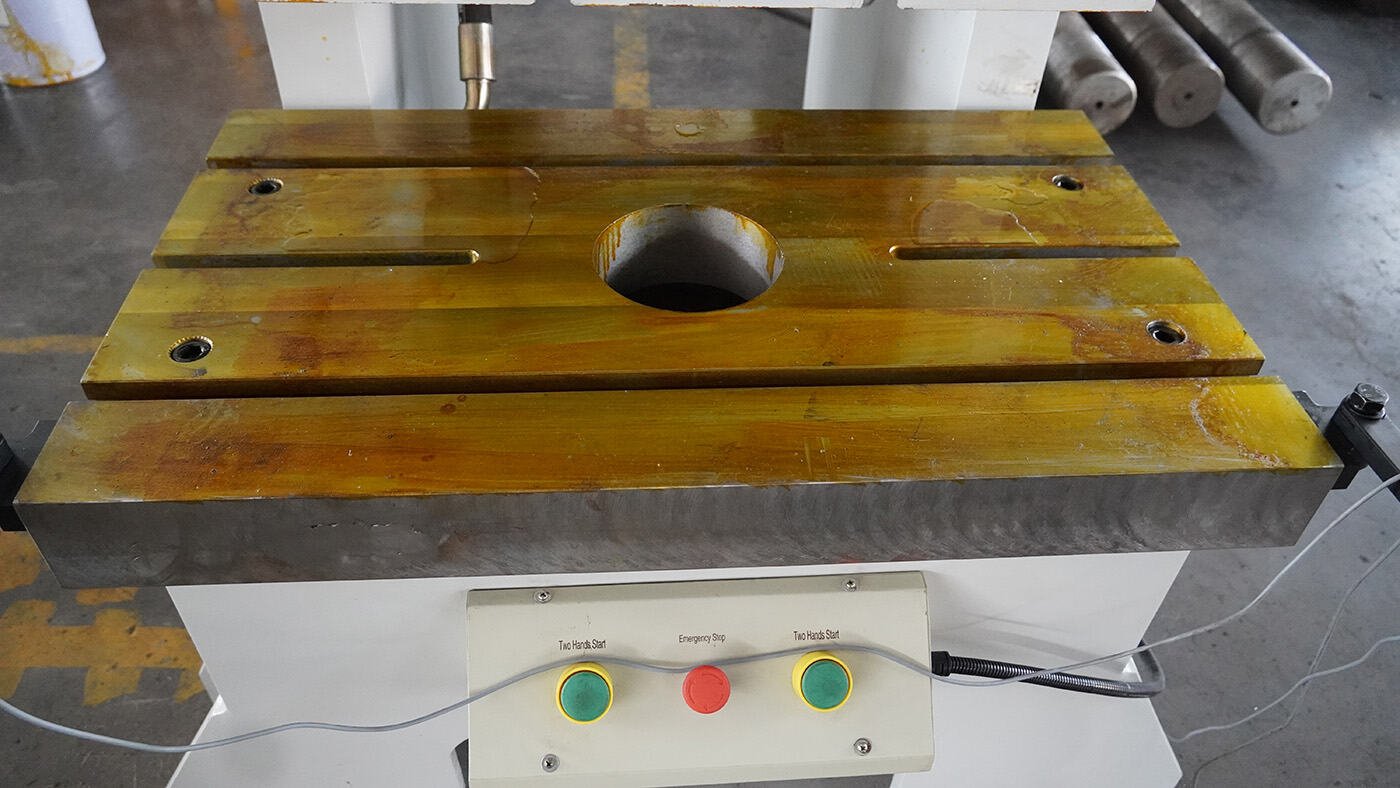

| Effective Table Size (Left-Right) | mm | 700 | 800 | 1000 | 1000 | 1100 | 1100 |
| Effective Table Size (Front-Back) | mm | 450 | 480 | 600 | 600 | 700 | 700 |
| Throat Depth | mm | 220 | 250 | 310 | 310 | 360 | 360 |
| Slide Size (Left-Right * Front-Back) | mm | 400*300 | 450*330 | 480*360 | 550*400 | 590*440 | 650*480 |
| Diameter of Worktable Blanking Hole | mm | 150 | 180 | 180 | 180 | 200 | 260 |
Product Packaging
Internal plastic moisture-proofanti-rust packaging,External plywood packaging,Exclusive container transport.
Delivery Time:10-40 days after order.
