Home > Products > Punching machine > Hydraulic punching machine

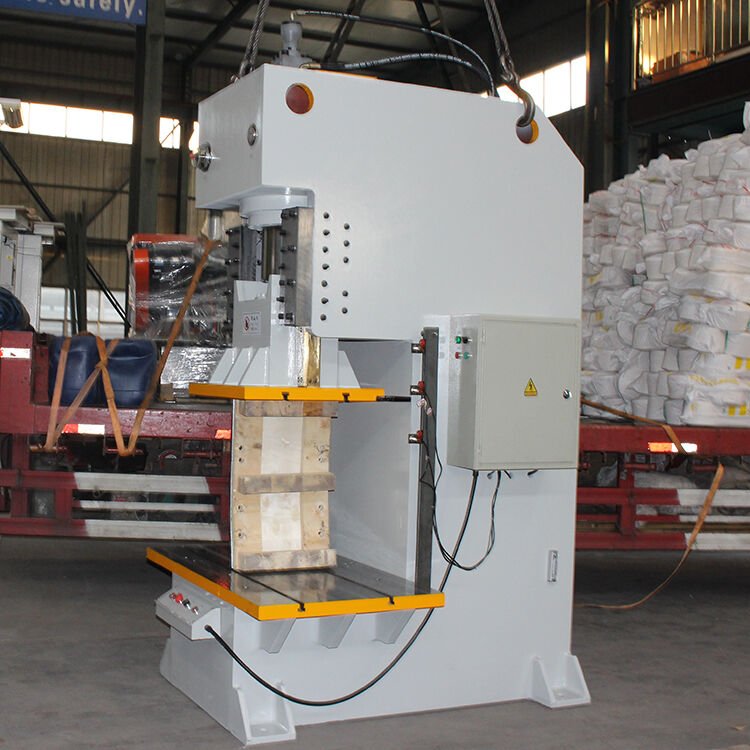

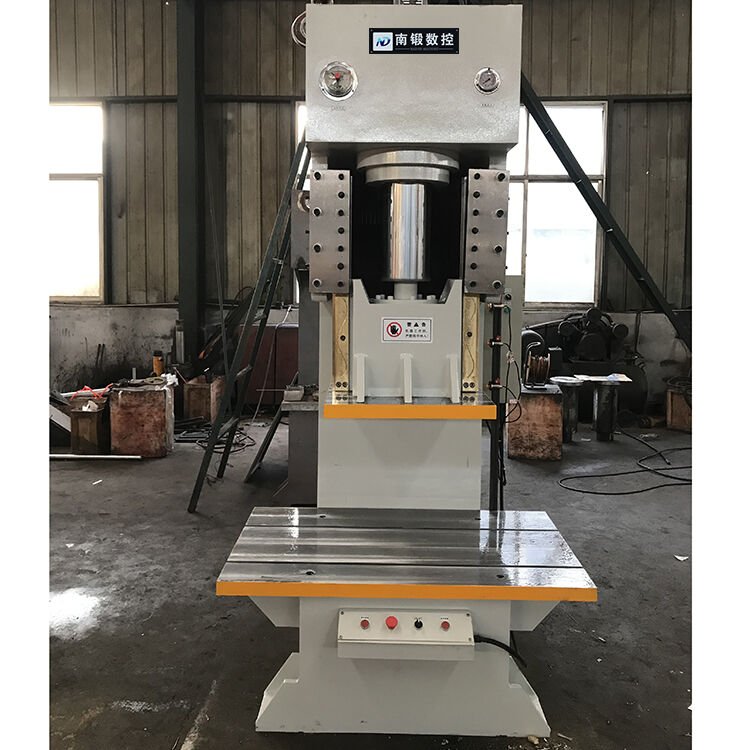

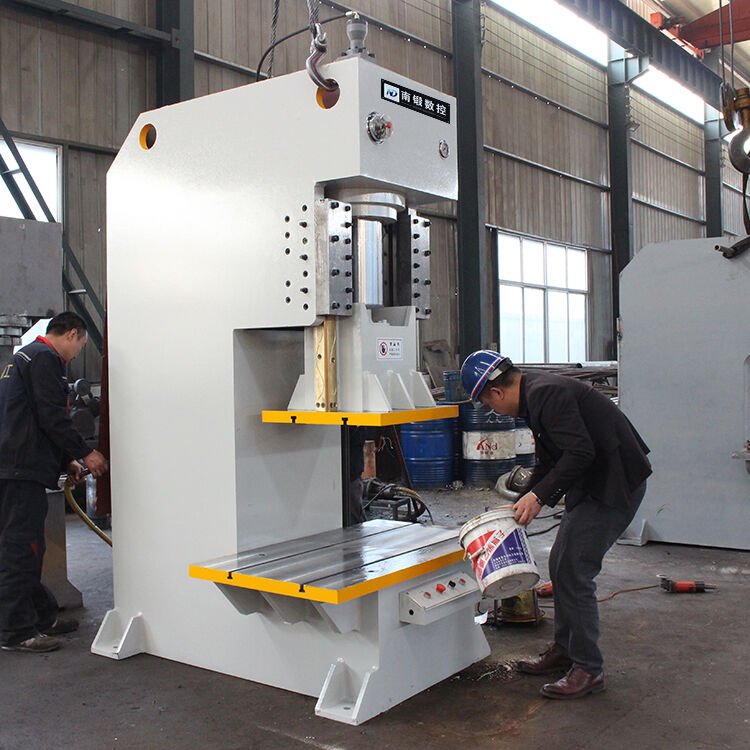

Product Preview
Structural features:
The body is welded with steel plates, offering good rigidity and more stable precision, featuring a compact structure and attractive appearance.

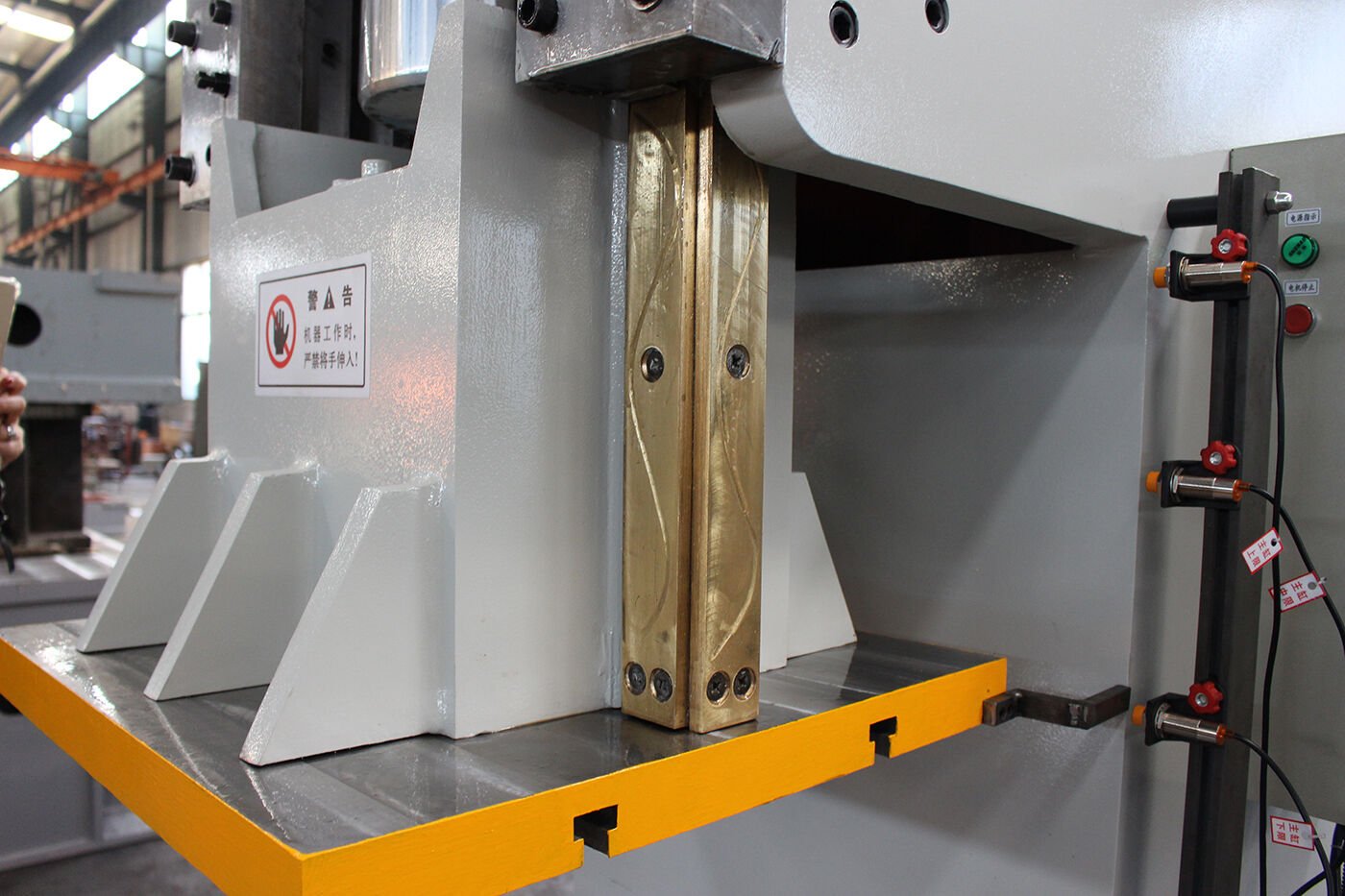

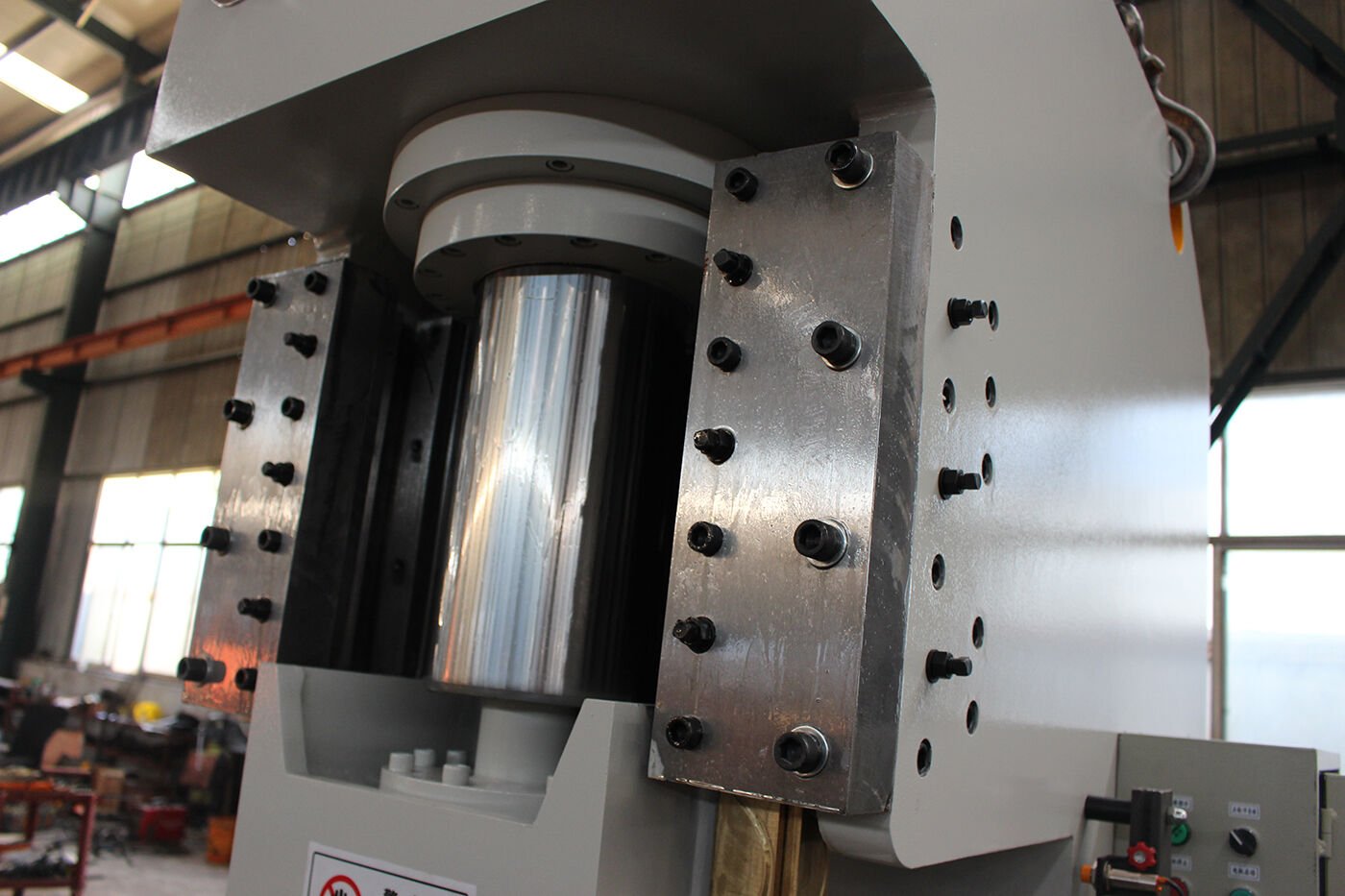

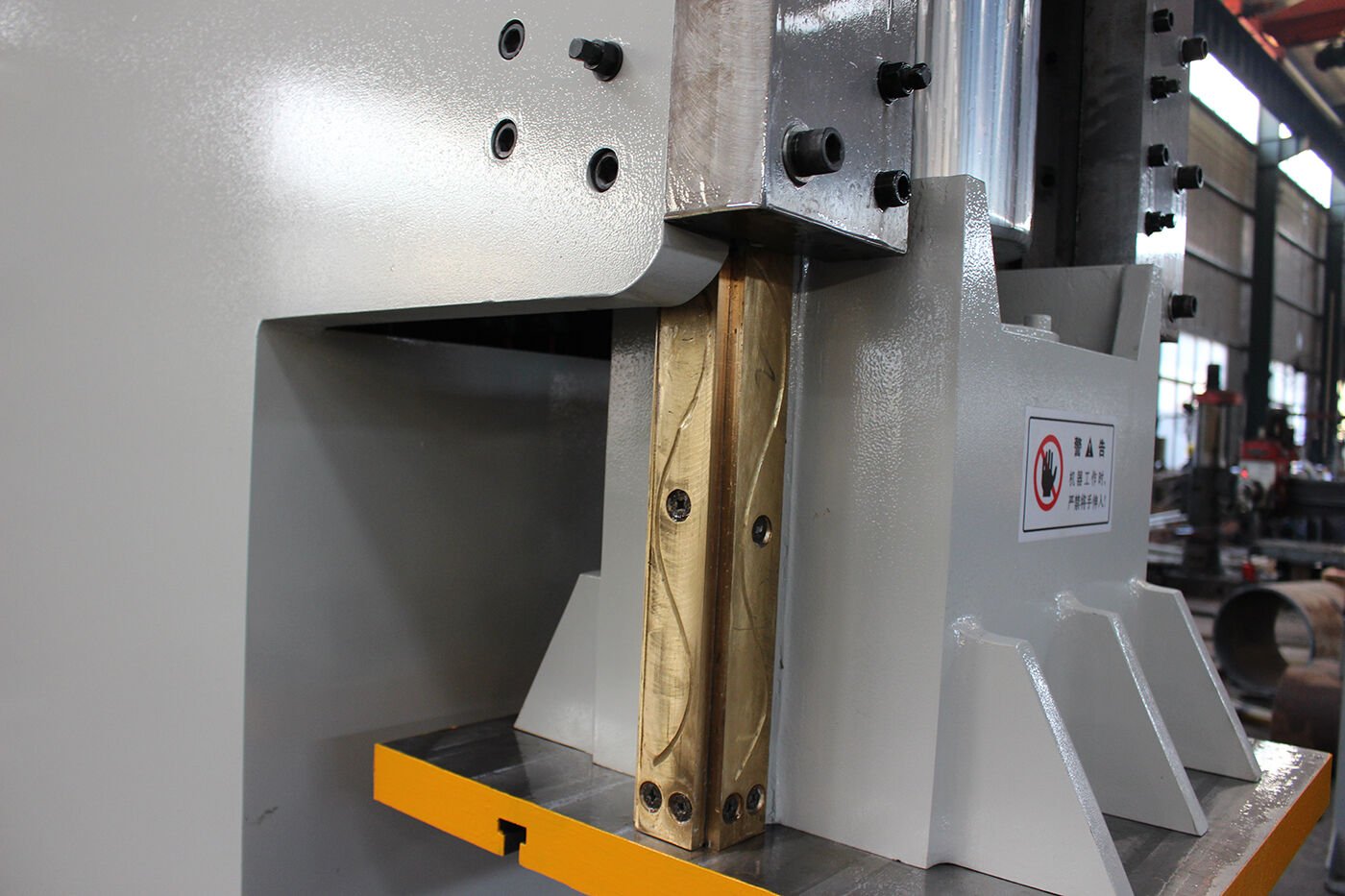

The slider adopts an extended rectangular hexahedron guide rail paired with bronze lining, ensuring high guiding precision.

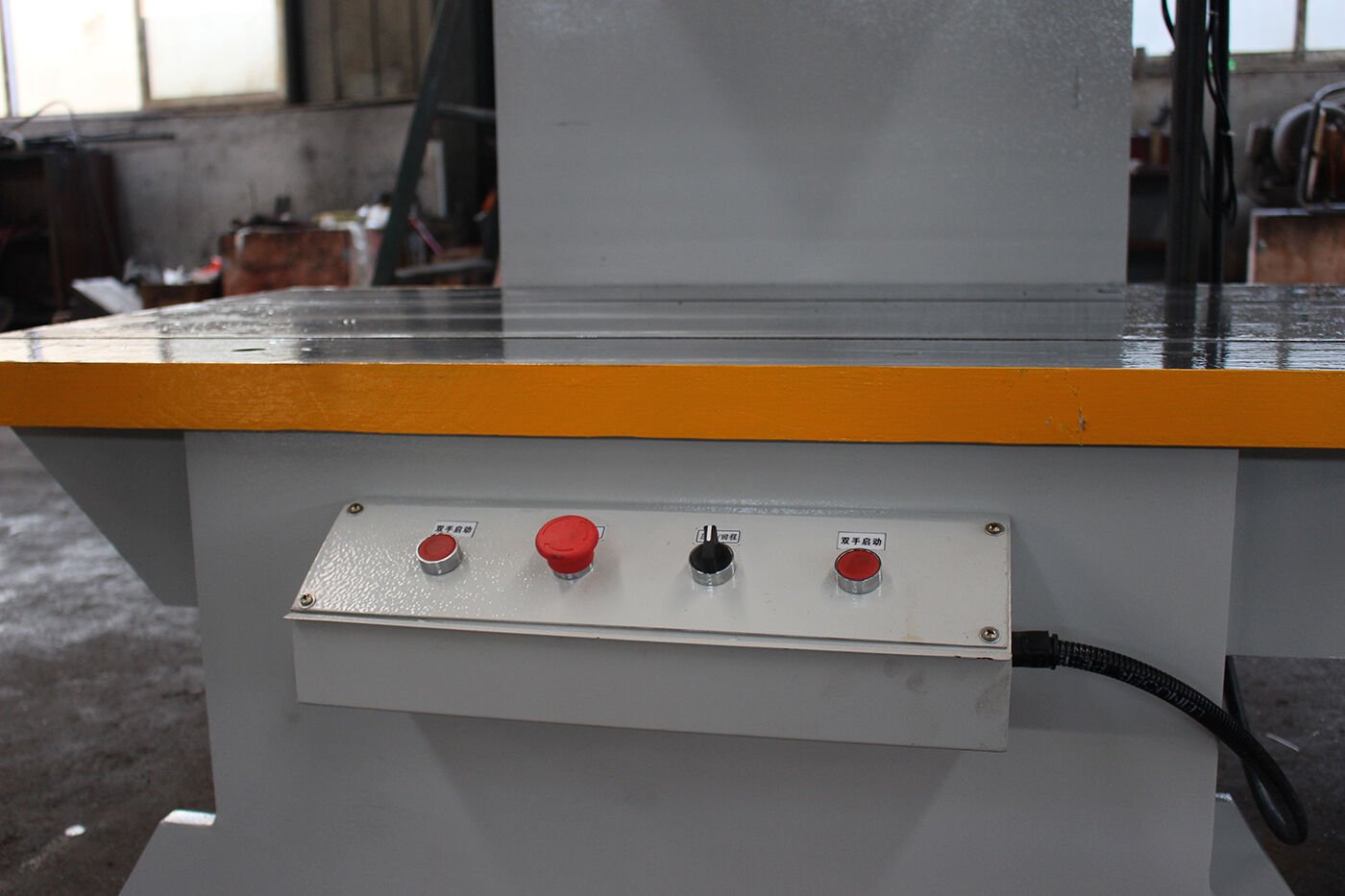

Product Details
Product Specifications
| Parameter Name | Unit | YC21-63T | YC21-80T | YC21-100T | YC21-125T | YC21-160T | YC21-200T |
| Nominal Force | KN | 630 | 800 | 1000 | 1250 | 1600 | 2000 |
| Maximum System Pressure | Mpa | 25 | 25 | 25 | 25 | 25 | 25 |
| Open Height | mm | 400 | 500 | 500 | 500 | 600 | 600 |
| Effective Stroke | mm | 200 | 200 | 260 | 260 | 260 | 300 |
| Effective Table Size (Left-Right) | mm | 700 | 800 | 1000 | 1000 | 1100 | 1100 |
| Effective Table Size (Front-Back) | mm | 450 | 480 | 600 | 600 | 700 | 700 |
| Throat Depth | mm | 220 | 250 | 310 | 310 | 360 | 360 |
| Slide Size (Left-Right * Front-Back) | mm | 400*300 | 450*330 | 480*360 | 550*400 | 590*440 | 650*480 |
| Diameter of Worktable Blanking Hole | mm | 150 | 180 | 180 | 180 | 200 | 260 |

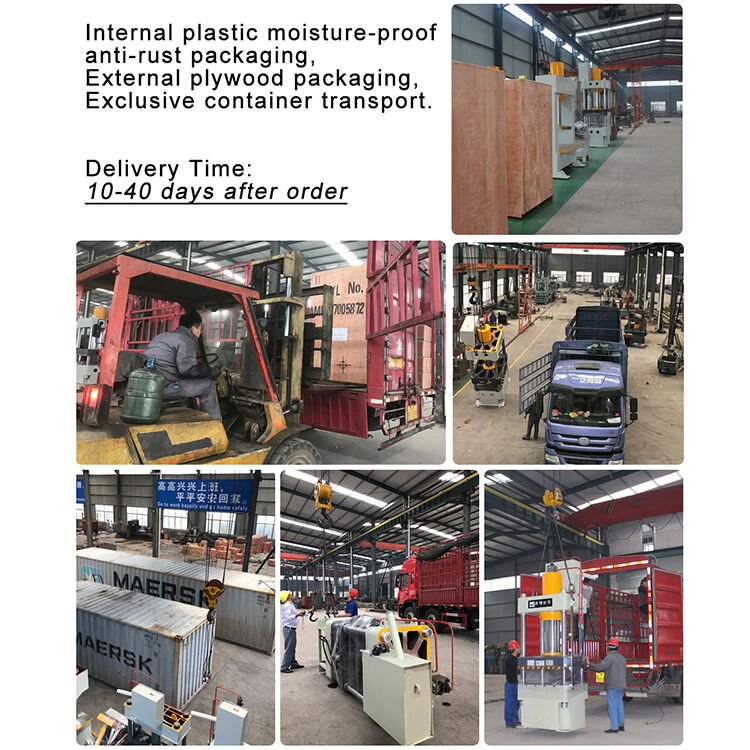

Product Packaging
