Home / Deep drawing press machine / Stainless steel aluminum pot stretching hydraulic press
|
Place of Origin: |
Tengzhou China |
|
Brand Name: |
Nadun |
|
Model Number: |
YD27-500T |
|
Certification: |
CE ISO |
|
Minimum Order Quantity: |
1 |
|
Packaging Details: |
The sample includes a hydraulic press and mold. Please contact us for more details. |
|
Delivery Time: |
15-45 day |
|
Payment Terms: |
L/C D/P D/A T/T |
|
Supply Ability: |
50set/m |

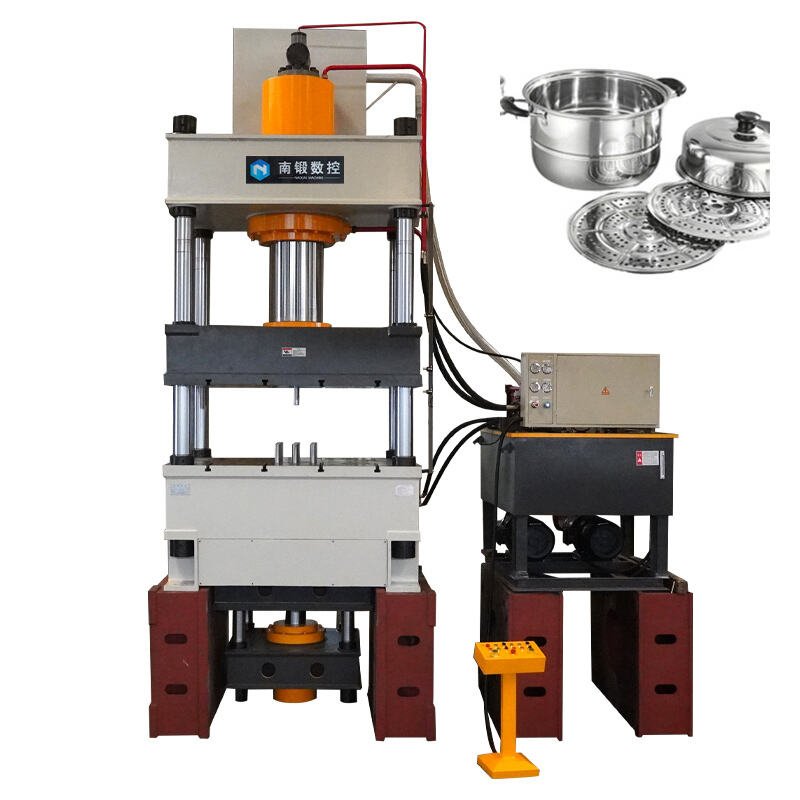

Stainless Steel Aluminum Pan Stretching Machine is a special metal forming equipment specially used to form stainless steel plate or aluminum plate into pots and pans (such as frying pans, soup pots, frying pans, etc.) through stretching process. Its core is through the mold on the plate to apply radial pressure, so that the flat plate plastic deformation, and gradually formed into a pot body of three-dimensional surface (such as spherical, curved surface), is one of the key equipment in the kitchen utensils manufacturing industry
| YD27 Parameters | Unit | 100T | 200TA | 200TB | 315T | 500T | 630T | 800T | 1000T |
|---|---|---|---|---|---|---|---|---|---|
| Liquid Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Effective Stroke of Slider | mm | 600 | 600 | 700 | 800 | 900 | 900 | 900 | 900 |
| Open Height | mm | 900 | 900 | 1200 | 1250 | 1500 | 1500 | 1500 | 1500 |
| Effective Area of Workbench | mm | 750×700 | 800×800 | 1000×1000 | 1260×1160 | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 |
| Free Fall Speed | mm/s | 90 | 100 | 100 | 120 | 120 | 130 | 150 | 150 |
| Pressing Speed | mm/s | 17 | 14 | 14 | 11 | 18 | 18 | 18 | 18 |
| Return Speed | mm/s | 110 | 110 | 110 | 100 | 170 | 180 | 180 | 190 |
| Motor Power | kW | 7.5 | 7.5 | 7.5 | 22 | 37 | 44 | 60 | 74 |
| Hydraulic Pad Ejecting Force | T | 50 | 60 | 60 | 100 | 160 | 200 | 315 | 400 |
| Ejecting Stroke | mm | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 |
| Hydraulic Pad Area | mm | Φ500 | Φ550 | 750×600 | 750×750 | 1050×1050 | 1200×1200 | 1200×1200 | 1200×1200 |

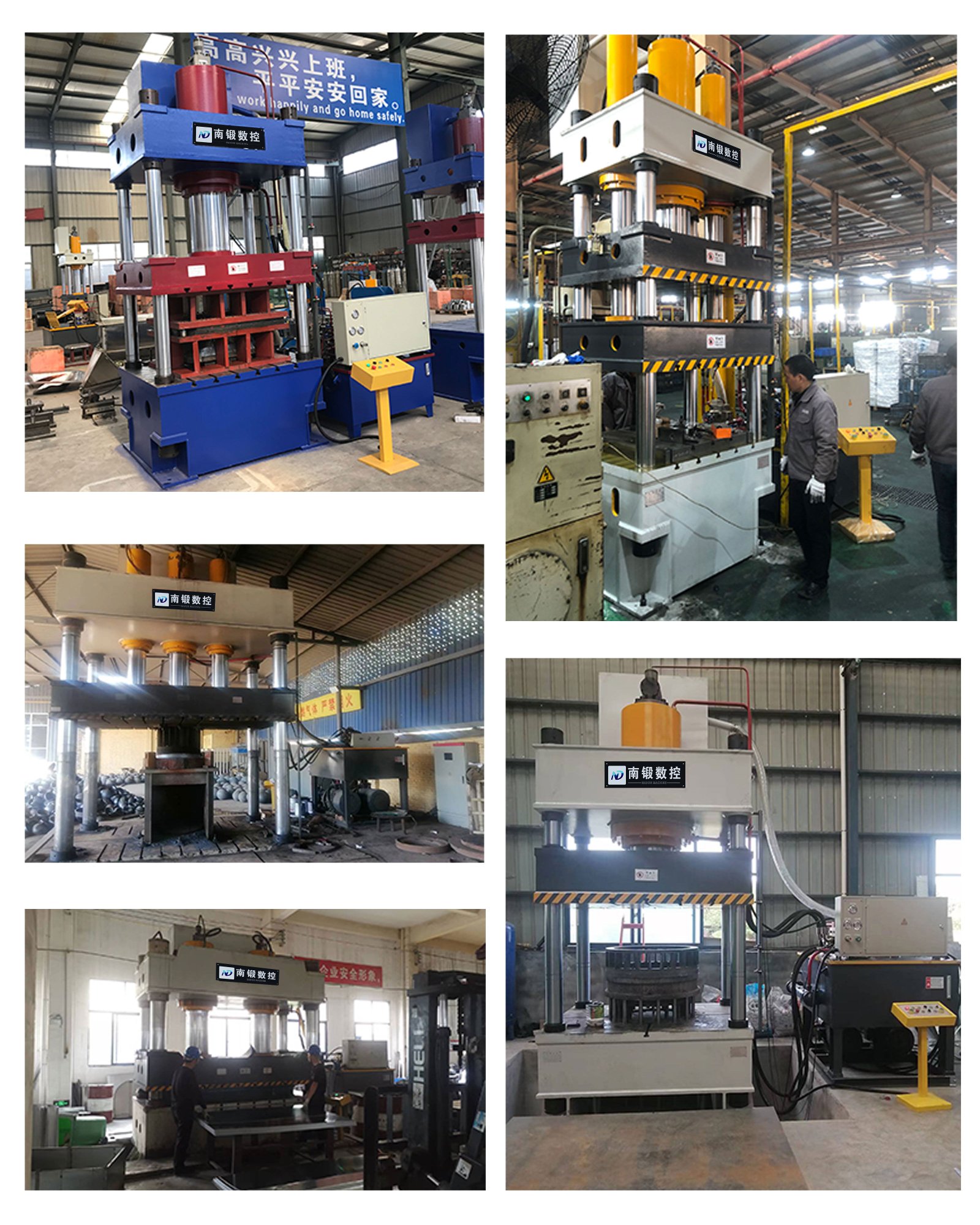

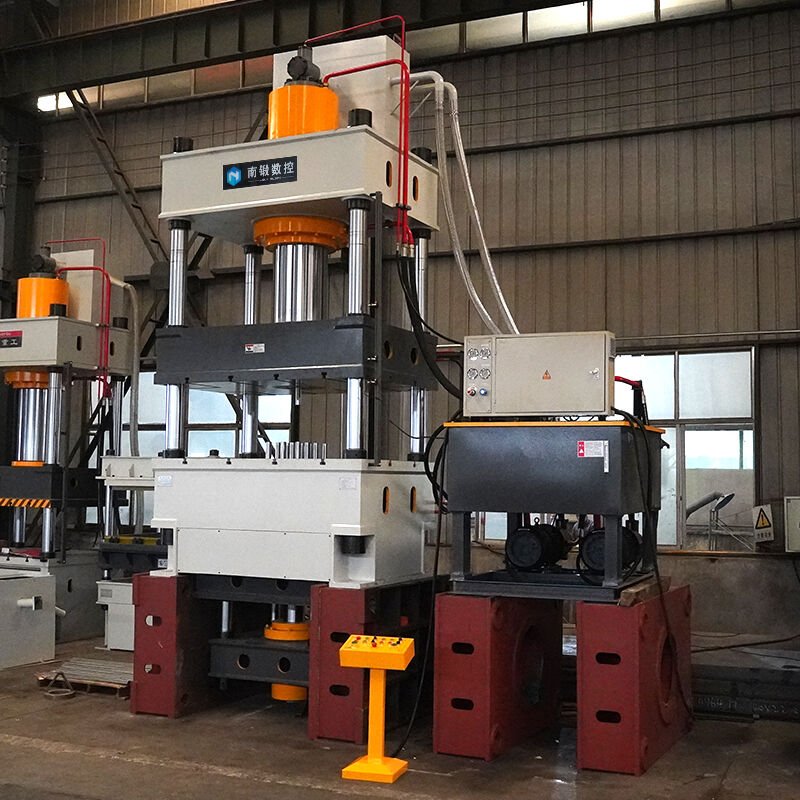

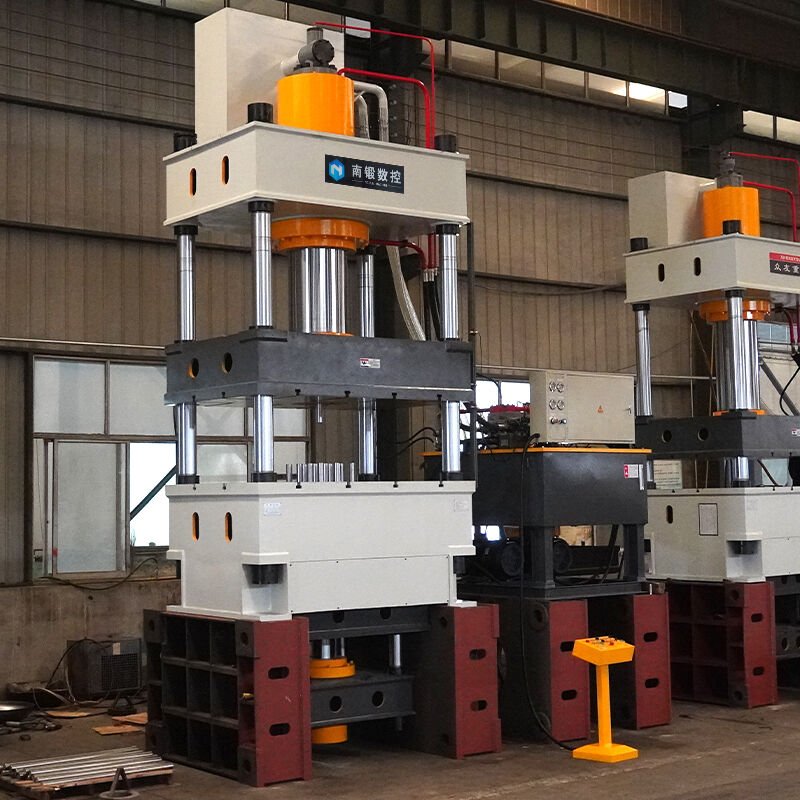

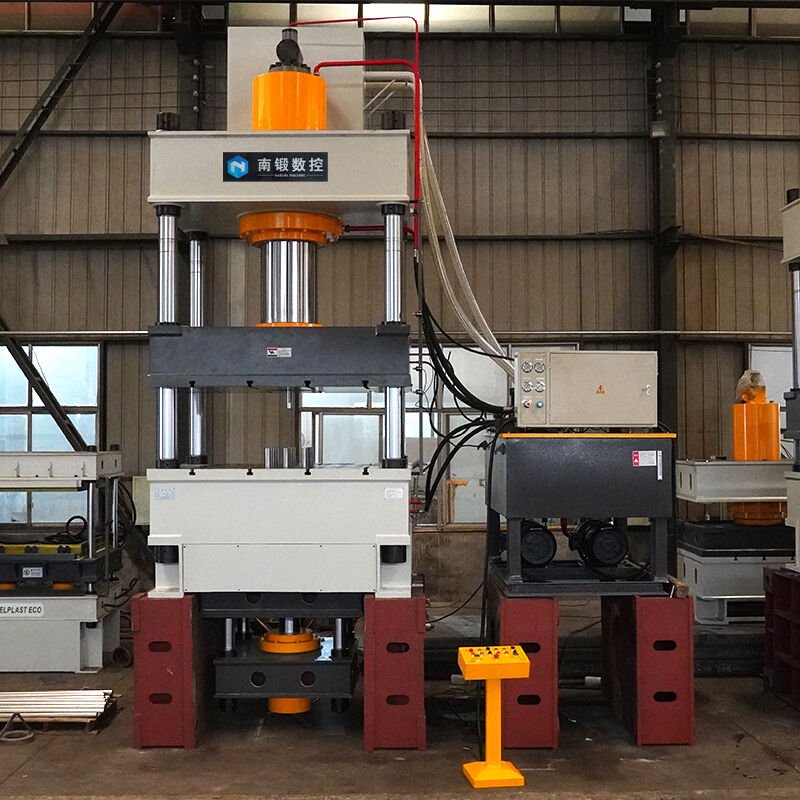

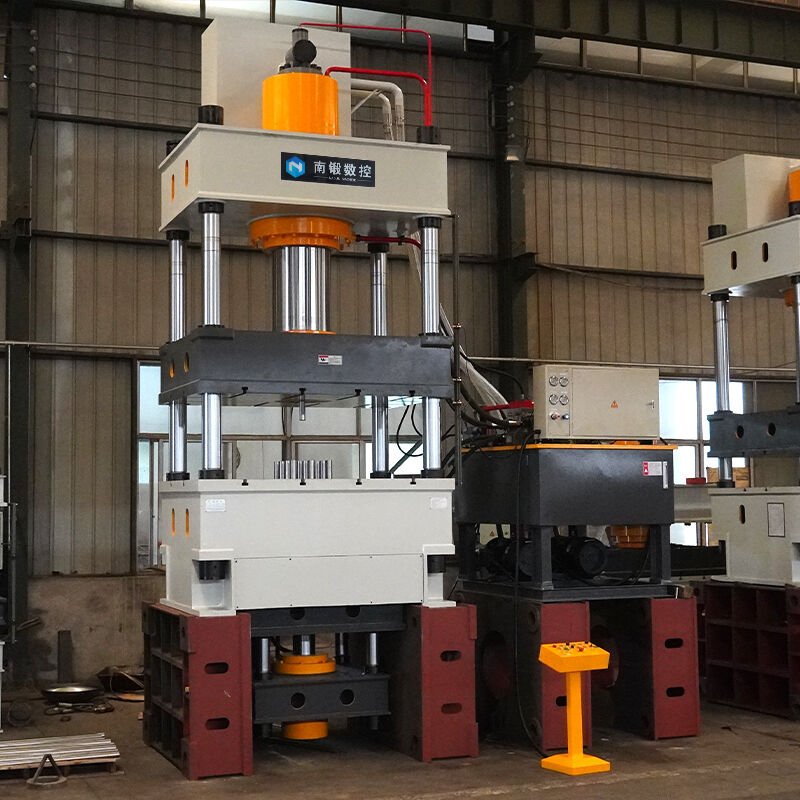

Four columns are the main, stability and rigidity at the same time

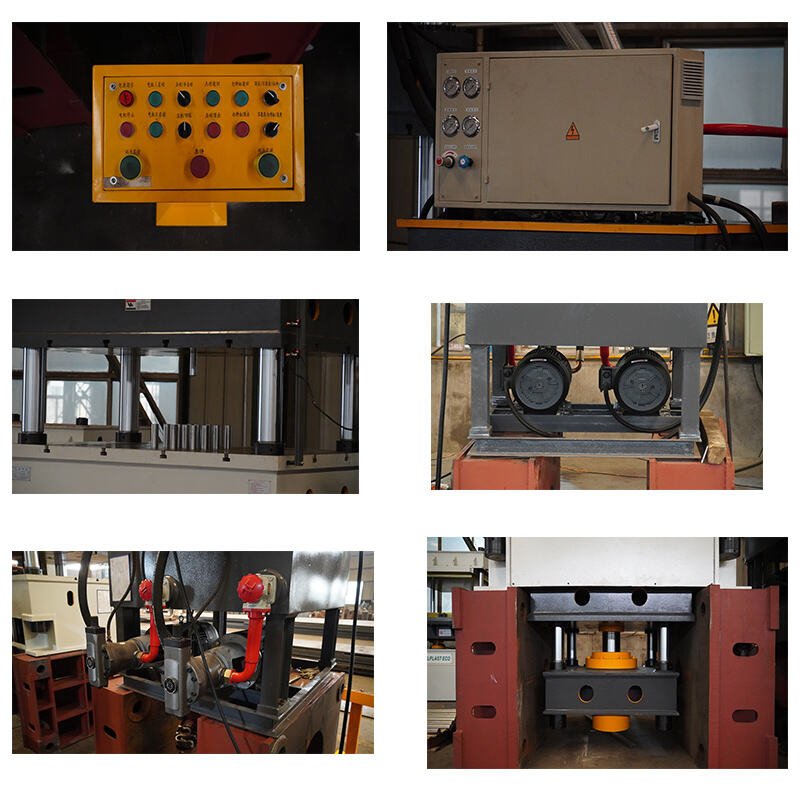

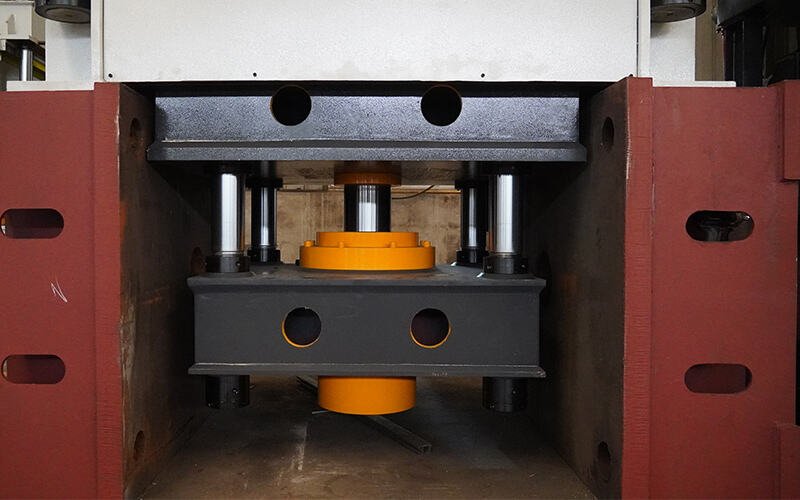

Hydraulic pads and ejector cylinders: Equipped with multi-point ejector hydraulic pads or lower ejector cylinders to realize the automatic mold release function.
Stainless steel aluminum pan stretching machine is the core equipment for domestic and commercial kitchenware manufacturing, mainly used in:

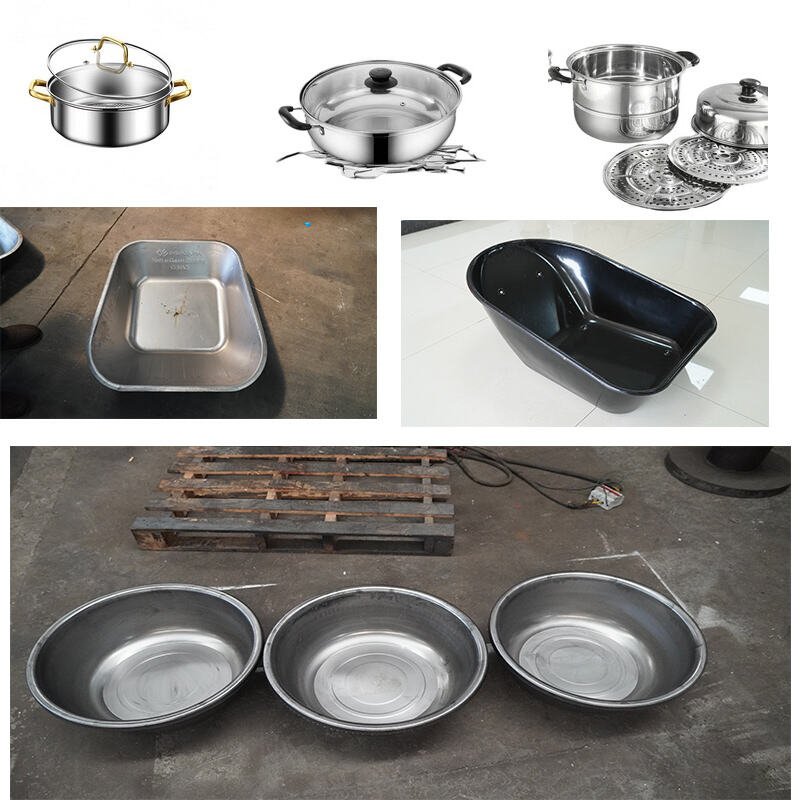

Household kitchen utensils: stainless steel frying pans, soup pots, frying pans, milk pans; aluminum pressure cookers, crock pots, baking pans.
Commercial kitchen appliances: hotel/restaurant use large-capacity soup tureen, steamer, steak oven pots and pans.
Other metal containers: some metal thermos cups (deep drawing process is similar), metal box bodies for industrial use (e.g. tool boxes)
We offer comprehensive after-sales services, including installation, commissioning, and operation training; providing press machine user manuals to facilitate user learning on how to operate and maintain the press machine.
We provide a full set of hydraulic press equipment with many mature design solutions and successful customer cases. We also provide customized service with molding tooling and corresponding production line equipment, providing one-stop service for customers. Welcome to call us for consultation.
