Single-arm hydraulic press for straightening round steel bars

Place of Origin:	Tengzhou China
Brand Name:	Nadun
Model Number:	YQ41-250T
Certification:	CE ISO
Minimum Order Quantity:	1
Packaging Details:	The sample includes a hydraulic press and mold. Please contact us for more details.
Delivery Time:	15-45 day
Payment Terms:	L/C D/P D/A T/T
Supply Ability:	50set/m

Product Overview

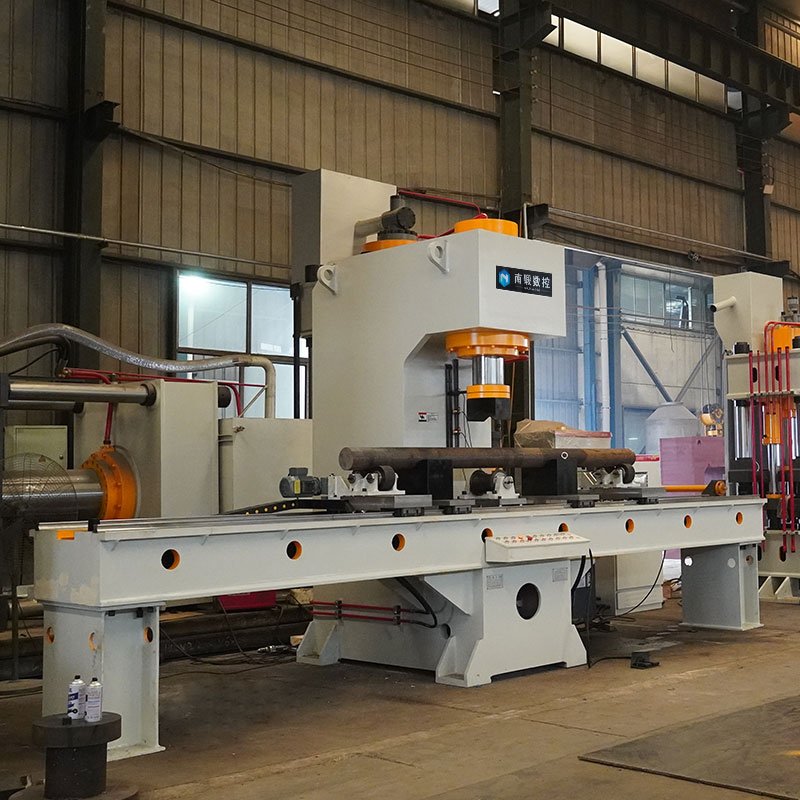

The single-arm hydraulic straightening press for round steel (commonly known as a C-type single-column straightening press) is specialised equipment designed for the straightening of long workpieces such as round steel, steel tubes and shafts; with three open sides and a long worktable, it is suitable for the rapid loading and unloading of slender workpieces and for point-by-point straightening.

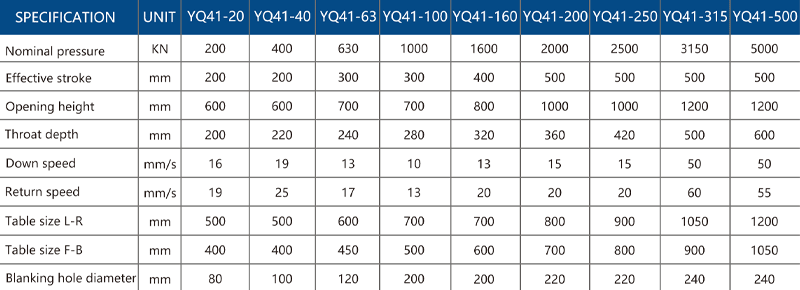

Parameters

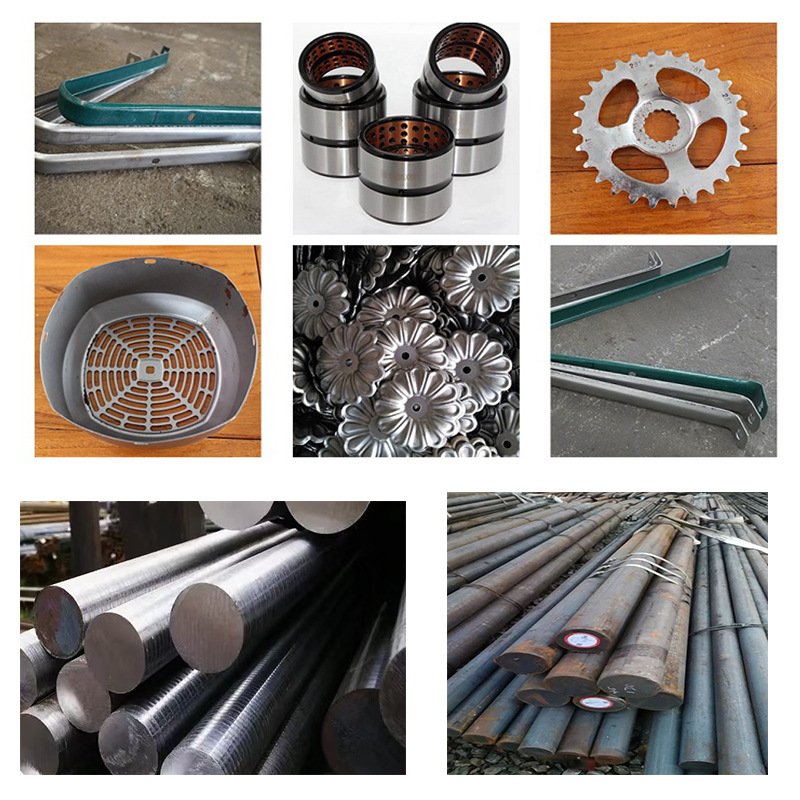

Pressed Product

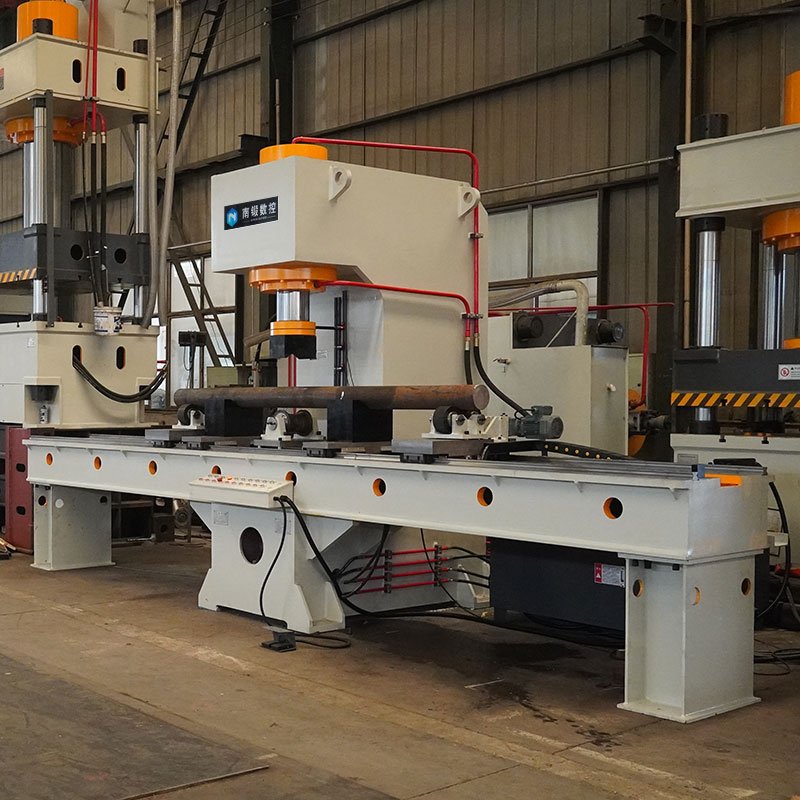

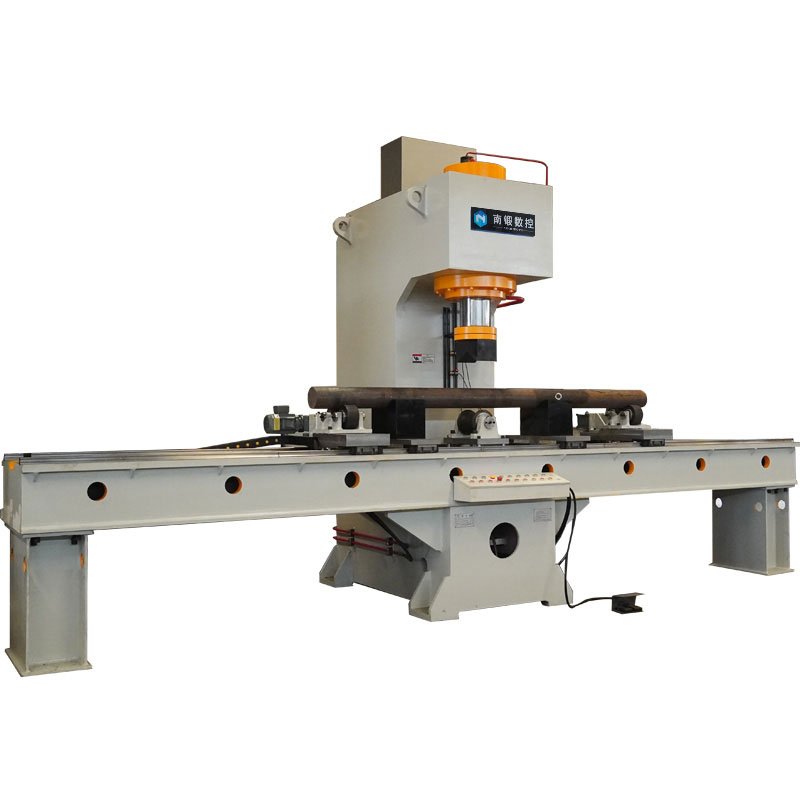

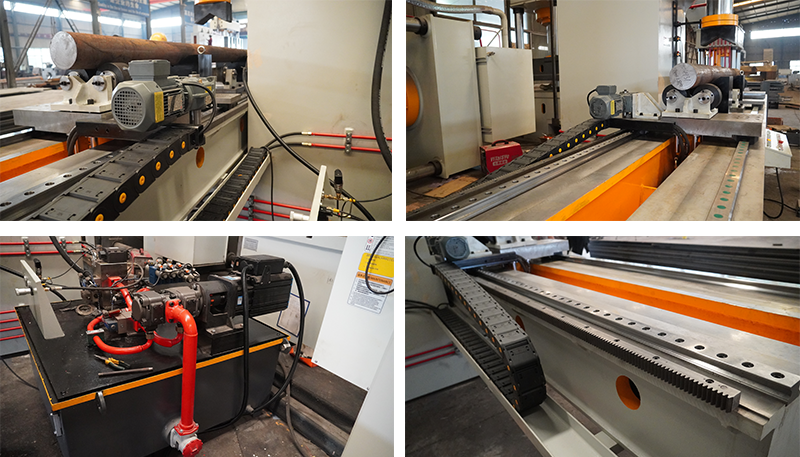

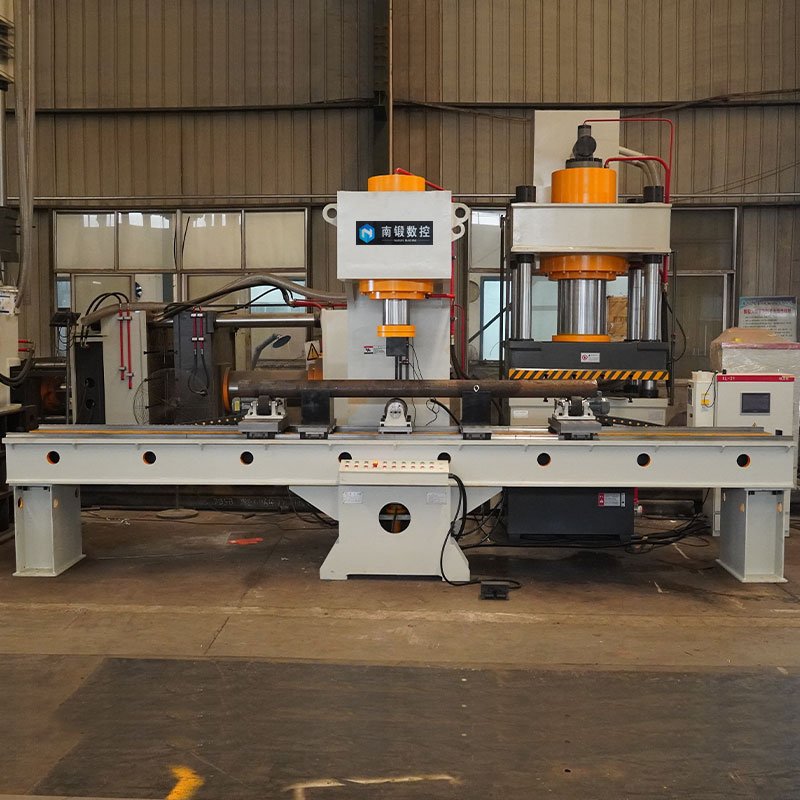

Equipment Details

Performance Characteristics

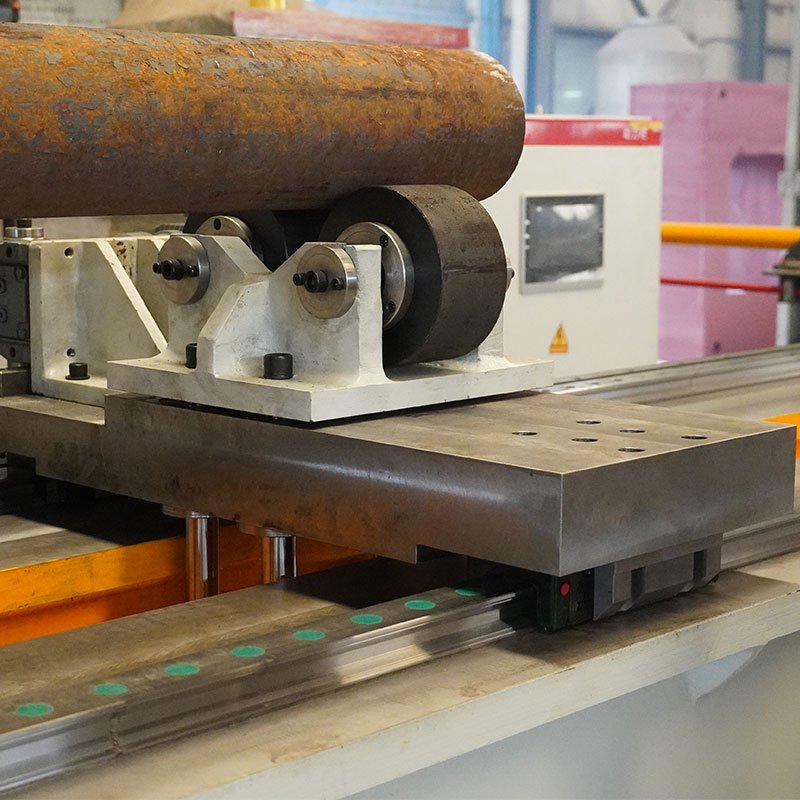

Machine Body: C-frame single-arm design, steel plate welded construction with stress-relief treatment, offering high rigidity and minimal deformation; open on three sides for easy loading and unloading of long, slender workpieces. Hydraulic System: Integrated hydraulic power unit, low-noise and energy-efficient; three-speed adjustment (rapid descent, slow pressing, return stroke) for high straightening accuracy. Workbench: Extra-long work surface equipped with V-blocks and roller supports, ensuring stable placement of round bars and effortless movement. Controls: PLC + touchscreen; can be fitted with a dial gauge or laser straightness measurement for precise straightening; pressure, stroke and hold time are adjustable

Scope Of Application

Main workpieces for straightening: Bar stock: standard round bars, square bars, hexagonal bars, round rods, cold-drawn round bars, hot-rolled round bars, alloy round bars, stainless steel round bars, reinforcing bars, smooth shafts. Shaft components: motor shafts, gearbox shafts, drive shafts, gear shafts, lead screws, piston rods, pins, camshafts, agricultural machinery shafts, machine tool spindles. Sections / Long Workpieces: Flat steel, angle steel, long steel plates, guide rails, long stamped parts, welded long members.

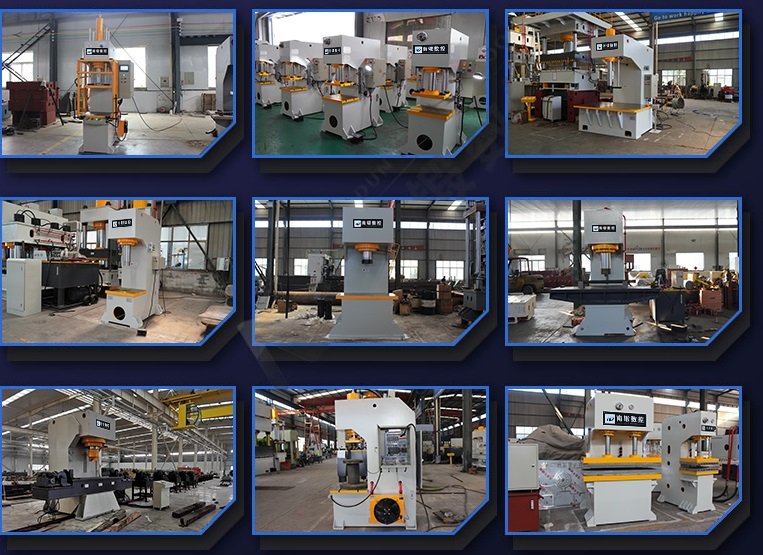

Application Cases

Optional Accessories

Packing & Shipping

After-Sales Service

We offer comprehensive after-sales services, including installation, commissioning, and operation training; providing press machine user manuals to facilitate user learning on how to operate and maintain the press machine.
