Nadun 100t Single Column C Type Press Machine With Four Column Guiding

Place of Origin:	Tengzhou China
Brand Name:	Nadun
Model Number:	没有找到自定义文本
Certification:	CE ISO
Minimum Order Quantity:	1
Packaging Details:	The sample includes a hydraulic press and mold. Please contact us for more details.
Delivery Time:	15-45 day
Payment Terms:	L/C D/P D/A T/T
Supply Ability:	50set/m

Product Overview

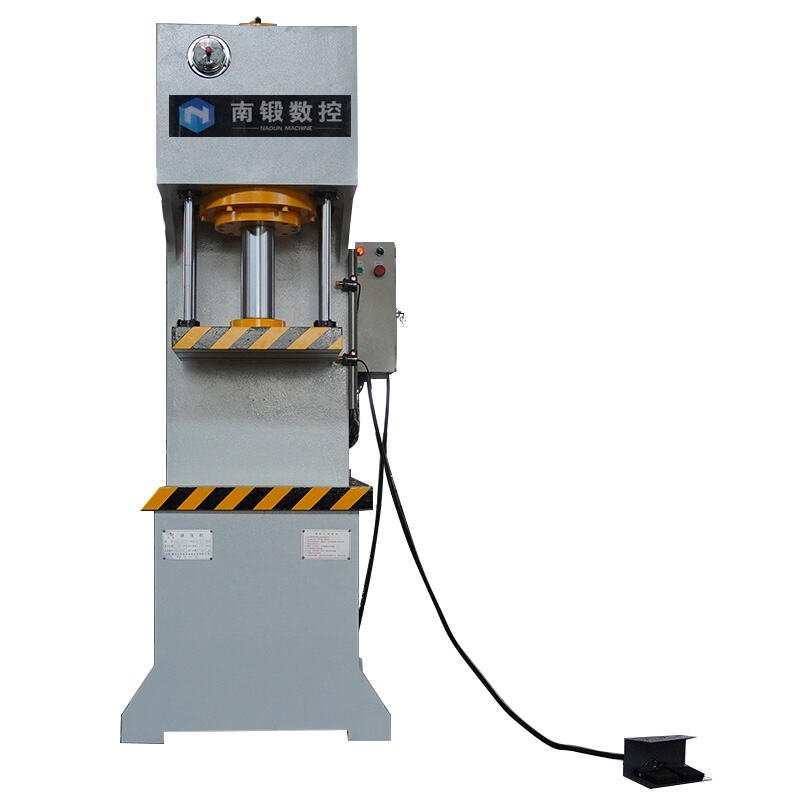

Nadun 100 Ton Single Column C Type Hydraulic Press Machine With Four Column Guiding

Nadun 100t Single Column C Type Press Machine With Four Column Guiding manufacture

The Nadun 100 ton C frame hydraulic straightening press delivers powerful and accurate straightening capacity in a compact footprint. With a single sturdy column and reinforced C-shaped frame, it generates up to 100 tons of uniform pressing force for straightening metal sheets, plates, pipes, and profiles.The spacious bed and moveable upper beam allow for straightening largeworkpieces. The advanced hydraulic system and precision-machined cylinder provide accurate and repeatable pressure control for quality results. Rugged construction stands up to heavy daily use. Simple controls make operation straightforward. This high-quality straightening press is an excellent value for metalworking shops.

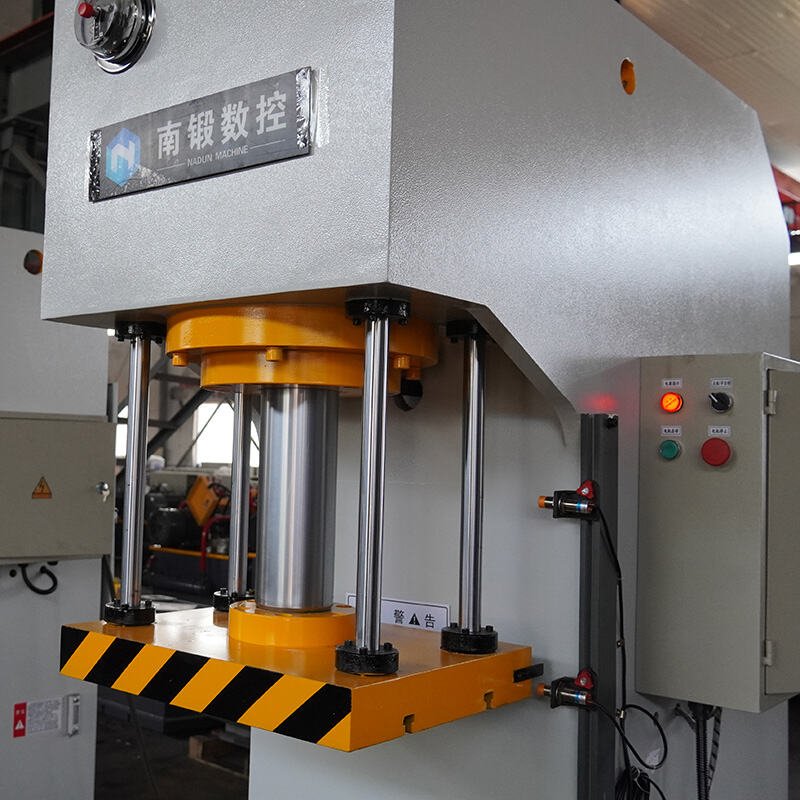

Detail Photos

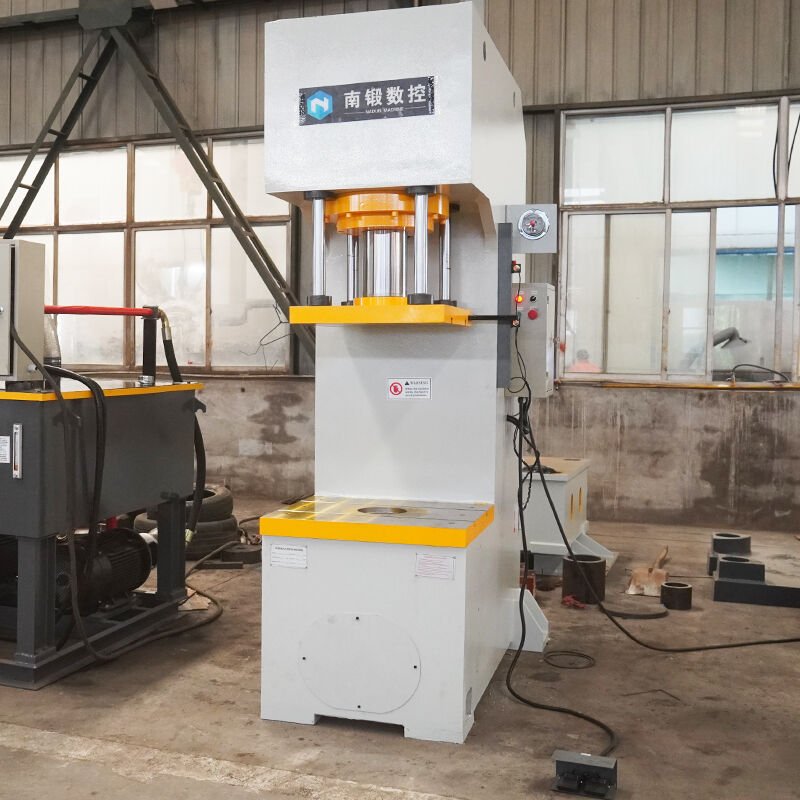

The following pictures are actual shots of the 100-ton Single Column Press machine

The entire machine is welded with 45# steel.

The entire machine is welded with high-strength 45# steel, ensuring its durability and toughness. The use of this material provides the machine with excellent strength and resistance to wear and tear.

Master cylinder pressure gauge

The pressure gauge measures the force generated by the press, while the regulating valve allows for precise adjustment of the pressure to ensure optimal performance. Together, they play a key role in maintaining the accuracy, safety, and efficiency of the hydraulic press.

Nadun 100t Single Column C Type Press Machine With Four Column Guiding manufacture

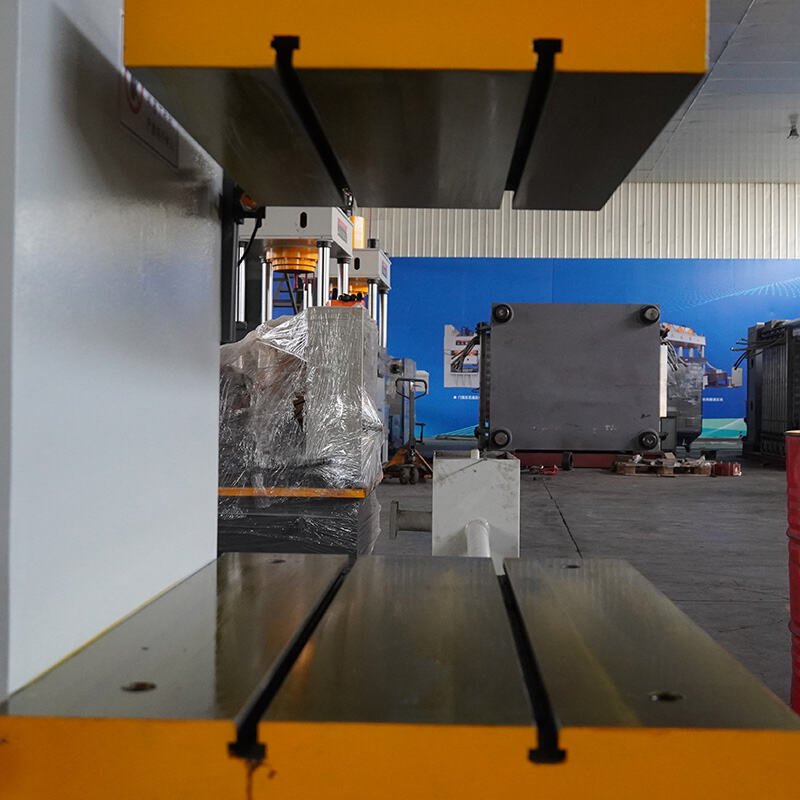

T-slots
T-slots play a crucial role in hydraulic presses by providing convenient options for mold replacement. They enable quick and efficient changes to be made to the molds, saving time and increasing productivity.
Nadun 100t Single Column C Type Press Machine With Four Column Guiding factory

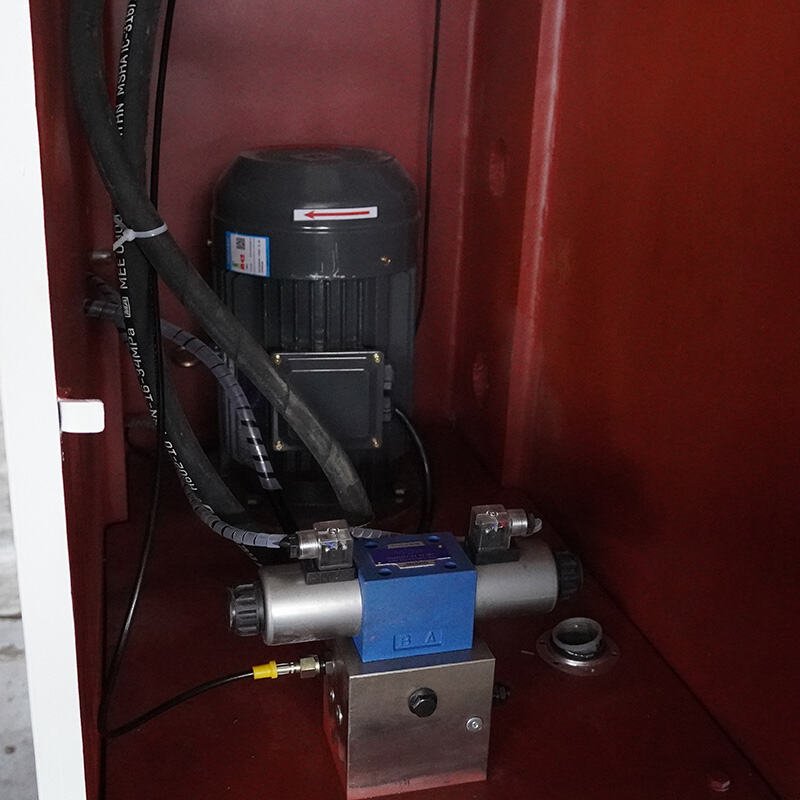

Electromotor and Hydraulic pump unit

Electromotor is an electric motor that converts electrical energy into mechanical power. It is commonly used to drive machinery.Hydraulic pump unit uses mechanical power to generate hydraulic energy, transferring fluids under pressure to power machinery. This system is highly efficient and durable.

Parameters

SPECIFICATION	UNIT	YQ41-20	YQ41-40	YQ41-63	YQ41-100	YQ41-160
Nominal pressure	KN	200	400	630	1000	1600
Effective stroke	mm	200	200	300	300	400
Opening height	mm	600	600	700	700	800
Throat depth	mm	200	220	240	280	320
Down speed	mm/s	16	19	13	10	13
Return speed	mm/s	19	25	17	13	20
Table size L-R	mm	500	500	600	700	700
Table size F-B	mm	400	400	450	500	600
Blanking hole diameter	mm	80	100	120	200	200

Packing&Shipping

Internal plastic moisture-proof anti-rust packaging,

External wooden packaging,
Exclusive container transport.

Company Profile

The company’s processing equipment includes large-scale CNC floor-standing boring and milling machines, CNC gantry machining centers and other advanced equipment. Our company has passed the ISO,CE,SGS and other certification,has a number of product innovation patents and honorary certificates. Our main products include manual lathe,cnc lathe,saw machines,machine tool,Drill machine, Milling machine,Machining Center,CNC milling machine,grinder,etc. Each of our machine undergoes a multi-step superb machining process and rigorous measurement and assembly. Every producing step of the machine undergo quality inspection and mutual inspection,The company has complete testing methods and advanced inspection techniques.All the machines should be 100% qualified before sales.

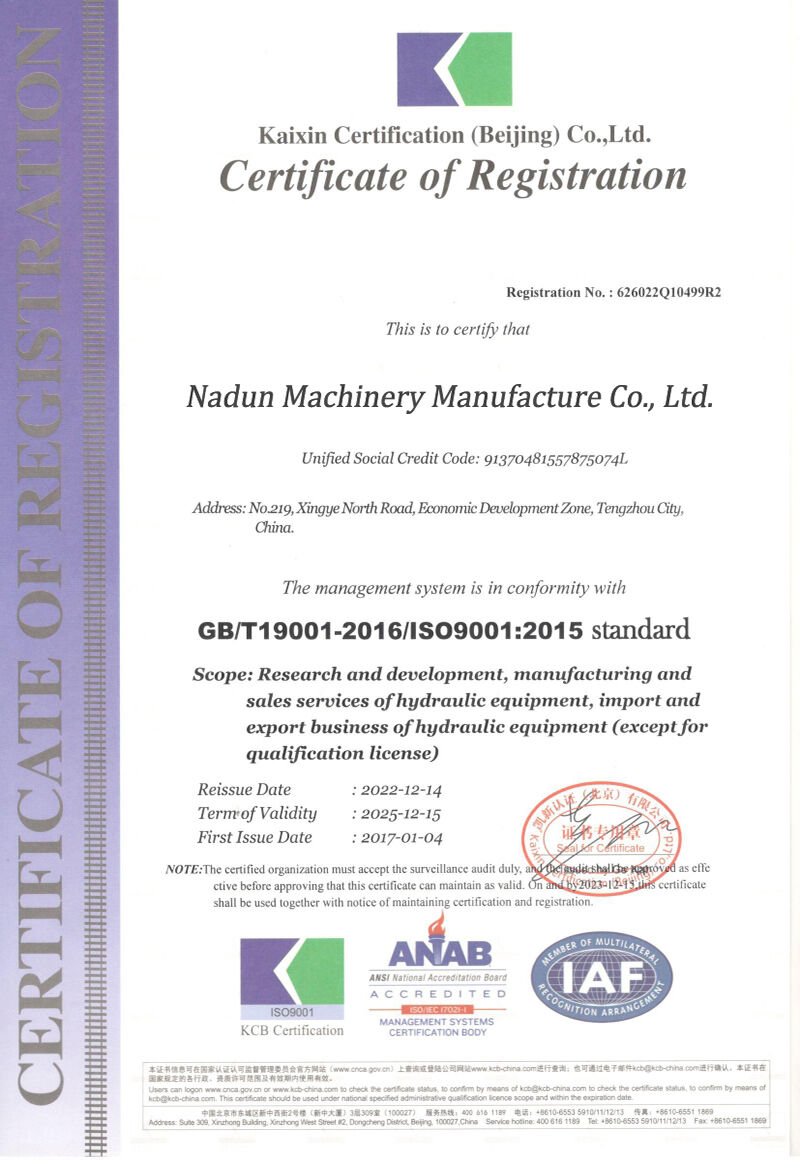

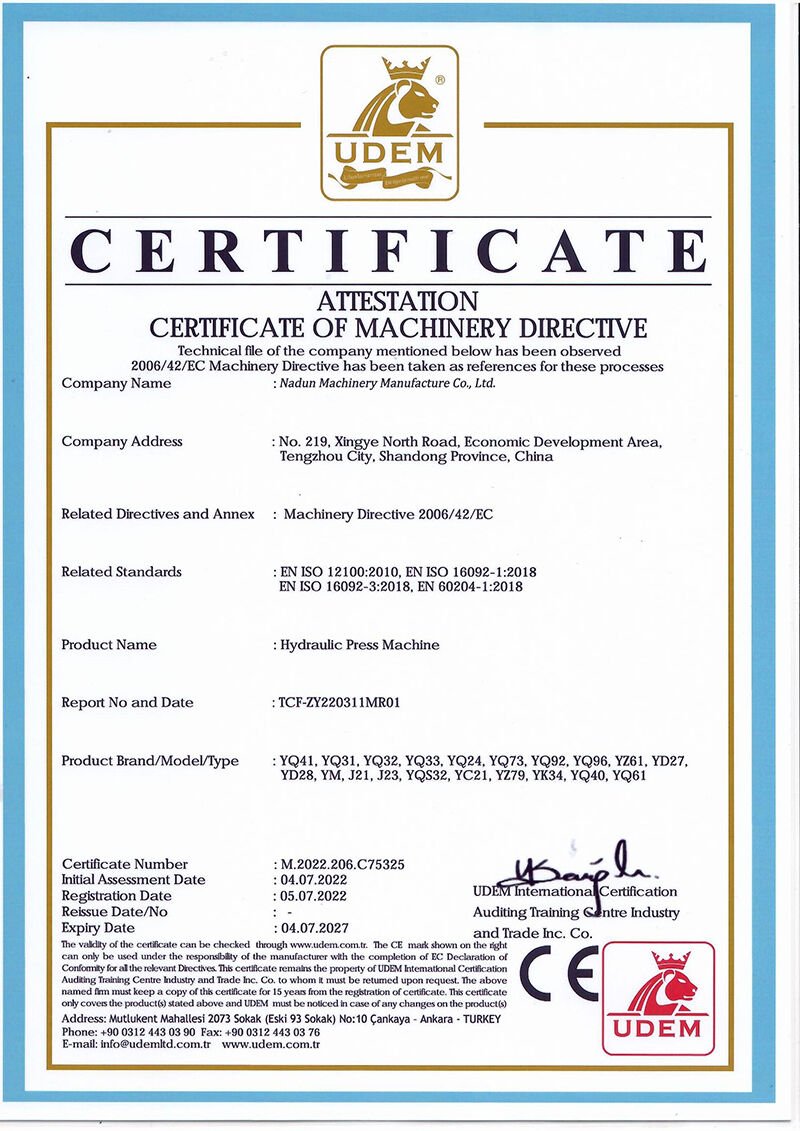

Certificate

Customer Visit

Our customers come from all over the world

QUALITY CONTROL
We have been manufacturing hydraulic press machine and guillotine machines for almost two decades, which has given us theexpertise and confidence to tackle future challenges. Our success is attributed to our commitment to high-quality standards andour highly trained and knowledgeable team. By continually improving our internal processes, we have been able to produce machinesof exceptional quality that have positioned Nadun as a leader in the industry. Our commitment to excellence is evident in thequality of our machines, which serves as a guarantee to our customers.
