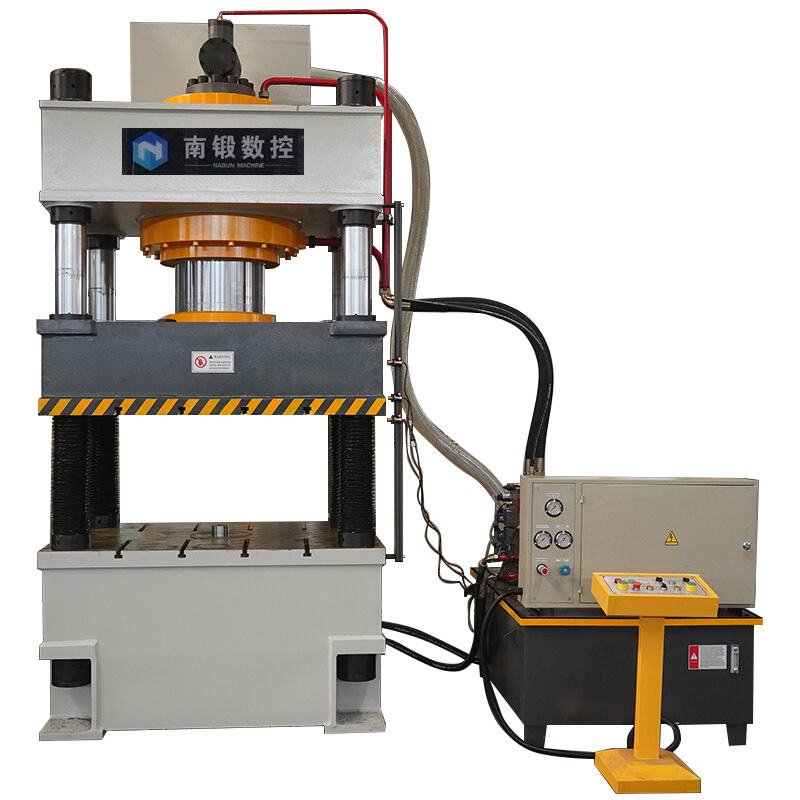

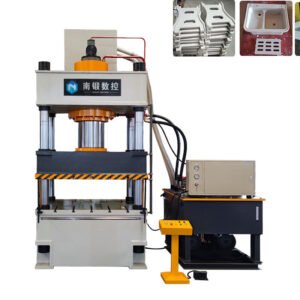

Nadun 500t Hydraulic Press with Heating Plate for Metal Hot Forming

Place of Origin:	Tengzhou China
Brand Name:	Nadun
Model Number:	没有找到自定义文本

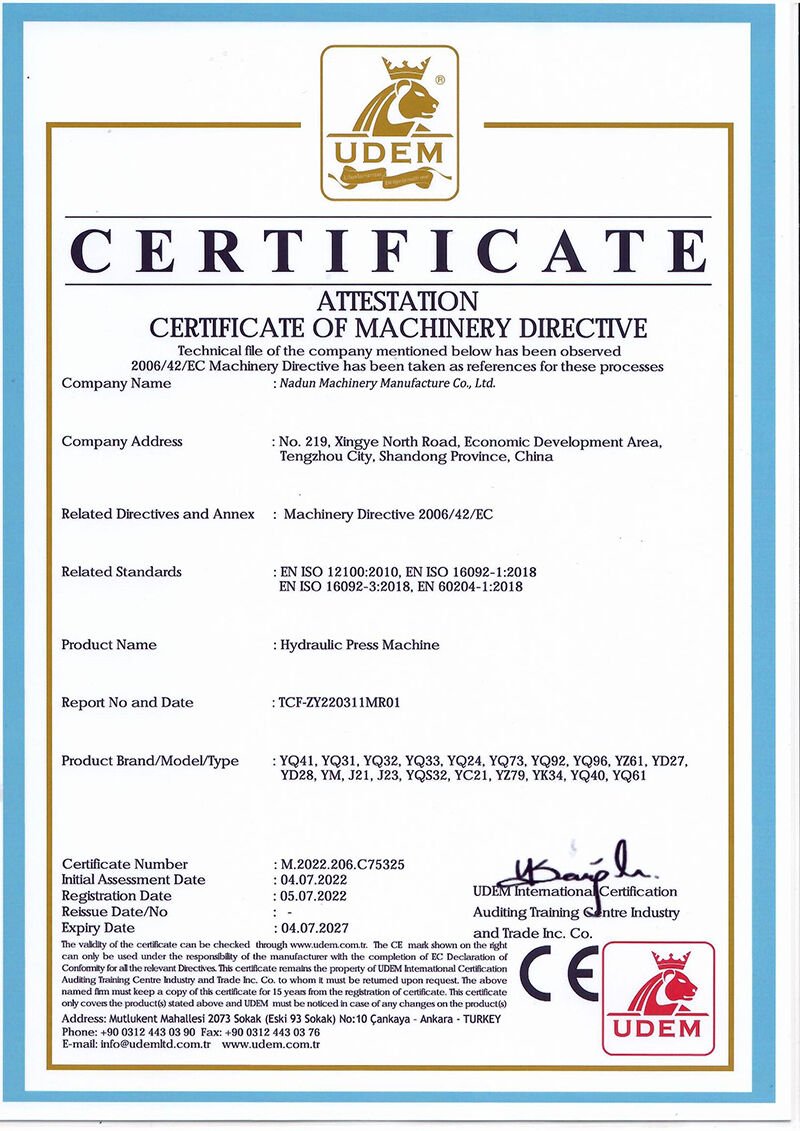

Certification:	CE ISO
Minimum Order Quantity:	1
Packaging Details:	The sample includes a hydraulic press and mold. Please contact us for more details.
Delivery Time:	15-45 day
Payment Terms:	L/C D/P D/A T/T
Supply Ability:	50set/m

Product Overview

Nadun Industrial Hydraulic Pressing: Leading in 500-Ton Hydraulic Press for Sheet Metal and Heavy-Duty Applications

Nadun 500t Hydraulic Press with Heating Plate for Metal Hot Forming supplier

Nadun Industrial Hydraulic Pressing: Leading with the 500-Ton Hydraulic Press for Sheet Metal and Heavy-Duty Applications. Withits commanding capacity, this industrial hydraulic pressing solution stands at the forefront, excelling in both sheet metaloperations and heavy-duty tasks. Elevate your manufacturing processes with the reliability and innovation of Nadun IndustrialHydraulic Pressing – a symbol of excellence in hydraulic pressing technology, catering to diverse and demanding applications.

Detail Photos

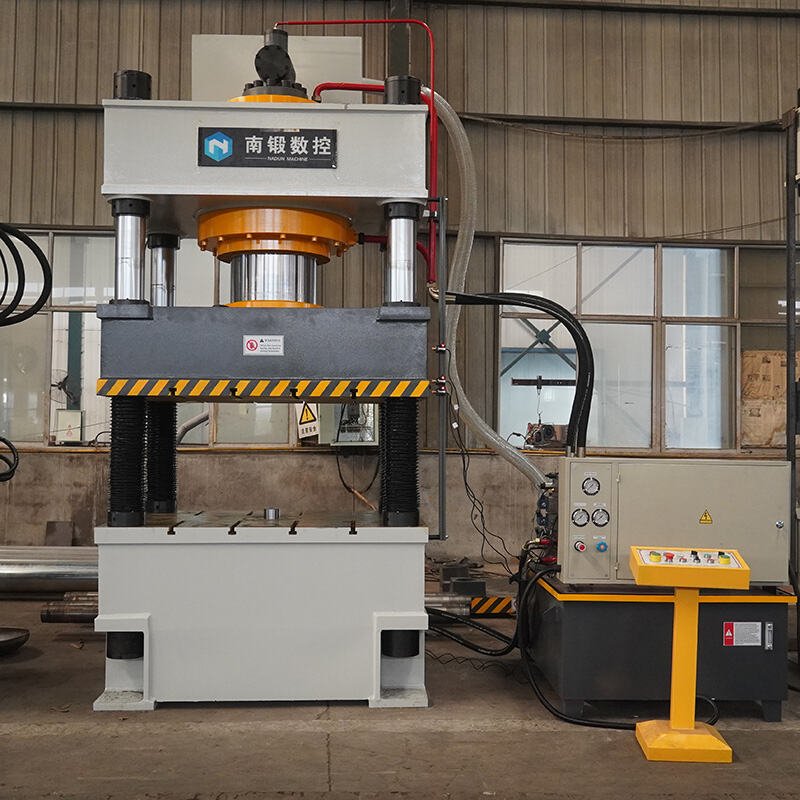

The following pictures are actual shots of the 500T hydraulic press machine.

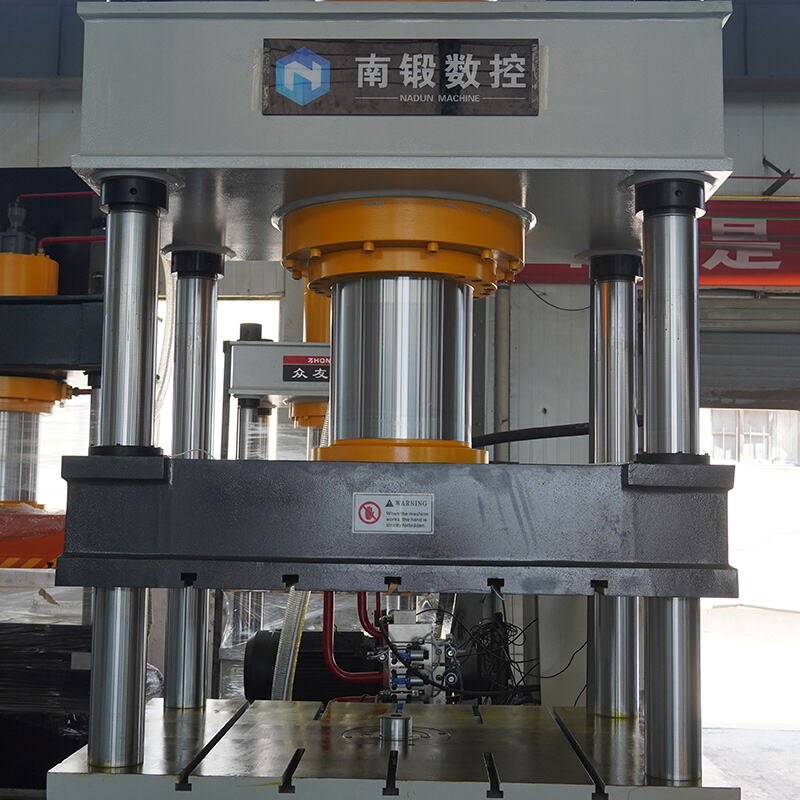

“Main Piston Rod”

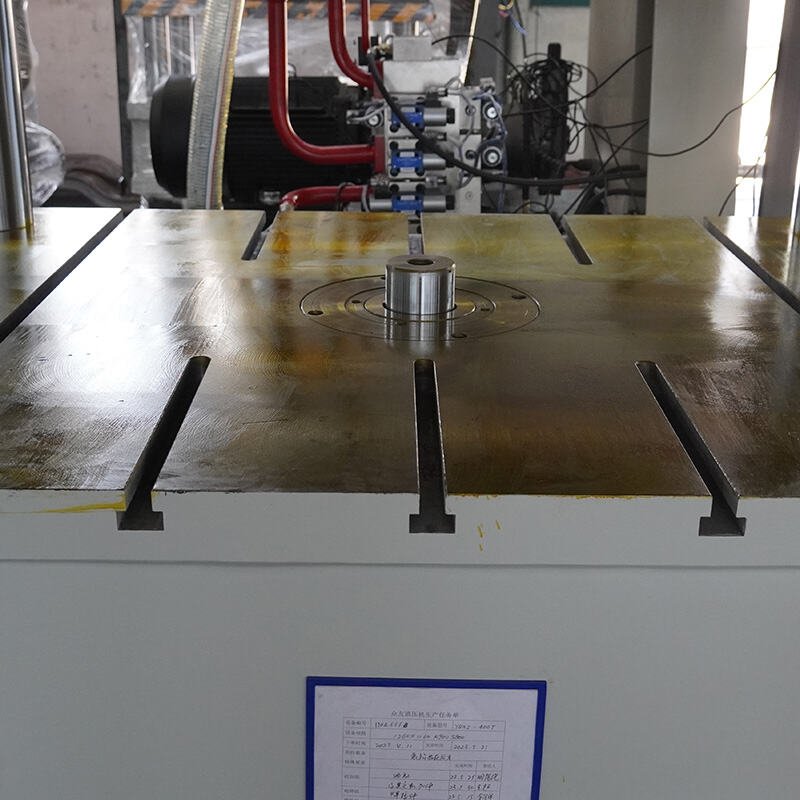

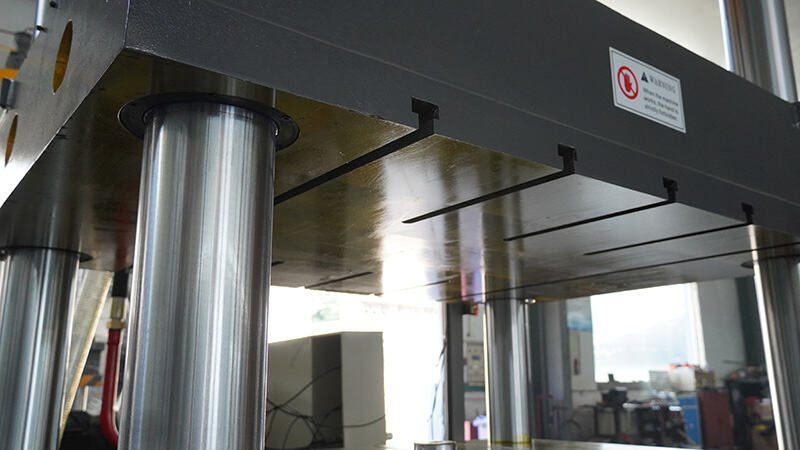

“Slider and T-Slots”

” T-Slots”

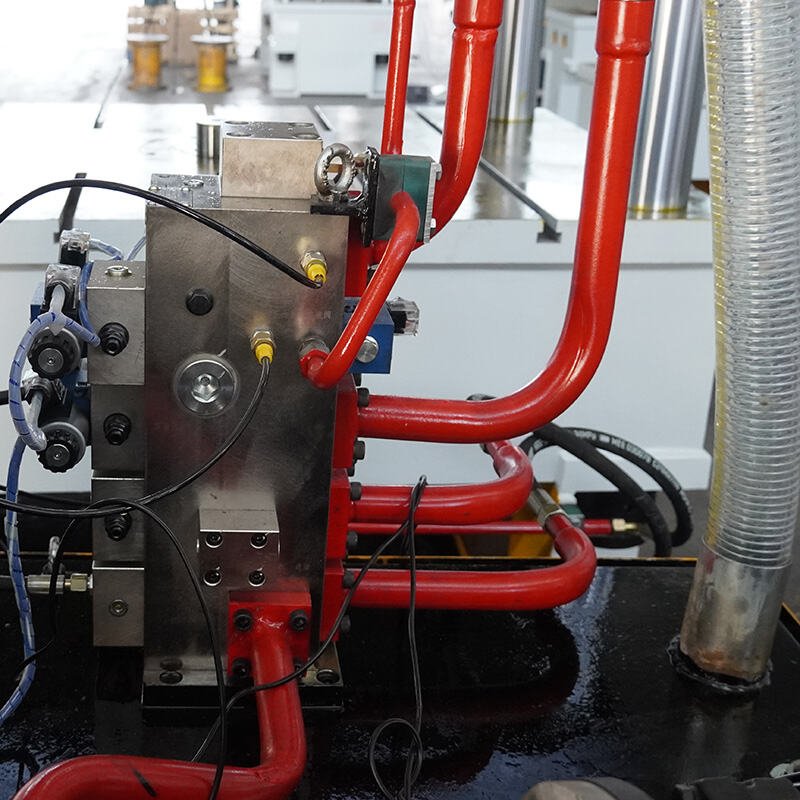

“Independent Pump Station ”

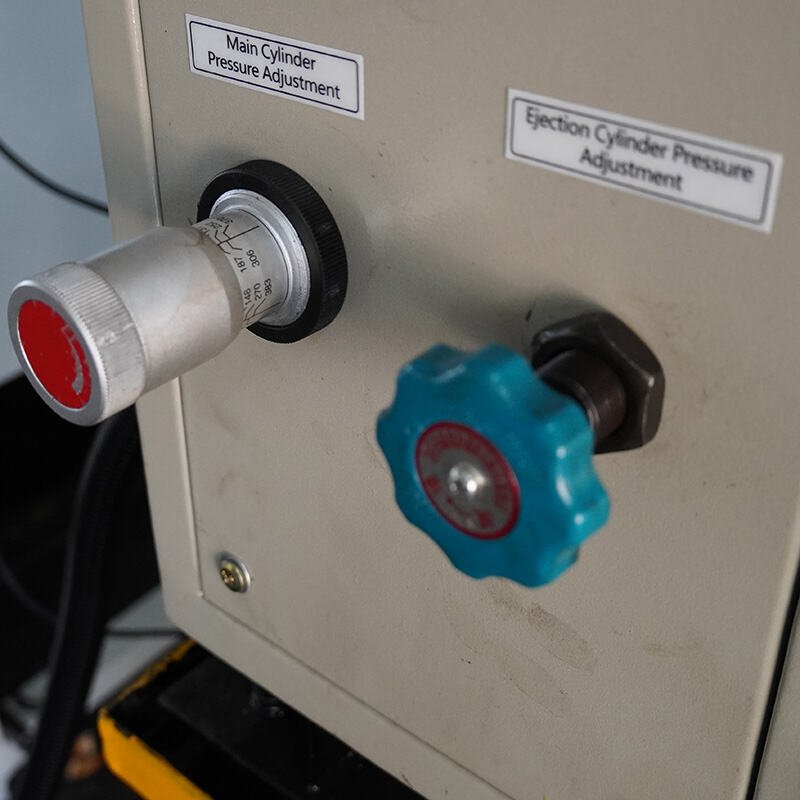

“Pressure Gauge and Pressure Adjustment Knob”

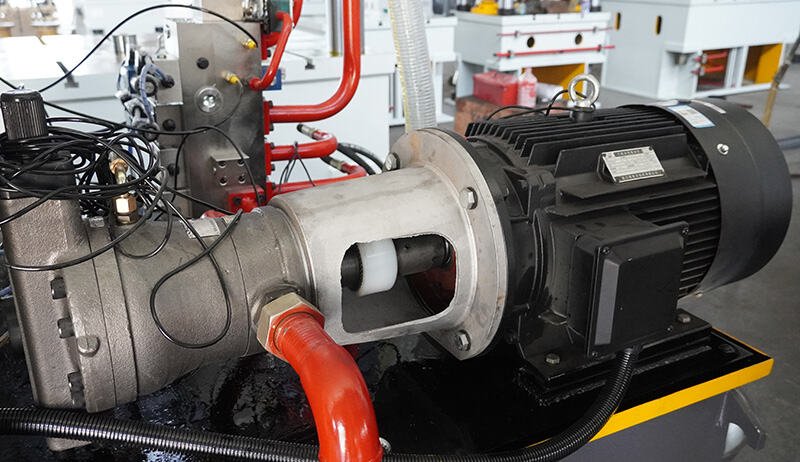

“Motor”

Standard Configuration

SPECIFICATION	UNIT	YQ32-63T	YQ32-100TA	YQ32-100TB	YQ32-200TA	YQ32-200TB	YQ32-315TA	YQ32-315TB
Nominal force	KN	630	1000	1000	2000	2000	3150	3150
Max.System pressure	Mpa	25	25	25	25	25	25	25
Max.Open height	mm	700	800	900	1200	900	1250	1000
Max.Stroke of slider	mm	400	500	600	700	600	800	600
Effective table size	mm	610×500	630×550	750×700	1000×1000	800×800	1260×1160	800×800
Down speed	mm/s	180	120	120	100	100	100	100
Pressing speed	mm/s	11-22	7-15	7-15	7-18	7-18	7-11.5	7-11.5
Return speed	mm/s	100	120	120	70	70	60	60
Ejection cylinder force	KN	100	200	200	400	400	630	630
Stroke of ejectioncylinder	mm	160	200	200	220	220	300	300

SPECIFICATION	UNIT	YQ32-400T	YQ32-500T	YQ32-630T	YQ32-800T	YQ32-1000T	YQ32-1250T	YQ32-1600T
Nominal force	KN	4000	5000	6300	8000	10000	12500	16000
Max.System pressure	Mpa	25	25	25	25	25	25	25
Max.Open heigh	mm	1250	1500	1500	1800	1600	1600	1800
Max.Stroke of slider	mm	800	900	900	1000	900	900	1000
Effective table size	mm	1260×1160	1400×1400	1600×1600	1500×1500	1500×1500	1800×1600	1600×1600
Down speed	mm/s	100	100	80	80	80	80	80
Pressings pee	mm/s	5-9	8-15	6-12	8-17	6-13	7-15	8-17
Return speed	mm/s	55	70	60	70	70	70	70
Ejection cylinder force	KN	630	1000	1000	1000	1000	1000	1600
Stroke of ejectioncylinder	mm	300	300	300	350	350	350	350

PS:All machines mentioned in the above table can be customized.

Features

Industrial Expertise: Demonstrates industry leadership in hydraulic pressing, excelling with a powerful 400-ton capacity.

High Force Capability: Equipped with substantial force, it excels in sheet metal and heavy-duty applications.

Precise Sheet Metal Forming: Engineered for accurate results in shaping various sheet metals.

Versatile Heavy-Duty Operations: Proficiently handles demanding applications across industries.

Tailored Solutions: Customizes processes to specific production needs, enhancing adaptability.

Efficient Production: Designed for smooth operations, contributing to increased efficiency.

Sturdy Construction: Crafted with durable materials for reliable and consistent performance.

User-Friendly Experience: Intuitive controls simplify setup, operation, and monitoring.

Reduced Maintenance: High-quality components result in minimal upkeep, reducing downtime.

Operator Safety: Incorporates safety features to ensure well-being and compliance.

Technical Support: Supported by expert technicians for seamless setup and operation.

Quality Outcomes: Ensures high-quality results meeting industry standards.

Cost-Effective Efficiency: Optimizes processes for economic viability and productivity.

Trusted Solution: Nadun Industrial Hydraulic Pressing leads with precision and reliability in hydraulic pressing, making it a trusted choice for diverse sheet metal and heavy-duty applications.

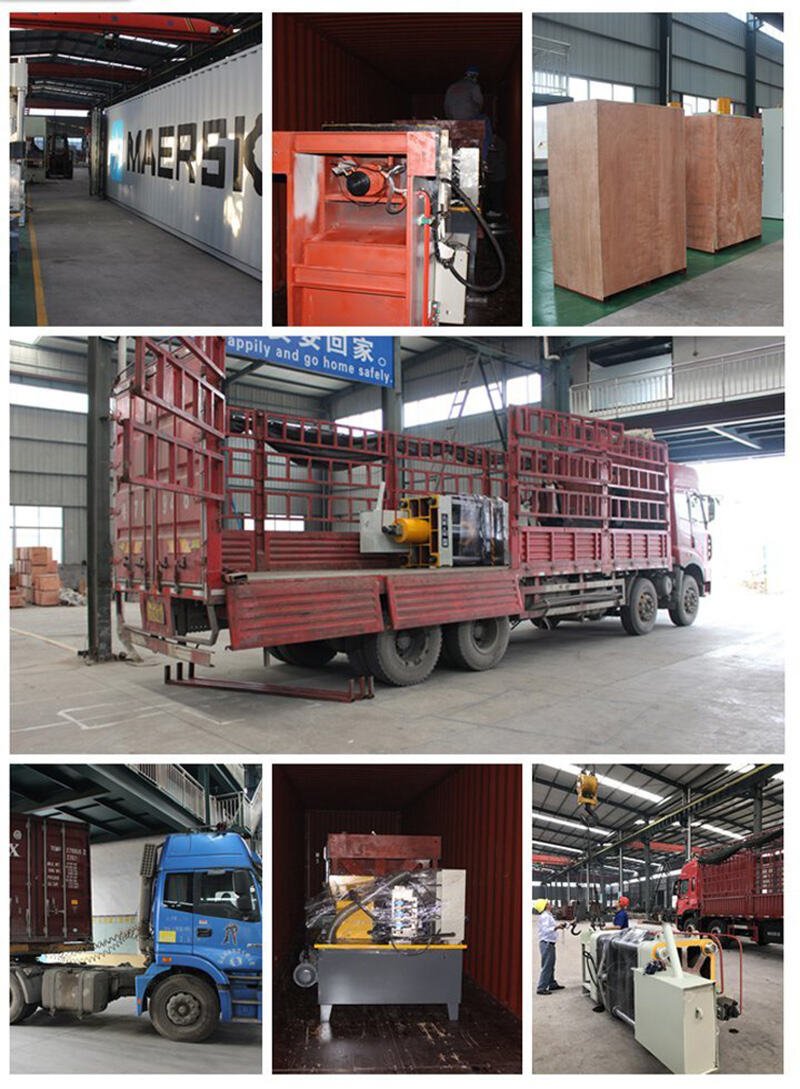

Packing&Shipping

The product is carefully packaged with internal moisture-proof materials, external wooden casing, and exclusive container transport to ensure its perfect condition upon arrival, protecting it from moisture, rust, damage, contamination, and theft.
