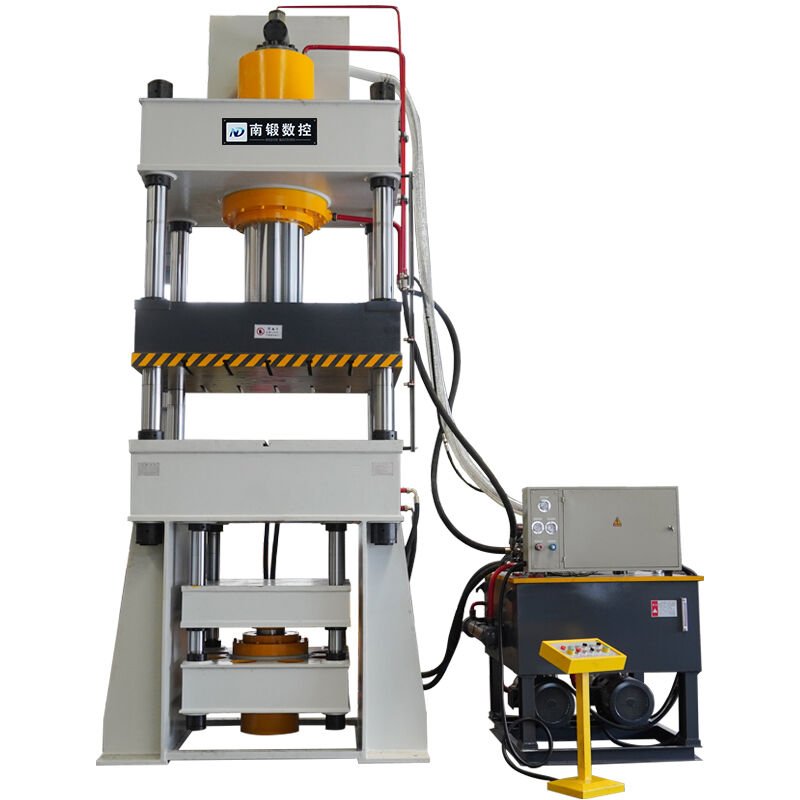

Nadun 500 Ton press machine for deep drawing

Place of Origin:	Tengzhou China
Brand Name:	Nadun
Model Number:	没有找到自定义文本
Certification:	CE ISO
Minimum Order Quantity:	1
Packaging Details:	The sample includes a hydraulic press and mold. Please contact us for more details.
Delivery Time:	15-45 day
Payment Terms:	L/C D/P D/A T/T
Supply Ability:	50set/m

Product Overview

Nadun 100 Ton metal deep drawing machine supplier

The thin sheet metal forming and stretching hydraulic press is primarily used for metal thin sheet stretching, blanking, and punching processes. It also possesses the conventional functions of a general-purpose hydraulic press, making it widely applicable. When equipped with a hydraulic buffer, it can complete post-stretching punching or post-punching flanging processes. This equipment is widely used in various fields, including automotive, motorcycle, household appliances, petrochemical, rail transportation, aerospace, and aviation. This series of hydraulic presses is available in two structural forms: four-column and frame.

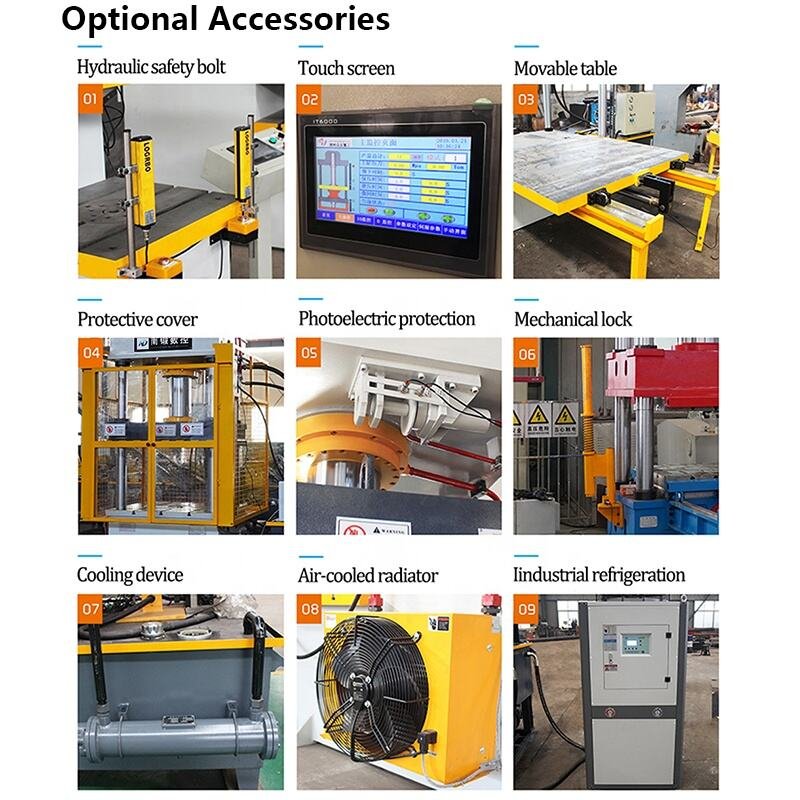

It can be configured according to user requirements with hydraulic pads, micro-adjustment mold devices, quick mold change devices, etc.

Nadun 100 Ton metal deep drawing machine supplier

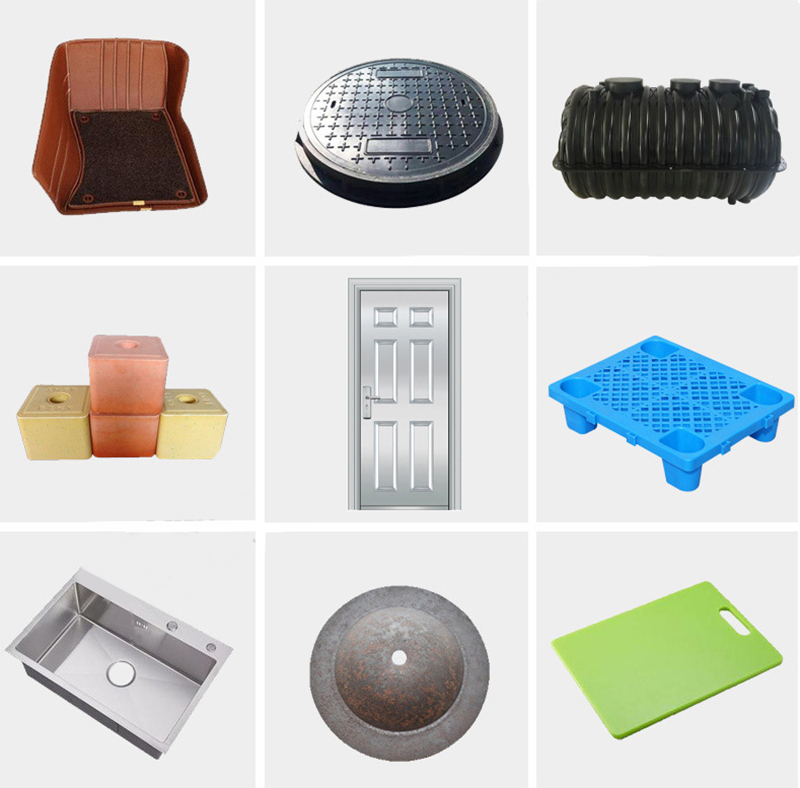

Part of the products that can be manufactured

The YD27 series sheet metal stretching and forming hydraulic press can be used to produce the products shown above.

Nadun 100 Ton metal deep drawing machine details

Highly Customizable

In addition to our standard models, our machines can be customized with various brands and types of components according to your specific requirements, achieving a high degree of customization.

Details Images
Nadun 100 Ton metal deep drawing machine manufacture

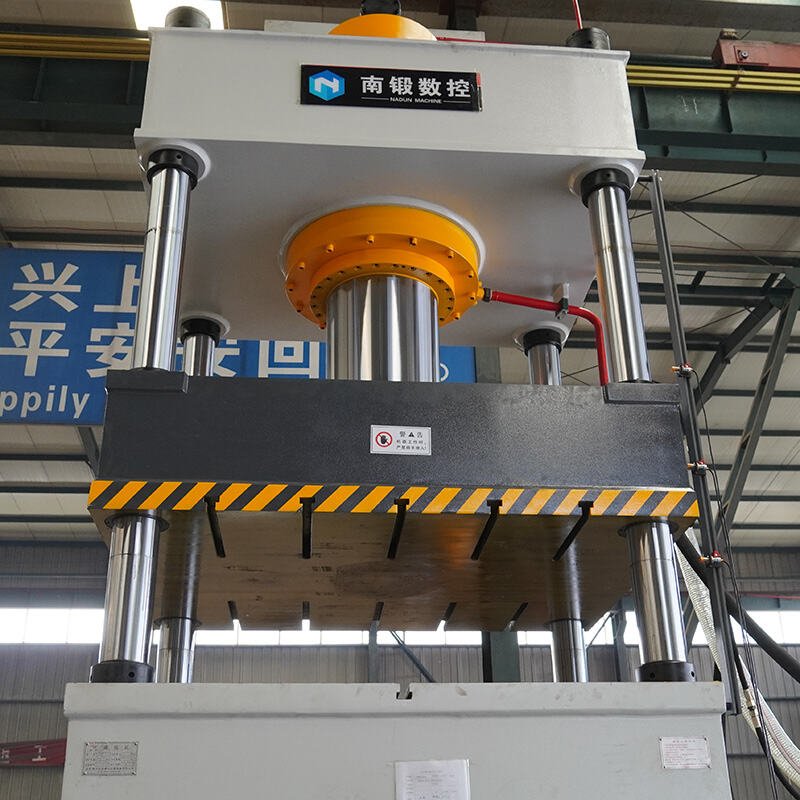

Main Piston Rod

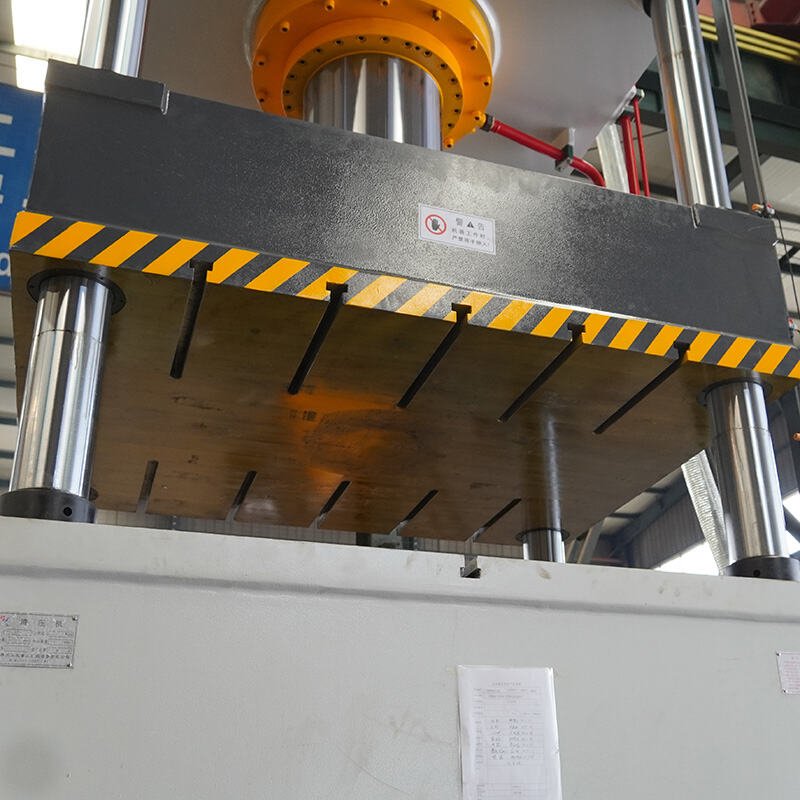

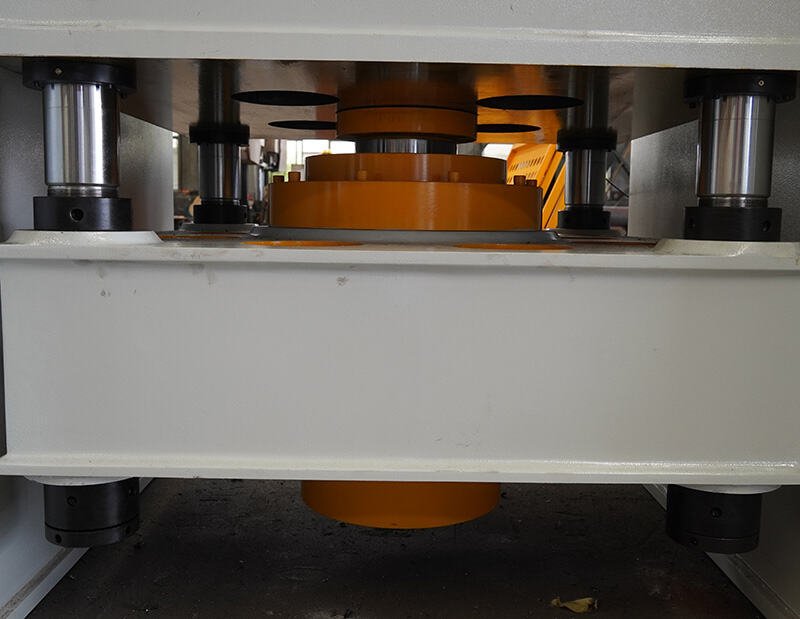

Slider and T-Slots and Multi-pole ejection

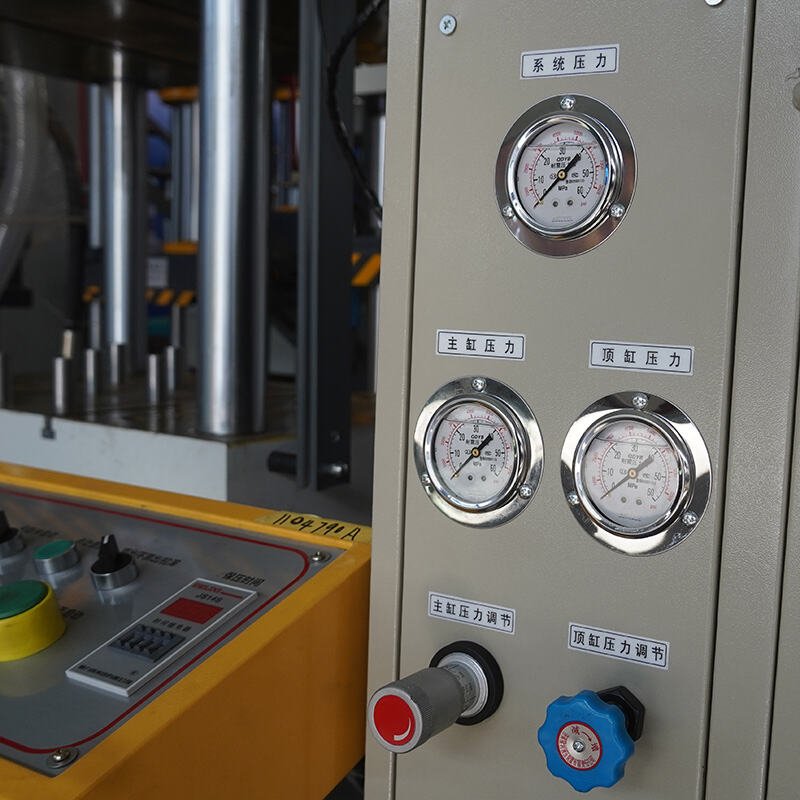

The electrical cabinet integrates hydraulic pressure gauges, adjustment knobs and temperature switch.

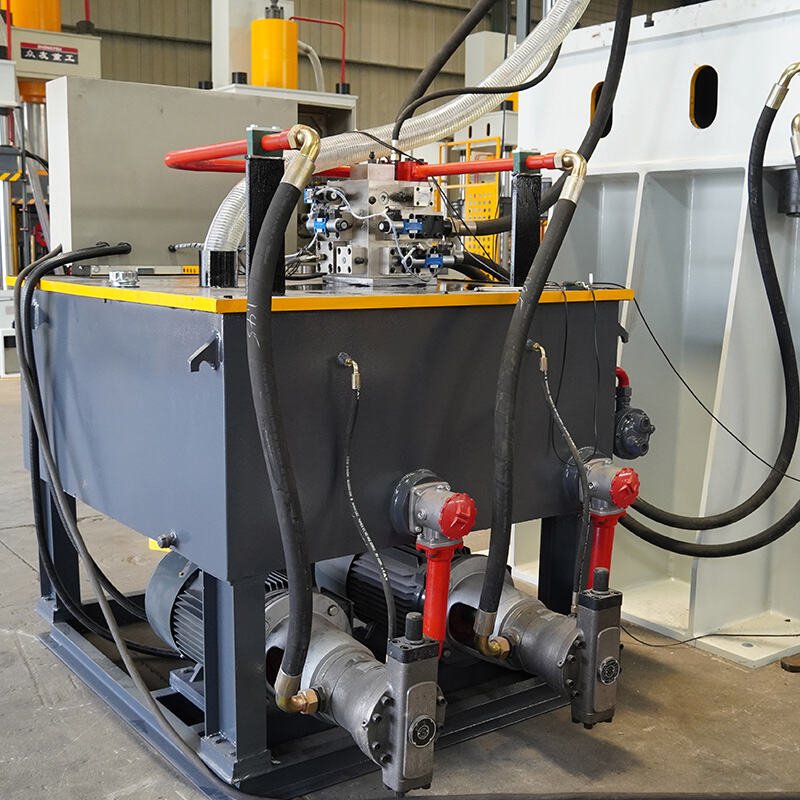

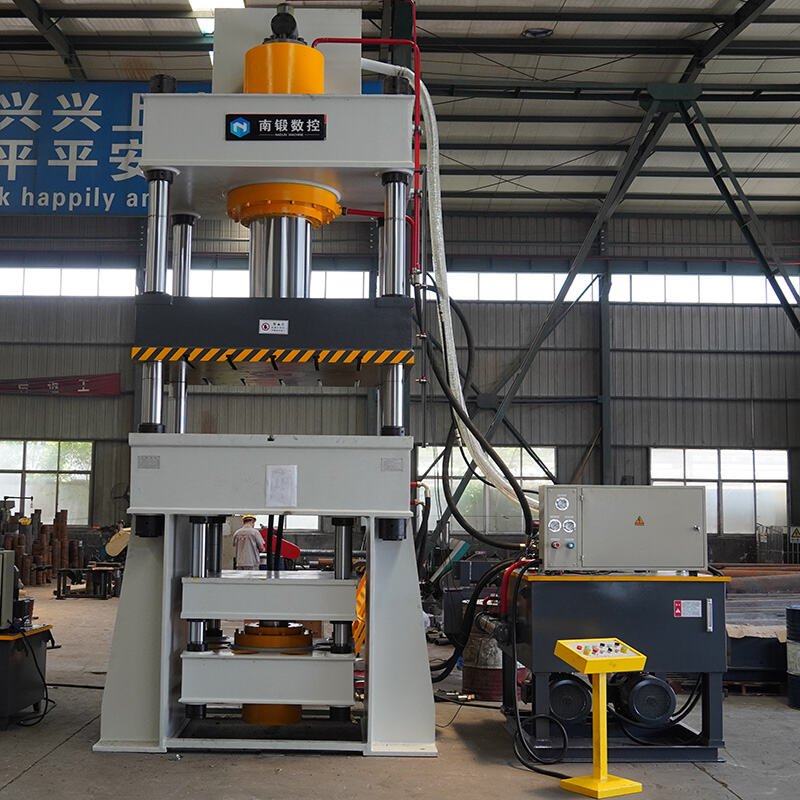

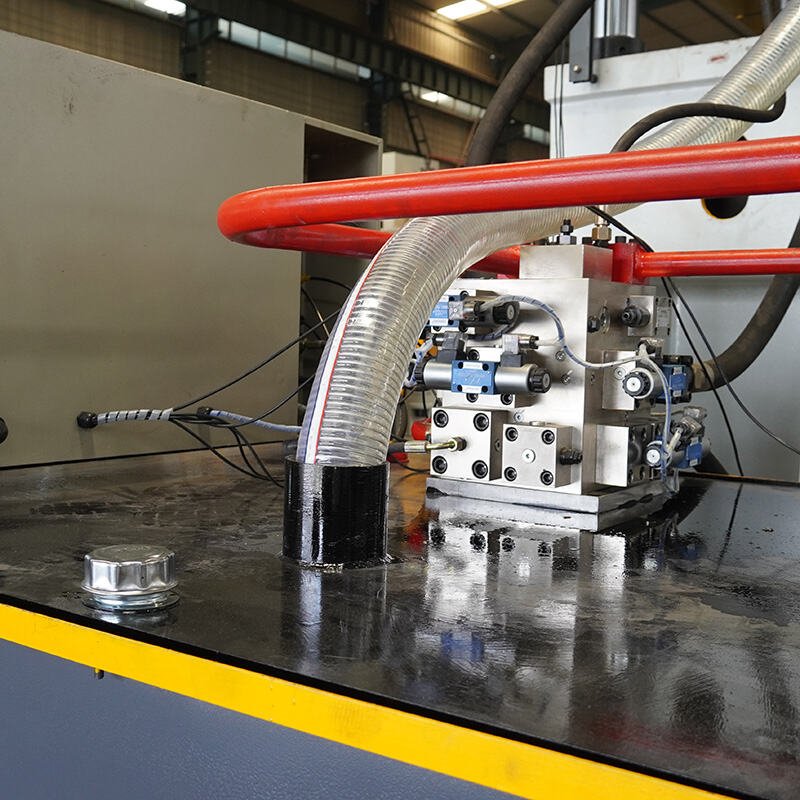

Independent Pump Station, Electrical Cabinet, and Mobile Control Console
Nadun 500 Ton press machine for deep drawing factory

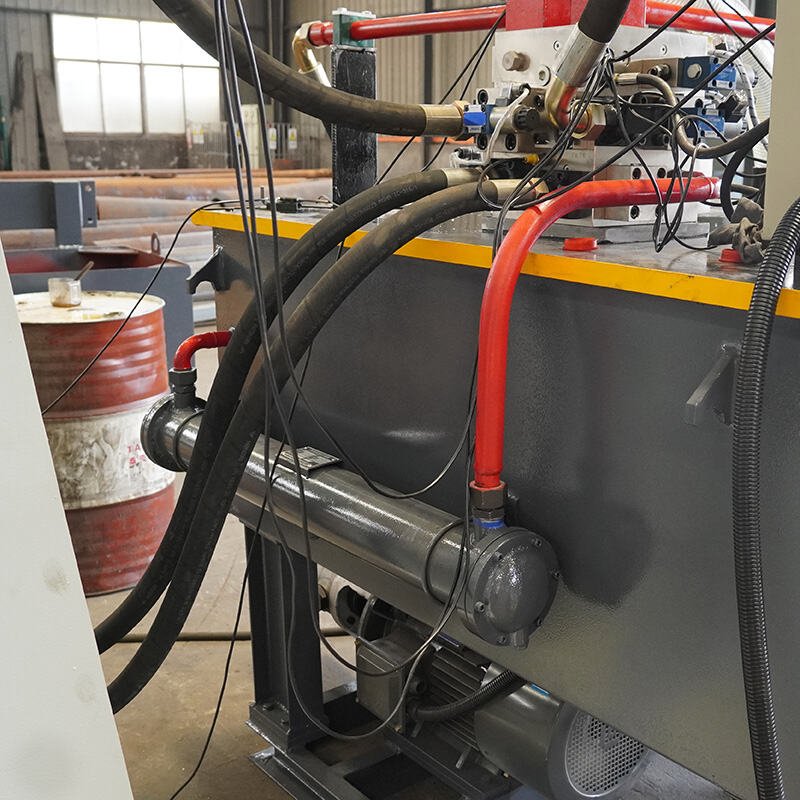

Cooling Device

Specification

item	value
Slide Stroke (mm)	900
Machine Type	Four-column Three-beam Hydraulic Press
Ejector Force (kN)	2000
Return Force (kN)	1000kN
System	Normal
Condition	New
Place of Origin	China
Brand Name	Nadun
Year	2024
Voltage	380V/Optional
Weight (T)	20T
Model Number	YD27-500T
Motor Power (kw)	2*22kw
Key Selling Points	Competitive Price
Warranty	1 Year
Applicable Industries	Building Material Shops, Garment Shops, Machinery Repair Shops, Manufacturing Plant, Energy & Mining, Construction works
Showroom Location	None
Marketing Type	Ordinary Product
Machinery Test Report	Provided
Video outgoing-inspection	Provided
Warranty of core components	1 Year
Core Components	Bearing, Motor, Pump, Pressure vessel
Hydraulic Pressure	25 Mpa
Opening Height	1500 mm
Effective Table Area	1400*1400 mm
Down Speed	140 mm/s
Pressing Speed	14 mm/s
Return Speed	170 mm/s
Hydraulic Cushion Ejection Force	2000 KN
Ejection Stroke	350 mm
Hydraulic Cushion Area	1050*900 mm

Product Paramenters

SPECIFICATION	UNIT	100T	200TA	200TB	315T	500T
Max. System pressure	Mpa	25	25	25	25	25
Max. Stroke of sliderOpening	mm	600	600	700	800	900
Max. Open height	mm	900	900	1200	1250	1500
Effective table size	mm	750x 700	800×800	1000×1000	1260×1160	1400×1400
Down speed	mm/s	90	100	100	120	120
Pressing speed	mm/s	17	14	14	11	18
Return speed	mm/s	110	110	110	100	170
Motor power	KW	7.5	7.5	7.5	22	22*2
Hydraulic cushion force	T	50	60	60	100	160
Cushion stroke	mm	300	300	300	300	300

The aforementioned table details the standard specifications for our YD27 series of deep drawing hydraulic presses, with the 500-ton model being the emphasized variant. Additionally, we are capable of tailoring machinery to meet diverse types and applications as per your specific needs.
