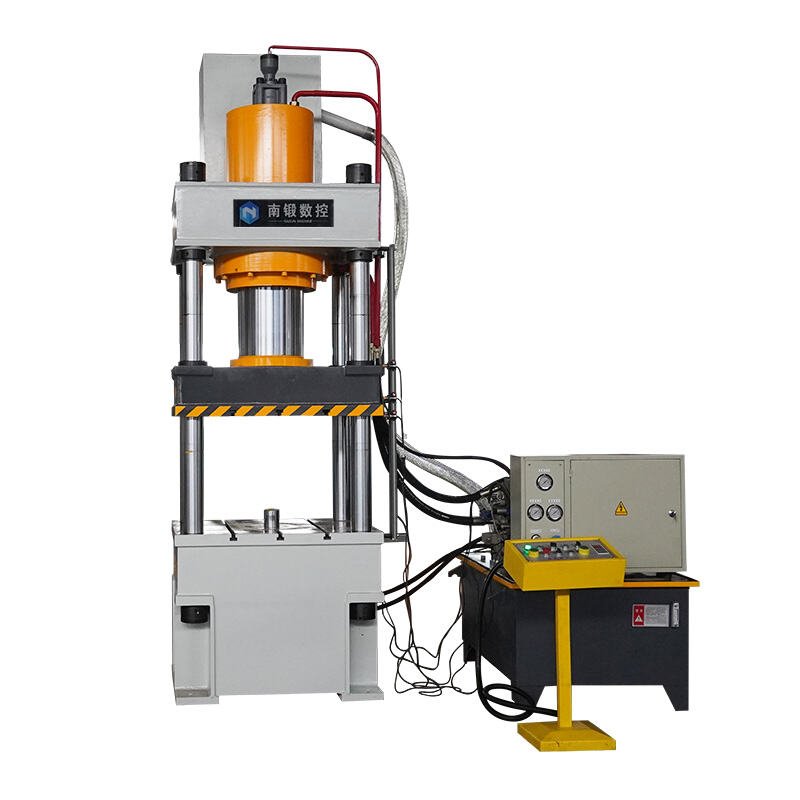

Manufacturer Direct Sale of 315 Tons Three-Beam Four-Column Hydraulic Press

Place of Origin:	Tengzhou China
Brand Name:	Nadun
Model Number:	没有找到自定义文本
Certification:	CE ISO
Minimum Order Quantity:	1
Packaging Details:	The sample includes a hydraulic press and mold. Please contact us for more details.
Delivery Time:	15-45 day
Payment Terms:	L/C D/P D/A T/T
Supply Ability:	50set/m

Product Overview

Nadun Industrial Hydraulic Pressing: Leading in 315-Ton Hydraulic Press for Sheet Metal and Heavy-Duty Applications

Nadun Industrial Hydraulic Pressing: Leading with the 315-Ton Hydraulic Press for Sheet Metal and Heavy-Duty Applications. With its commanding capacity, this industrial hydraulic pressing solution stands at the forefront, excelling in both sheet metal operations and heavy-duty tasks. Elevate your manufacturing processes with the reliability and innovation of Nadun Industrial Hydraulic Pressing – a symbol of excellence in hydraulic pressing technology, catering to diverse and demanding applications.

Detail Photos

The following pictures are actual shots of the 315 hydraulic press machine.

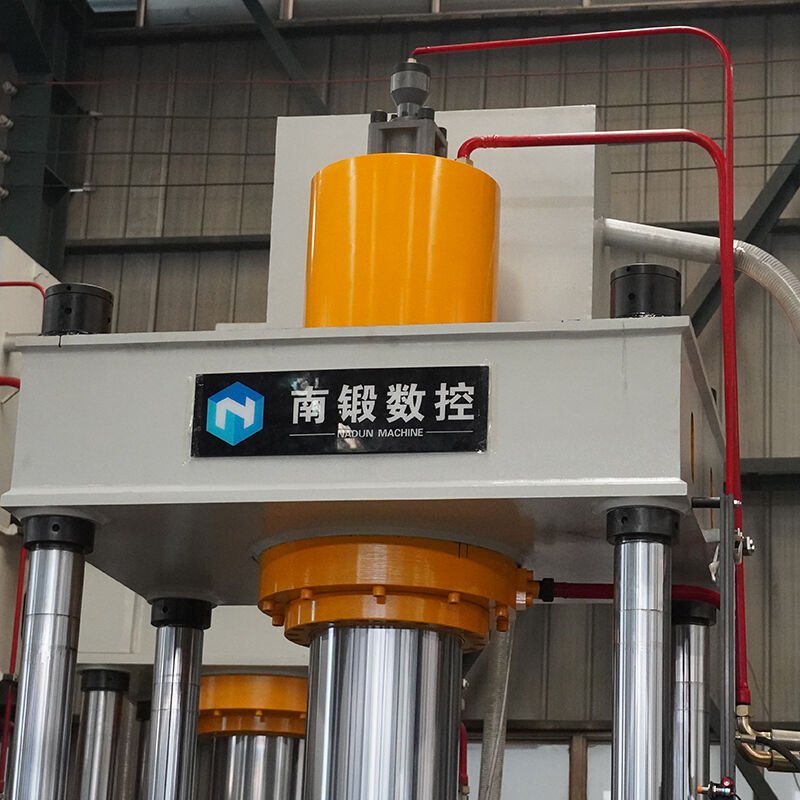

Main Piston Rod

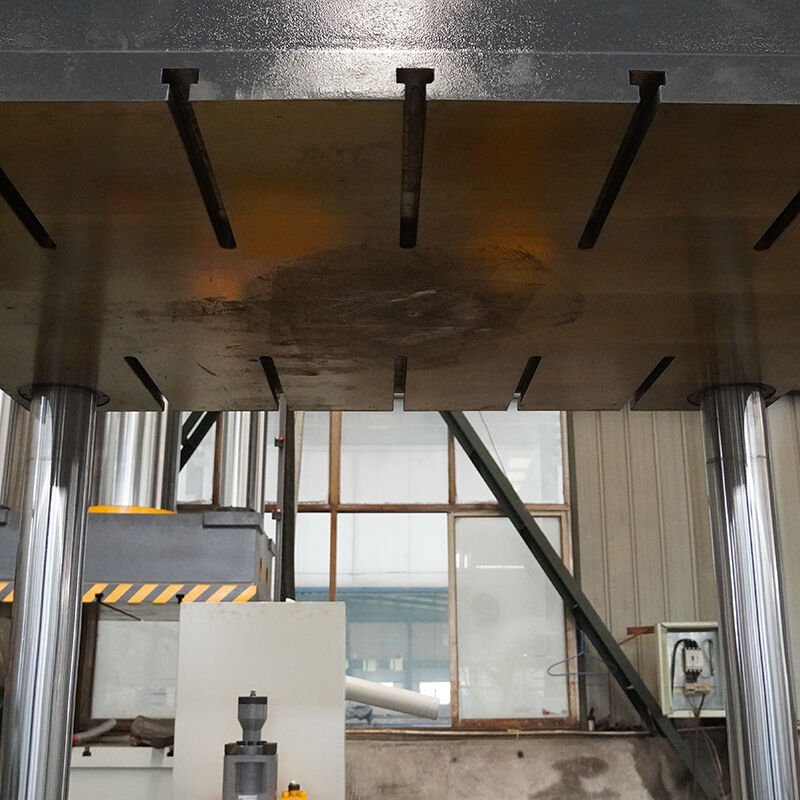

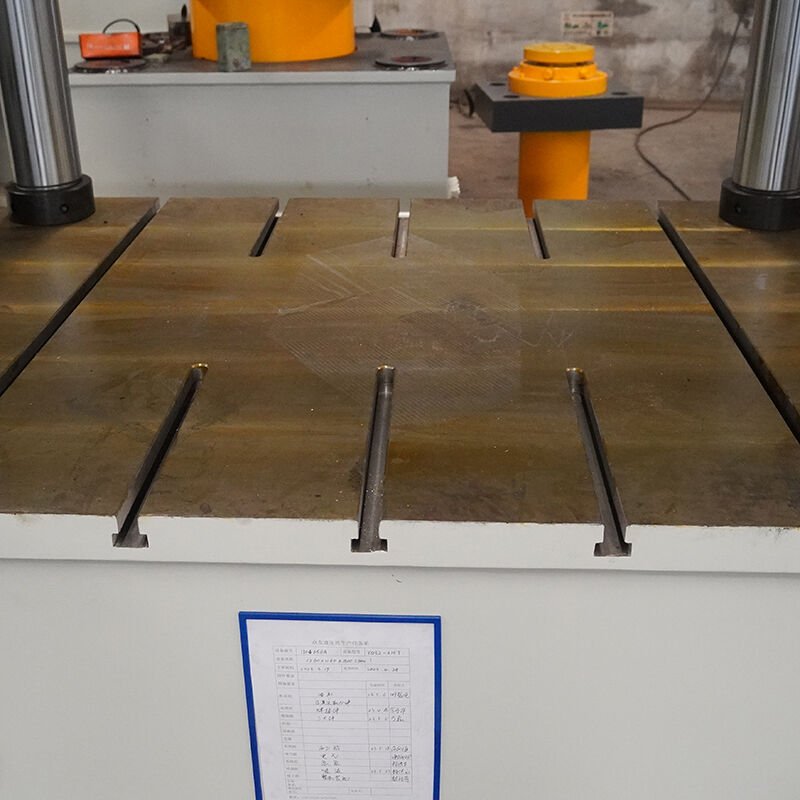

Slider and T-Slots

T-Slots

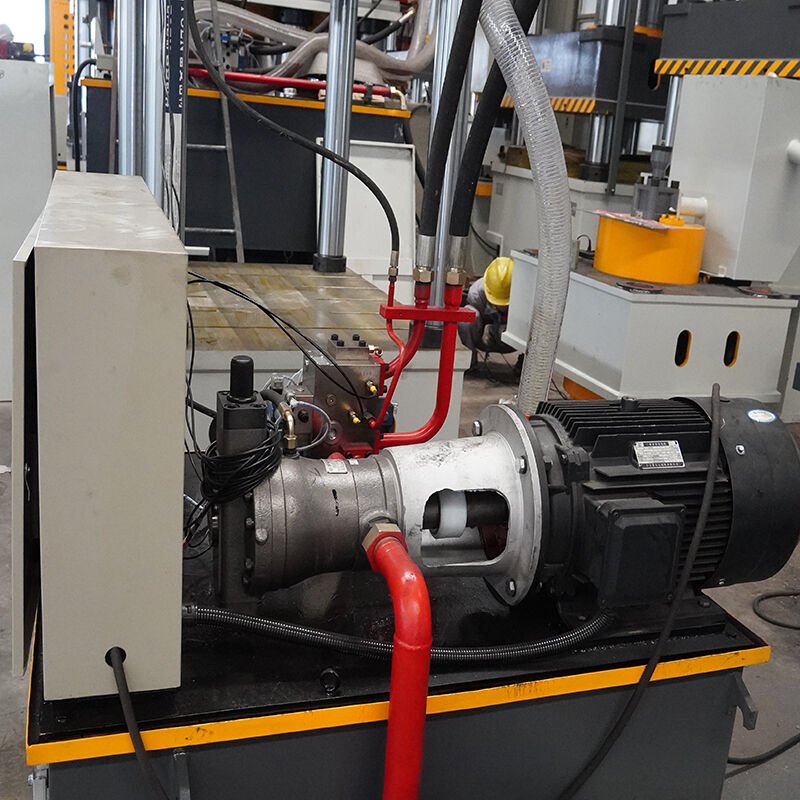

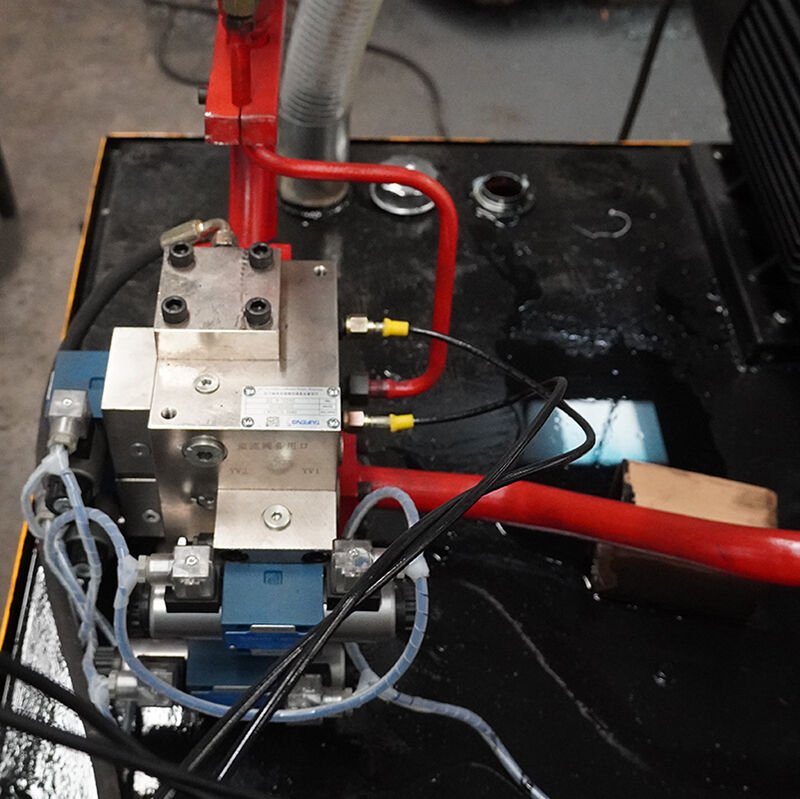

Independent Pump Station, Electrical Cabinet, and Mobile Control Console

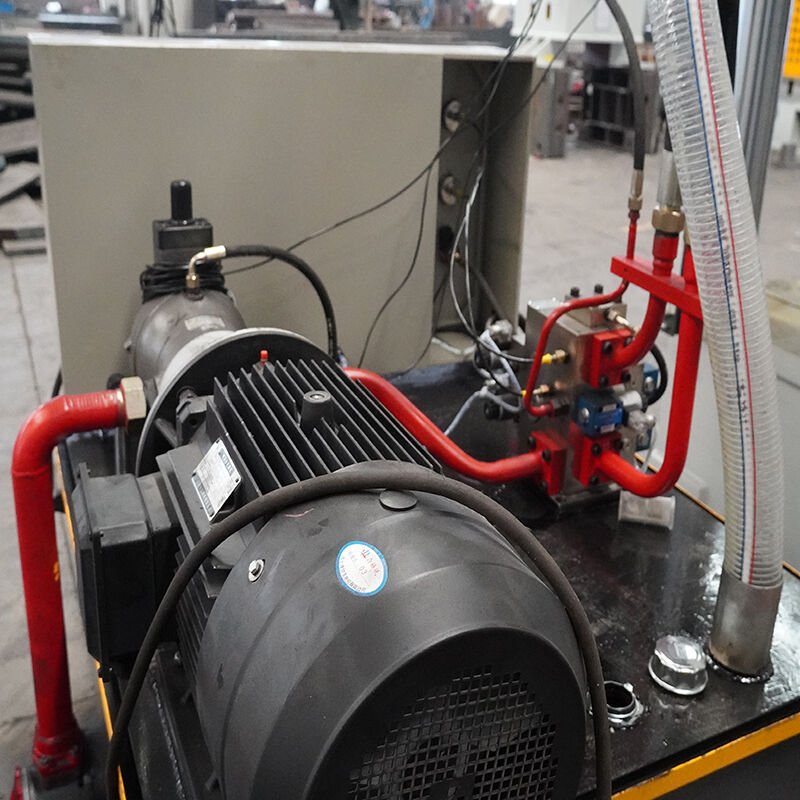

Motor

Standard configuration

SPECIFICATION	UNIT	YQ32-63T	YQ32-100TA	YQ32-100TB	YQ32-200TA	YQ32-200TB	YQ32-315TA	YQ32-315TB
Nominal force	KN	630	1000	1000	2000	2000	3150	3150
Max.System pressure	Mpa	25	25	25	25	25	25	25
Max.Open height	mm	700	800	900	1200	900	1250	1000
Max.Stroke of slider	mm	400	500	600	700	600	800	600
Effective table size	mm	610×500	630×550	750×700	1000×1000	800×800	1260×1160	800×800
Down speed	mm/s	180	120	120	100	100	100	100
Pressing speed	mm/s	11-22	7-15	7-15	7-18	7-18	7-11.5	7-11.5
Return speed	mm/s	100	120	120	70	70	60	60
Ejection cylinder force	KN	100	200	200	400	400	630	630
Stroke of ejectioncylinder	mm	160	200	200	220	220	300	300

SPECIFICATION	UNIT	YQ32-400T	YQ32-500T	YQ32-630T	YQ32-800T	YQ32-1000T	YQ32-1250T	YQ32-1600T
Nominal force	KN	4000	5000	6300	8000	10000	12500	16000
Max.System pressure	Mpa	25	25	25	25	25	25	25
Max.Open heigh	mm	1250	1500	1500	1800	1600	1600	1800
Max.Stroke of slider	mm	800	900	900	1000	900	900	1000
Effective table size	mm	1260×1160	1400×1400	1600×1600	1500×1500	1500×1500	1800×1600	1600×1600
Down speed	mm/s	100	100	80	80	80	80	80
Pressings pee	mm/s	5-9	8-15	6-12	8-17	6-13	7-15	8-17
Return speed	mm/s	55	70	60	70	70	70	70
Ejection cylinder force	KN	630	1000	1000	1000	1000	1000	1600
Stroke of ejectioncylinder	mm	300	300	300	350	350	350	350

PS:All machines mentioned in the above table can be customized.

Features

Industrial Expertise: Demonstrates industry leadership in hydraulic pressing, excelling with a powerful 315-ton capacity.
High Force Capability: Equipped with substantial force, it excels in sheet metal and heavy-duty applications.
Precise Sheet Metal Forming: Engineered for accurate results in shaping various sheet metals.
Versatile Heavy-Duty Operations: Proficiently handles demanding applications across industries.
Tailored Solutions: Customizes processes to specific production needs, enhancing adaptability.
Efficient Production: Designed for smooth operations, contributing to increased efficiency.
Sturdy Construction: Crafted with durable materials for reliable and consistent performance.
User-Friendly Experience: Intuitive controls simplify setup, operation, and monitoring.
Reduced Maintenance: High-quality components result in minimal upkeep, reducing downtime.
Operator Safety: Incorporates safety features to ensure well-being and compliance.
Technical Support: Supported by expert technicians for seamless setup and operation.
Quality Outcomes: Ensures high-quality results meeting industry standards.
Cost-Effective Efficiency: Optimizes processes for economic viability and productivity.
Trusted Solution: Nadun Industrial Hydraulic Pressing leads with precision and reliability in hydraulic pressing, making it a trusted choice for diverse sheet metal and heavy-duty applications.

Packaging & Shipping

Manufacturer Direct Sale of 315 Tons Three-Beam Four-Column Hydraulic Press details

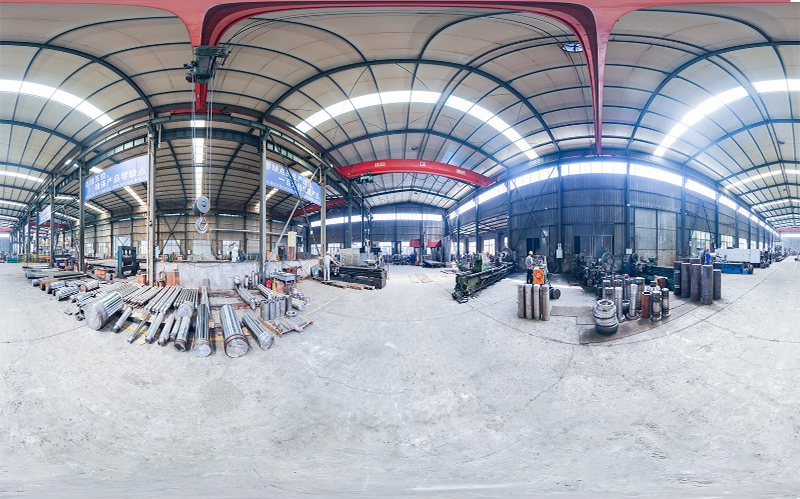

Company Profile

We are a formidable company.

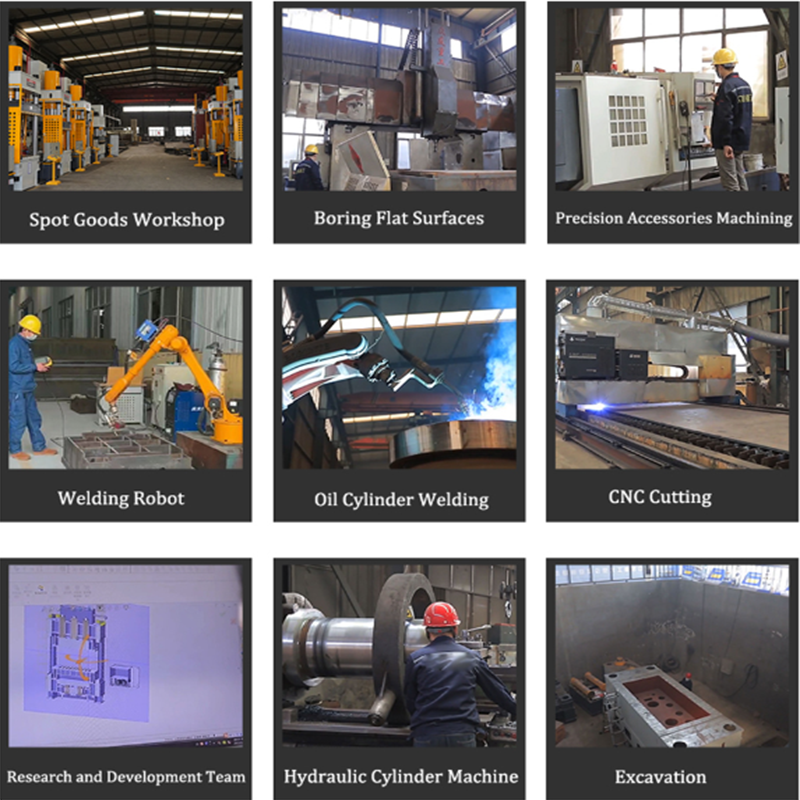

Manufacturer Direct Sale of 315 Tons Three-Beam Four-Column Hydraulic Press manufacture

Manufacturer Direct Sale of 315 Tons Three-Beam Four-Column Hydraulic Press factory Customer Visit

Manufacturer Direct Sale of 315 Tons Three-Beam Four-Column Hydraulic Press supplier

Manufacturer Direct Sale of 315 Tons Three-Beam Four-Column Hydraulic Press factory

Manufacturer Direct Sale of 315 Tons Three-Beam Four-Column Hydraulic Press factory With an experience spanning nearly two decades, we specialize in the production of hydraulic press machines and guillotine machines, equipping us with the expertise and confidence to navigate upcoming endeavors. Our triumph is rooted in our unwavering dedication to stringent quality standards, and our proficient team, enriched with extensive knowledge. By consistently enhancing our internal procedures, we have consistently delivered machines of unparalleled quality, establishing Nadun as a frontrunner in the sector. The superiority of our machinery underscores our steadfast commitment to excellence, ensuring complete customer satisfaction.
