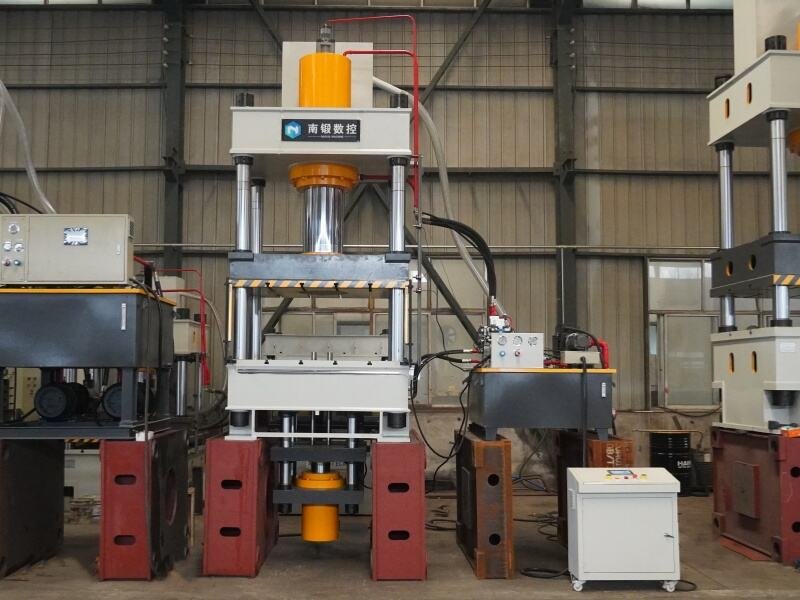

Home / Deep drawing press machine / 315ton deep drawing hydraulic press machine
|
Place of Origin: |
Tengzhou China |
|
Brand Name: |
Nadun |
|
Model Number: |
YD27-315T |
|
Certification: |
CE ISO |
|
Minimum Order Quantity: |
1 |
|

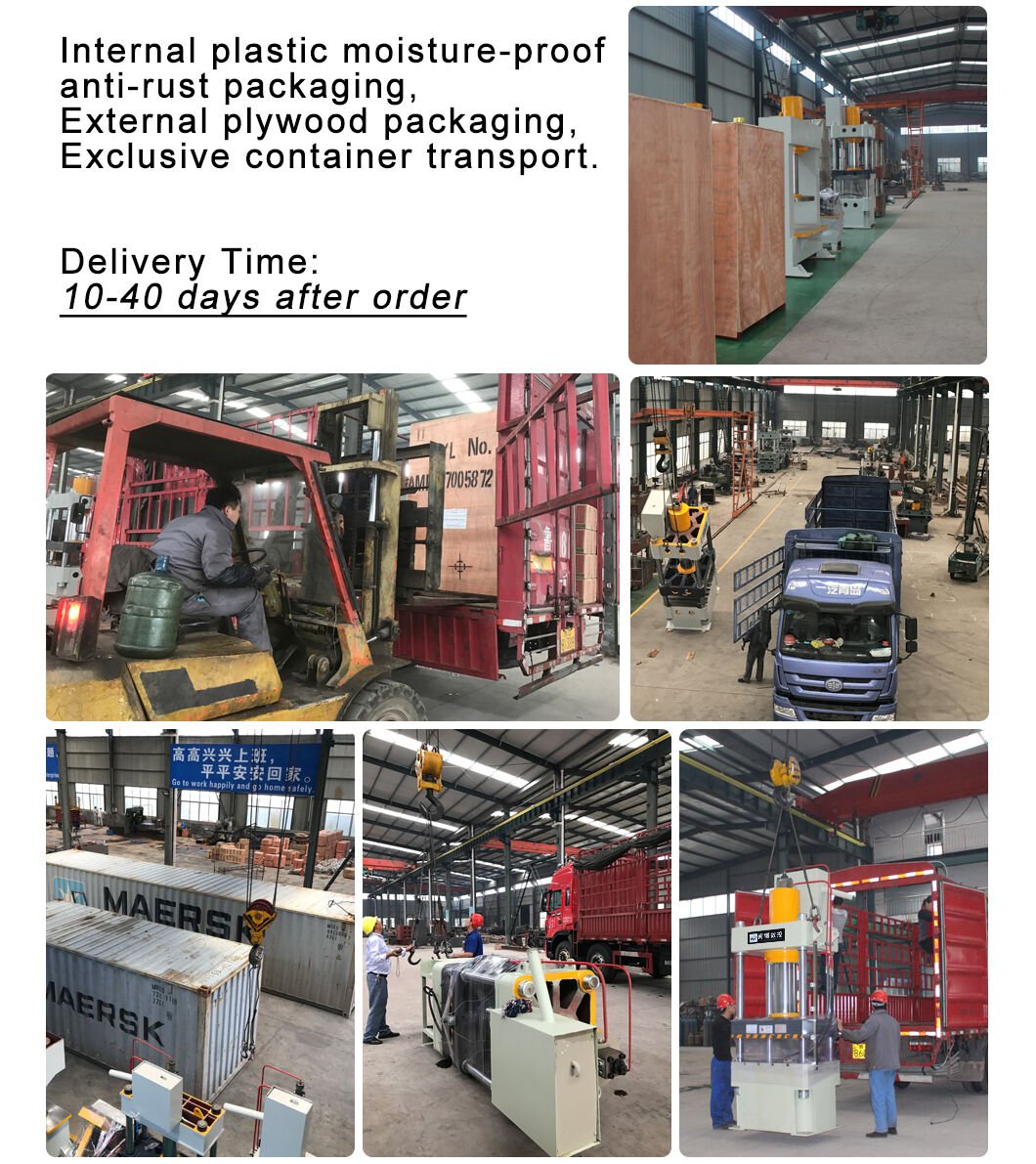

Packaging Details: |
The sample includes a hydraulic press and mold. Please contact us for more details. |
|
Delivery Time: |
15-45 day |
|
Payment Terms: |
L/C D/P D/A T/T |
|
Supply Ability: |
50set/m |

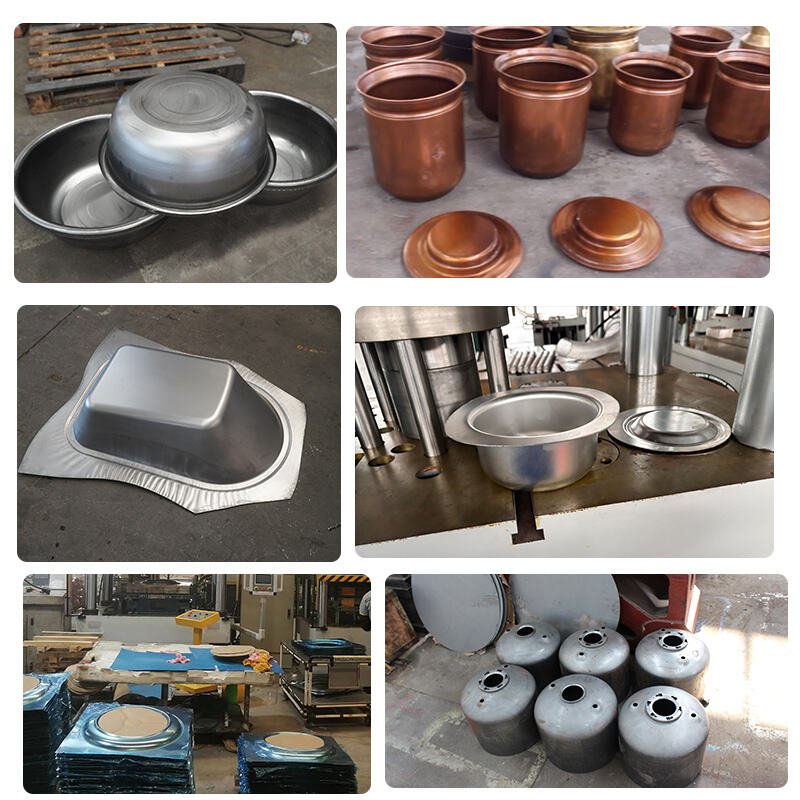

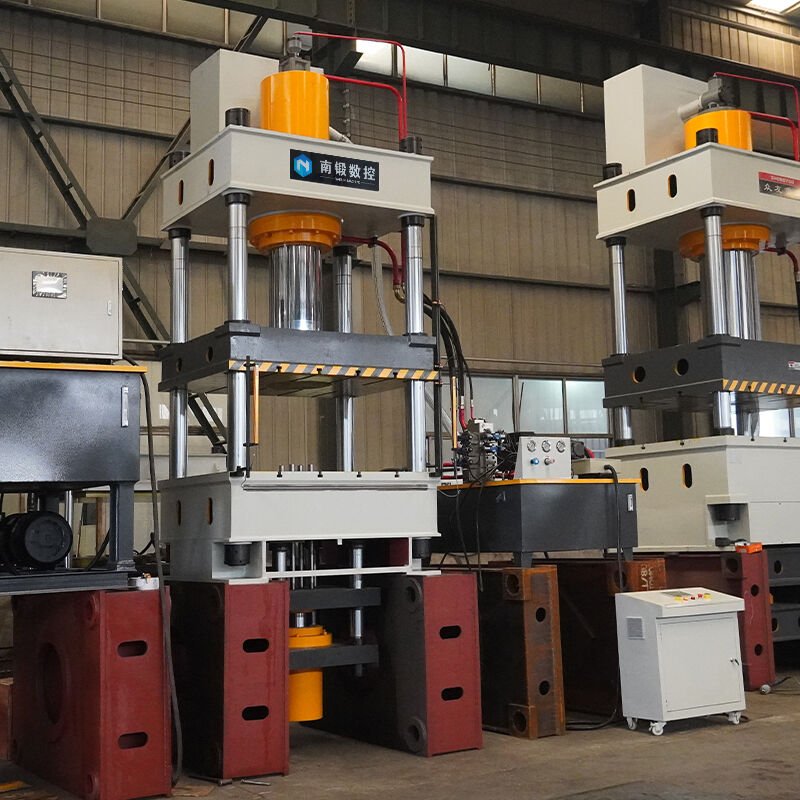

Nadun deep drawing hydraulic press is specially used for deep drawing and forming of metal sheets, such as deep drawing of stainless steel sheet, deep drawing of copper sheet, deep drawing of aluminum sheet and so on. The lower part of the machine has a multi-rod ejector device, which works together with the upper ram to complete the process of deep drawing and forming of metal sheets.
| YD27 Series Three-Beam Four-Column Hydraulic Press | |||||||
| Item | 100T | 200T | 315T | 400T | 500T | 630T | 800T |
| Hydraulic Pressure (Mpa) | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Effective Stroke of Slider (mm) | 500 | 700 | 800 | 900 | 1200 | 1200 | 1200 |
| Opening Height (mm) | 800 | 1100 | 1250 | 1500 | 1800 | 1800 | 1000 |
| Effective Area of Workbench | 630*550 | 750*700 | 660*600 | 1000*1000 | 800*800 | 1260*1160 | 800*800 |
| Free Fall Speed (mm/s) | 100 | 100 | 100 | 100 | 100 | 120 | 120 |
| Pressing Speed (mm/s) | 5-10 | 5-15 | 5-10 | 5-10 | 5-10 | 8-15 | 8-15 |
| Return Speed (mm/s) | 300 | 300 | 300 | 300 | 300 | 300 | 300 |
| Motor Power (KW) | 5.5 | 5.5 | 7.5 | 7.5 | 7.5 | 22 | 15 |
| Ejecting Force (t) | 200 | 200 | 400 | 400 | 400 | 630 | 630 |
| Ejecting Stroke (mm) | 200 | 300 | 200 | 220 | 220 | 300 | 300 |
| YD27 Series Three-Beam Four-Column Hydraulic Press | |||||||
| Item | 1000T | 1250T | 1600T | 2000T | 2500T | 3000T | 4000T |
| Hydraulic Pressure (Mpa) | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Effective Stroke of Slider (mm) | 1200 | 1400 | 1400 | 1400 | 1400 | 1600 | 1600 |
| Maximum Opening Height (mm) | 1800 | 2000 | 2400 | 2600 | 2600 | 2800 | 3000 |
| Effective Area of Workbench | 1200*1200 | 1600*1200 | 1600*1400 | 1800*1600 | 1800*1800 | 2500*2200 | 2500*2400 |
| Free Fall Speed (mm/s) | 120 | 120 | 120 | 120 | 120 | 120 | 120 |
| Pressing Speed (mm/s) | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 |
| Return Speed (mm/s) | 300 | 300 | 300 | 300 | 300 | 300 | 300 |
| Motor Power (KW) | 22 | 22 | 30 | 30 | 37 | 45 | 55 |
| Ejecting Force (t) | 630 | 630 | 630 | 630 | 800 | 800 | 800 |
| Ejecting Stroke (mm) | 300 | 300 | 300 | 300 | 300 | 300 | 300 |

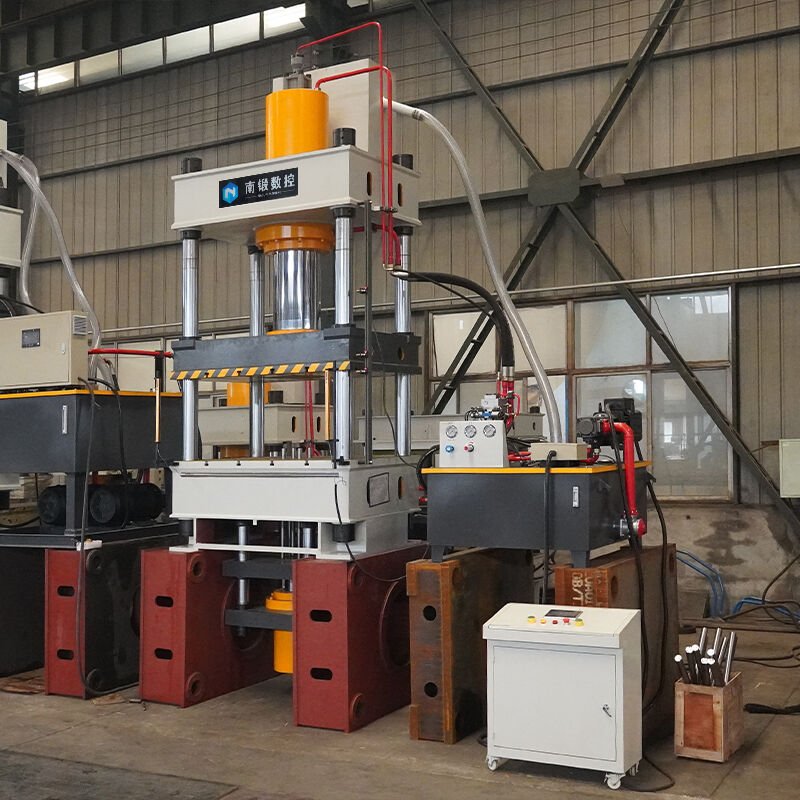

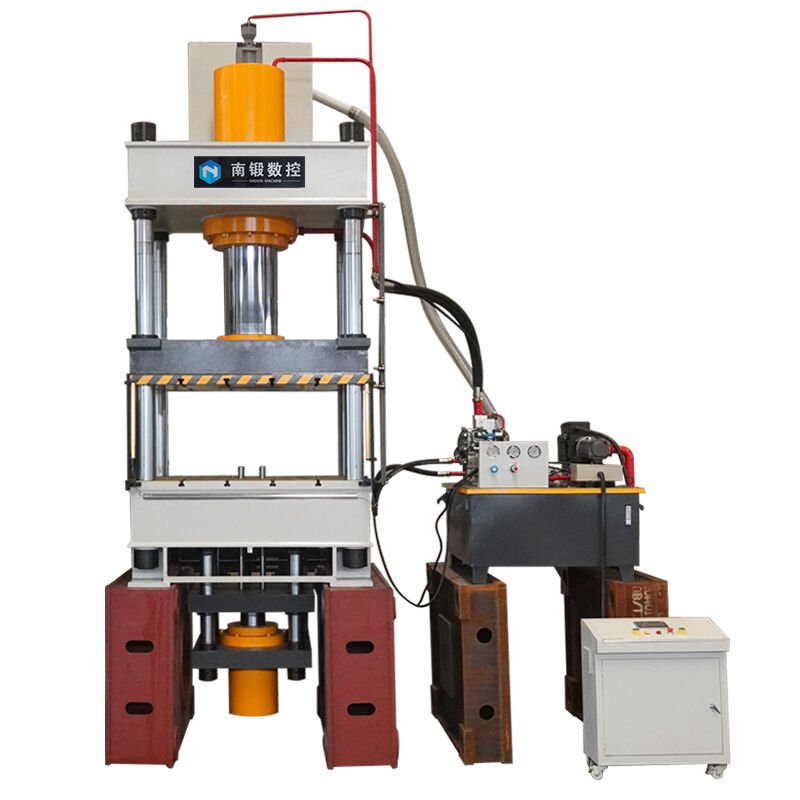

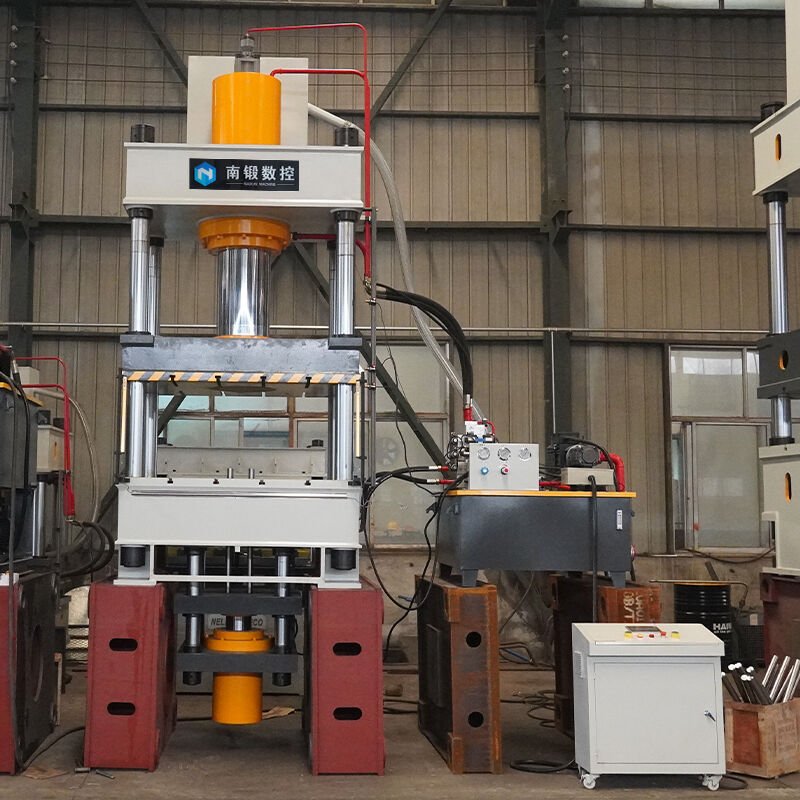

1. Three beams and four columns design, stable structure and large operation space.

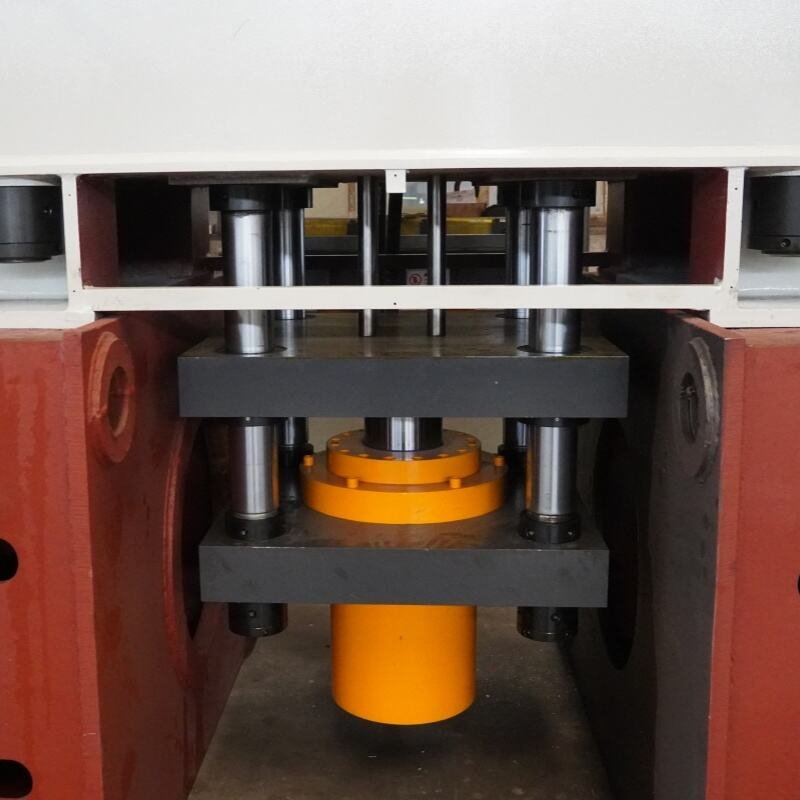

2. With multi-rod ejector device, it can easily complete the deep drawing and molding of all kinds of thin metal plates.
3. With servo system, the pressing precision is higher, more energy-saving and less noise. Different pressing programs can be set to adapt to the production process of different products.
4. It is easy to be operated by buttons and touch screen.
