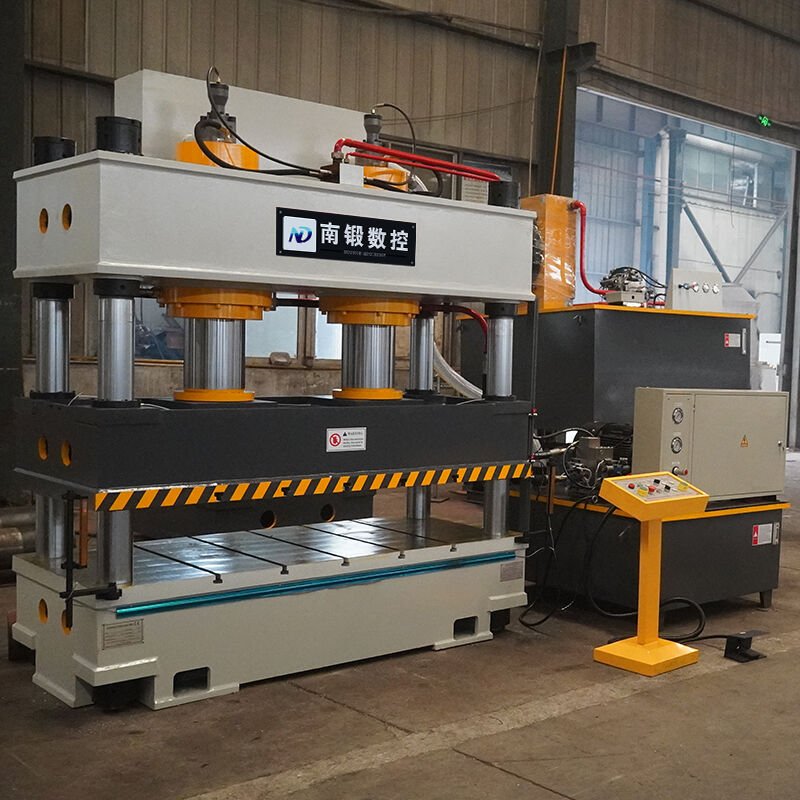

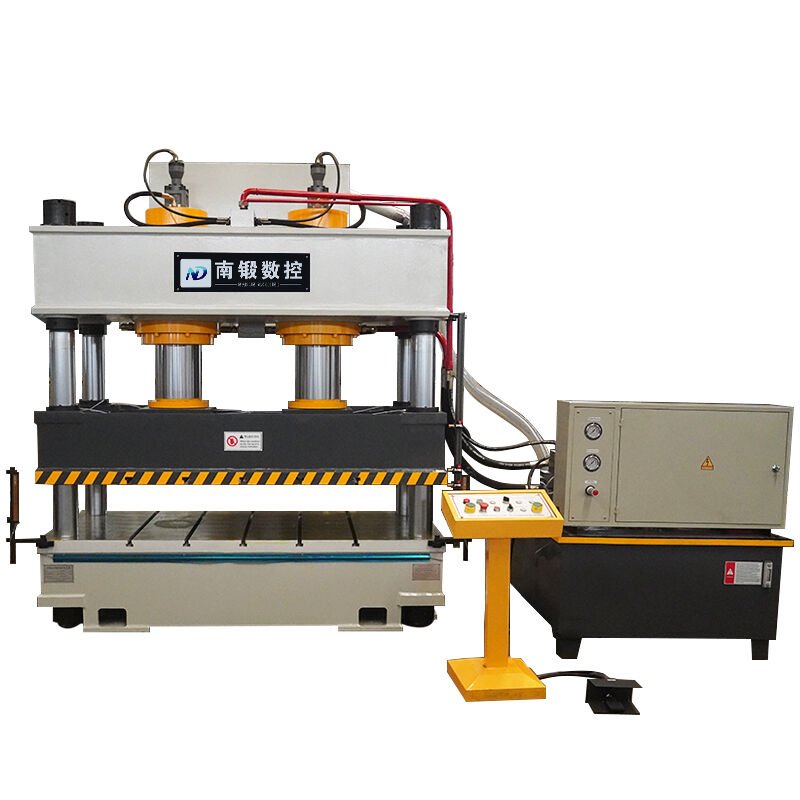

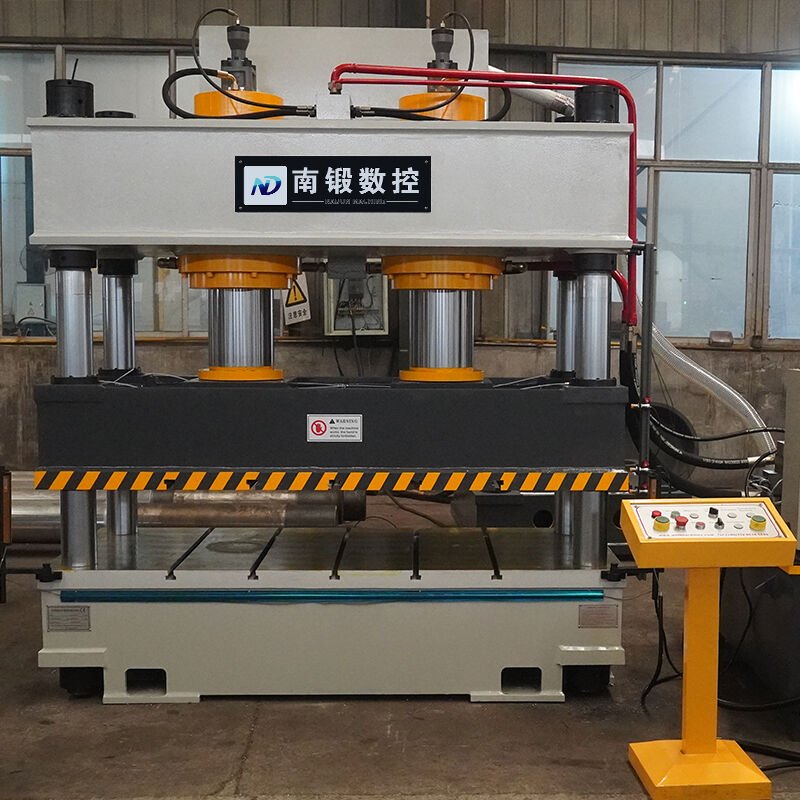

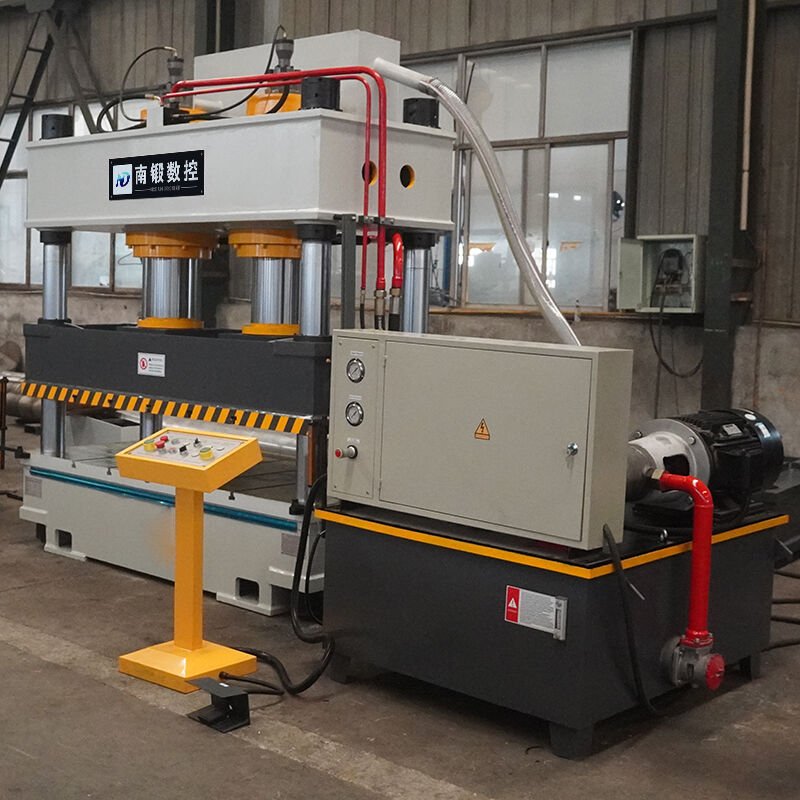

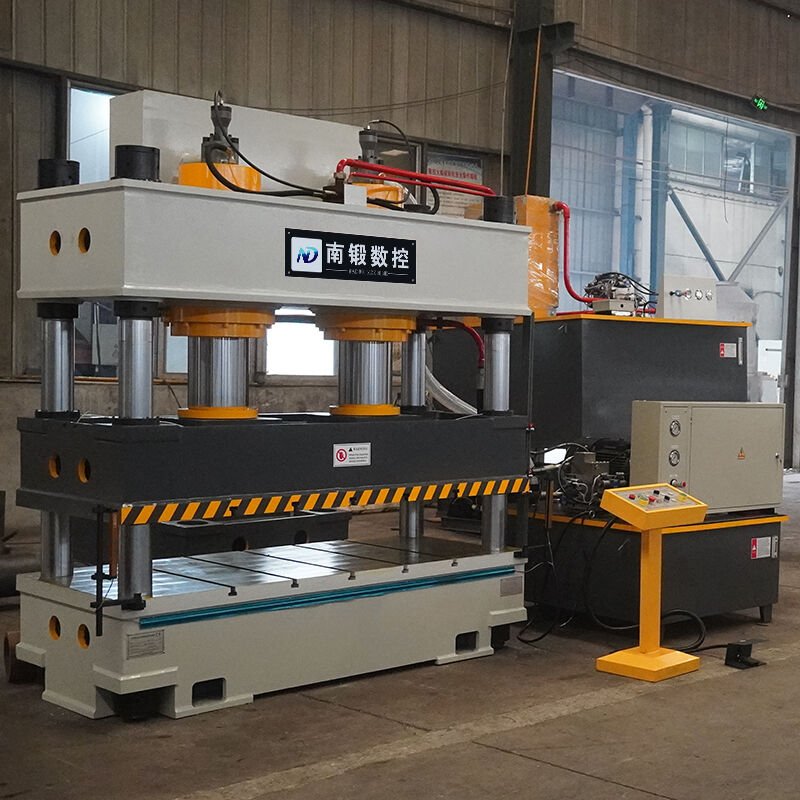

315 tons double-cylinder Metal Roof Tile hydraulic pressure machine

Place of Origin:	Tengzhou China
Brand Name:	Nadun
Model Number:	YQ32-315T
Certification:	CE ISO
Minimum Order Quantity:	1
Packaging Details:	The sample includes a hydraulic press and mold. Please contact us for more details.
Delivery Time:	15-45 day
Payment Terms:	L/C D/P D/A T/T
Supply Ability:	50set/m

Product Overview

315 tons double-cylinder metal color stone tile hydraulic pressure machine (1).jpg

315 ton metal color stone tile press is a kind of heavy-duty forming equipment specially used for producing metal color stone tiles, its nominal pressure (maximum working pressure) is 315 tons, which is mainly used to press metal sheets (such as galvanized steel, aluminum-magnesium-manganese plate, etc.) into color stone tile products with specific shapes (such as wavy, curved, etc.).We can provide a full set of automated production line equipment, including uncoiler, shearing machine, press machine, sand blasting, glue spraying, drying equipment, palletizing machine and so on.We can improve production efficiency and reduce production cost.

Parameters

Parameter	Unit	YQ32-63	YQ32-100A	YQ32-100B	YQ32-200A	YQ32-200B	YQ32-315A	YQ32-315B
Nominal Force	kN	630	1000	1000	2000	2000	3150	3150
Maximum System Working Pressure	MPa	25	25	25	25	25	25	25
Maximum Open Height of Slider	mm	700	800	900	1100	900	1250	1000
Maximum Stroke of Slider	mm	400	500	600	500	600	800	600
Effective Area of Workbench	mm	610×500	630×550	750×700	1000×1000	800×800	1260×1160	800×800
Slider Free Fall Speed	mm/s	100	100	100	100	100	100	100
Pressing Speed	mm/s	11-22	7-15	7-15	7-18	7-18	7-12	7-12
Return Speed	mm/s	80	90	90	90	90	100	90
Ejecting Force	kN	100	200	200	400	400	630	630
Maximum Ejecting Stroke	mm	160	200	200	200	200	300	300

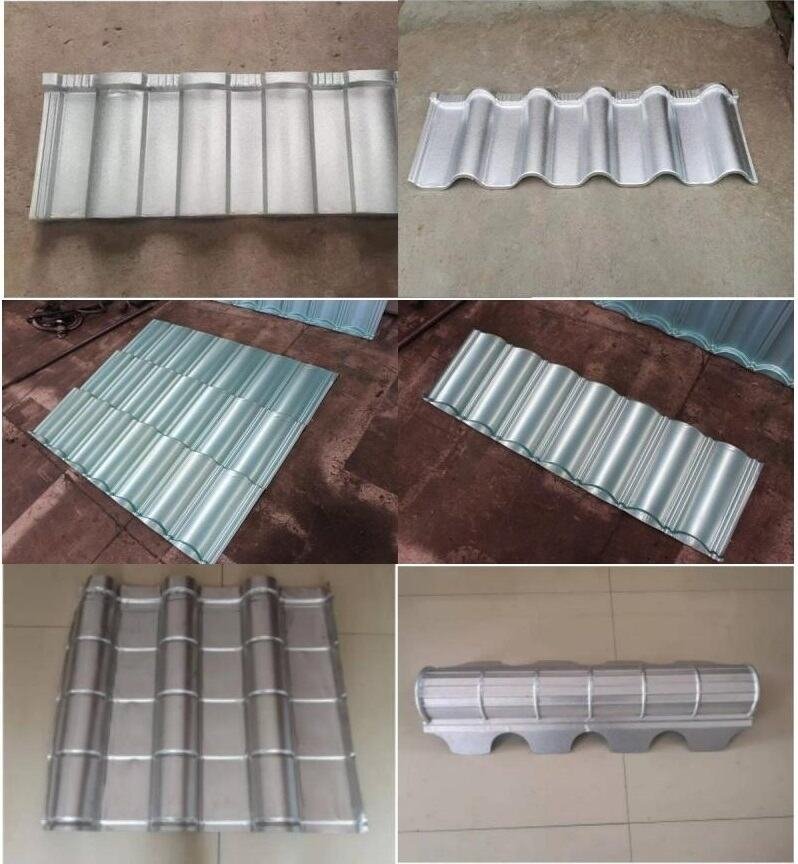

Pressed Product

315 tons double-cylinder metal color stone tile hydraulic pressure machine (7).jpg

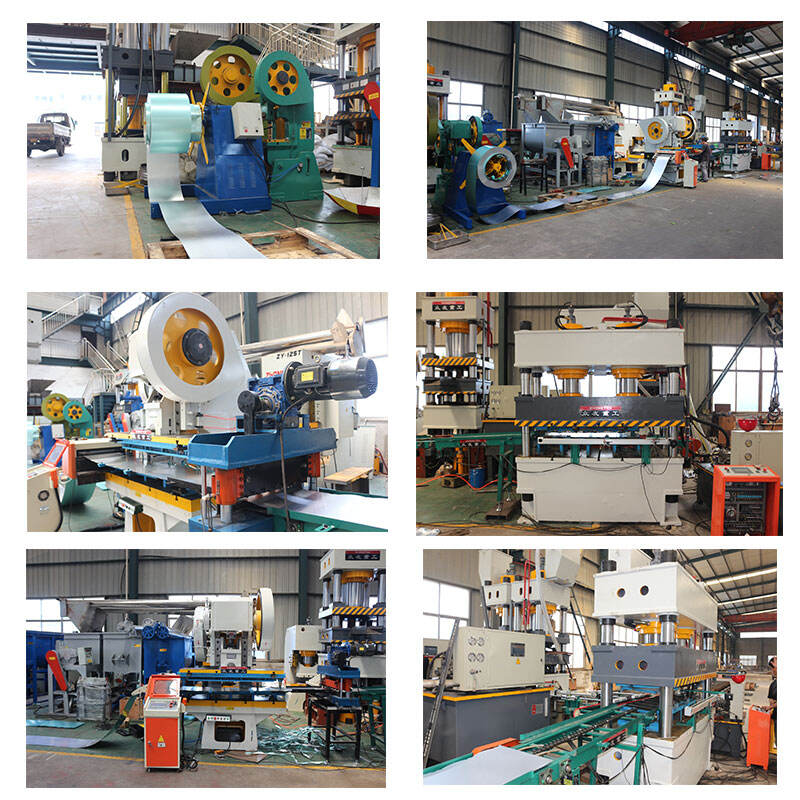

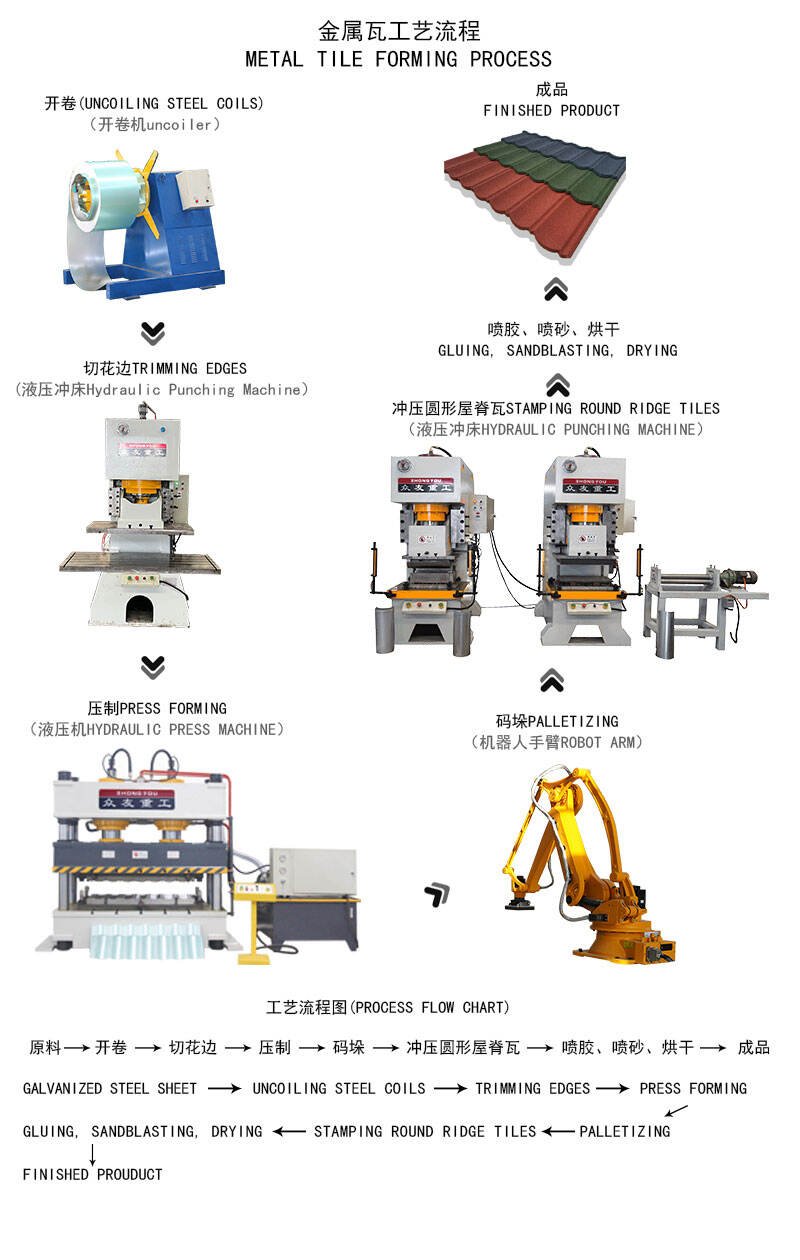

Process Flow

315 tons double-cylinder metal color stone tile hydraulic pressure machine (10).jpg

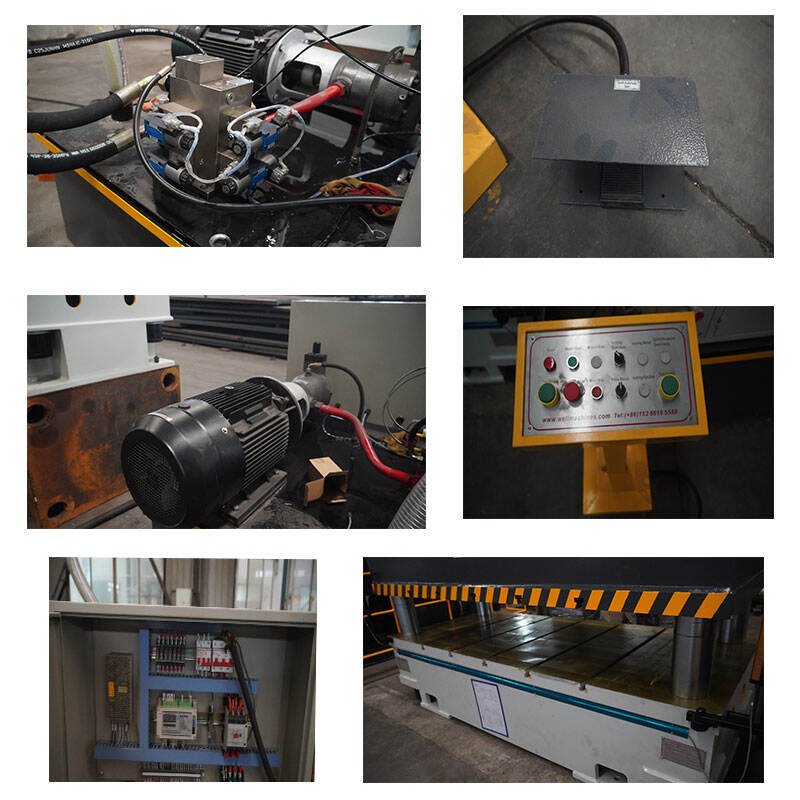

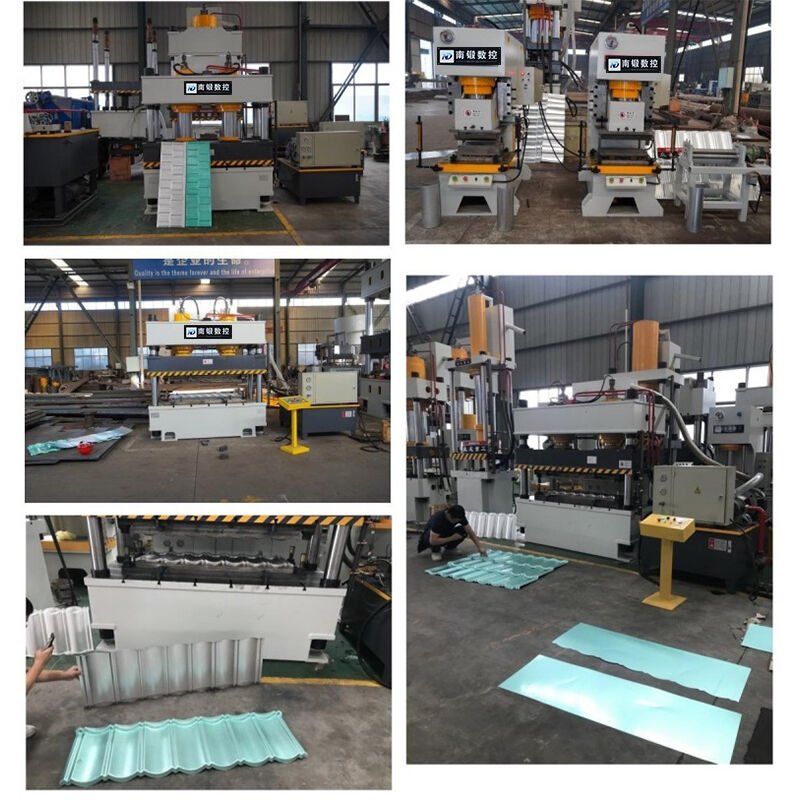

Equipment Details


Performance Characteristics

Double-cylinder design: some 315-ton metal color stone tile hydraulic presses adopt double-cylinder design structure, which has high control precision, sensitive response, high quality of formed structural parts, and is suitable for color stone tile stretching process.
High-precision control system: It is capable of realizing precise molding control, reducing material deformation, cracks and other problems, and improving the molding precision and quality of tiles.Meanwhile, the control system is also capable of realizing remote monitoring and fault diagnosis, improving the operation efficiency and stability of the equipment.
Wide adaptability: It is able to adapt to metal sheets made of different materials and different molding process requirements, whether it is aluminum alloy, galvanized sheet or stainless steel, etc. It can easily cope with them and meet the diversified production requirements of color stone metal tiles.
Efficient production efficiency: with high efficiency, it can greatly improve the production speed of color stone metal tiles and reduce the production cost.Intelligent control system can automatically adjust according to the preset parameters and real-time feedback data to ensure that each molding reaches the best effect.

Scope Of Application

Metal color stone tile is a kind of decorative and functional in one of the building roof materials, the surface is usually covered with natural color stone granules (or artificial color sand), both beautiful, weather-resistant, lightweight, etc. 315 tons of the core role of the press is to high-pressure molding process, will be the metal substrate pressed into the pre-set tile shape (such as S-shaped, trapezoidal, wavy, etc.), and embedded in the process of pressing or attached to the color stone layer, and ultimately made ofThe final color stone tiles are made in accordance with the architectural requirements.
