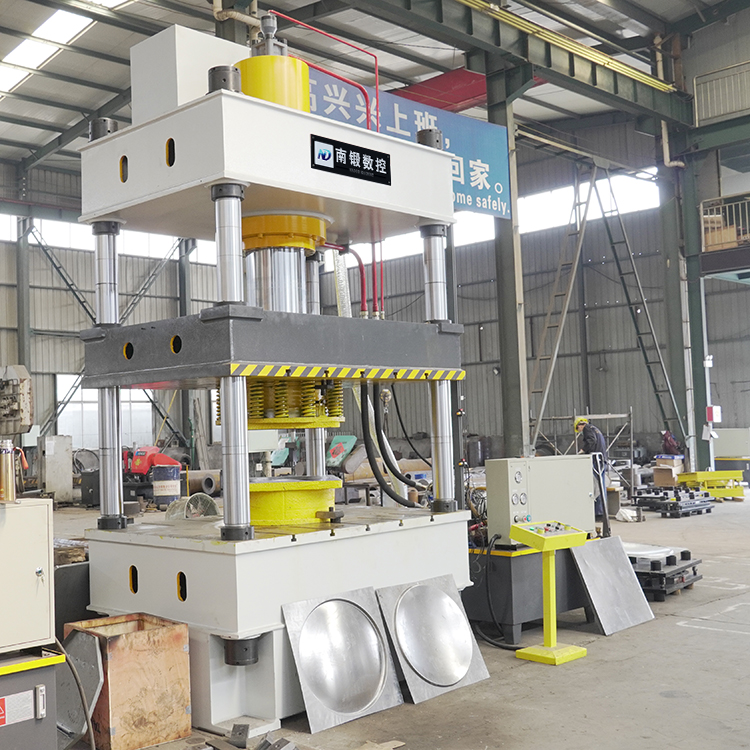

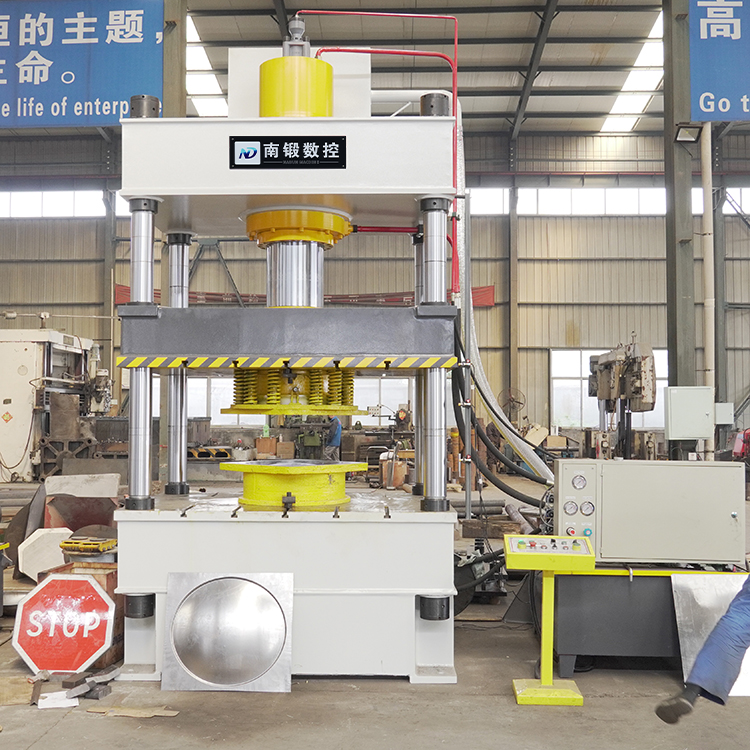

Home / Deep drawing press machine / 315 ton metal hydraulic deep drawing draw stainless steel stamping press machine for satellite dish antenna making machine
|
Place of Origin: |
Tengzhou China |
|
Brand Name: |
Nadun |
|
Model Number: |
没有找到自定义文本 |
|
Certification: |
CE ISO |
|
Minimum Order Quantity: |
1 |
|
Packaging Details: |
The sample includes a hydraulic press and mold. Please contact us for more details. |
|
Delivery Time: |
15-45 day |
|
Payment Terms: |
L/C D/P D/A T/T |
|
Supply Ability: |
50set/m |

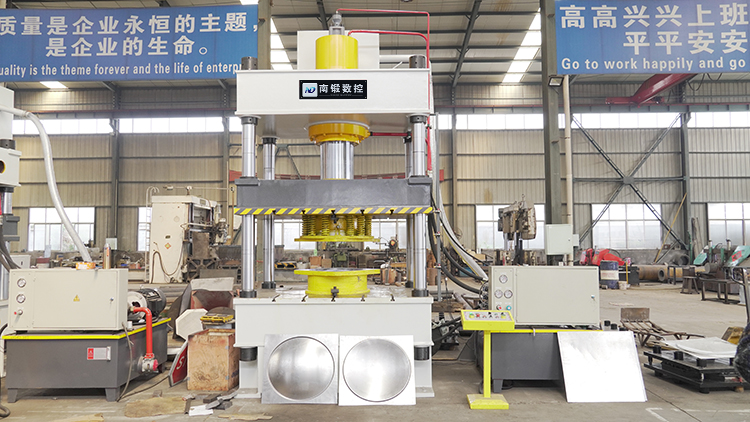

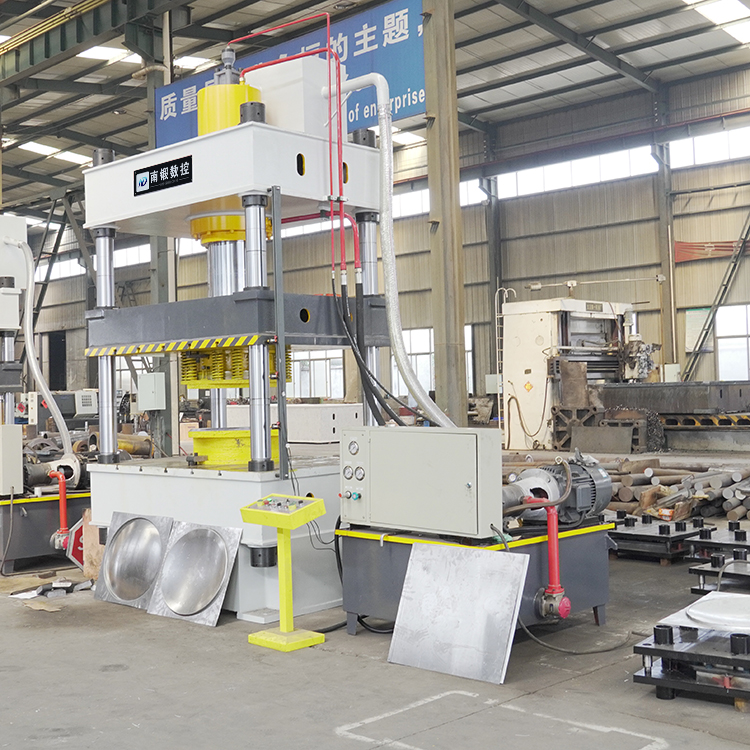

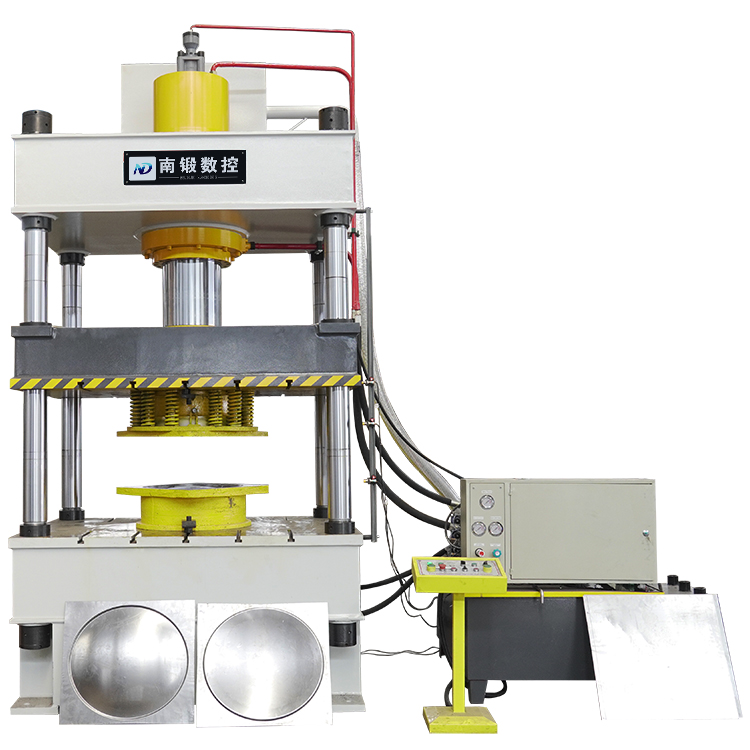

The sheet metal forming and drawing hydraulic press is primarily used for metal thick and thin sheet drawing, blanking, and punching forming processes. It also features the conventional functions of a general-purpose hydraulic press, making it widely applicable. With a hydraulic cushion, it can perform post-drawing punching or post-punching flanging processes. This hydraulic press is extensively used in various fields such as automotive, motorcycle, household appliances, petrochemicals, rail transportation, and aerospace. This series of hydraulic presses comes in two structural forms: four-column and frame.

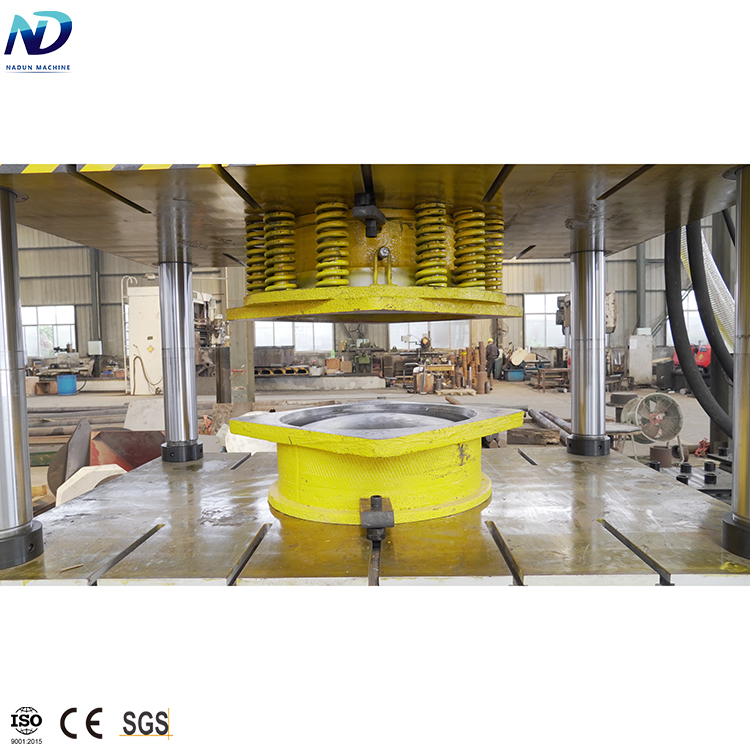

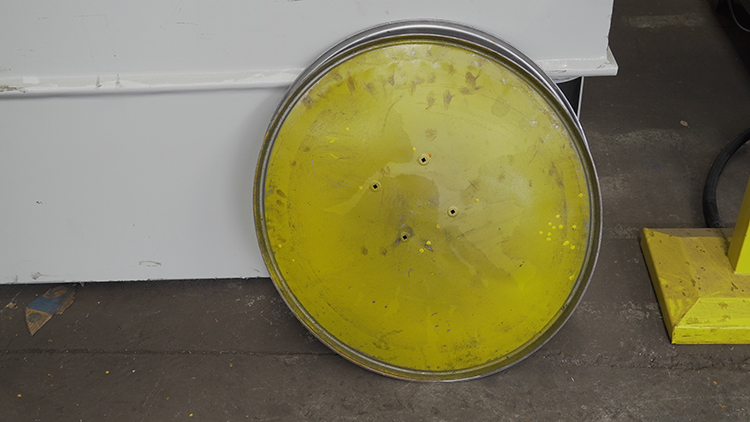

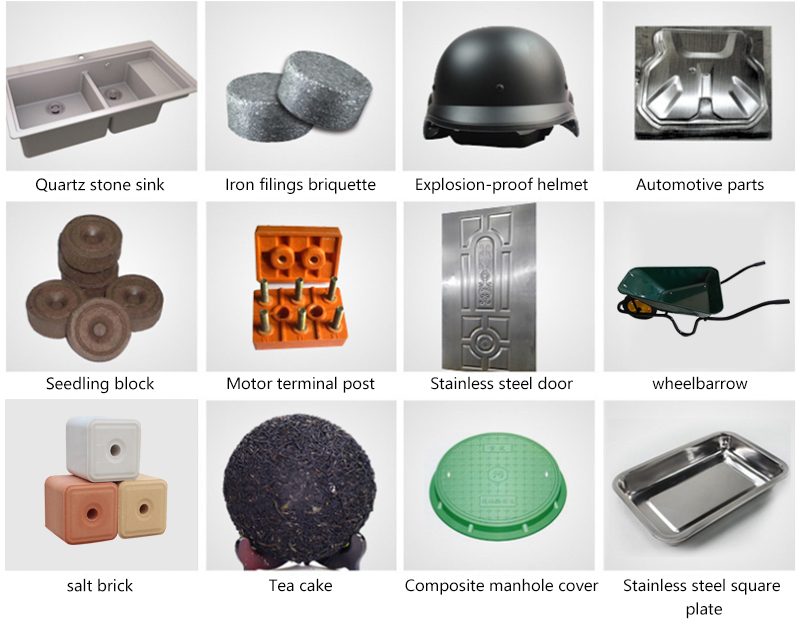

From the perspective of the machinery industry, by changing different molds, the sheet metal forming and drawing hydraulic press can be used to produce satellite antennas as well as other products shown in the image above.

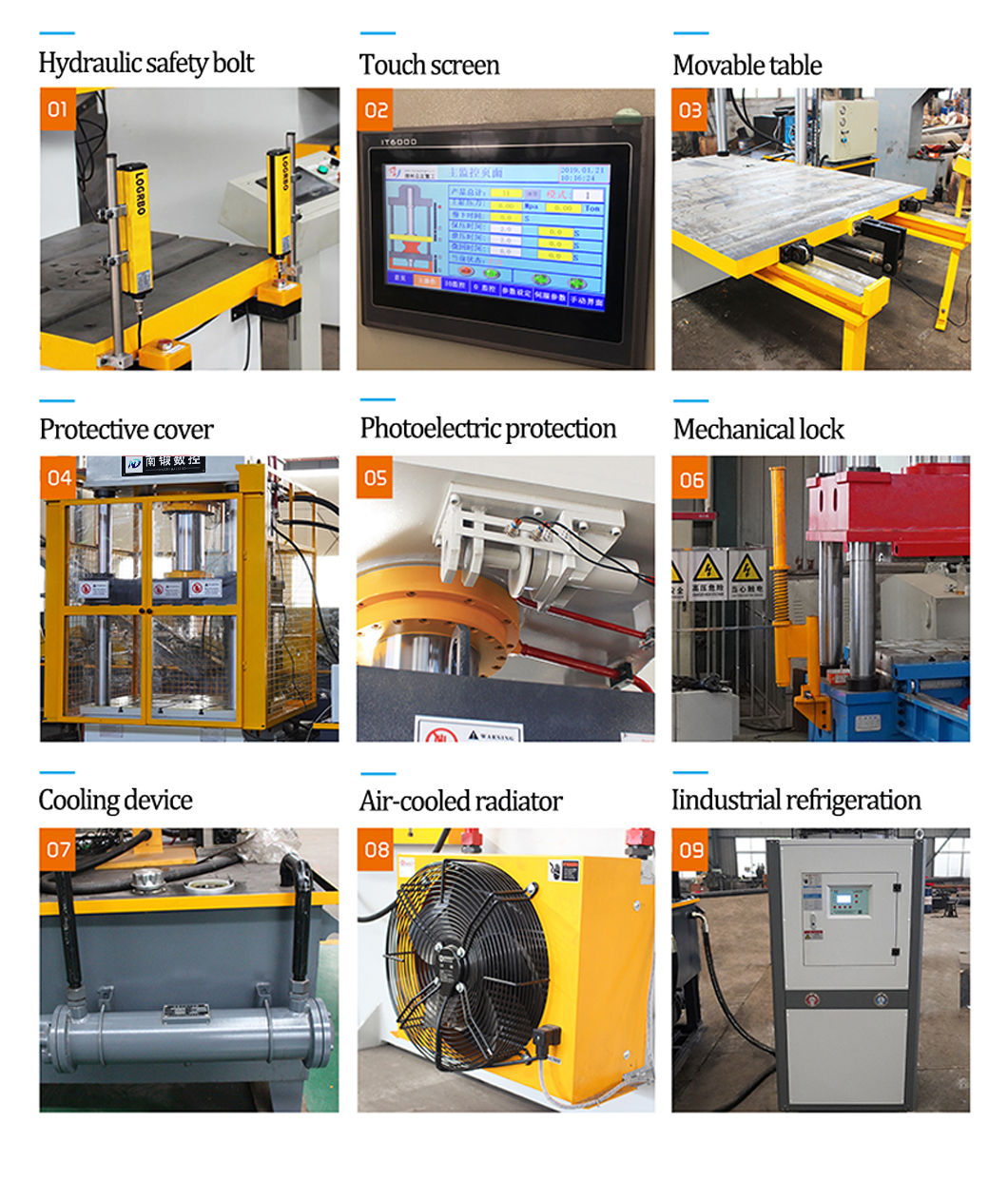

It can be equipped with hydraulic pads, micro-adjustment die devices, and quick die change devices according to user requirements.

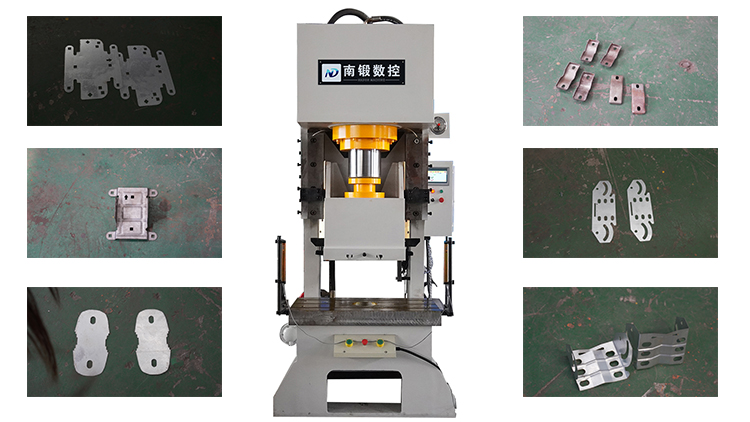

In addition to sheet metal forming and drawing hydraulic presses, we also offer punch presses, which are convenient for punching holes in satellite antenna components.
Product Paramenters
| Project | Unit | 100T | 200TA | 200TB | 315T | 500T | 630T | 800T | 1000T |
| Hydraulic Pressure | Mpa | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Effective Slide Stroke | mm | 600 | 600 | 700 | 800 | 900 | 900 | 900 | 900 |
| Opening Height | mm | 900 | 900 | 1200 | 1250 | 1500 | 1500 | 1500 | 1500 |
| Effective Worktable Area | mm | 750*700 | 800*800 | 1000*1000 | 1260*1160 | 1400*1400 | 1500*1500 | 1600*1600 | 1600*1600 |
| No-load Descent Speed | mm/s | 90 | 100 | 100 | 120 | 120 | 130 | 150 | 150 |
| Pressing Speed | mm/s | 17 | 14 | 14 | 11 | 18 | 18 | 18 | 18 |
| Return Speed | mm/s | 110 | 110 | 110 | 100 | 170 | 180 | 180 | 190 |
| Motor Power | Kw | 7.5 | 7.5 | 7.5 | 22 | 37 | 44 | 60 | 74 |
| Hydraulic Pad Ejection Force | T | 50 | 60 | 60 | 100 | 160 | 200 | 315 | 400 |
| Ejection Stroke | mm | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 |
| Hydraulic Pad Area | mm | φ500 | φ550 | 750X600 | 750X750 | 1050X1050 | 1200×1200 | 1200×1200 | 1200×1200 |
If the YD27 series sheet metal forming and drawing hydraulic press does not meet your production needs, we can also recommend other machines that our customers have purchased together.

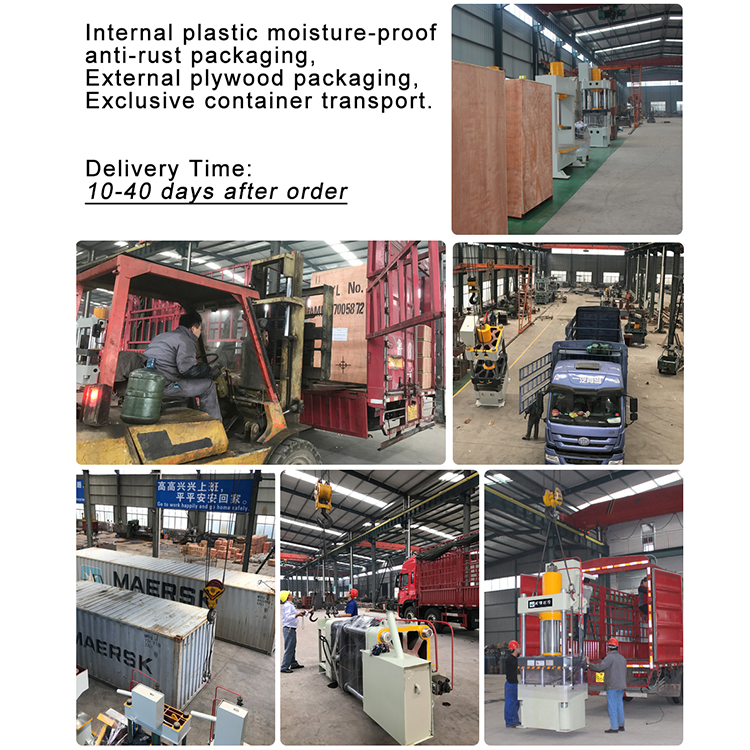

Packing & Delivery
Internal plastic moisture-proofanti-rust packaging,External plywood packaging,Exclusive container transport.Delivery Time:10-40 days after order.
