300t Chinese automatic 4 column steel forming hydraulic cold press machine price 300 ton

Place of Origin:	Tengzhou China
Brand Name:	Nadun
Model Number:	没有找到自定义文本
Certification:	CE ISO
Minimum Order Quantity:	1
Packaging Details:	The sample includes a hydraulic press and mold. Please contact us for more details.
Delivery Time:	15-45 day
Payment Terms:	L/C D/P D/A T/T
Supply Ability:	50set/m

Product Overview

300t Chinese automatic 4 column steel forming hydraulic cold press machine price 300 ton factory

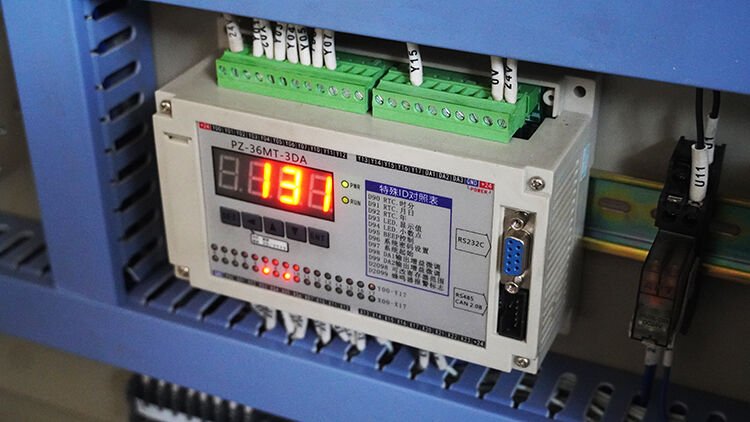

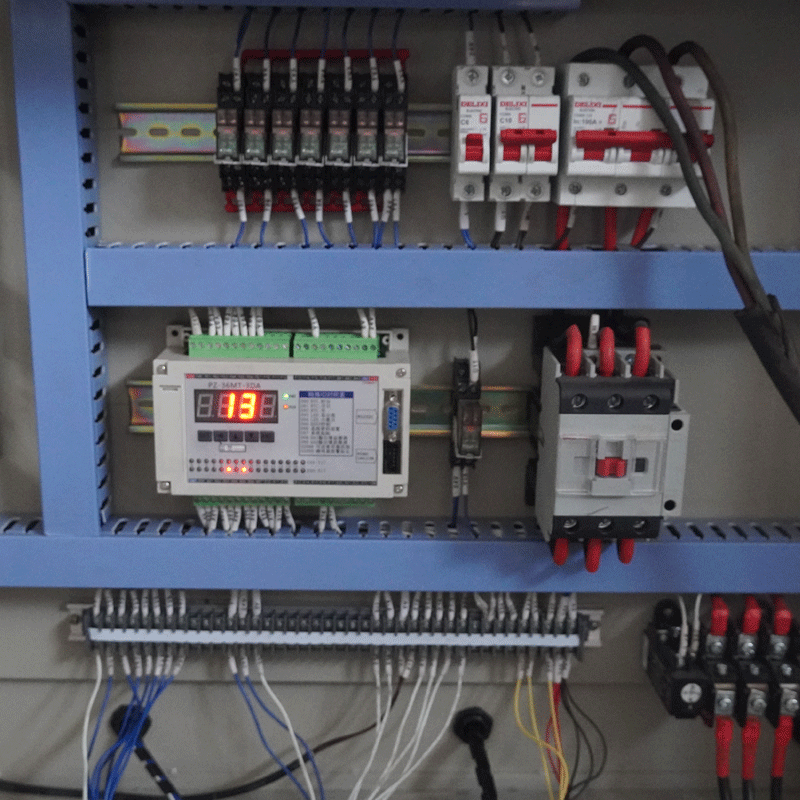

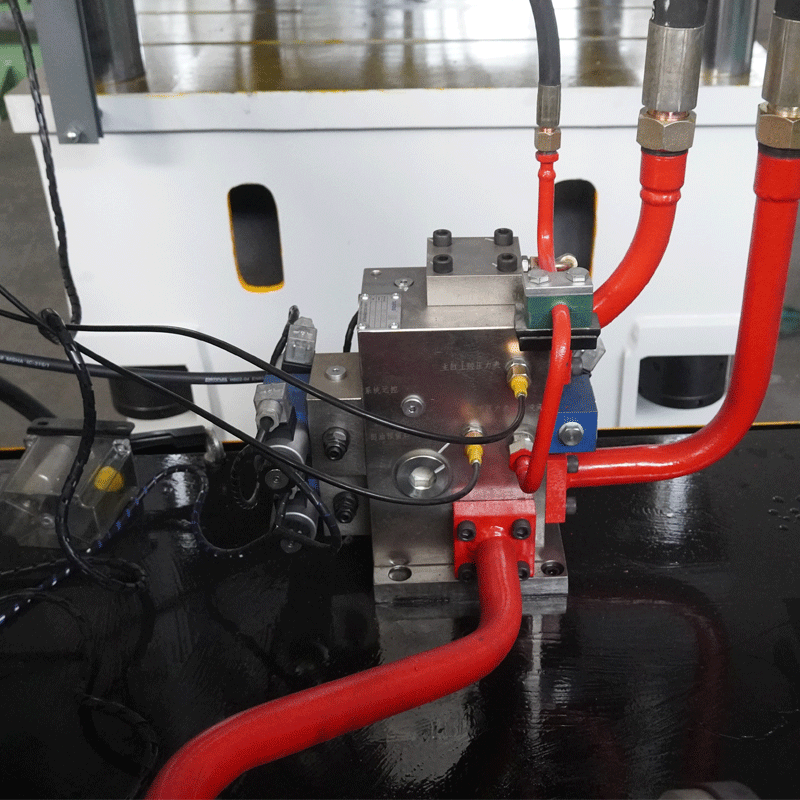

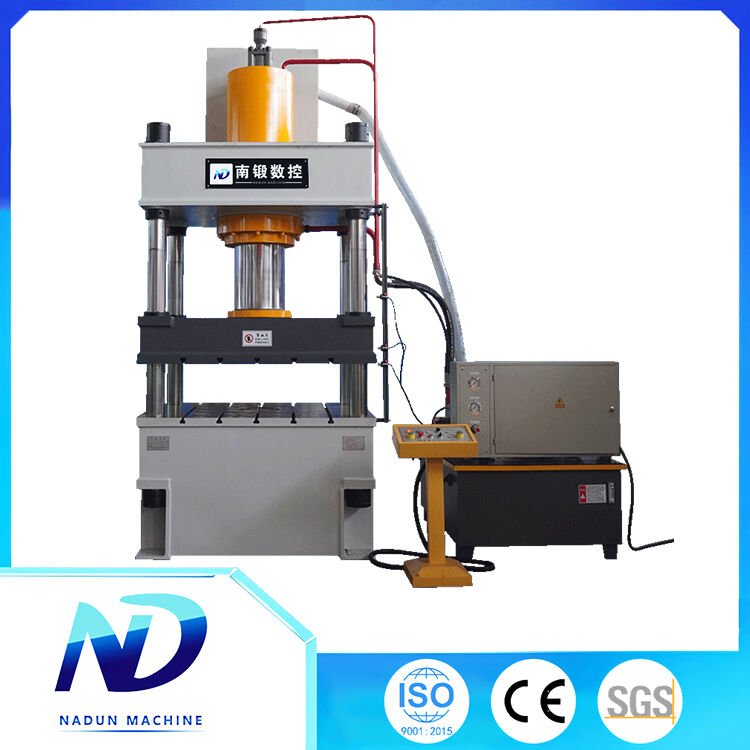

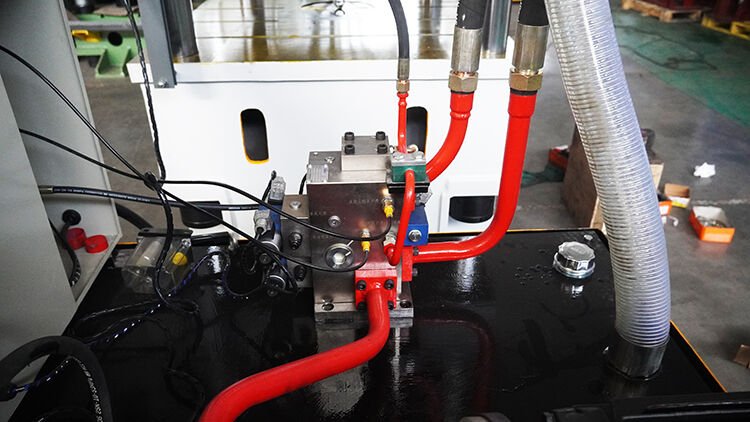

The four-column hydraulic press features a three-beam, four-column structure. The hydraulic system uses a cartridge valve integrated control, and it has an independent and reliable electrical control system with broad versatility. It can achieve two types of forming processes: constant stroke and constant pressure, and it also has the capability of pressure holding with delay. It is widely used and economically efficient.

300t Chinese automatic 4 column steel forming hydraulic cold press machine price 300 ton factory

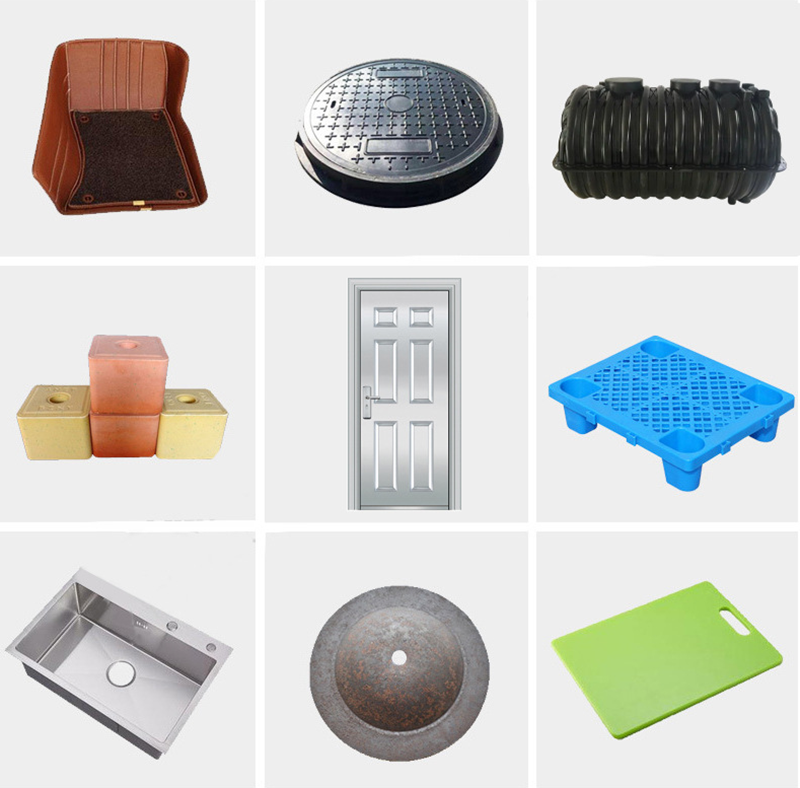

The four-column hydraulic press is suitable for pressing and forming various plastic materials, such as extrusion, bending, flanging, and stretching. It can also be used for pressing and forming various plastic and powder products.

300t Chinese automatic 4 column steel forming hydraulic cold press machine price 300 ton supplier

If the hydraulic press is used for processes such as blanking and punching, a punching buffer device should be installed to eliminate or reduce the impact and noise at the moment of material separation.

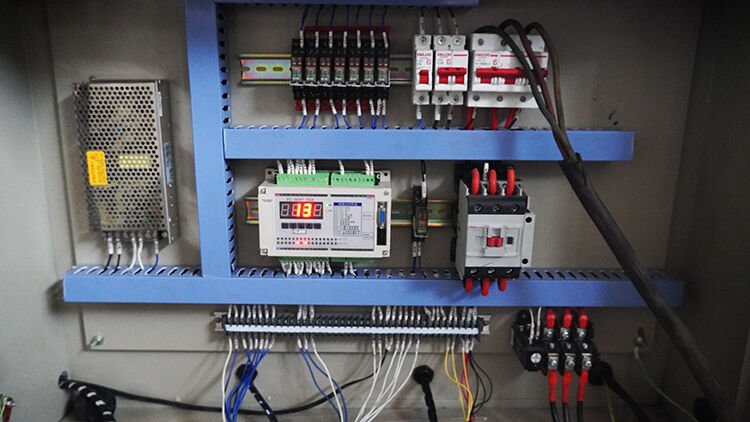

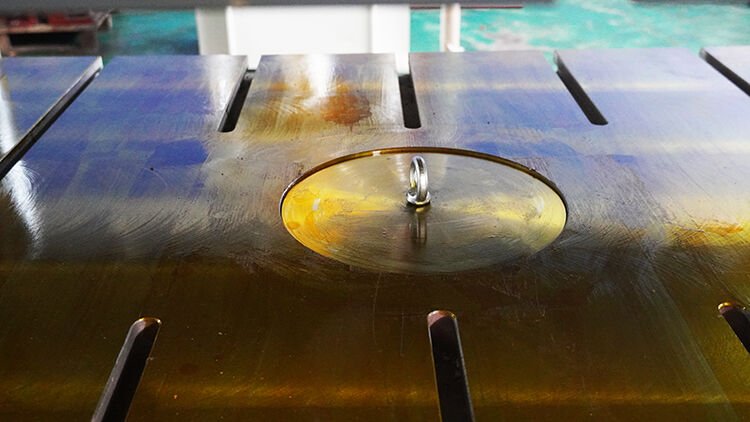

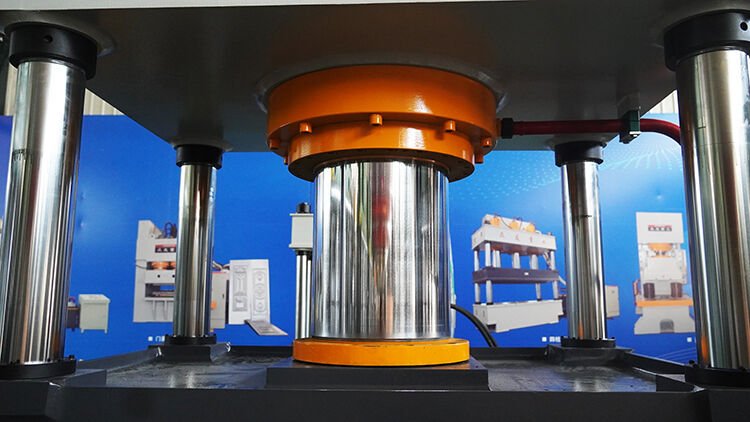

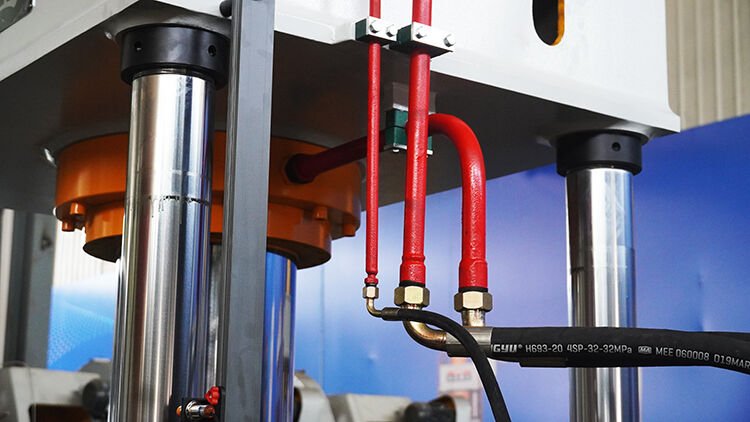

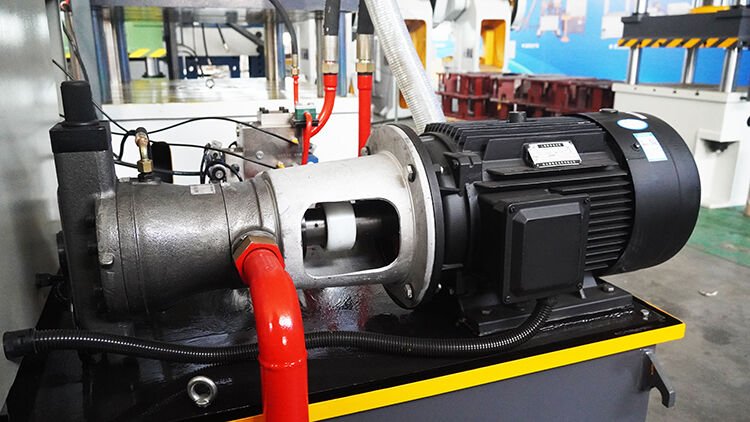

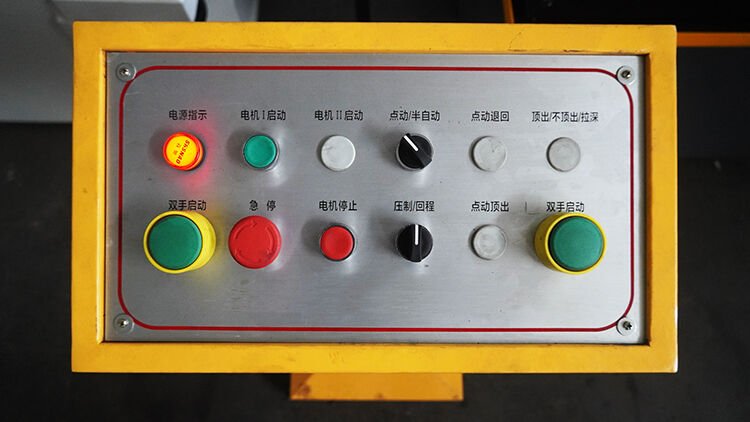

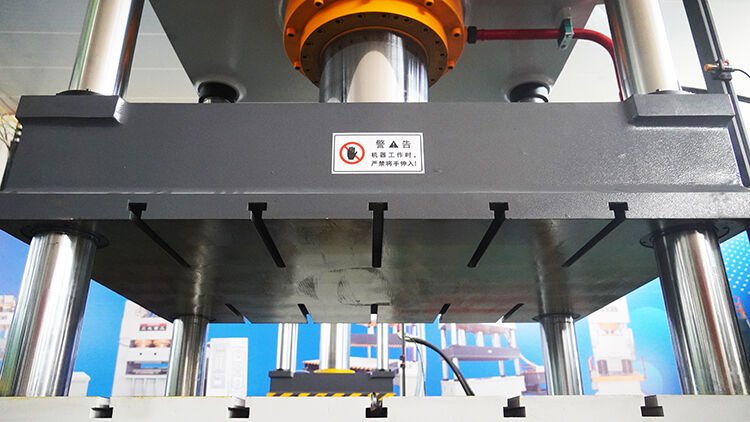

Detailed images

300t Chinese automatic 4 column steel forming hydraulic cold press machine price 300 ton factory

300t Chinese automatic 4 column steel forming hydraulic cold press machine price 300 ton manufacture

300t Chinese automatic 4 column steel forming hydraulic cold press machine price 300 ton supplier

300t Chinese automatic 4 column steel forming hydraulic cold press machine price 300 ton details

Specification

item	value
Slide Stroke (mm)	600
Machine Type	Four-column Three-beam Hydraulic Press
Return Force (kN)	600kN
System	Normal
Condition	New
Place of Origin	China
Brand Name	Nadun
Year	2024
Voltage	380V/Optional
Dimension(LWH)	13008003600 mm
Weight (T)	6.3T
Model Number	YQ32-300T
Motor Power (kw)	15kw
Key Selling Points	Competitive Price
Warranty	1 Year
Applicable Industries	Building Material Shops, Garment Shops, Machinery Repair Shops, Manufacturing Plant, Energy & Mining, Construction works
Showroom Location	None
Marketing Type	Ordinary Product
Machinery Test Report	Provided
Video outgoing-inspection	Provided
Warranty of core components	1 Year

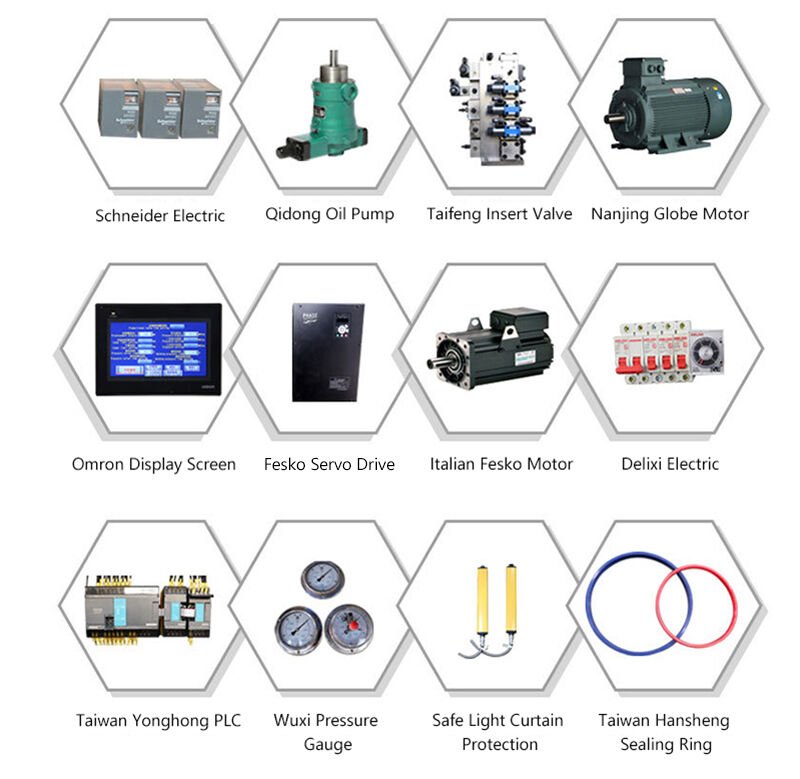

Core Components	Bearing, Motor, Pump, Pressure vessel
Nominal force	3000 KN
Max.System pressure	25 Mpa
Max.Open height	1000 mm
Effective table size	800×800 mm
Down speed	100 mm/s
Pressing speed	7~12 mm/s
Return speed	90 mm/s
