Home / Four-column hydraulic press / 250 tons three-beam four-column hydraulic press
|
Place of Origin: |
Tengzhou China |
|
Brand Name: |
Nadun |
|
Model Number: |
YQ32-250T |
|
Certification: |
CE ISO |
|
Minimum Order Quantity: |
1 |
|
Packaging Details: |
The sample includes a hydraulic press and mold. Please contact us for more details. |
|
Delivery Time: |
15-45 day |
|
Payment Terms: |
L/C D/P D/A T/T |
|
Supply Ability: |
50set/m |

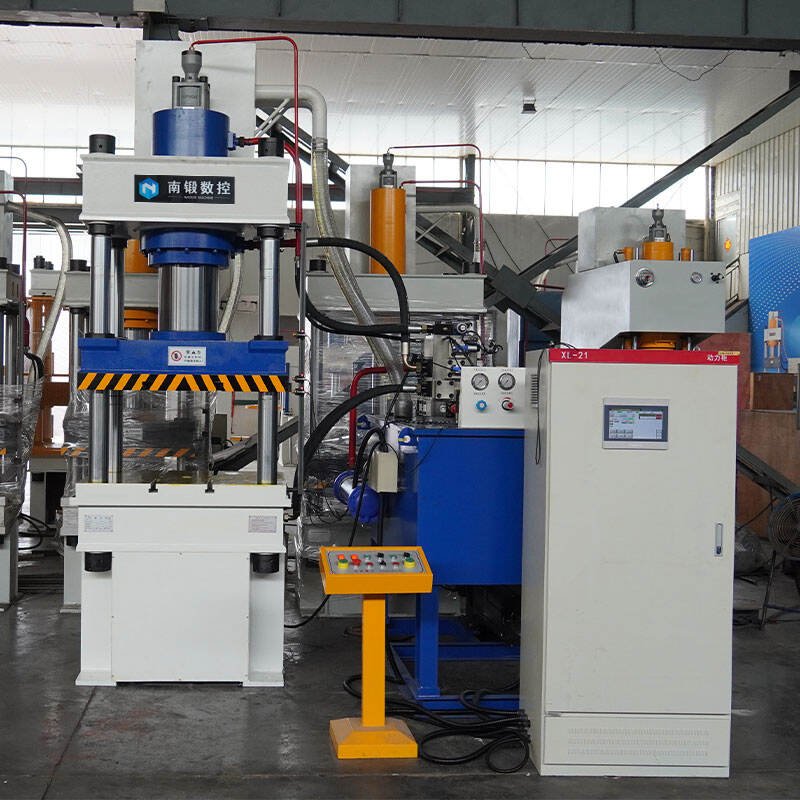

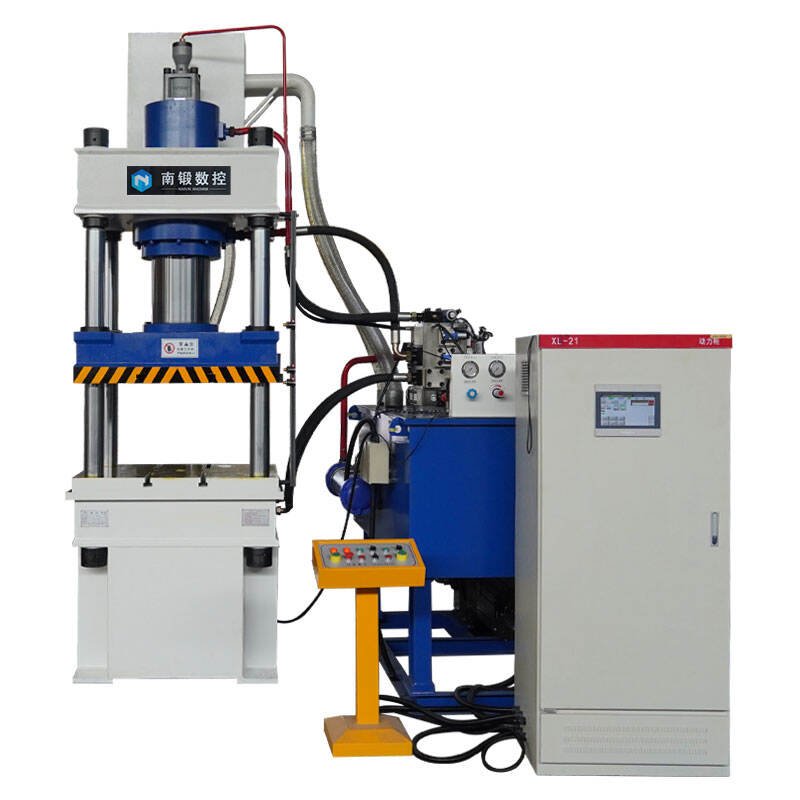

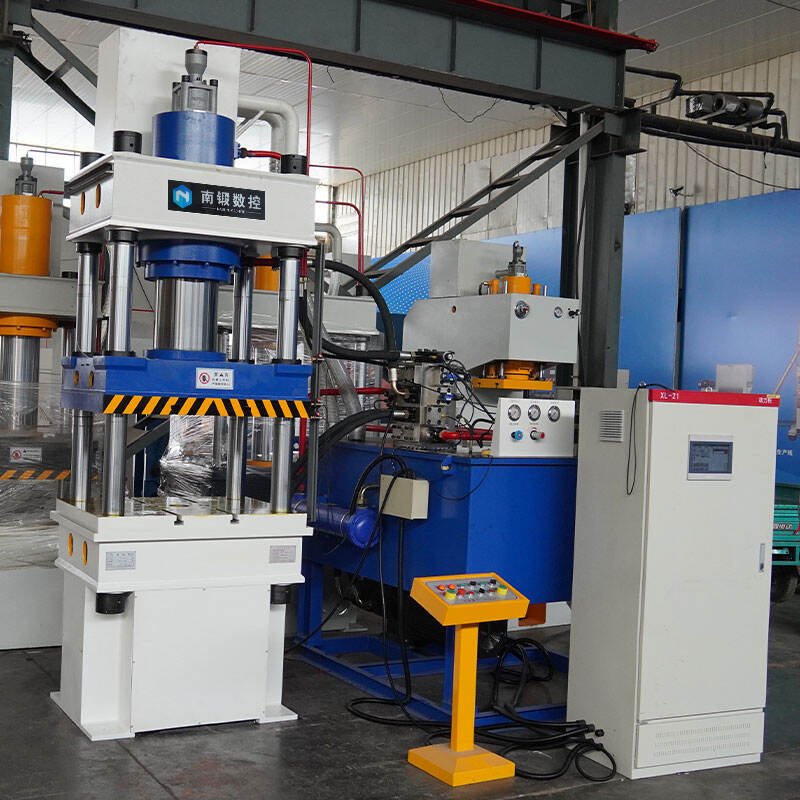

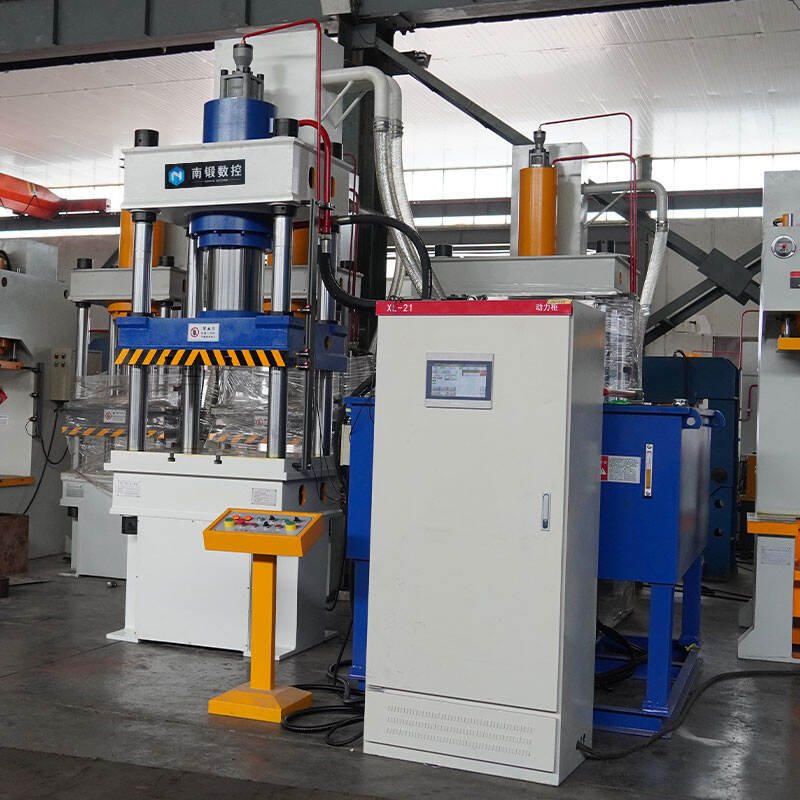

250 tons servo water-cooled hydraulic press is a kind of high-precision and energy-saving hydraulic equipment integrating servo motor drive and water-cooled heat dissipation technology, which is suitable for metal stamping, composite material molding, precision parts molding and other scenarios, and its core advantages are embodied in the three major aspects of energy-saving, precision and stability.
| Name | Unit | YQ32-400 | YQ32-500 | YQ32-630 | YQ32-800 | YQ32-1000 | YQ32-1250 | YQ32-1600 |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 1250 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Maximum Stroke of Slider | mm | 800 | 900 | 900 | 900 | 900 | 900 | 900 |
| Effective Area of Workbench | mm | 1250×1160 | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 | 1600×1600 | 1600×1600 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 150 | 100 | 180 | 180 | 190 |
| Pressing Speed | mm/s | 5-11 | 10-18 | 9-18 | 7-18 | 10-18 | 6-15 | 6-14 |
| Return Speed | mm/s | 100 | 180 | 200 | 90 | 220 | 200 | 220 |
| Ejecting Force | kN | 630 | 1000 | 1000 | 400 | 1000 | 1000 | 1600 |
| Maximum Ejecting Stroke | mm | 300 | 300 | 300 | 200 | 300 | 300 | 300 |
| Parameter | Unit | YQ32-63 | YQ32-100A | YQ32-100B | YQ32-200A | YQ32-200B | YQ32-315A | YQ32-315B |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 630 | 1000 | 1000 | 2000 | 2000 | 3150 | 3150 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 700 | 800 | 900 | 1100 | 900 | 1250 | 1000 |
| Maximum Stroke of Slider | mm | 400 | 500 | 600 | 500 | 600 | 800 | 600 |
| Effective Area of Workbench | mm | 610×500 | 630×550 | 750×700 | 1000×1000 | 800×800 | 1260×1160 | 800×800 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Pressing Speed | mm/s | 11-22 | 7-15 | 7-15 | 7-18 | 7-18 | 7-12 | 7-12 |
| Return Speed | mm/s | 80 | 90 | 90 | 90 | 90 | 100 | 90 |
| Ejecting Force | kN | 100 | 200 | 200 | 400 | 400 | 630 | 630 |
| Maximum Ejecting Stroke | mm | 160 | 200 | 200 | 200 | 200 | 300 | 300 |

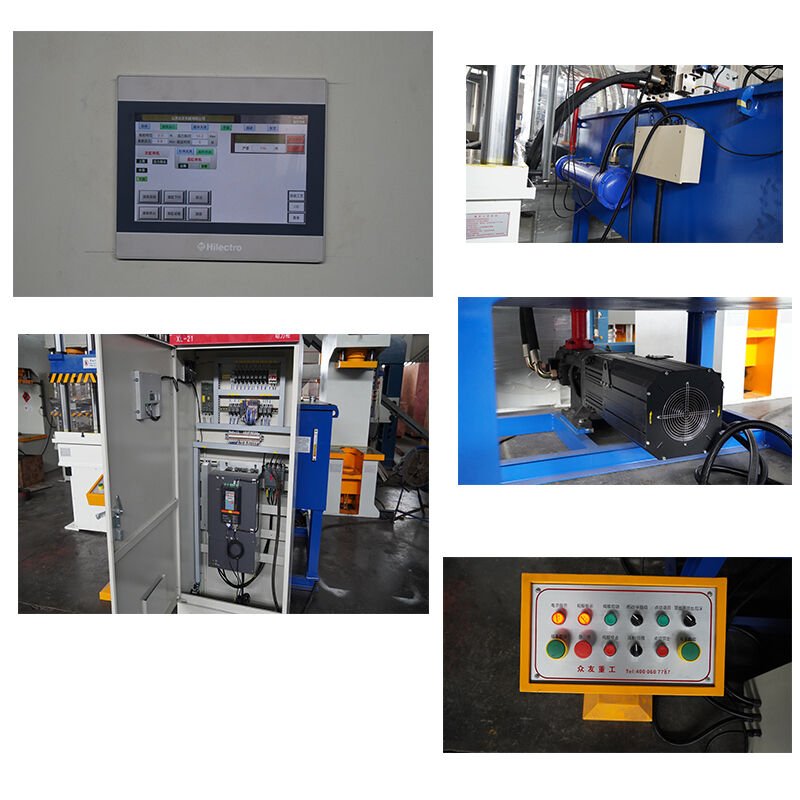

Servo motor drive
Adopting servo motor to directly drive gear pump to supply oil, replacing the traditional asynchronous motor + proportional valve control, realizing the full closed-loop digital control of pressure and flow.

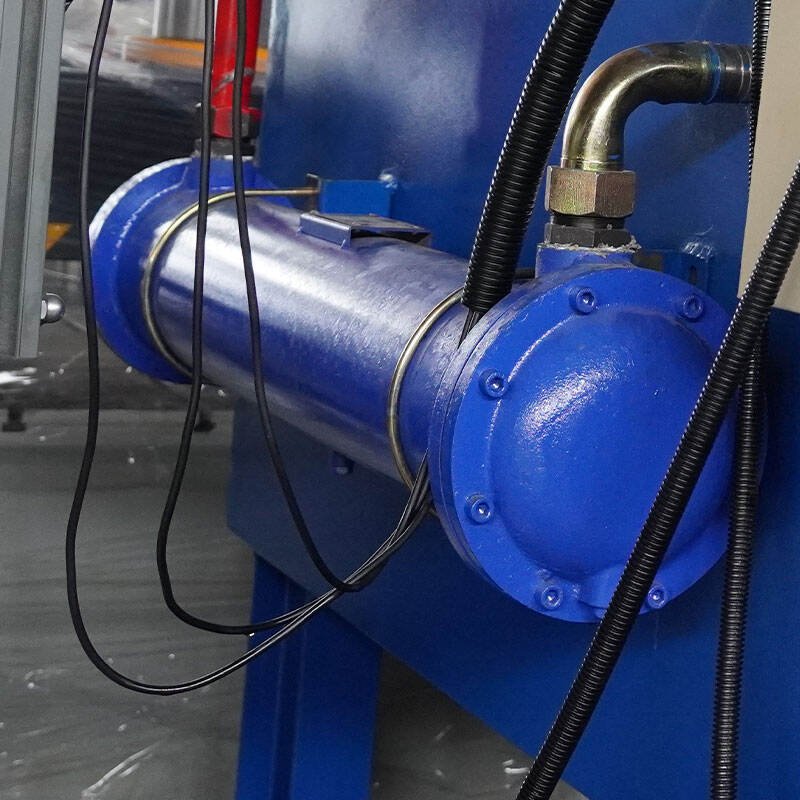

Water-cooled cooling system
Water-cooling device is integrated in the key parts of hydraulic pump station or oil cylinder, which can quickly take away the heat through circulating coolant and solve the problem of high oil temperature during high load operation:
Stable oil temperature: The water-cooled system can control the oil temperature within the range of 40℃-60℃, avoiding thermal expansion of hydraulic components caused by fluctuations in oil temperature and prolonging the life of seals.
Strong continuous operation ability: compared with air-cooled system, water-cooled heat dissipation efficiency is improved by more than 3 times, which supports 24-hour continuous operation of the equipment and is suitable for mass production.

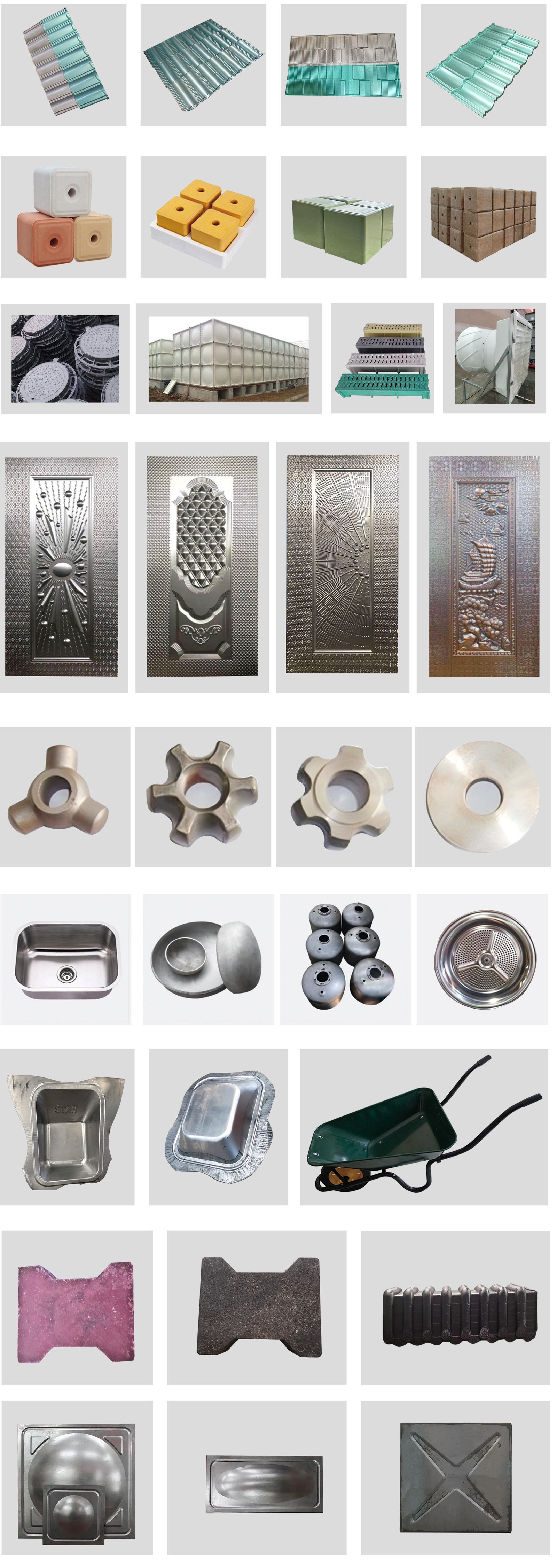

Metal Stamping and Drawing
Used in the stretching process of automotive coverings, kitchen and bathroom hardware (e.g. sinks, pulls), complex shapes are molded by means of a multi-rod ejector (ejector force 63 tons).
Composite material molding
Compression of thermosetting materials such as SMC/BMC sheets, glass fiber reinforced plastic (GFRP), etc. The mold temperature control system and high pressure holding ensure the density of the products.
Precision parts molding
Used in the embossing and shallow drawing process of 3C products such as cell phone center frame, watch case, etc., avoiding cracking or deformation of the products through the flexible control of servo system.
We offer comprehensive after-sales services, including installation, commissioning, and operation training; providing press machine user manuals to facilitate user learning on how to operate and maintain the press machine.
We provide a full set of hydraulic press equipment with many mature design solutions and successful customer cases. We also provide customized service with molding tooling and corresponding production line equipment, providing one-stop service for customers. Welcome to call us for consultation.
