200 tons metal stamping hydraulic press for Wheelbarrow molding

Place of Origin:	Tengzhou China
Brand Name:	Nadun
Model Number:	YQ32-200T
Certification:	CE ISO
Minimum Order Quantity:	1
Packaging Details:	The sample includes a hydraulic press and mold. Please contact us for more details.
Delivery Time:	15-45 day
Payment Terms:	L/C D/P D/A T/T
Supply Ability:	50set/m

Product Overview

200tons hydraulic press for ash hopper truck with plastic side and vertical side (1).jpg

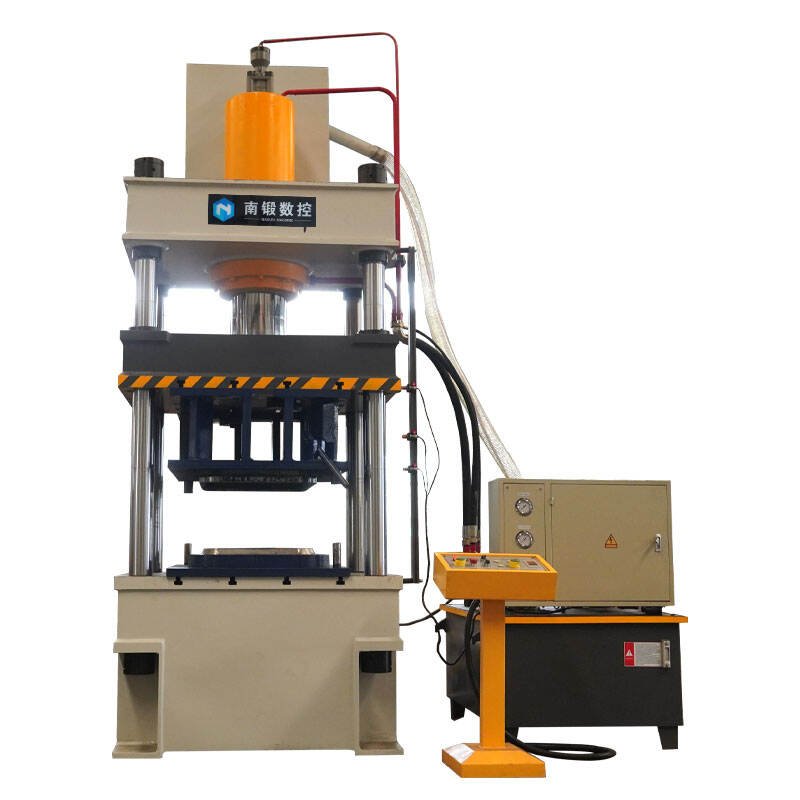

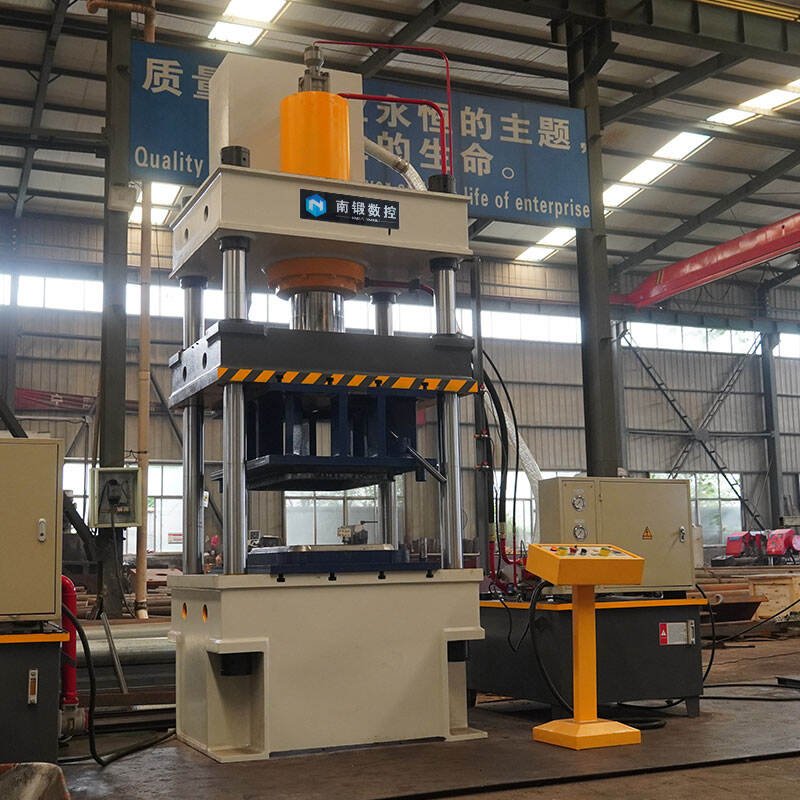

This 200-ton three-beam four-column hydraulic press is a special equipment designed for shaping the edges of ash hopper trucks’ hoppers. It realizes the operations of stretching, flanging and crimping of metal plates through high-pressure molding process, which makes the edges of the hoppers smooth, solid and sealed.

Parameters

Name	Unit	YQ32-400	YQ32-500	YQ32-630	YQ32-800	YQ32-1000	YQ32-1250	YQ32-1600
Nominal Force	kN	4000	5000	6300	8000	10000	12500	16000
Maximum System Working Pressure	MPa	25	25	25	25	25	25	25
Maximum Open Height of Slider	mm	1250	1500	1500	1500	1500	1500	1500
Maximum Stroke of Slider	mm	800	900	900	900	900	900	900
Effective Area of Workbench	mm	1250×1160	1400×1400	1500×1500	1600×1600	1600×1600	1600×1600	1600×1600
Slider Free Fall Speed	mm/s	100	100	150	100	180	180	190
Pressing Speed	mm/s	5-11	10-18	9-18	7-18	10-18	6-15	6-14
Return Speed	mm/s	100	180	200	90	220	200	220
Ejecting Force	kN	630	1000	1000	400	1000	1000	1600
Maximum Ejecting Stroke	mm	300	300	300	200	300	300	300

Parameter	Unit	YQ32-63	YQ32-100A	YQ32-100B	YQ32-200A	YQ32-200B	YQ32-315A	YQ32-315B
Nominal Force	kN	630	1000	1000	2000	2000	3150	3150
Maximum System Working Pressure	MPa	25	25	25	25	25	25	25
Maximum Open Height of Slider	mm	700	800	900	1100	900	1250	1000
Maximum Stroke of Slider	mm	400	500	600	500	600	800	600
Effective Area of Workbench	mm	610×500	630×550	750×700	1000×1000	800×800	1260×1160	800×800
Slider Free Fall Speed	mm/s	100	100	100	100	100	100	100
Pressing Speed	mm/s	11-22	7-15	7-15	7-18	7-18	7-12	7-12
Return Speed	mm/s	80	90	90	90	90	100	90
Ejecting Force	kN	100	200	200	400	400	630	630
Maximum Ejecting Stroke	mm	160	200	200	200	200	300	300

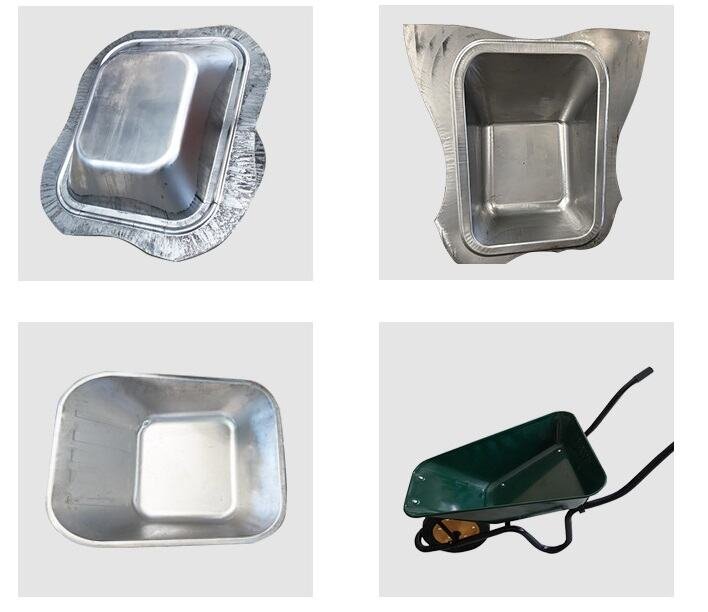

Pressed Product

200tons hydraulic press for ash hopper truck with plastic side and vertical side (12).jpg

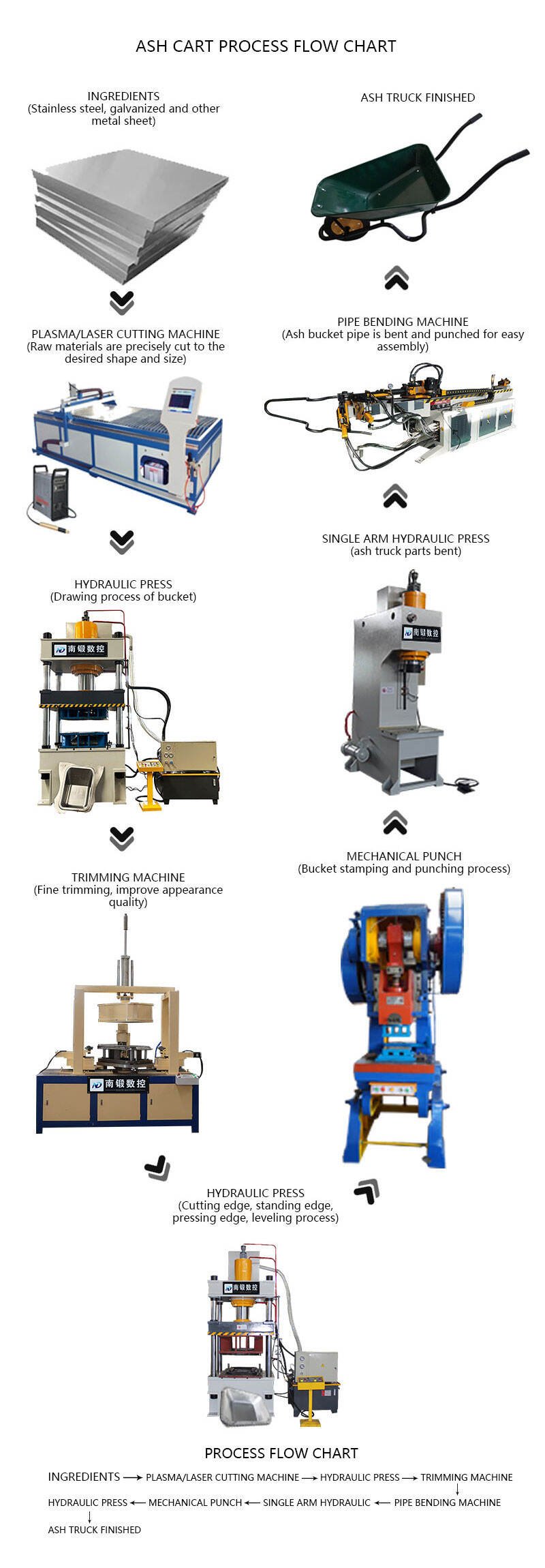

Process Flow

200tons hydraulic press for ash hopper truck with plastic side and vertical side (12).jpg

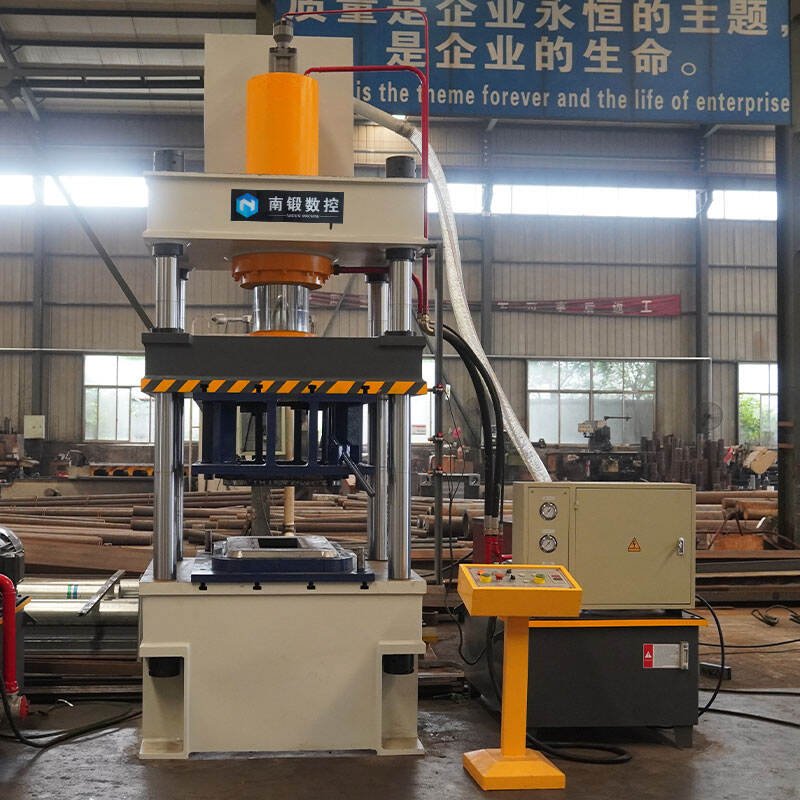

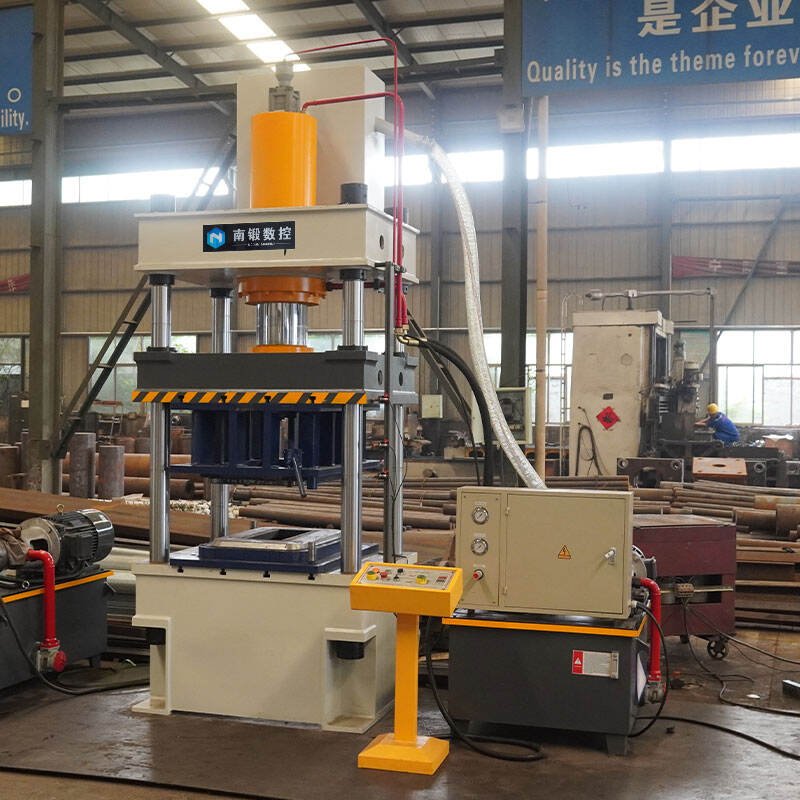

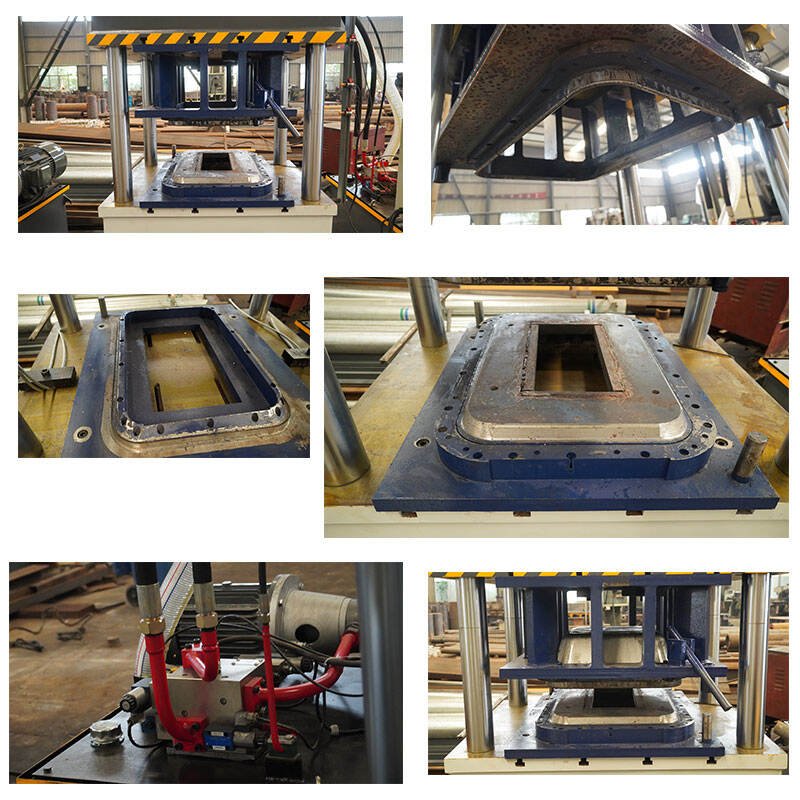

Equipment Details

200tons hydraulic press for ash hopper truck with plastic side and vertical side (10).jpg

Performance Characteristics

Multi-process compatibility:
It is suitable for metal material pressing process, such as stamping, bending, flanging, thin plate stretching and metal parts press fitting, calibrating, cold extrusion and so on.
It can also realize the press molding process of plastic products and powder products to meet the diversified needs of the edge shaping of ash hopper trucks.
Adjustability:
The working pressure, pressing speed and slide stroke can be adjusted according to the process needs.
It can accomplish three kinds of processes: ejector process, non-ejector process and stretching process, and each process provides two kinds of process actions for choice: fixed pressure and fixed stroke.
Reverse stretching process:
Adopting counter-stretching molding process makes the edge of the ash hopper truck more flat and smooth, and improves the quality of the product.
Hydraulic pads can be installed in or outside the working table to meet the needs of different specifications of the production of gray hopper trucks.

Scope Of Application

Grey Bucket Truck Edge Shaping Hydraulic Press is a special equipment designed for shaping the edge of the bucket of the Grey Bucket Truck, which realizes the operation of stretching, flanging, and curling of the metal plate through high-pressure molding process to make the edges of the bucket smooth, solid, and strong sealing.:
Sheet Metal Stretching: Stretch the flat metal material into the curved or tapered structure required by the car bucket.
Edge shaping: Flanging and crimping the edges of the hopper through molds to enhance the structural strength and prevent material leakage.
Automated production: support pointing and semi-automatic operation modes, and the stroke, pressure and speed of each running part are adjustable to meet the production requirements of different specifications of car buckets.

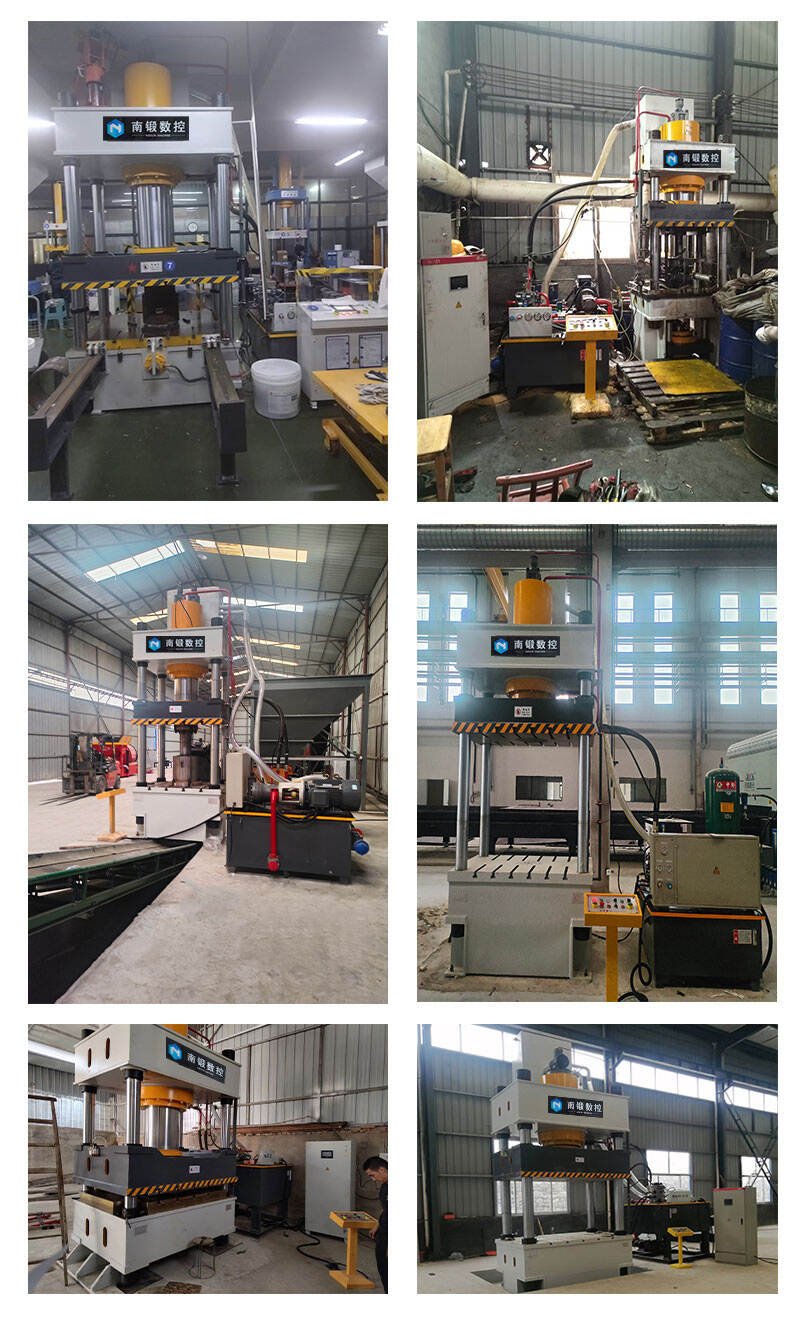

Application Cases

200tons hydraulic press for ash hopper truck with plastic side and vertical side (2).jpg

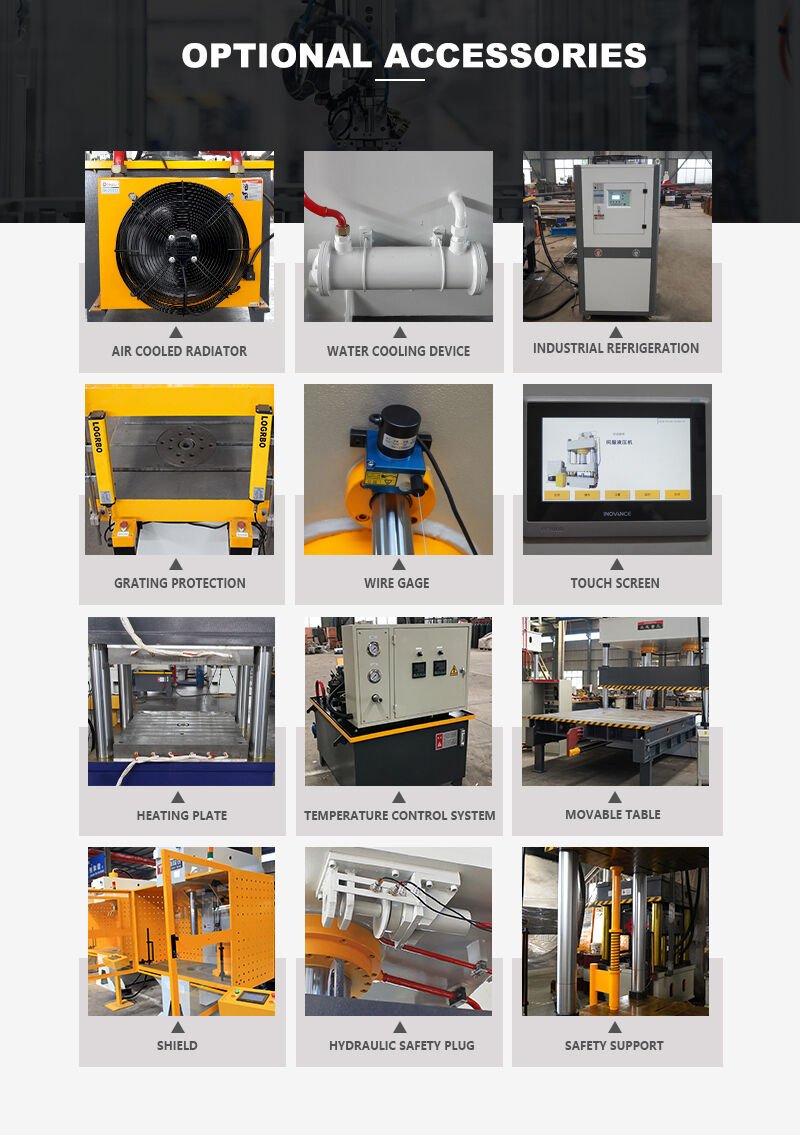

Optional Accessories


Packing & Shipping


After-Sales Service

We offer comprehensive after-sales services, including installation, commissioning, and operation training; providing press machine user manuals to facilitate user learning on how to operate and maintain the press machine.

About The Company

We provide a full set of hydraulic press equipment with many mature design solutions and successful customer cases. We also provide customized service with molding tooling and corresponding production line equipment, providing one-stop service for customers. Welcome to call us for consultation.
