Features
1.Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.
2.Adopt integrated hydraulic system, more reliable and easy for maintenance.and the hydraulic system from Renowned German Brand, Easy to operate 10ft stainless steel plate cut shearing machine.
3.The Hydraulic Guillotine is a Swing Beam Action machine which is produced in a variety of
cutting lengths and capacity.
4.The distance of the backgauge is adjusted by the motor and is well adjustment is displayed by E21with Delta inverter. QC11K10* 4000 E21S cnc controller hydraulic guillotine metal sheet shear machine.
5.Equipped with lighting-alignment, so as to align when shearing. The stroke of knife beam can be adjusted in stepless mode. 10mm hydraulic swing beam shearing machine metal cutting machine for Carbon steel.
6.Safe fence and the electric inter locker have been designed for the machine to ensure the operation safety to CE regulation. 12mm thickness metal sheet Hydraulic guillotine shearing machine 3200mm.

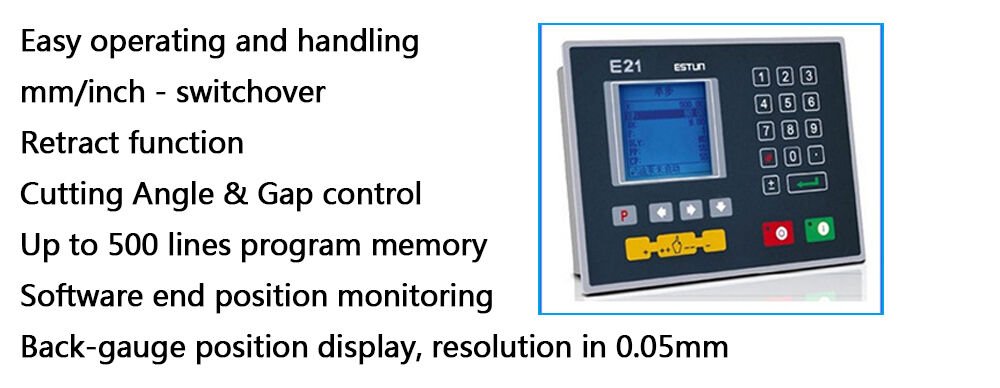

E21 Control System
Specifications
Mold | Cutting Thickness (mm) |
Cutting Length (mm) |
Angle Range (°) |
Backgauge Stroke (mm) |
Dimensions (mm×mm×mm) |
Main Motor (KW) |
6×2500 | 6 | 2500 | 1-3 | 750 | 3140×1740×2040 | 7.5 |
6×3200 | 6 | 3200 | 1-3 | 750 | 3750×1770×2150 | 7.5 |
6×4000 | 6 | 4000 | 1-3 | 750 | 4830×1840×2150 | 11 |
6×5000 | 6 | 5000 | 1-3 | 750 | 5830×1840×2150 | 11 |
6×6000 | 6 | 6000 | 1-3 | 750 | 6480×2100×2300 | 11 |
8×2500 | 8 | 2500 | 1-3 | 750 | 3040×1700×1700 | 11 |
8×3200 | 8 | 3200 | 1-3 | 750 | 3860×1700×1700 | 11 |
8×4000 | 8 | 4000 | 1-3 | 750 | 4640×1700×1700 | 11 |
8×5000 | 8 | 5000 | 1-3 | 750 | 5400×2400×2000 | 11 |
8×6000 | 8 | 6000 | 1-3 | 750 | 6480×2100×2350 | 11 |
8×8000 | 8 | 8000 | 1-3 | 750 | 8580×2130×2350 | 11 |
10×2500 | 10 | 2500 | 1-3 | 750 | 3040×1800×1700 | 15 |
10×3200 | 10 | 3200 | 1-3 | 750 | 3850×1830×1900 | 15 |
10×4000 | 10 | 4000 | 1-3 | 750 | 4650×2100×2000 | 15 |
10×5000 | 10 | 5000 | 1-3 | 750 | 5750×2100×2000 | 15 |
10×6000 | 10 | 6000 | 1-3 | 750 | 6500×2100×2300 | 15 |
10×8000 | 10 | 8000 | 1-3 | 750 | 8800×2100×2300 | 15 |
12×2500 | 12 | 2500 | 1-3 | 750 | 3285×1830×2390 | 15 |
12×3200 | 12 | 3200 | 1-3 | 750 | 3855×1830×2390 | 18.5 |
12×4000 | 12 | 4000 | 1-3 | 1000 | 4850×1830×2390 | 18.5 |
12×6000 | 12 | 6000 | 1-3 | 1000 | 6850×1930×2650 | 18.5 |
12×8000 | 12 | 8000 | 1-3 | 1000 | 8950×2130×2850 | 18.5 |
12×9000 | 12 | 9000 | 1-3 | 1000 | 9980×2300×2950 | 18.5 |
12×10000 | 12 | 10000 | 1-3 | 1000 | 11050×2500×3100 | 18.5 |
16×2500 | 16 | 2500 | 1-3 | 1000 | 3440×1940×2830 | 22 |
16×3200 | 16 | 3200 | 1-3 | 1000 | 4010×1940×2830 | 22 |
16×4000 | 16 | 4000 | 1-3 | 1000 | 5010×1980×2830 | 22 |
16×5000 | 16 | 5000 | 1-3 | 1000 | 5900×2600×2830 | 22 |
16×6000 | 16 | 6000 | 1-3 | 1000 | 6900×2700×2830 | 22 |
16×8000 | 16 | 8000 | 1-3 | 1000 | 8900×2900×3430 | 22 |
20×2500 | 20 | 2500 | 1-3 | 1000 | 3440×1900×2830 | 30 |
20×3200 | 20 | 3200 | 1-3 | 1000 | 4010×1900×2830 | 30 |
20×4000 | 20 | 4000 | 1-3 | 1000 | 4850×2600×2900 | 30 |
20×6000 | 20 | 6000 | 1-3 | 1000 | 6700×3000×3000 | 30 |
30×2500 | 30 | 2500 | 1-3 | 1000 | 3440×1900×2830 | 37 |
30×3200 | 30 | 3200 | 1-3 | 1000 | 4200×1900×3000 | 37 |
40×2500 | 40 | 2500 | 1-3 | 1000 | 3440×2000×3000 | 37 |
