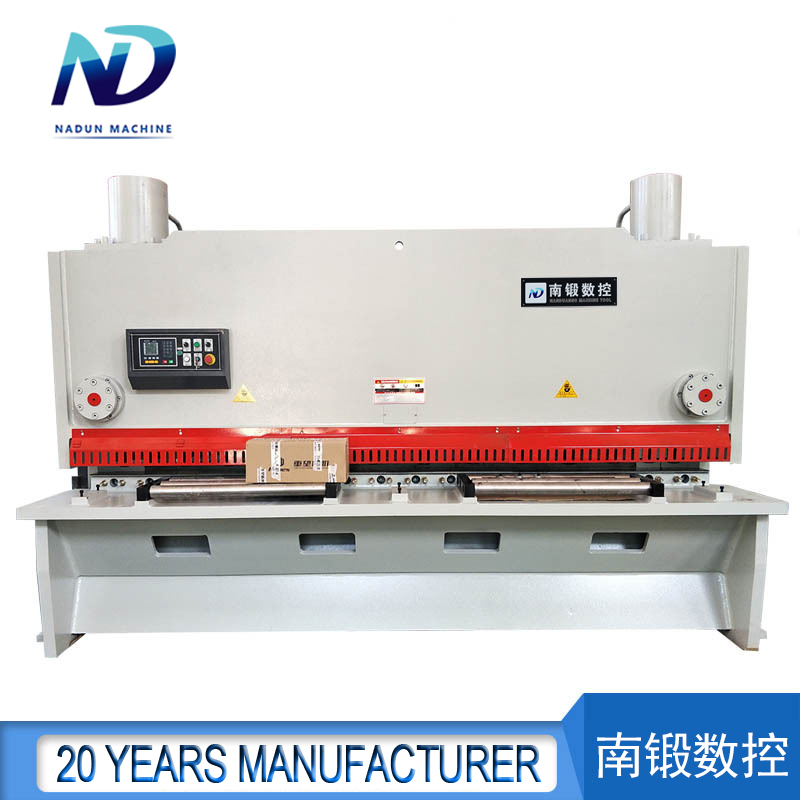

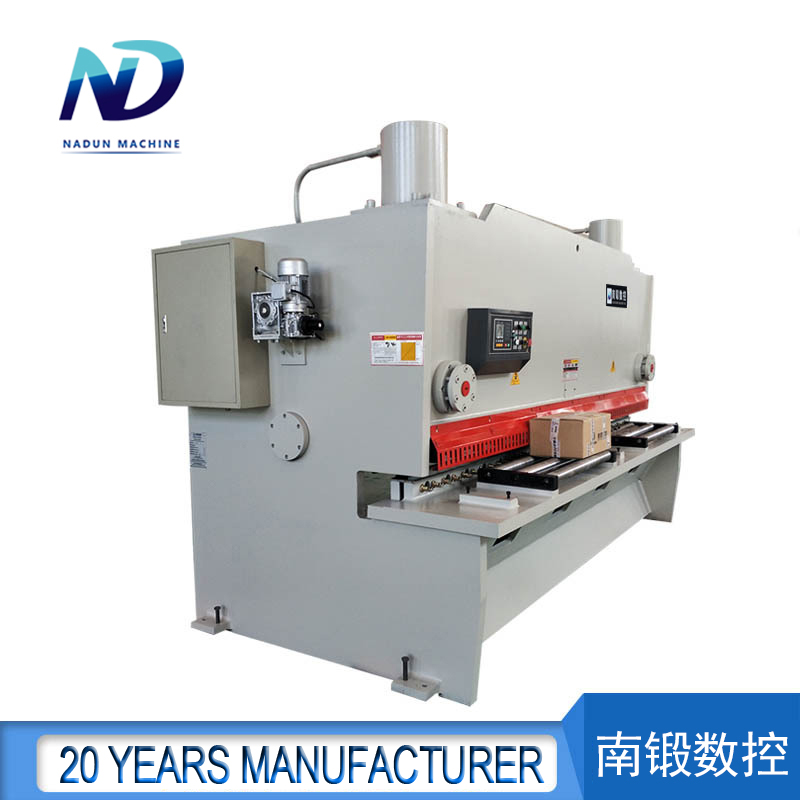

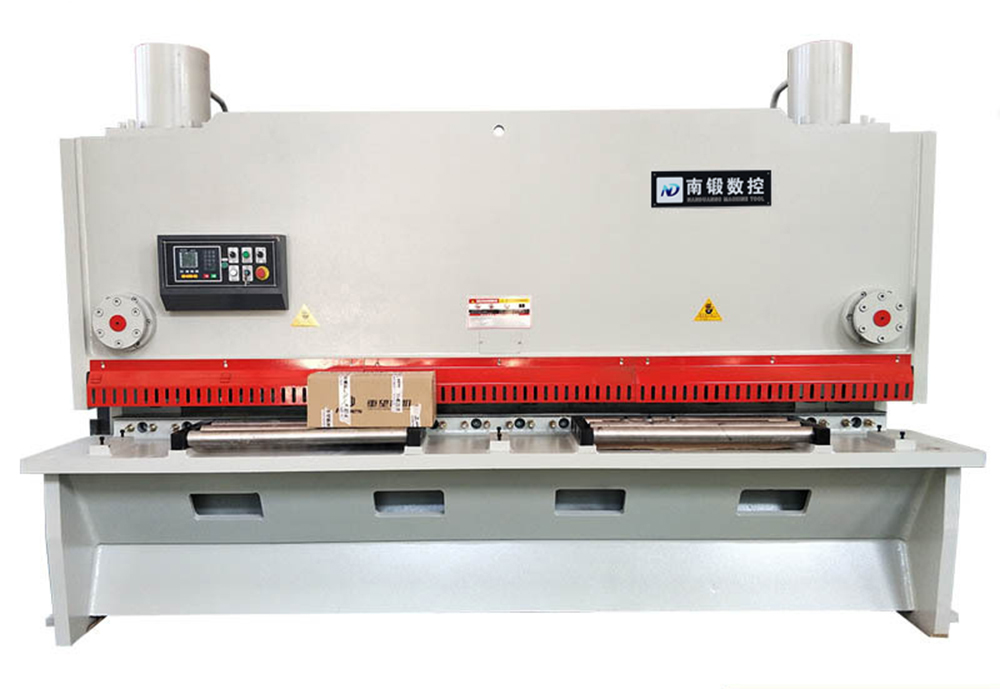

12*3200mm guillotine shearing machine

Place of Origin:	Tengzhou China
Brand Name:	Nadun
Model Number:	没有找到自定义文本
Certification:	CE ISO
Minimum Order Quantity:	1
Packaging Details:	The sample includes a hydraulic press and mold. Please contact us for more details.
Delivery Time:	15-45 day
Payment Terms:	L/C D/P D/A T/T
Supply Ability:	50set/m

Product Overview

12*3200mm guillotine shearing machine manufacture

Features

1.Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.

2.Adopt integrated hydraulic system, more reliable and easy for maintenance.and the hydraulic system from Renowned German Brand, Easy to operate 10ft stainless steel plate cut shearing machine

3.The Hydraulic Guillotine is a Swing Beam Action machine which is produced in a variety ofcutting lengths and capacity.

4.The distance of the backgauge is adjusted by the motor and is well adjustment is displayed by E21with Delta inverter. QC11K 8* 6000 E21S cnc controller hydraulic guillotine metal sheet shear machine.

5.Equipped with lighting-alignment, so as to align when shearing. The stroke of knife beam can be adjusted in stepless mode. 8mm hydraulic swing beam shearing machine metal cutting machine for Carbon steel.

6.Safe fence and the electric inter locker have been designed for the machine to ensure the operation safety to CE regulation. 12mm thickness metal sheet Hydraulic guillotine shearing machine 3200mm.

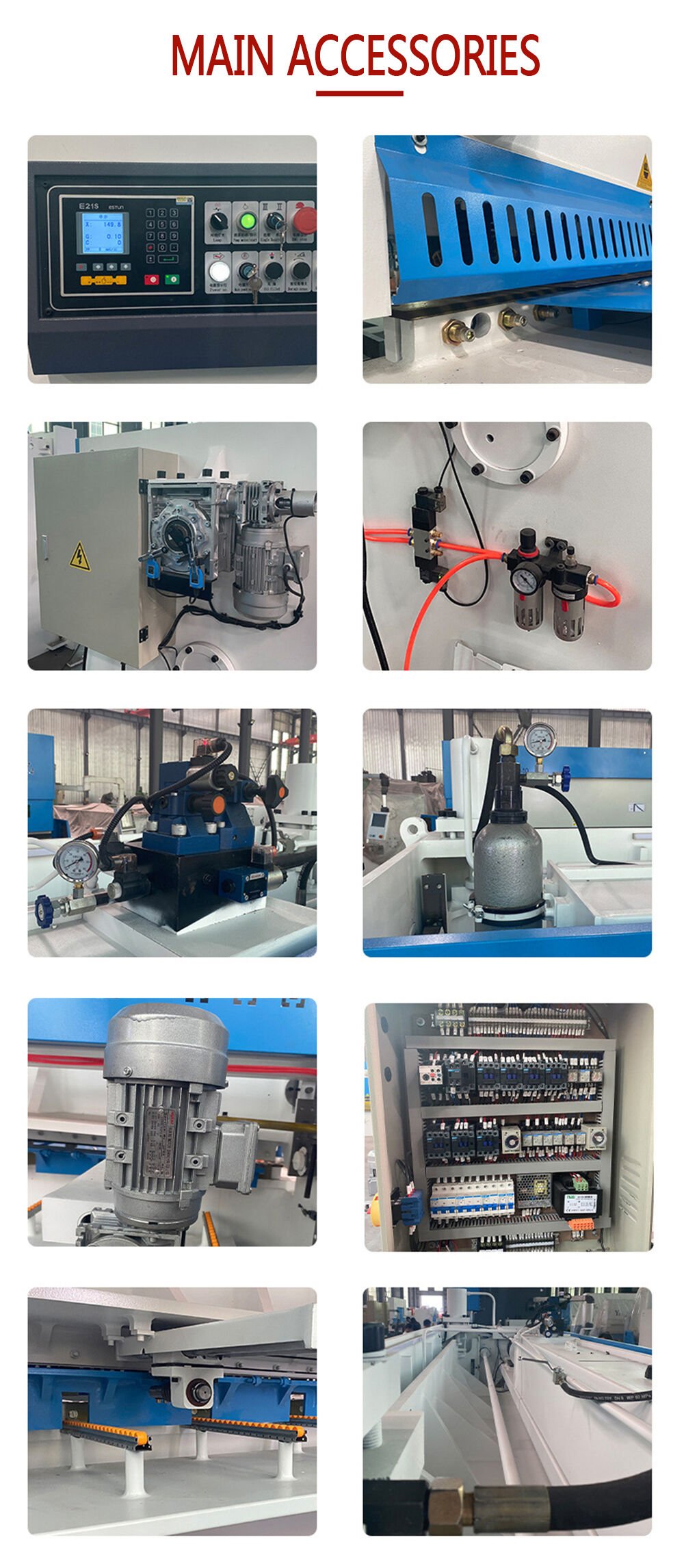

Details

E21S Control System

Easy operating and handlingmm/inch – switchoverRetract functionCutting Angle & Gap controlUp to 500 lines program memorySoftware end position monitoringBack-gauge position display, resolution in 0.05mm

Parameters

Mold	Cutting Thickness(mm)	Cutting Length(mm)	Angle Range(°)	Backgauge Stroke(mm)	Dimensions(mm×mm×mm)	Main Motor(KW)
6×2500	6	2500	1-3	750	3140×1740×2040	7.5
6×3200	6	3200	1-3	750	3750×1770×2150	7.5
6×4000	6	4000	1-3	750	4830×1840×2150	11
6×5000	6	5000	1-3	750	5830×1840×2150	11
6×6000	6	6000	1-3	750	6480×2100×2300	11
8×2500	8	2500	1-3	750	3040×1700×1700	11
8×3200	8	3200	1-3	750	3860×1700×1700	11
8×4000	8	4000	1-3	750	4640×1700×1700	11
8×5000	8	5000	1-3	750	5400×2400×2000	11
8×6000	8	6000	1-3	750	6480×2100×2350	11
8×8000	8	8000	1-3	750	8580×2130×2350	11
10×2500	10	2500	1-3	750	3040×1800×1700	15
10×3200	10	3200	1-3	750	3850×1830×1900	15
10×4000	10	4000	1-3	750	4650×2100×2000	15
10×5000	10	5000	1-3	750	5750×2100×2000	15
10×6000	10	6000	1-3	750	6500×2100×2300	15
10×8000	10	8000	1-3	750	8800×2100×2300	15
12×2500	12	2500	1-3	750	3285×1830×2390	15
12×3200	12	3200	1-3	750	3855×1830×2390	18.5
12×4000	12	4000	1-3	1000	4850×1830×2390	18.5
12×6000	12	6000	1-3	1000	6850×1930×2650	18.5
12×8000	12	8000	1-3	1000	8950×2130×2850	18.5
12×9000	12	9000	1-3	1000	9980×2300×2950	18.5
12×10000	12	10000	1-3	1000	11050×2500×3100	18.5
16×2500	16	2500	1-3	1000	3440×1940×2830	22
16×3200	16	3200	1-3	1000	4010×1940×2830	22
16×4000	16	4000	1-3	1000	5010×1980×2830	22
16×5000	16	5000	1-3	1000	5900×2600×2830	22
16×6000	16	6000	1-3	1000	6900×2700×2830	22
16×8000	16	8000	1-3	1000	8900×2900×3430	22
20×2500	20	2500	1-3	1000	3440×1900×2830	30
20×3200	20	3200	1-3	1000	4010×1900×2830	30
20×4000	20	4000	1-3	1000	4850×2600×2900	30
20×6000	20	6000	1-3	1000	6700×3000×3000	30
30×2500	30	2500	1-3	1000	3440×1900×2830	37
30×3200	30	3200	1-3	1000	4200×1900×3000	37
40×2500	40	2500	1-3	1000	3440×2000×3000	37

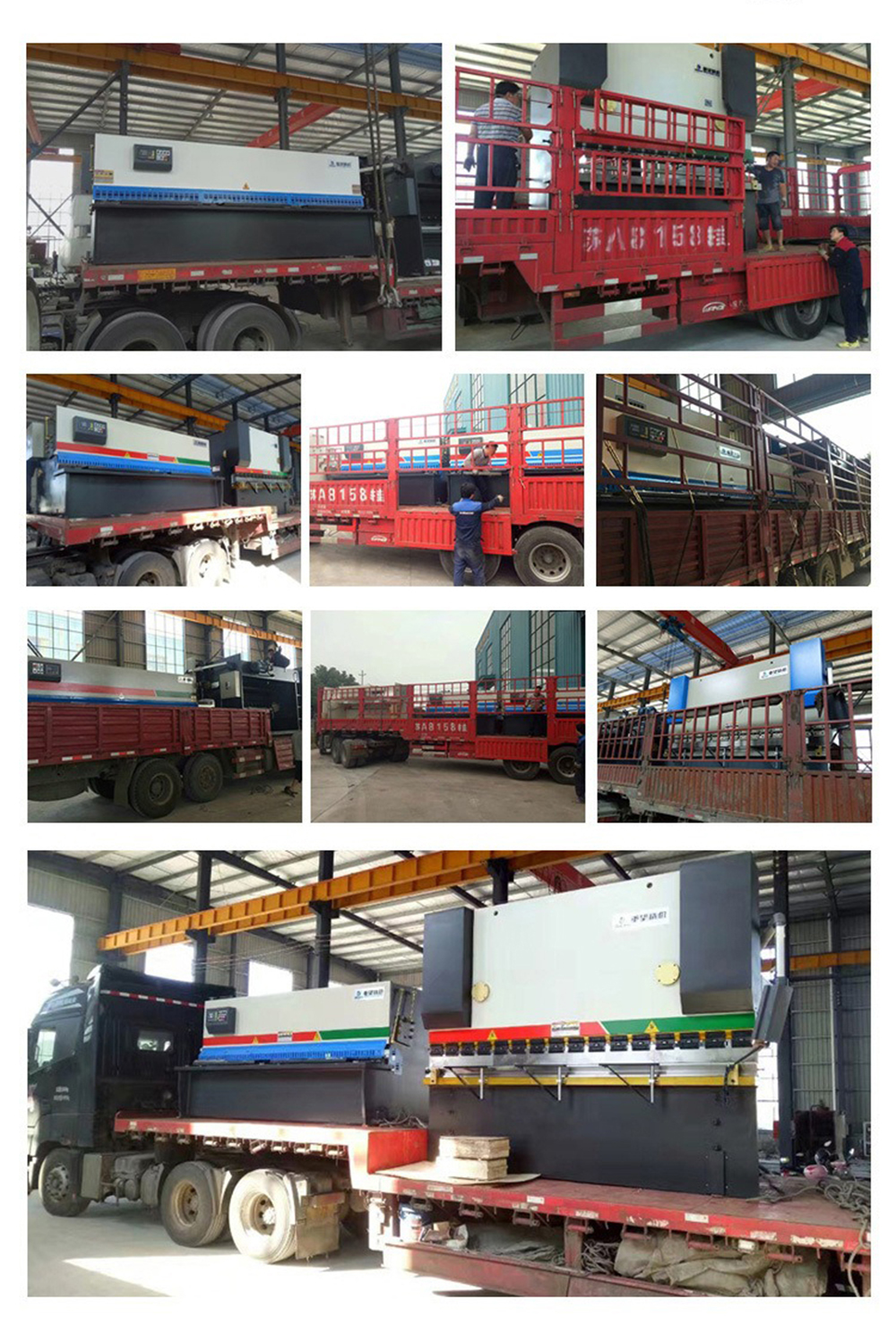

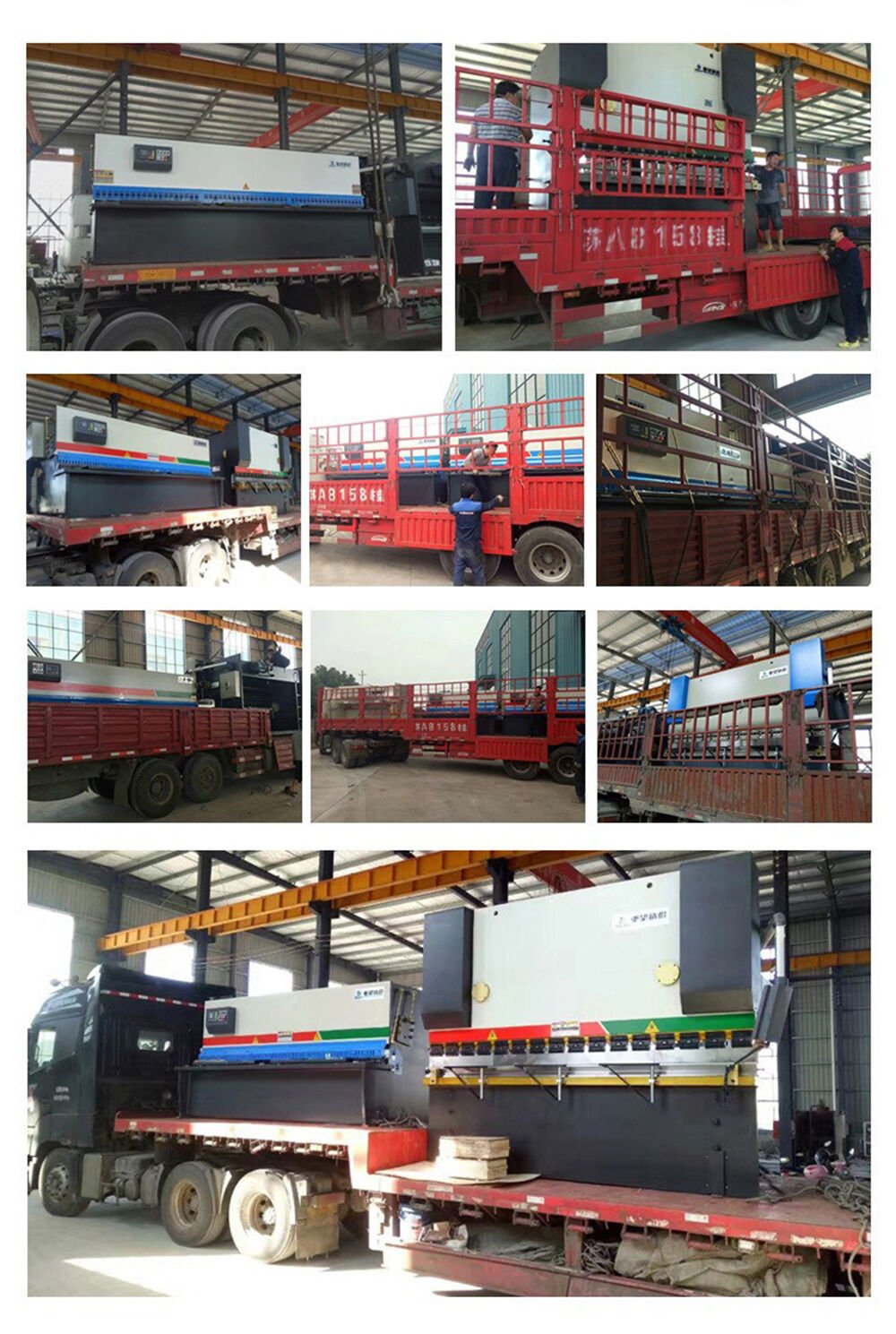

Packaging & Shipping

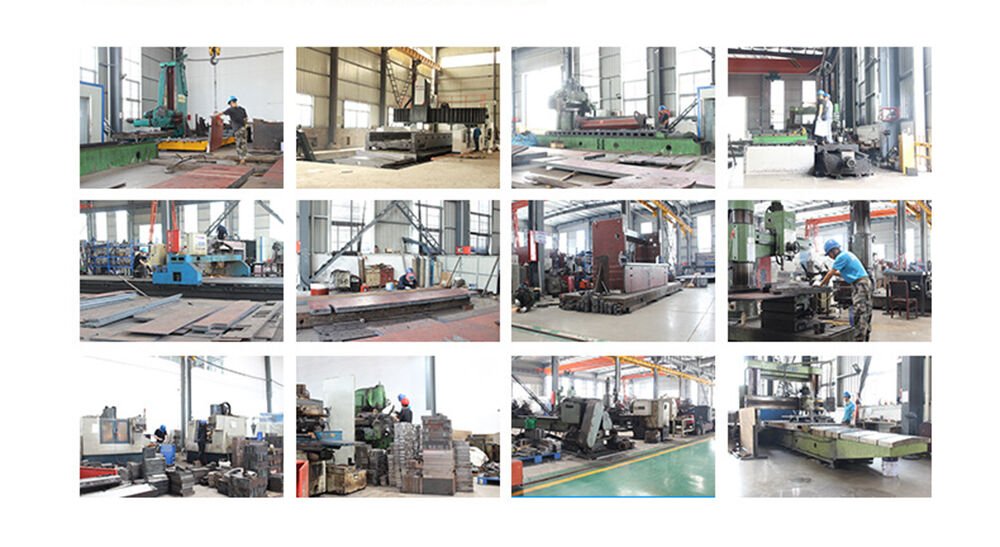

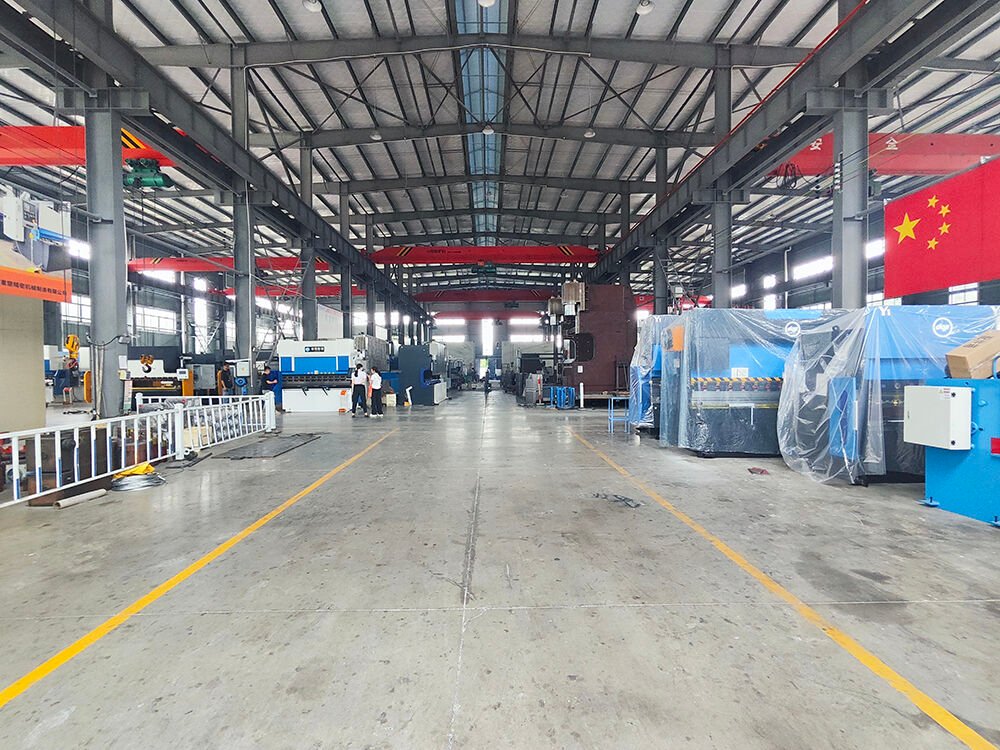

Company Profile

Nadun Machinery Manufacture Co., Ltd. is a company specializing in the production of hydraulic presses, punch presses, shearing machines, bending machines, and other machinery. Our products are widely used in various industries such as automobile manufacturing, home appliances, and hardware processing.
Our company has a team of experienced professionals who consistently strive for excellence in their work. We have a strong research and development team that constantly innovates and improves our products to meet the ever-changing market demands. Our products are known for their high quality, excellent performance, and long service life.

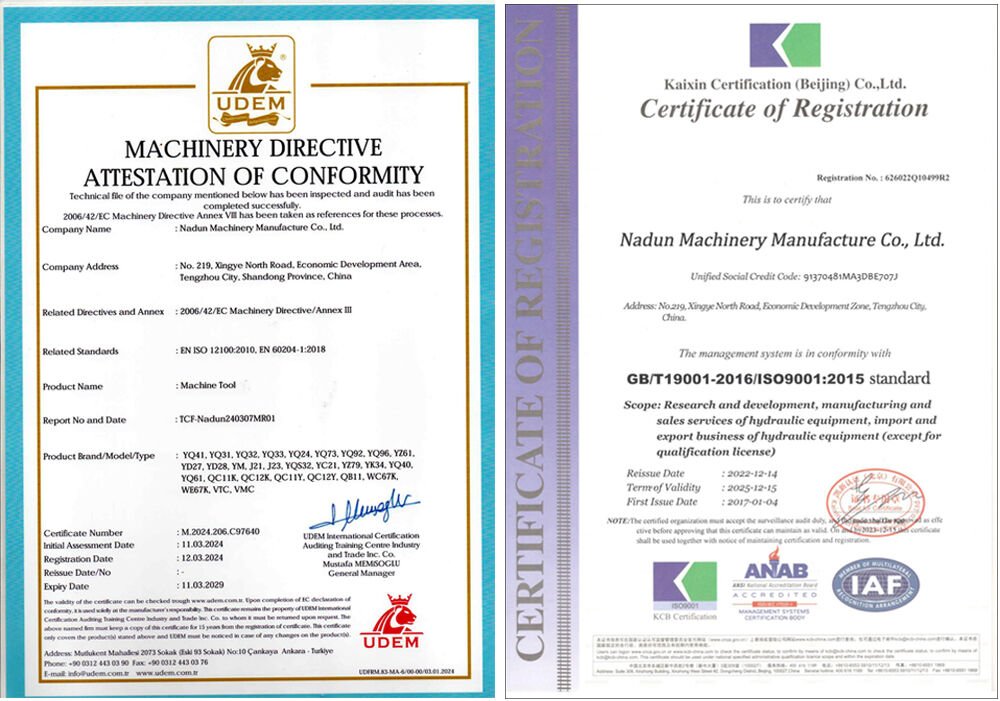

12*3200mm guillotine shearing machine factory

FAQ

Q1: How can you get the after-service?A: We provide one year guarantee.We will send you the spare parts if the problems caused by us.Any problem, you can call us directly.Q2: Can I have a visit to your factory before the order?A: Sure, welcome to inspect our factory.Our factory address: No219 Xingye Road Tengzhou City Shandong ProvinceWe can pick you up in the Tengzhou stationHotel booking service is available .Q3:Are you a factory or trade company?A: We are manufacturer with own factory , export proportion 50~60%.Q4:How can i trust your company?A:We have professional design, we can provide you suitable suggestion and lowest price1. Assessed by third party, national patents and CE, ISO for all equipment, .2. Welcome to inspect anytime.3. Trade Assurance is available.
