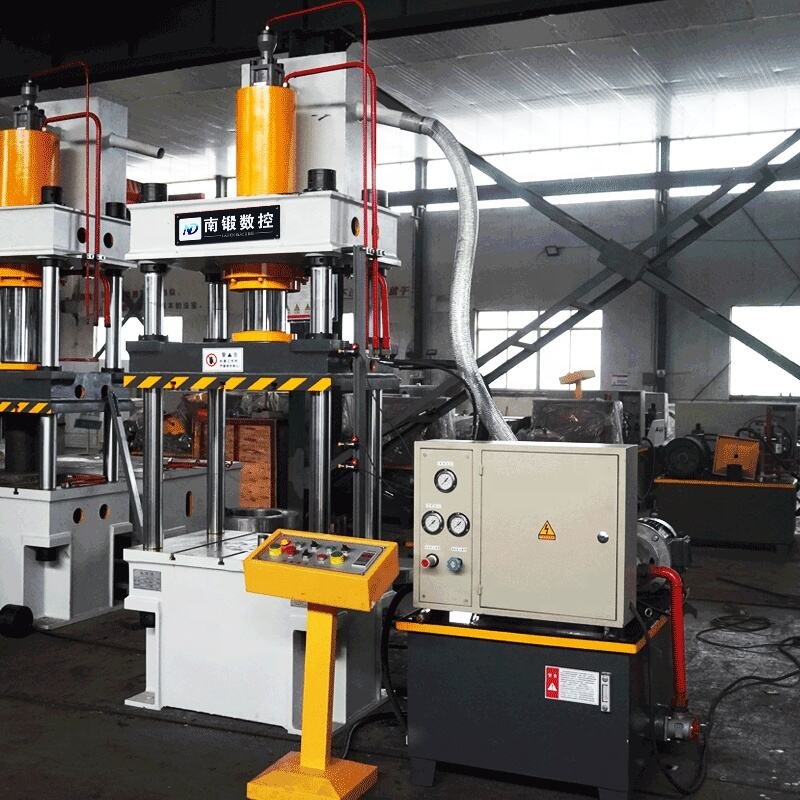

100t Chinese automatic 4 column steel forming hydraulic cold press machine price 100 ton

Place of Origin:	Tengzhou China
Brand Name:	Nadun
Model Number:	没有找到自定义文本
Certification:	CE ISO
Minimum Order Quantity:	1
Packaging Details:	The sample includes a hydraulic press and mold. Please contact us for more details.
Delivery Time:	15-45 day
Payment Terms:	L/C D/P D/A T/T
Supply Ability:	50set/m

Product Overview

Product Description

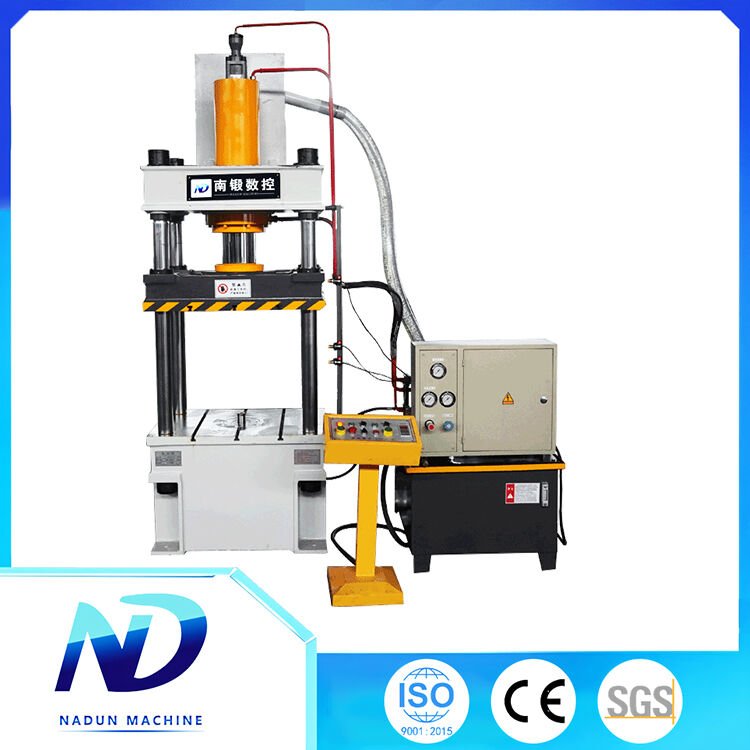

100t Chinese automatic 4 column steel forming hydraulic cold press machine price 100 ton supplier

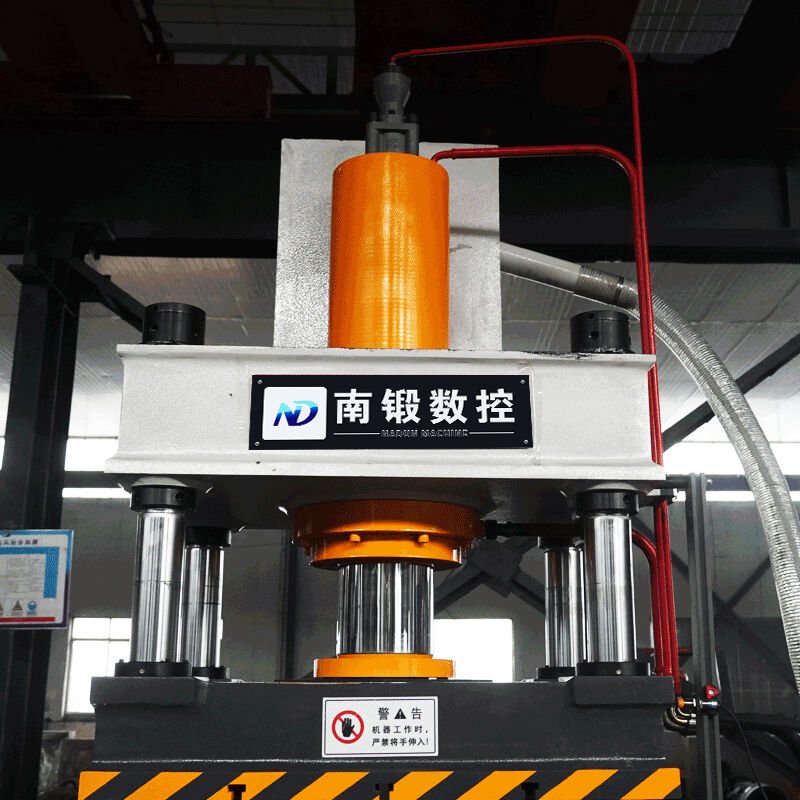

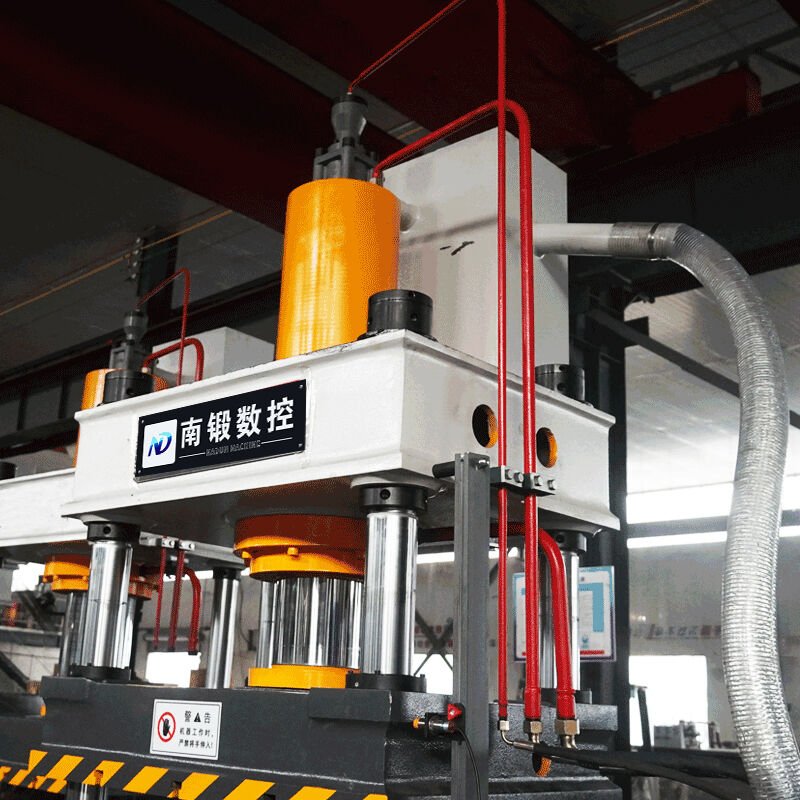

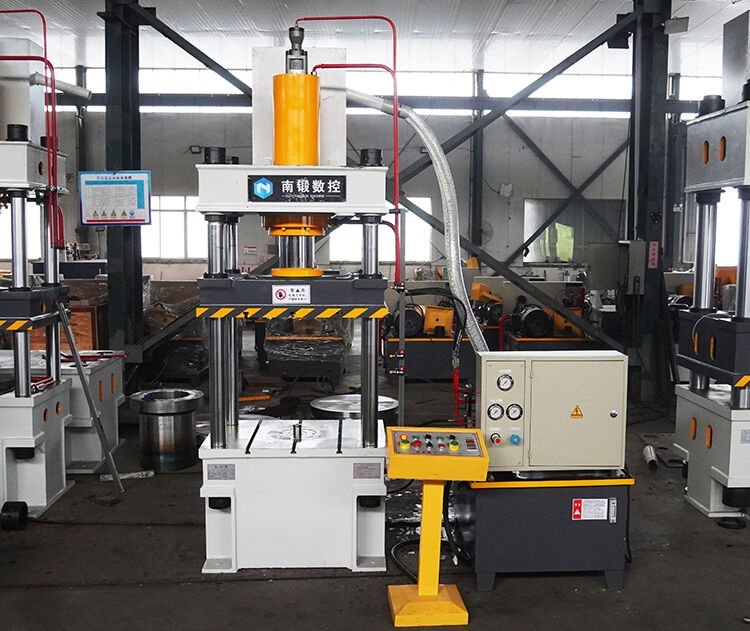

The four-column hydraulic press features a three-beam, four-column structure. The hydraulic system uses a cartridge valve integrated control, and it has an independent and reliable electrical control system with broad versatility. It can achieve two types of forming processes: constant stroke and constant pressure, and it also has the capability of pressure holding with delay. It is widely used and economically efficient.

100t Chinese automatic 4 column steel forming hydraulic cold press machine price 100 ton factory

The four-column hydraulic press is suitable for pressing and forming various plastic materials, such as extrusion, bending, flanging, and stretching. It can also be used for pressing and forming various plastic and powder products.

100t Chinese automatic 4 column steel forming hydraulic cold press machine price 100 ton manufacture

If the hydraulic press is used for processes such as blanking and punching, a punching buffer device should be installed to eliminate or reduce the impact and noise at the moment of material separation.

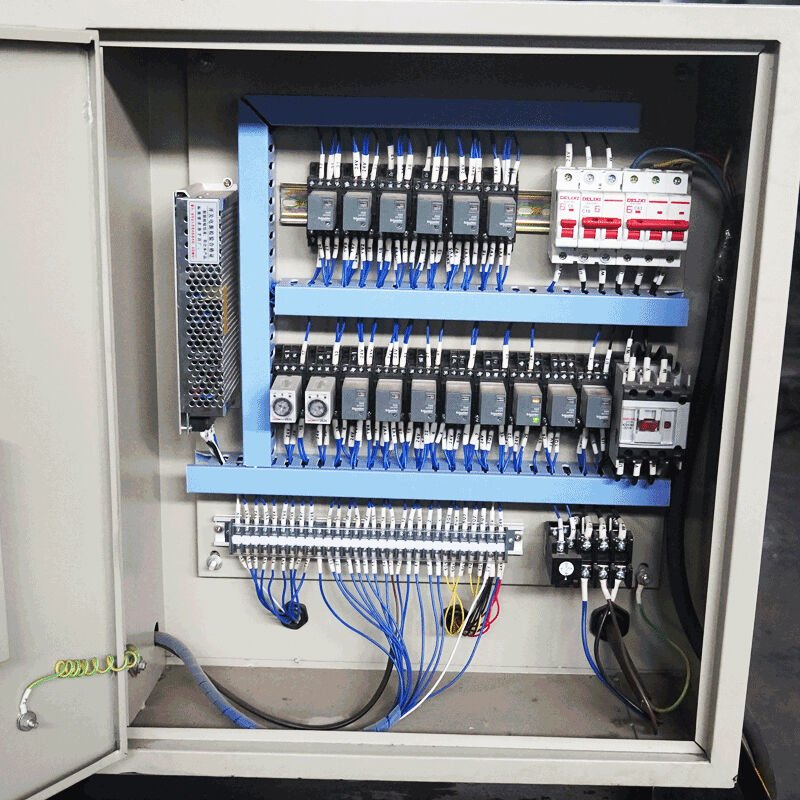

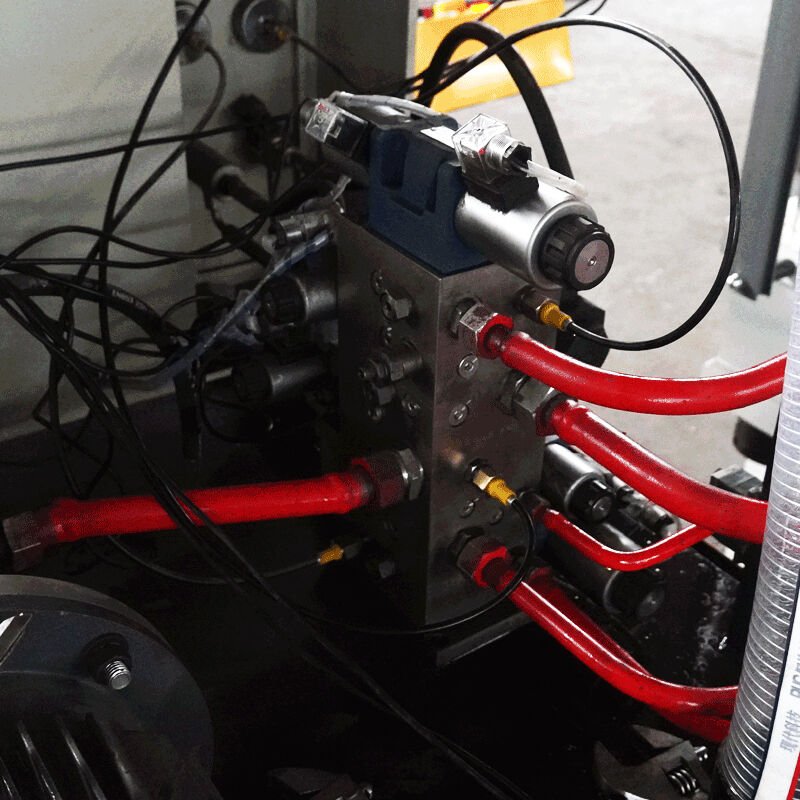

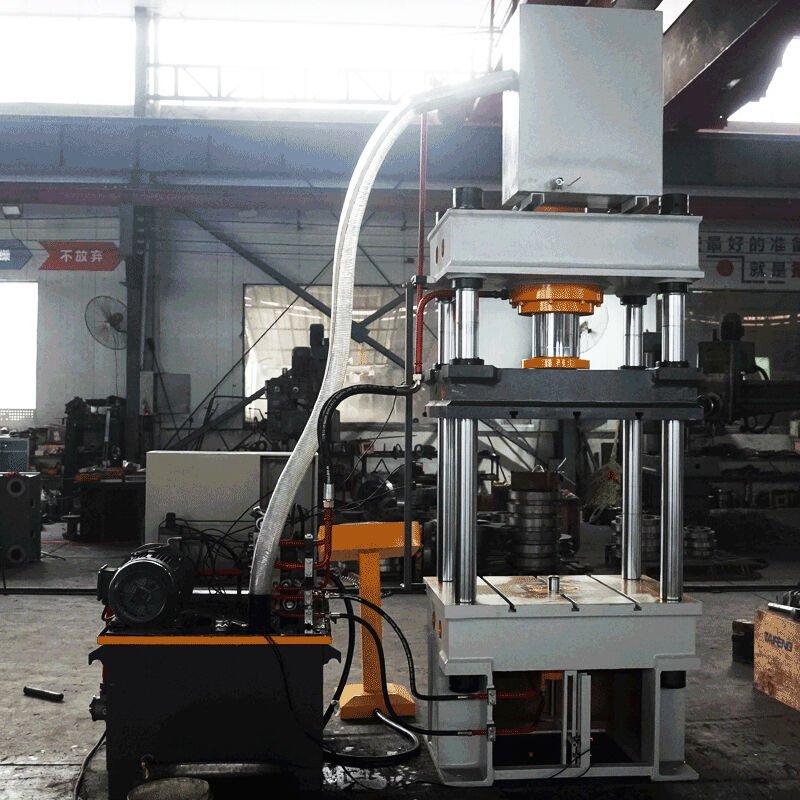

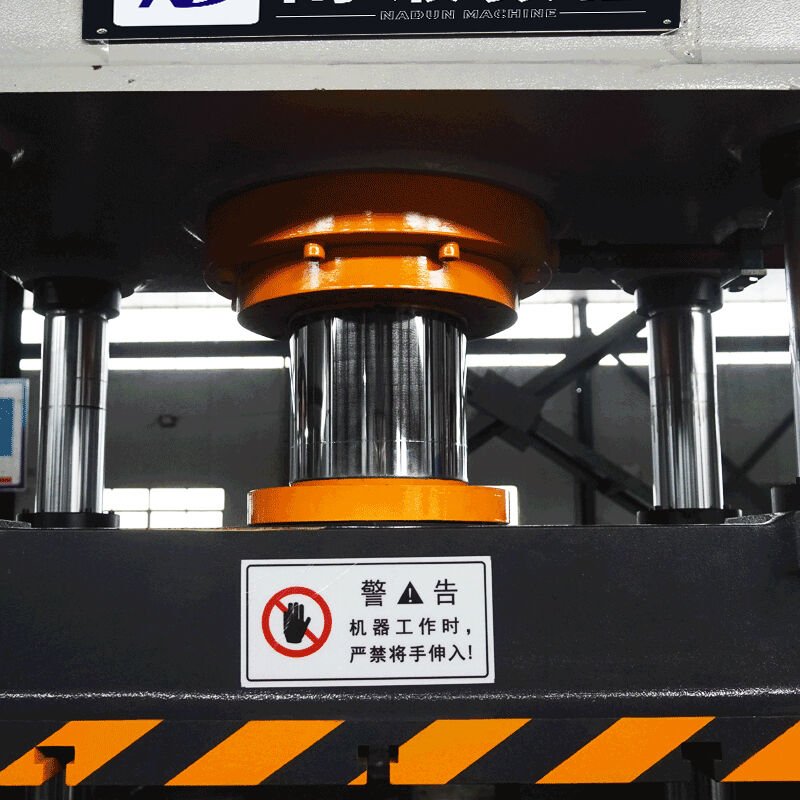

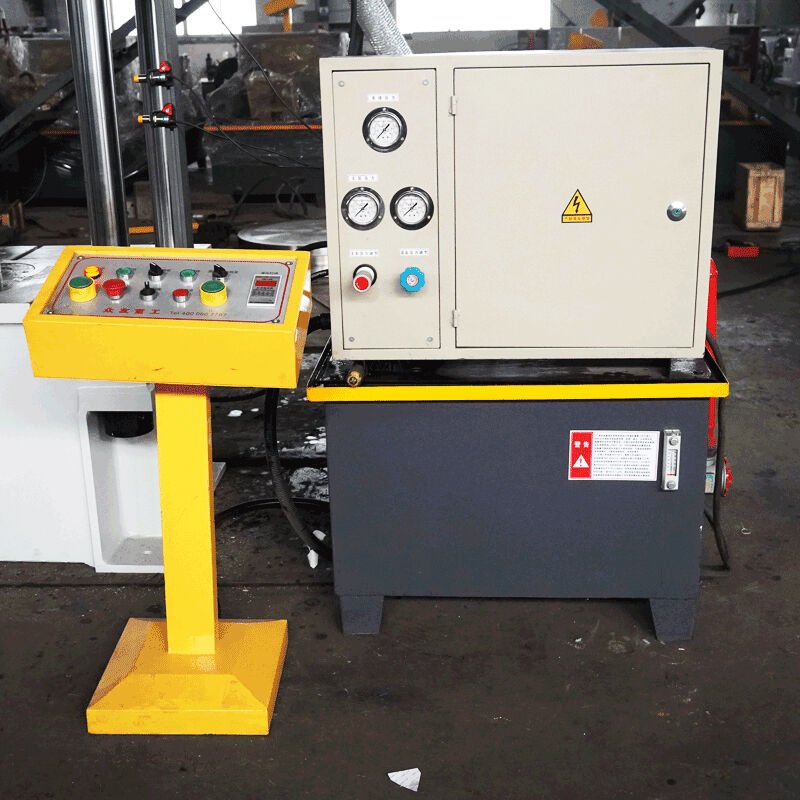

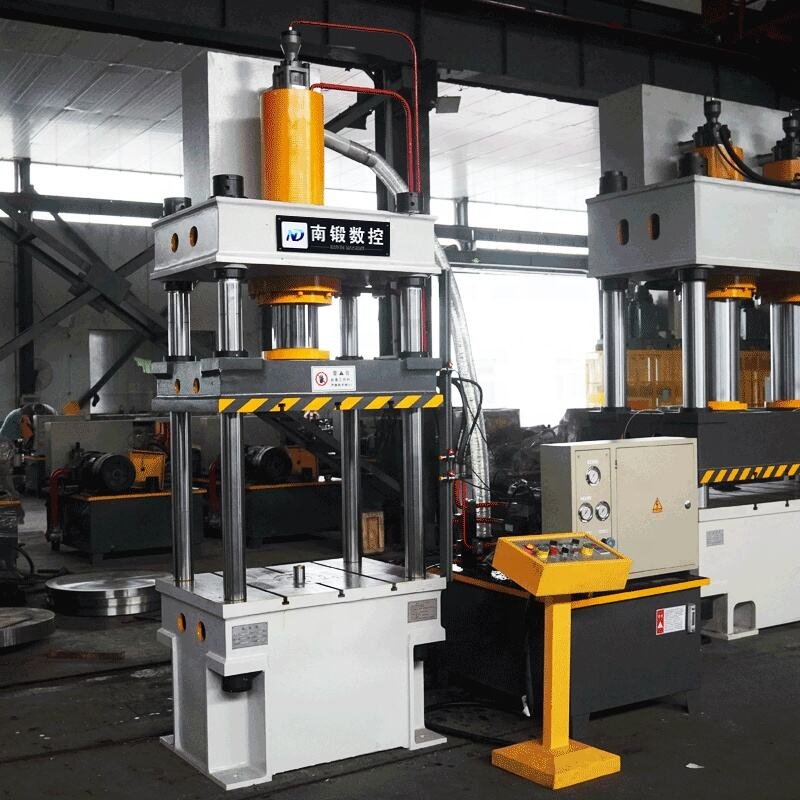

Details Images

Product Paramenters

SPECIFICATION	UNIT	YQ32-63T	YQ32-100TA	YQ32-100TB	YQ32-160T	YQ32-200T
Nominal force	KN	630	1000	1000	1600	2000
Max.System pressure	Mpa	25	25	25	25	25
Max.Open height	mm	700	800	900	900	1100
Max.Stroke of slider	mm	400	500	600	600	700
Effective table size	mm	610×500	630×550	750×700	800×800	1000×1000
Down speed	mm/s	100	100	100	100	100
Pressing speed	mm/s	11～22	7～15	7～15	7～18	7～18
Return speed	mm/s	80	90	90	90	90
Ejection cylinder force	KN	100	200	200	400	400
Stroke of ejectioncylinder	mm	160	200	200	200	200

Packing & Delivery

100t Chinese automatic 4 column steel forming hydraulic cold press machine price 100 ton manufacture

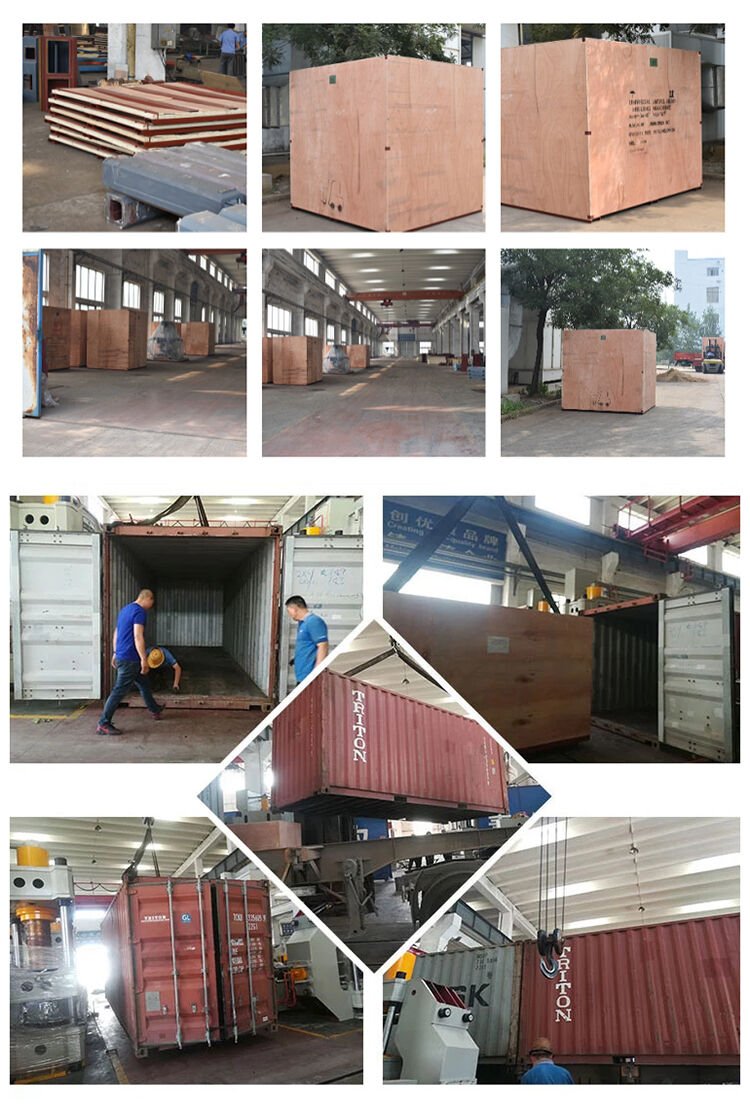

Internal plastic, moisture-proof, anti-rust packaging. External plywood packaging. Exclusive container transport.Delivery time: 10-40 days after order.
