Nadun 400T Gantry Hydraulic Press Machine With Movable Worktable

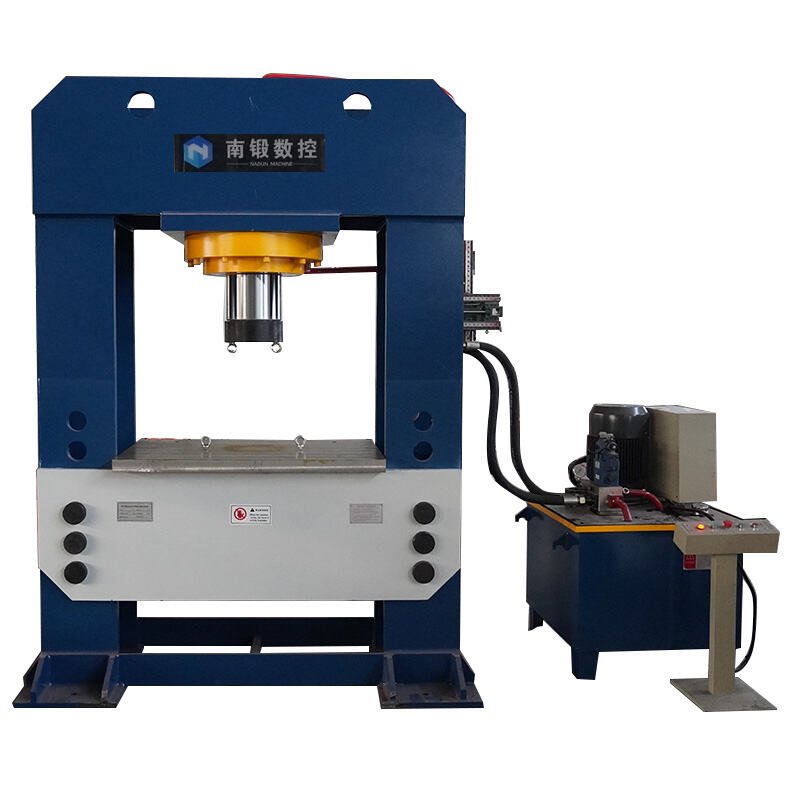

NADUN 400 Ton High-quality H frame Hydraulic Press

Our 400 tons H frame hydraulic press machine offers exceptional performance in a compact, user-friendly design. With advanced features like precise control of pressure and speed, as well as a robust and durable construction, this machine is a reliable and efficient choice for a wide range of industrial applications. Backed by our commitment to excellence and customer satisfaction, you can trust that our hydraulic press machine will meet all of your manufacturing needs.

Details Images

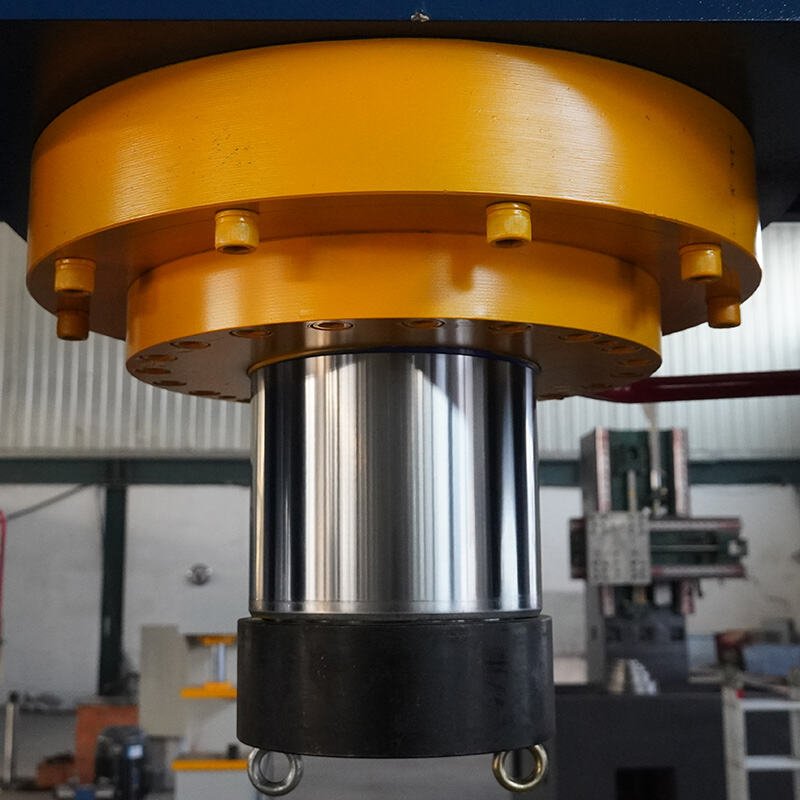

Piston rod

Piston rod :Sturdy and versatile element that transmits force in hydraulic systems.

Electromotor

Electromotor is an electric motor that converts electrical energy into mechanical power. It is commonly used to drive machinery.

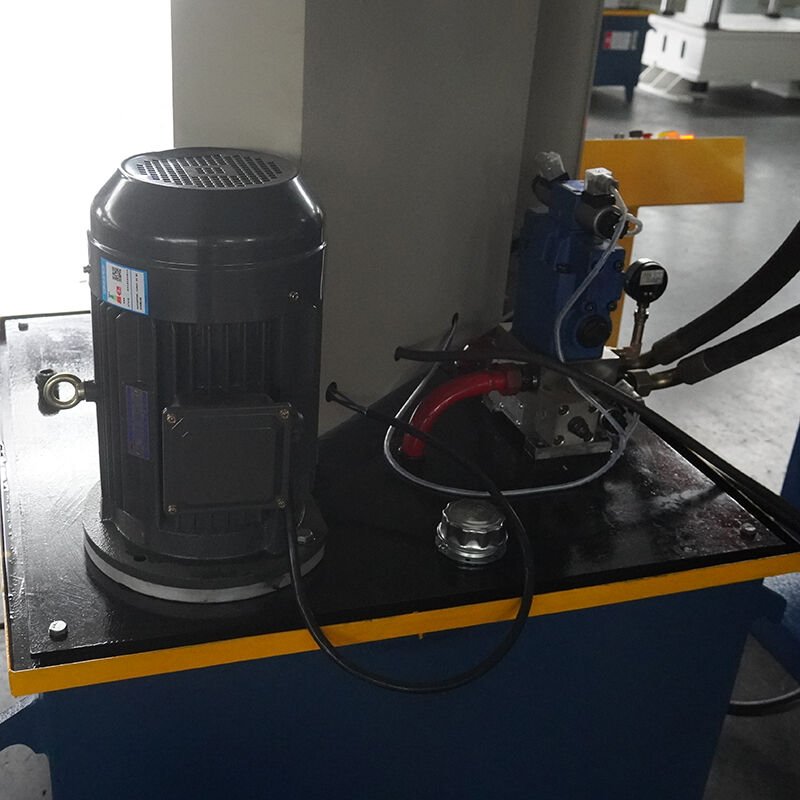

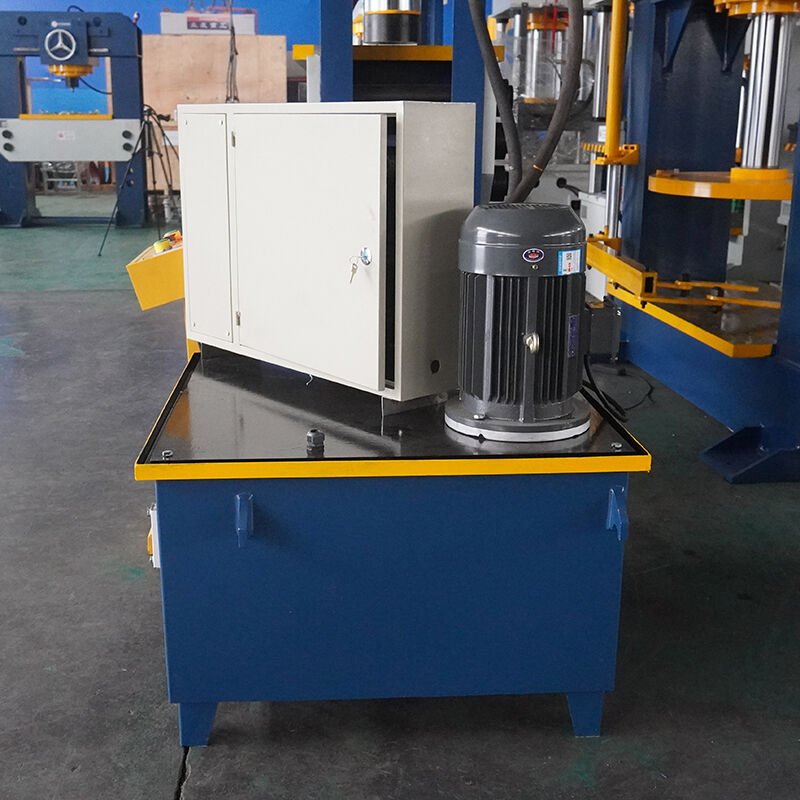

Hydraulic pump unit

Hydraulic pump unit uses mechanical power to generate hydraulic energy, transferring fluids under pressure to power machinery.
This system is highly efficient and durable.

Mobile workbench

A mobile workbench is a versatile work surface that is designed to offer a stable and functional workspace for various tasks. Its portability allows it to be easily transported from one location to another.

Use Characteristics

This machine can be preset pressure;
Can be used for production and processing;
Correction of deformed workpiece;
Disassembly and assembly of various tightly matched parts;
Calibration of various sheet metal profiles.

Product Parameter

Parameters（蓝白）	Units	HP-100T	HP-200T	HP-300T	HP-400T
Nominal Force	KN	1000	2000	3000	4000
System Pressure	Mpa	31.5	31.5	31.5	31.5
Slide Stroke	mm	250	300	300	300
Opening Height (Daylight)	mm	250/385/520/655	300/435/570/705	300/435/570/705	300/435/570/705
Worktable Size	mm	980×440	1000×500	1200×700	1200×800
Dimensions	mm	1720×700×2015/ 650×650×500	1610×900×2300/ 750×750×500	1950×950×2570/ 900×900×500	2050×990×2760/ 750×750×500

Compared with the traditional hydraulic machine, the energy saving effect is remarkable. According to the processing technology and the production cycle, the servo drive hydraulic machine can save 30%~70% compared with the traditional hydraulic machine.

Packing&Delivery

Internal plastic moisture-proof anti-rust packaging, External wooden packaging, Exclusive container transport.
