Nadun 20T Gantry Hydraulic Press Machine With Movable Worktable

Place of Origin:	Tengzhou China
Brand Name:	Nadun
Model Number:	没有找到自定义文本
Certification:	CE ISO
Minimum Order Quantity:	1
Packaging Details:	The sample includes a hydraulic press and mold. Please contact us for more details.
Delivery Time:	15-45 day
Payment Terms:	L/C D/P D/A T/T
Supply Ability:	50set/m

Product Overview

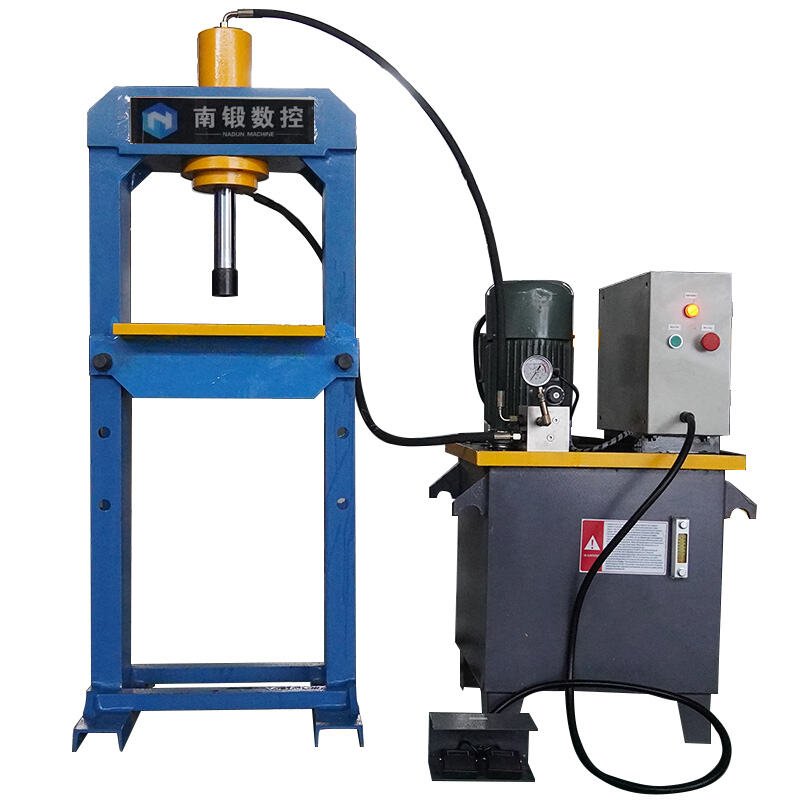

NADUN 20 Ton High-quality H frame Hydraulic Press

Nadun 20T Gantry Hydraulic Press Machine With Movable Worktable details

Experience the epitome of heavy-duty metalworking and manufacturing with the H Frame 20 Ton Hydraulic Press. Engineered for robust performance, this machine is designed to handle the most demanding tasks in metalworking and manufacturing with ease.

Details Images

Nadun 20T Gantry Hydraulic Press Machine With Movable Worktable details

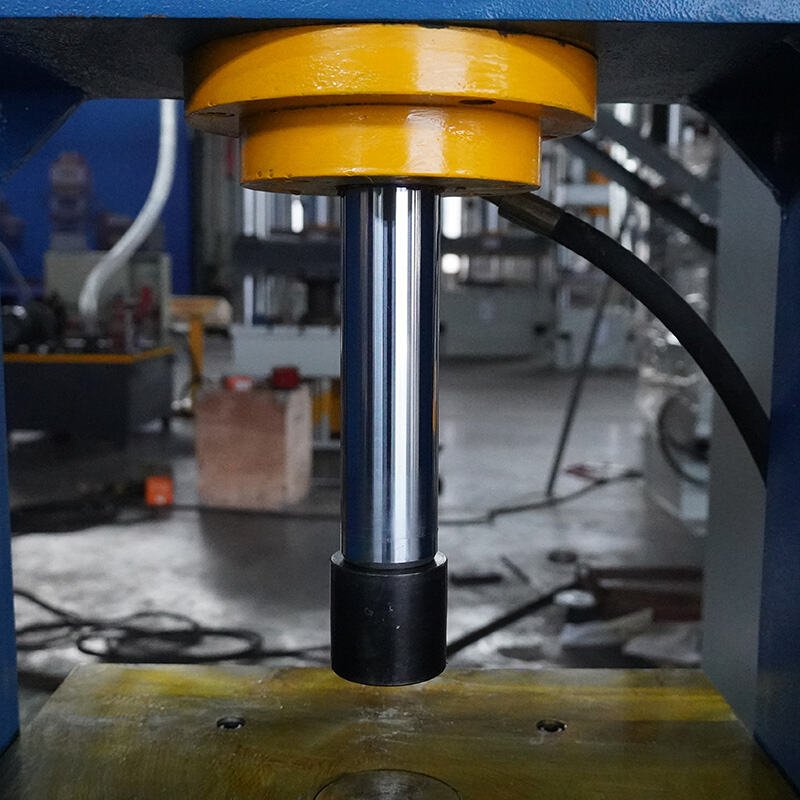

Piston rod

Piston rod :Sturdy and versatile element that transmits force in hydraulic systems.

Nadun 20T Gantry Hydraulic Press Machine With Movable Worktable manufacture

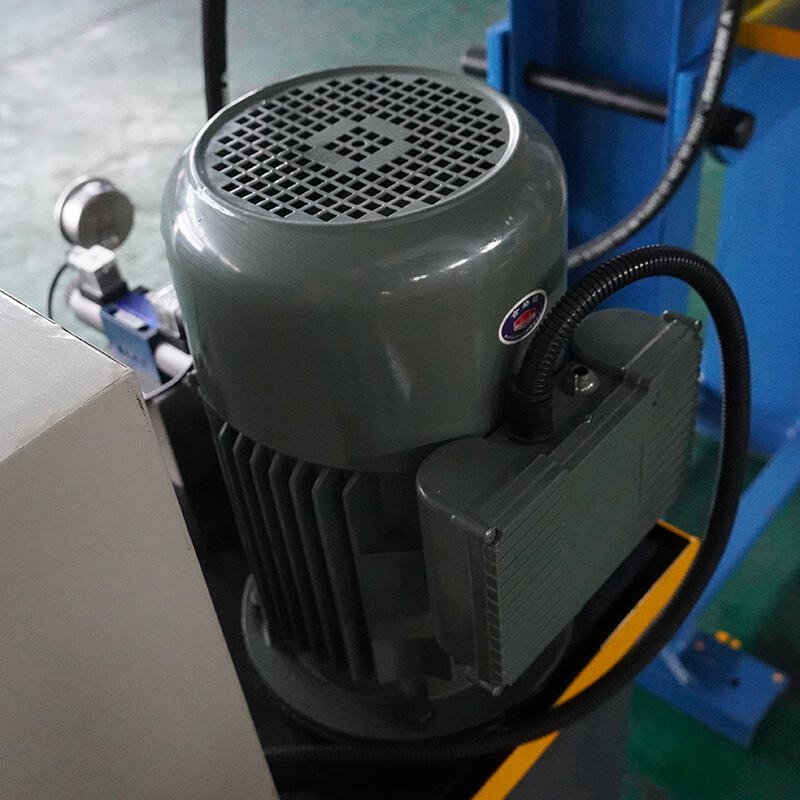

Electromotor

Electromotor is an electric motor that converts electrical energy into mechanical power. It is commonly used to drive machinery.

Nadun 20T Gantry Hydraulic Press Machine With Movable Worktable manufacture

Hydraulic pump unit

Hydraulic pump unit uses mechanical power to generate hydraulic energy, transferring fluids under pressure to power machinery.This system is highly efficient and durable.

Nadun 20T Gantry Hydraulic Press Machine With Movable Worktable manufacture

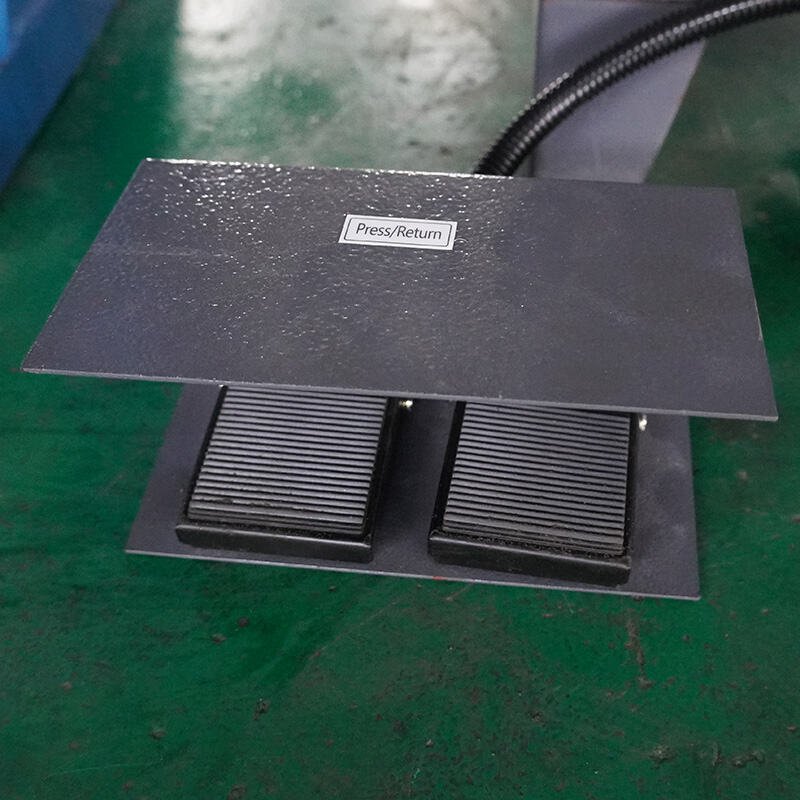

Foot Switch

The foot switch is a vital component of hydraulic presses, providing a convenient and safe way for operators to control the press. It allows for quick and easy activation of the press, improving efficiency and productivity.

Nadun 20T Gantry Hydraulic Press Machine With Movable Worktable factory

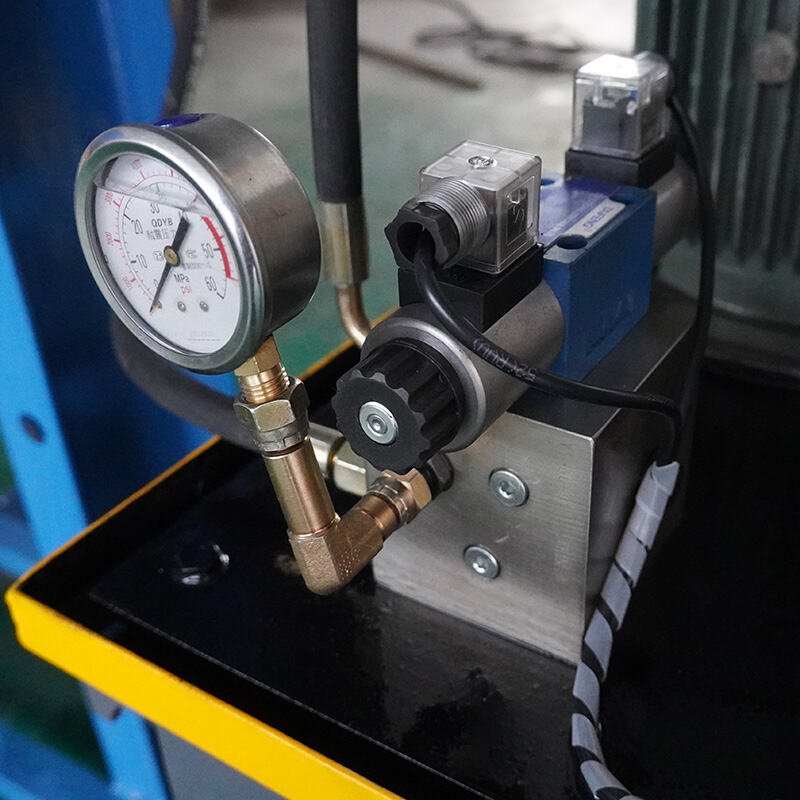

Pressure regulating valve

The pressure gauge measures the force generated by the press, while the regulating valve allows for precise adjustment of the pressure to ensure optimal performance. Together, they play a key role in maintaining the accuracy, safety, and efficiency of the hydraulic press.

Use Characteristics

This machine can be preset pressure;Can be used for production and processing;Correction of deformed workpiece;Disassembly and assembly of various tightly matched parts;Calibration of various sheet metal profiles.

Product Parameter

Parameters	Units	YM-20T	YM-40T	YM-63T	YM-100T
Nominal Force	kn	200	400	630	1000
System Pressure	mpa	31.5	31.5	31.5	31.5
Slide Stroke	mm	200	200	220	220
Opening Height(Daylight)	mm	560	560	560	600
Worktable Size	mm	450×400	500×400	600×450	700×500
Blanking hole diameter	mm	∅60	∅80	∅100	∅140

Compared with the traditional hydraulic machine, the energy saving effect is remarkable. According to the processing technology and the production cycle, the servo drive hydraulic machine can save 30%~70% compared with the traditional hydraulic machine.
