80 ton mechanical punch has high force, precision, and standard tonnage; mechanical punch with enhanced 80-ton capacity

Quick Detail:

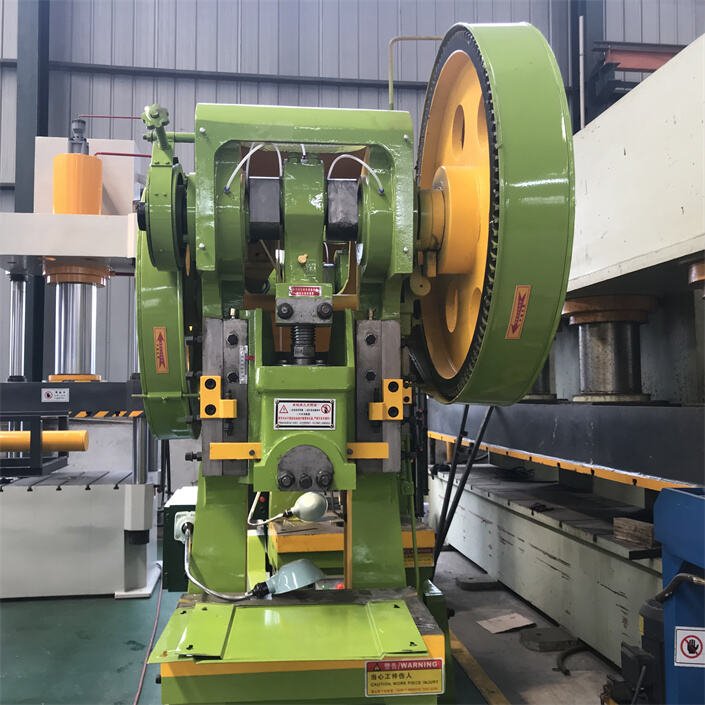

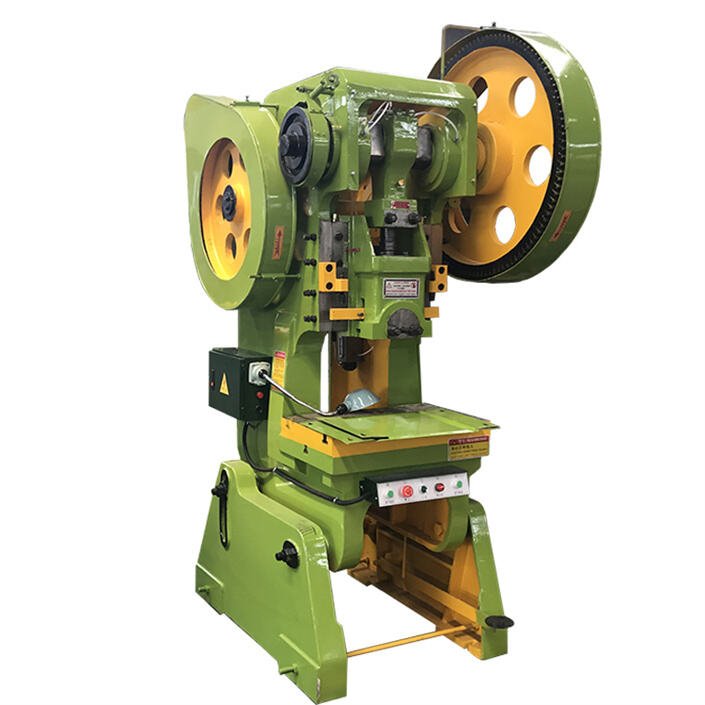

The J23-80 ton mechanical punch, also known as an 80-ton mechanical power press or a heavy-duty mechanical punching machine, is a robust and reliable piece of equipment that offers high force, precision, and standard tonnage for various metalworking applications.

This machine is primarily used in metal fabrication shops, manufacturing industries, and other sectors where the need for high-force punching operations arises. It is particularly useful for punching holes, shapes, and patterns in metal sheets, plates, and components.

The core specifications of the J23-80 ton mechanical punch are as follows:

Specification Unit 80T

Nominal Force Kn 800

Slide Block Stroke mm 120

Stroke times times/min 40

Max Die Set Height mm 280

Die set height adjustment mm 50

Worktable size mm 760×470×85

Distance from slide block center to frame mm 275

Blank Hole size mmΦ180

Handle Hole size (DiaxDep) mmΦ60×60

Description:

The J23-80 ton mechanical punch is a high-force, precision, and standard tonnage machine that offers enhanced capabilities with its 80-ton capacity. Designed to meet the demands of the mechanical industry, this mechanical punch is built to handle a wide range of materials and applications.

With its robust construction and advanced design, the J23-80 ton mechanical punch delivers exceptional performance and reliability. Its high-force capability allows for efficient punching of thick materials, while its precision ensures accurate and consistent results. The standard tonnage feature ensures that the machine operates within safe parameters, preventing overloading and potential damage.

The enhanced 80-ton capacity of this mechanical punch sets it apart from other models, providing greater versatility and the ability to handle larger and more demanding projects. Whether you are working with sheet metal, plate, or other materials, the J23-80 ton mechanical punch is up to the task.

Applications:

The J23-80 ton mechanical punch is a versatile and powerful machine that finds its applications in various industries, including but not limited to:

1. Automotive Industry: The J23-80 ton mechanical punch is widely used in the automotive industry for manufacturing car body parts, chassis components, and other automotive sheet metal components. Its high force and precision make it ideal for punching holes, slots, and other shapes in thick metal sheets.

2. Aerospace Industry: In the aerospace industry, this mechanical punch is utilized for fabricating aircraft components, such as ribs, stringers, and other structural parts. Its enhanced capacity allows for the processing of high-strength materials used in aircraft construction.

3. General Metal Fabrication: The J23-80 ton mechanical punch is a valuable tool for general metal fabrication shops, where it is used to produce a wide range of products, including enclosures, brackets, and other custom metal parts. Its precision and high force make it suitable for both prototyping and high-volume production.

4. Shipbuilding Industry: In the shipbuilding industry, this mechanical punch is used for manufacturing ship components, such as hull plates, deck panels, and other structural elements. Its ability to handle thick materials ensures the production of durable and reliable ship components.

5. Railway Industry: The J23-80 ton mechanical punch is also employed in the railway industry for fabricating various railway components, such as carriage bodies, wagon parts, and other railway infrastructure elements. Its high force and precision contribute to the production of robust and safe railway vehicles.

6. Construction Industry: In the construction industry, this mechanical punch is used for producing metal components, such as brackets, ladders, and other construction hardware. Its versatility allows for the processing of different materials and thicknesses, meeting the diverse needs of construction projects.

Specifications:

Competitive Advantage:

The J23-80 ton mechanical punch stands out in the market due to its competitive advantages, which include:

1. High Force and Precision: With its 80-ton capacity, the J23-80 ton mechanical punch delivers exceptional force for punching thick materials, ensuring clean and accurate cuts every time. Its precision ensures that the final product meets the required specifications, reducing waste and rework.

2. Enhanced Capacity: The enhanced 80-ton capacity of this mechanical punch sets it apart from competitors, allowing for the processing of larger and thicker materials. This makes it a preferred choice for industries that require high-force punching capabilities.

3. Versatility: The J23-80 ton mechanical punch is designed to handle a wide range of materials, including sheet metal, plate, and other metals. Its versatility makes it suitable for various applications, providing flexibility to businesses and meeting diverse customer needs.

4. Reliability and Durability: Built with robust construction and high-quality components, the J23-80 ton mechanical punch is designed for long-lasting performance. Its reliability ensures minimal downtime and maintenance requirements, resulting in increased productivity and cost savings.

5. Standard Tonnage Feature: The standard tonnage feature of the J23-80 ton mechanical punch ensures safe operation by preventing overloading. This feature enhances operator safety and machine longevity, reducing the risk of accidents and equipment damage.

6. Cost-Effective: The J23-80 ton mechanical punch offers a cost-effective solution for businesses, combining high performance with affordability. Its efficient operation and minimal maintenance requirements result in lower operating costs, making it a valuable investment.

7. User-Friendly: The J23-80 ton mechanical punch is designed with user-friendly features, making it easy to operate and maintain. Its intuitive control panel and adjustable settings allow for quick setup and efficient production, improving overall productivity.
