Hydraulic Solid Tire Press Machine250T Forklift Tire Mounting/Demounting

Place of Origin:	Tengzhou China
Brand Name:	Nadun
Model Number:	YM-250T
Certification:	CE ISO
Minimum Order Quantity:	1
Packaging Details:	The sample includes a hydraulic press and mold. Please contact us for more details.
Delivery Time:	15-45 day
Payment Terms:	L/C D/P D/A T/T
Supply Ability:	50set/m

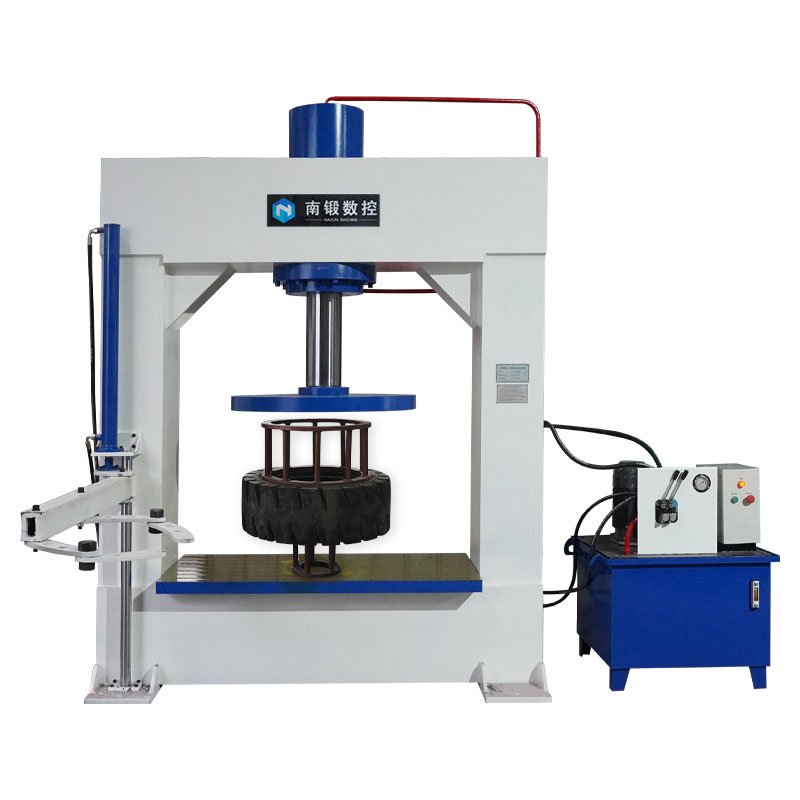

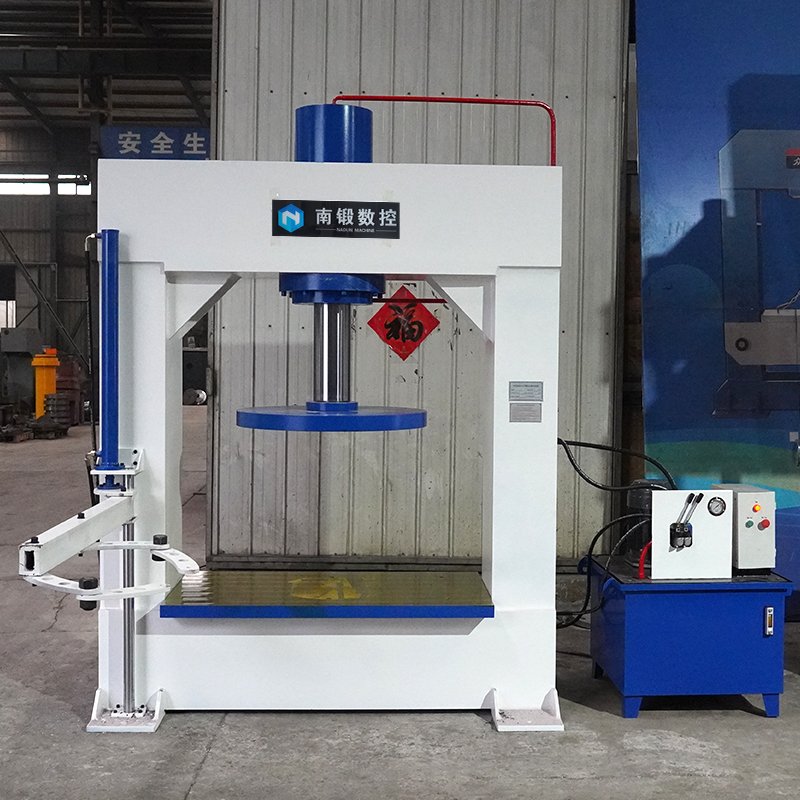

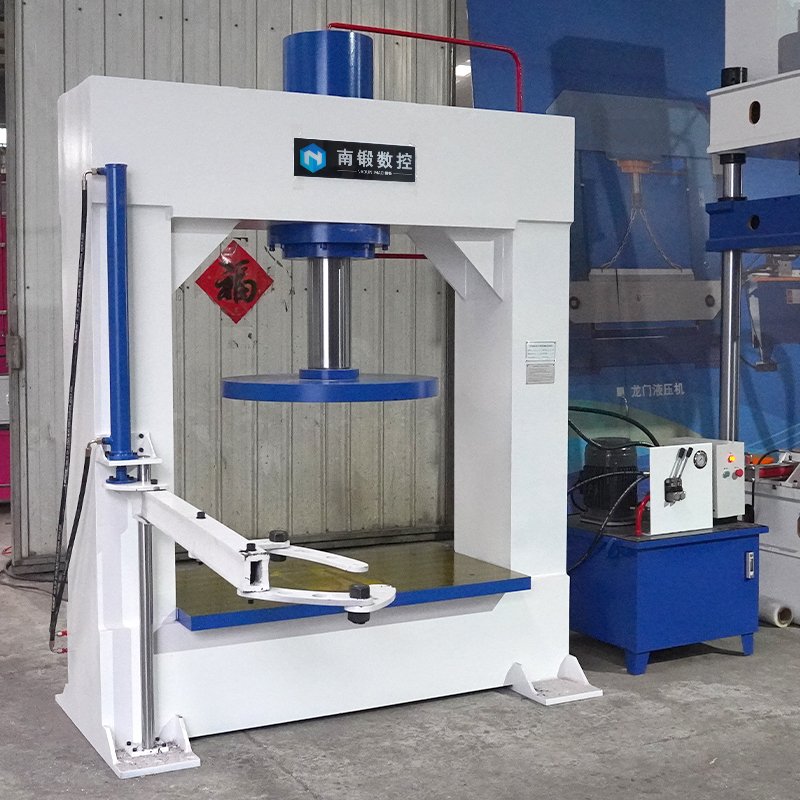

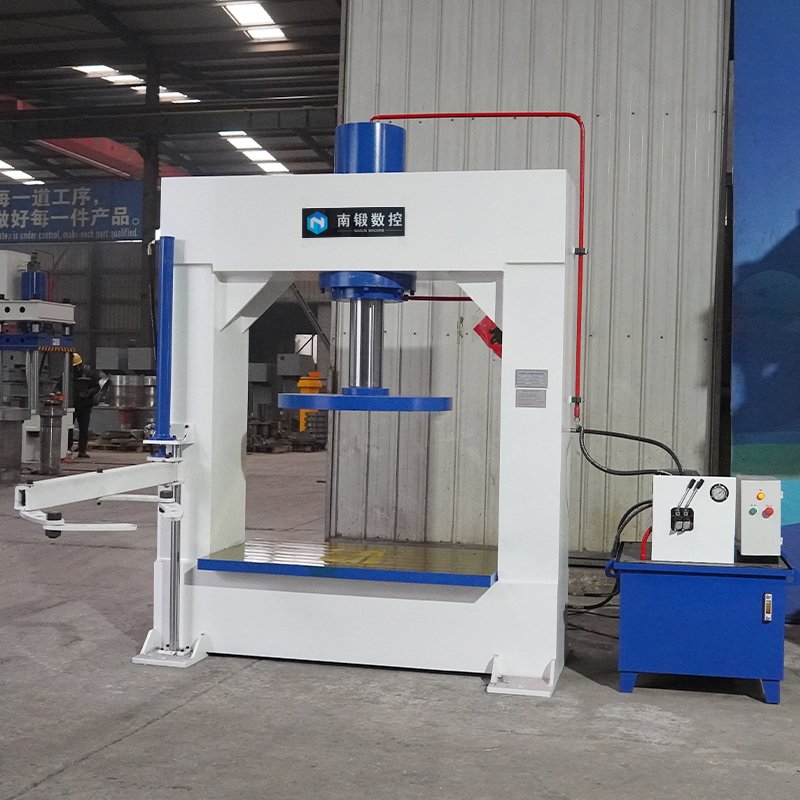

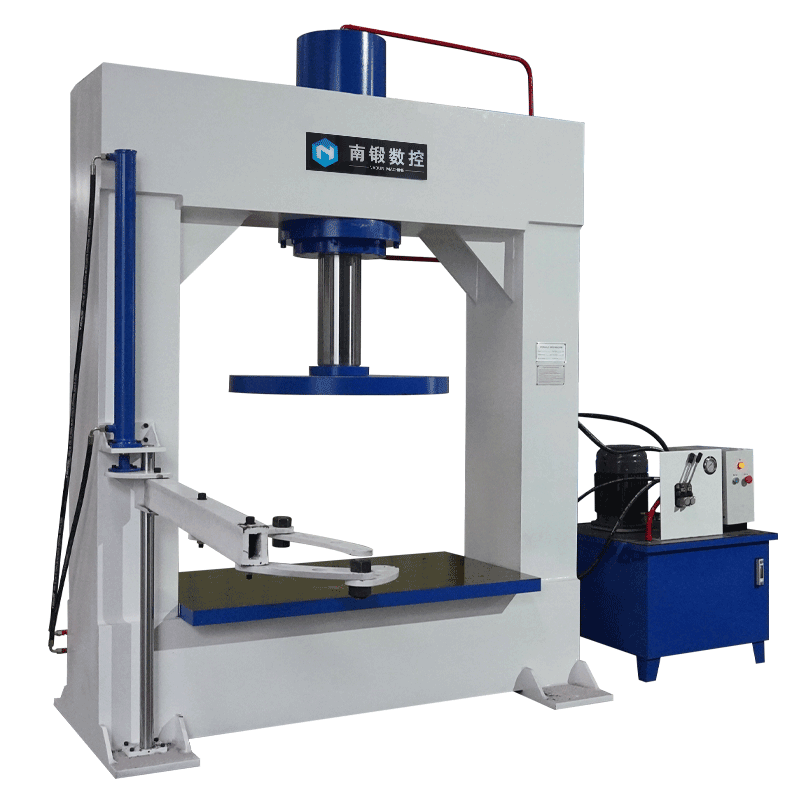

Product Overview

The 250-ton tire press with lifting arm is a piece of equipment specifically designed for the mounting and dismounting of large and medium-sized solid tires and construction vehicle tires. Based on the 250-ton gantry (frame-type) tire press, it is equipped with a hydraulically driven lifting and rotating arm to replace manual handling of heavy tires and tooling.

Parameters

Tonnage	Working Pressure	Cylinder Diameter/Rod Diameter	Effective Table Size	Opening Height	Stroke	Pressing Speed	Return Speed	Motor Power	Oil Pump Specification
100	31.5	D200/d100	1000x800	1100	500	7mm/s	10mm/s	5.5kw	10McY (fixed)
120	31.5	D220/d110	1000x800	1100	600	6mm/s	8mm/s	5.5kw	10McY (fixed)
160	31.5	D250/d150	1400x800	1100	600	6-12mm/s	15mm/s	5.5kw	25McY (fixed)
200	31.5	D290/d160	1500x800	1200	600	4-9mm/s	12mm/s	5.5kw	25McY (fixed)
250	31.5	D310/d180	1500x800	1200	600	6-12mm/s	15mm/s	7.5kw	40McY (fixed)
300	31.5	D360/d220	1500x800	1200	600	4-9mm/s	15mm/s	7.5kw	40McY (fixed)

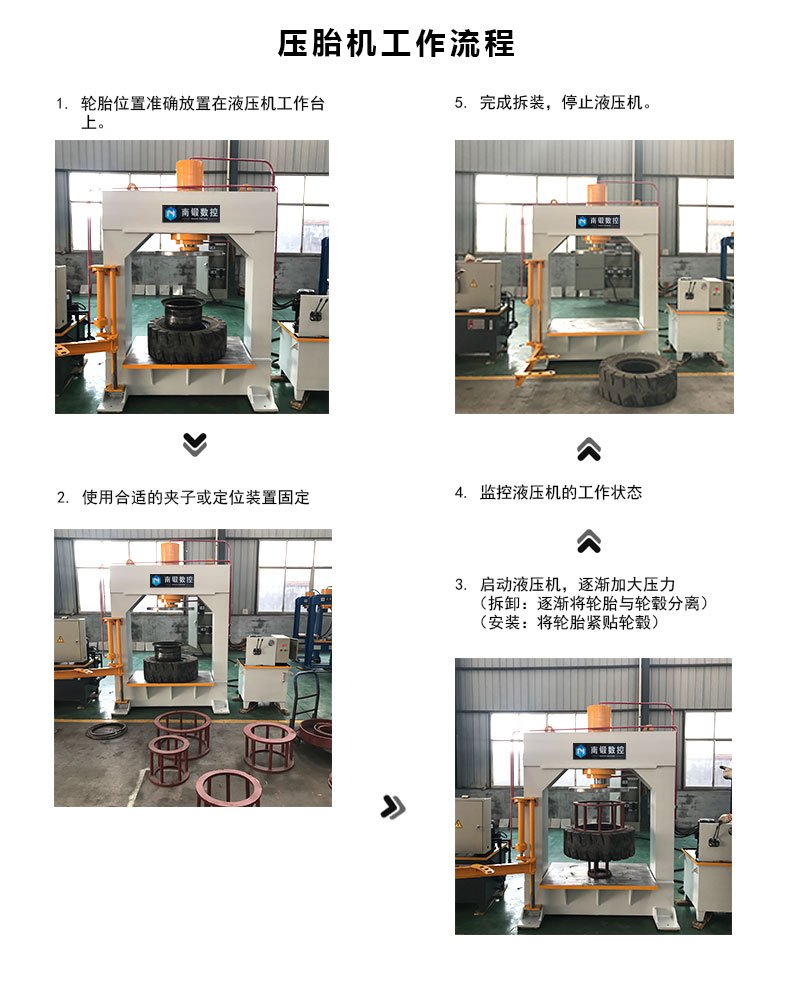

Process Flow

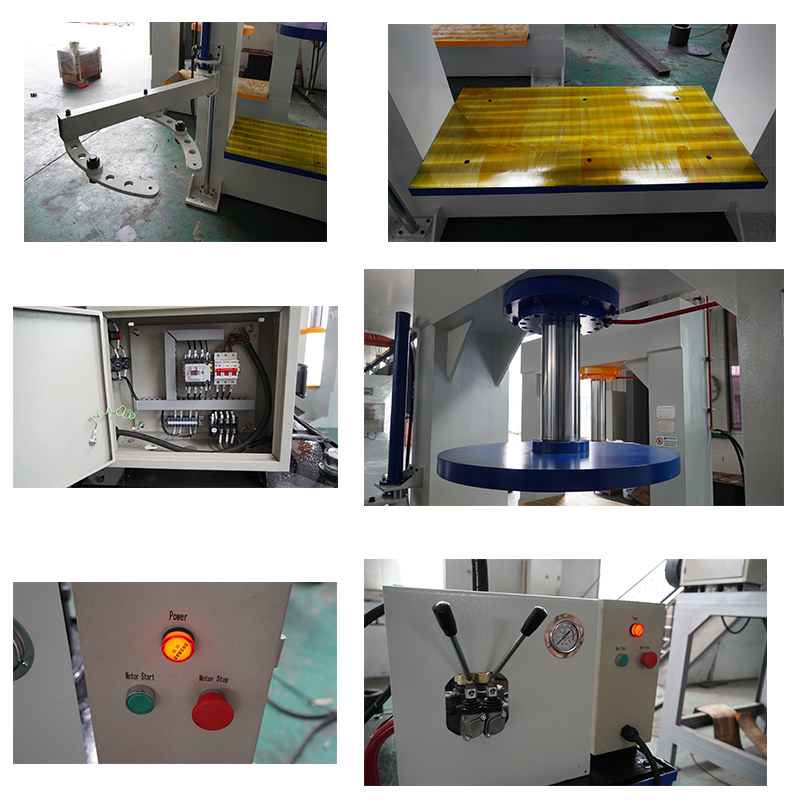

Equipment Details

Performance Characteristics

Equipped with an integrated lifting arm, it handles loading and unloading independently, reducing the cost of auxiliary equipment. With a 250-ton capacity, it offers high versatility and can press both large and small tires. Its compact design minimizes the footprint, saving space in the workshop. Fast operation significantly improves tire mounting and dismounting efficiency, reducing labor costs.

Scope Of Application

Removal, installation, pressing, repair, and replacement of solid tires for all types of forklifts Removal and installation of heavy-duty solid tires for loaders, skid-steer loaders, and mining vehicles Tire repair for construction dump trucks, site transfer vehicles, and industrial and mining equipment Specialized equipment for tire retreading plants, auto repair shops, and fleet after-sales service Separation and assembly of hubs and tires for all types of large wheeled construction machinery

Application Cases

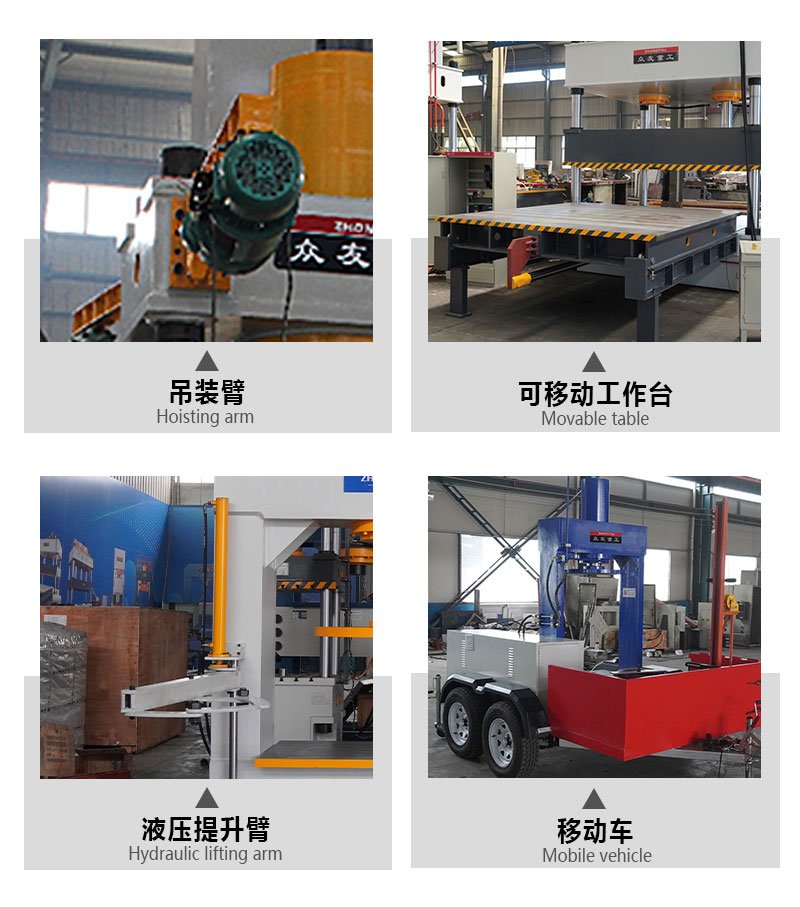

Optional Accessories

Packing & Shipping

After-Sales Service

We offer comprehensive after-sales services, including installation, commissioning, and operation training; providing press machine user manuals to facilitate user learning on how to operate and maintain the press machine.

About The Company

We provide a full set of hydraulic press equipment with many mature design solutions and successful customer cases. We also provide customized service with molding tooling and corresponding production line equipment, providing one-stop service for customers. Welcome to call us for consultation.
