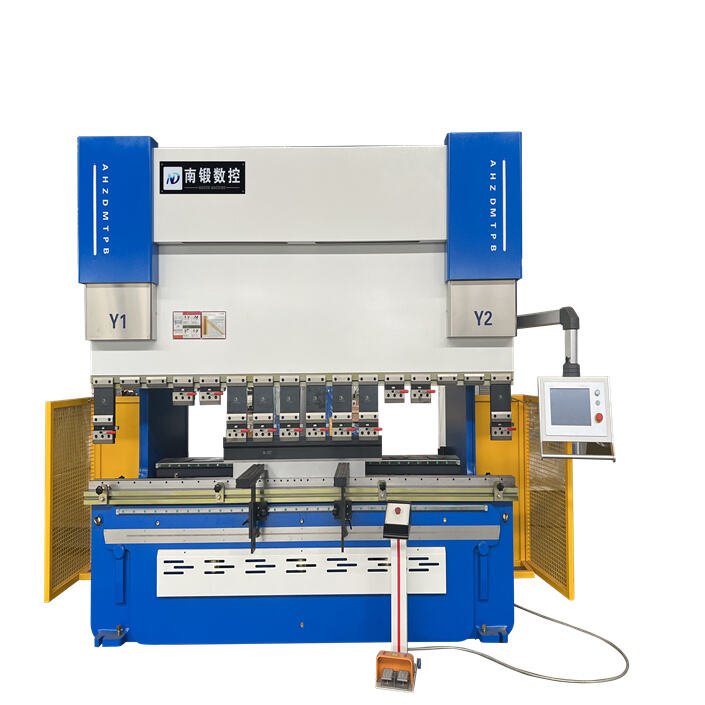

CNC Servo Press Brake Metal Shearing and Folding Equipment 100-ton Large Press Brake

Quick Detail:

The CNC Servo Press Brake, also known as a 100-ton large press brake or a CNC-controlled metal bending machine, is a sophisticated piece of equipment that combines shearing and folding capabilities. It is designed for precision and efficiency in metalworking operations.

This machine finds its primary application in metal fabrication shops, automotive industries, and other manufacturing sectors where the need for bending and shaping metal sheets arises. It is particularly useful for creating complex shapes and components with high accuracy and repeatability.

The core specifications of the CNC Servo Press Brake Metal Shearing and Folding Equipment 100-ton Large Press Brake are as follows:

Model: 100T/3200

Nominal Force: 1000 kN

Worktable Length: 3200 mm

Poles Distance: 2600 mm

Throat Depth: 320 mm

Slider Stroke: 150 mm

Max Height: 400 mm

Power: 7.5 kW

Weight: 6800 kg

Dimension: 3200x1600x2600 mm (LxWxH)

Description:

The CNC Servo Press Brake Metal Shearing and Folding Equipment 100-ton Large Press Brake is a state-of-the-art machine designed for precision and efficiency in the field of sheet metal fabrication. This equipment combines advanced CNC technology with a robust servo motor to deliver unparalleled performance in bending, shearing, and folding operations.

With a maximum capacity of 100 tons, this large press brake is capable of handling thick and heavy gauge materials with ease. The CNC control system ensures accurate and repeatable results, allowing for complex forming tasks to be completed with exceptional precision. The servo motor provides smooth and dynamic motion control, resulting in reduced cycle times and increased productivity.

The metal shearing and folding capabilities of this equipment further enhance its versatility, making it suitable for a wide range of applications in various industries. The integrated safety features ensure operator safety and prevent accidents during operation.

Applications:

The CNC Servo Press Brake Metal Shearing and Folding Equipment 100-ton Large Press Brake finds its applications in diverse industries where precision and efficiency in sheet metal processing are paramount. Here are some of the key areas where this equipment is utilized:

1. Automotive Industry: The equipment is extensively used in the automotive sector for manufacturing body panels, chassis components, and other parts that require high-precision bending and forming.

2. Aerospace and Defense: In the aerospace and defense industries, this press brake is employed for fabricating complex parts and components, such as aircraft frames, missile components, and radar systems, with strict tolerance requirements.

3. Construction and Architecture: The equipment is utilized in the construction industry for producing metal sheets, frames, and profiles used in building structures, roofing systems, and decorative elements.

4. Shipbuilding and Marine: The CNC servo press brake is essential in shipbuilding for fabricating various parts, including hull structures, bulkheads, and deck components, which require precise bending and forming operations.

5. Metal Furniture and Fixtures: This equipment is commonly used in the manufacturing of metal furniture, such as cabinets, shelves, and frames, as well as in the production of metal fixtures and fittings for commercial and residential applications.

6. Energy and Power Generation: In the energy sector, the press brake is employed for fabricating parts and components used in power plants, wind turbines, and solar energy systems.

7. General Metal Fabrication: The CNC Servo Press Brake Metal Shearing and Folding Equipment is widely used in general metal fabrication shops for producing a variety of custom parts, enclosures, and metal products according to specific customer requirements.

Specifications:

Competitive Advantage:

The CNC Servo Press Brake Metal Shearing and Folding Equipment 100-ton Large Press Brake stands out in the market due to its numerous competitive advantages, making it a preferred choice for metal fabricators seeking high-quality and efficient solutions. Here are some of its key competitive advantages:

1. Precision and Repeatability: The CNC control system ensures exceptional precision and repeatability in bending, shearing, and folding operations. This results in consistent and high-quality output, reducing the need for manual adjustments and minimizing errors.

2. Advanced Servo Technology: The integration of a servo motor provides smooth and dynamic motion control, resulting in faster cycle times and increased productivity. The servo motor also consumes less energy compared to traditional hydraulic systems, leading to cost savings and environmental benefits.

3. Versatile Applications: With its metal shearing and folding capabilities, this equipment can handle a wide range of materials and processes, making it suitable for diverse industries and applications. This versatility eliminates the need for multiple machines, saving valuable floor space and reducing investment costs.

4. High Tonnage Capacity: The 100-ton large press brake is designed to handle thick and heavy gauge materials with ease, allowing for the fabrication of large and complex parts. This high tonnage capacity sets it apart from smaller machines, providing unmatched flexibility and capabilities.

5. Enhanced Operator Safety: The equipment is equipped with integrated safety features to ensure operator safety during operation. These features help prevent accidents and minimize the risk of injuries, creating a safer working environment.

6. Energy Efficiency: The servo motor used in this equipment consumes less energy compared to traditional hydraulic systems, resulting in reduced energy consumption and lower operating costs. This makes it an environmentally friendly choice while also providing cost savings in the long run.

7. After-Sales Support: The CNC Servo Press Brake Metal Shearing and Folding Equipment comes with reliable after-sales support, including maintenance services, spare parts availability, and technical assistance. This ensures minimal downtime and maximizes the equipment’s productivity and lifespan.

Tag:

1. May I obtain the required documentation?

Certainly, we provide various documents including Certificates of Analysis/Conformance, insurance particulars, origin certificates, and other essential export paperwork.

2. What’s the usual lead time?

For samples, it’s approximately 30 days, and for mass production, it typically ranges between 30 to 60 days from when the deposit is received. Our lead times start upon deposit receipt and final product approval. If our lead times don’t match your schedule, please consult your assigned sales representative. We strive to accommodate your requirements whenever feasible.

3. What payment methods do you accept?

We receive payments through bank transfer, Western Union, or PayPal. Our standard terms involve a 30% upfront deposit, with the remaining 70% balance payable upon presentation of the B/L copy.

4. What are the terms of product warranty?

Our commitment encompasses both materials and workmanship. Even beyond the warranty period, we endeavor to address and resolve all customer concerns to ensure complete satisfaction.

5. Can you guarantee the safe delivery of products?

Certainly, we utilize high-quality export packaging for secure delivery. Specialized packing is utilized for hazardous goods, and validated cold storage shippers are employed for temperature-sensitive items. However, specific packaging requirements may result in additional charges.

6. How are shipping costs determined?

Shipping expenses are contingent upon the selected delivery method. Express delivery is quicker but more costly, while sea freight is preferable for larger quantities. Detailed freight rates can be provided once we have specific order details such as quantity, weight, and preferred shipping method. Please don’t hesitate to reach out to us for further clarification.
