cnc lathe machine vertical cnc lathe

Place of Origin:	Tengzhou China
Brand Name:	Nadun
Model Number:	没有找到自定义文本
Certification:	CE ISO
Minimum Order Quantity:	1
Packaging Details:	The sample includes a hydraulic press and mold. Please contact us for more details.
Delivery Time:	15-45 day
Payment Terms:	L/C D/P D/A T/T
Supply Ability:	50set/m

Product Overview

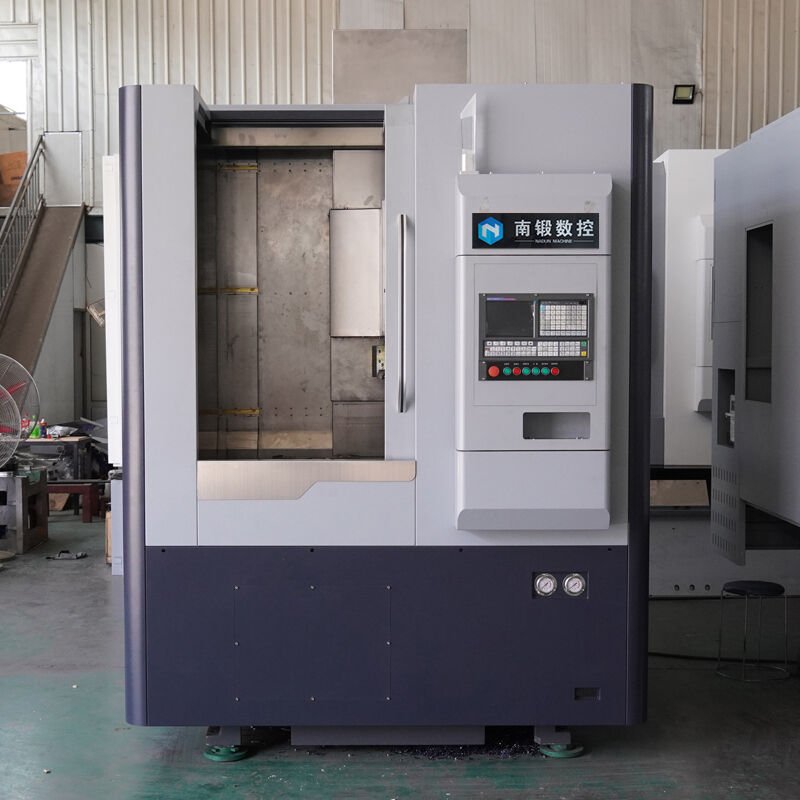

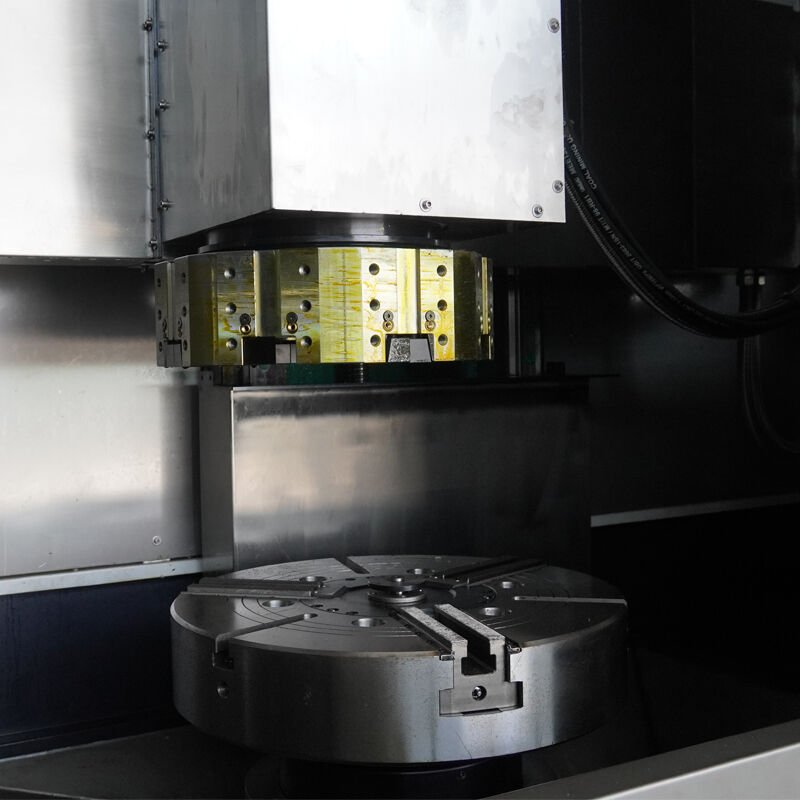

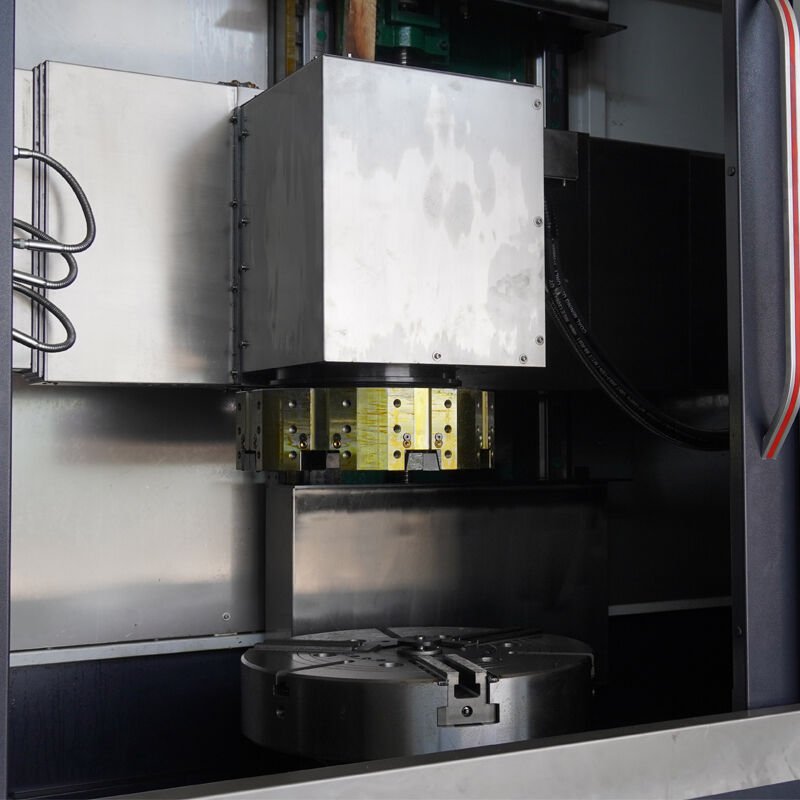

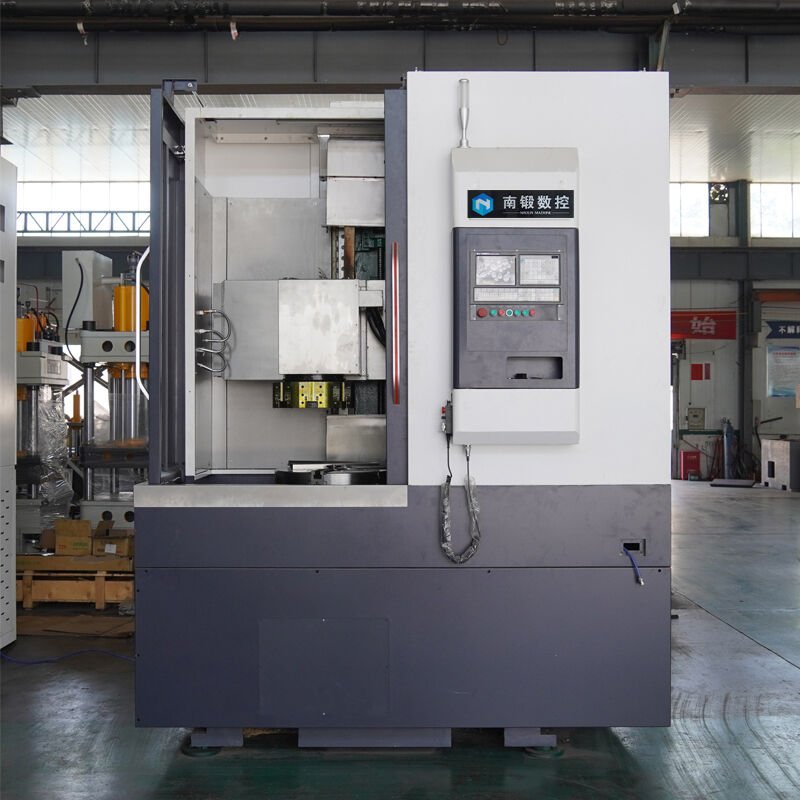

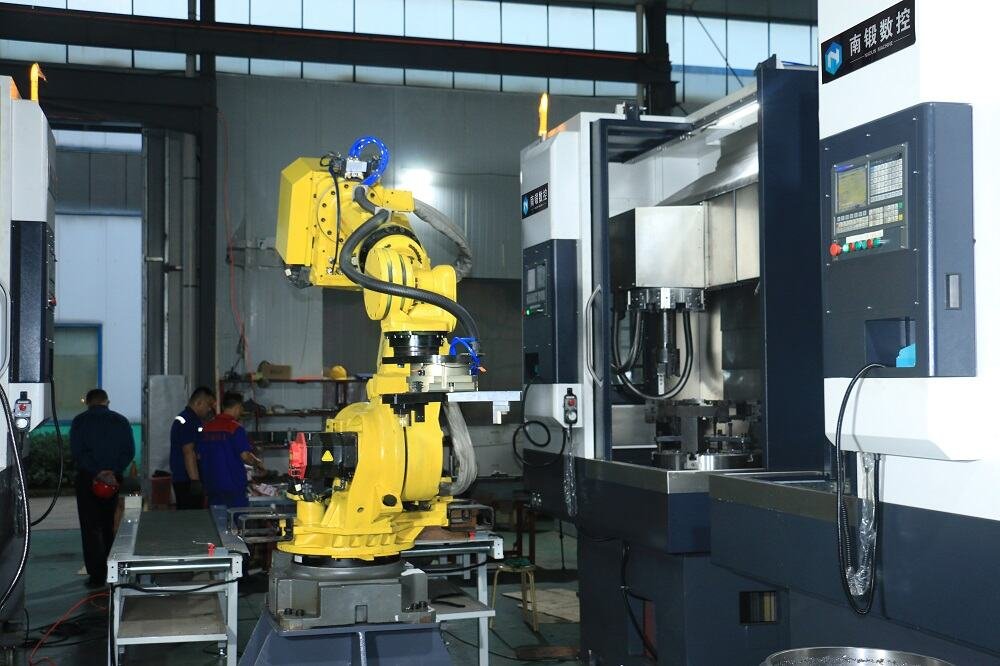

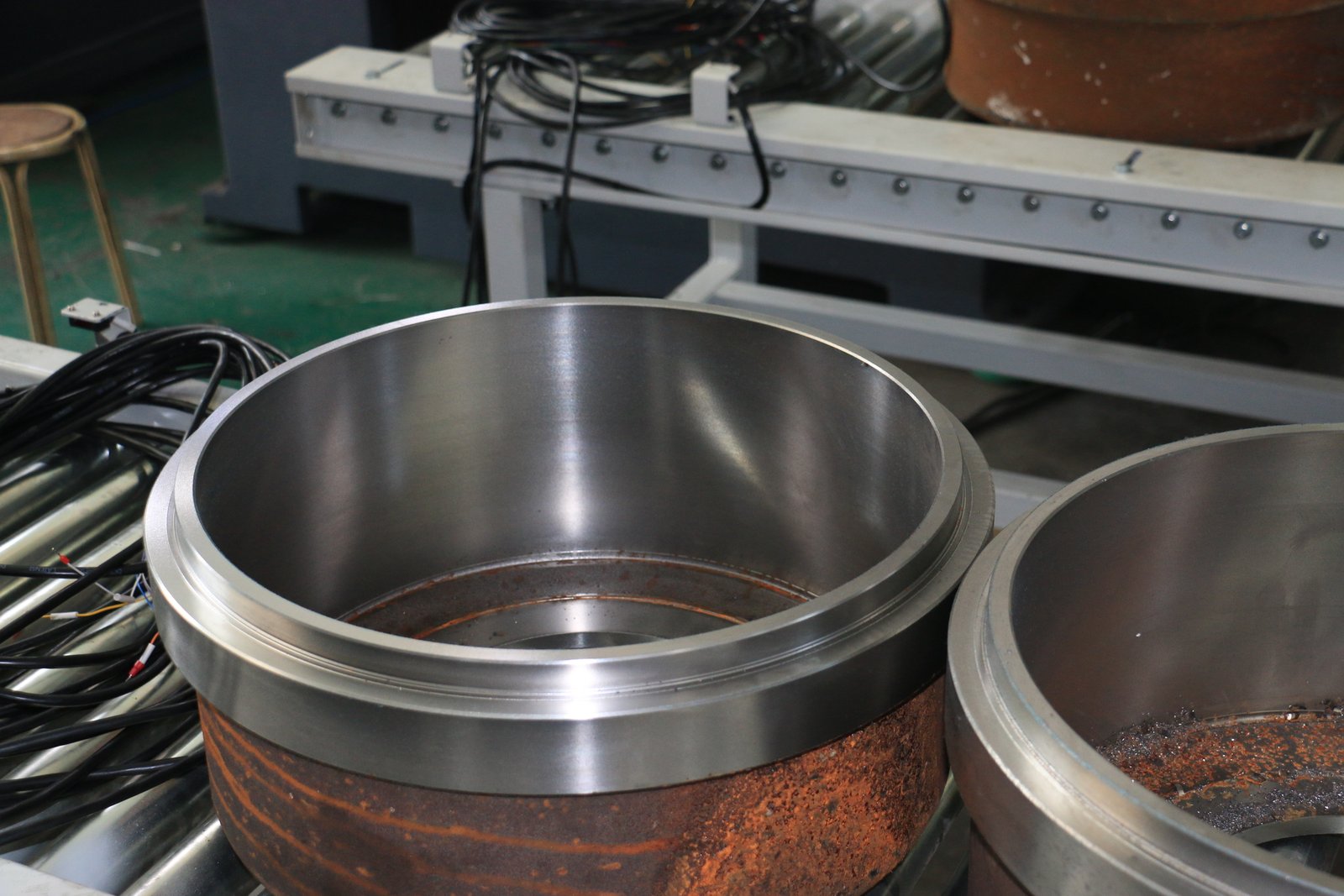

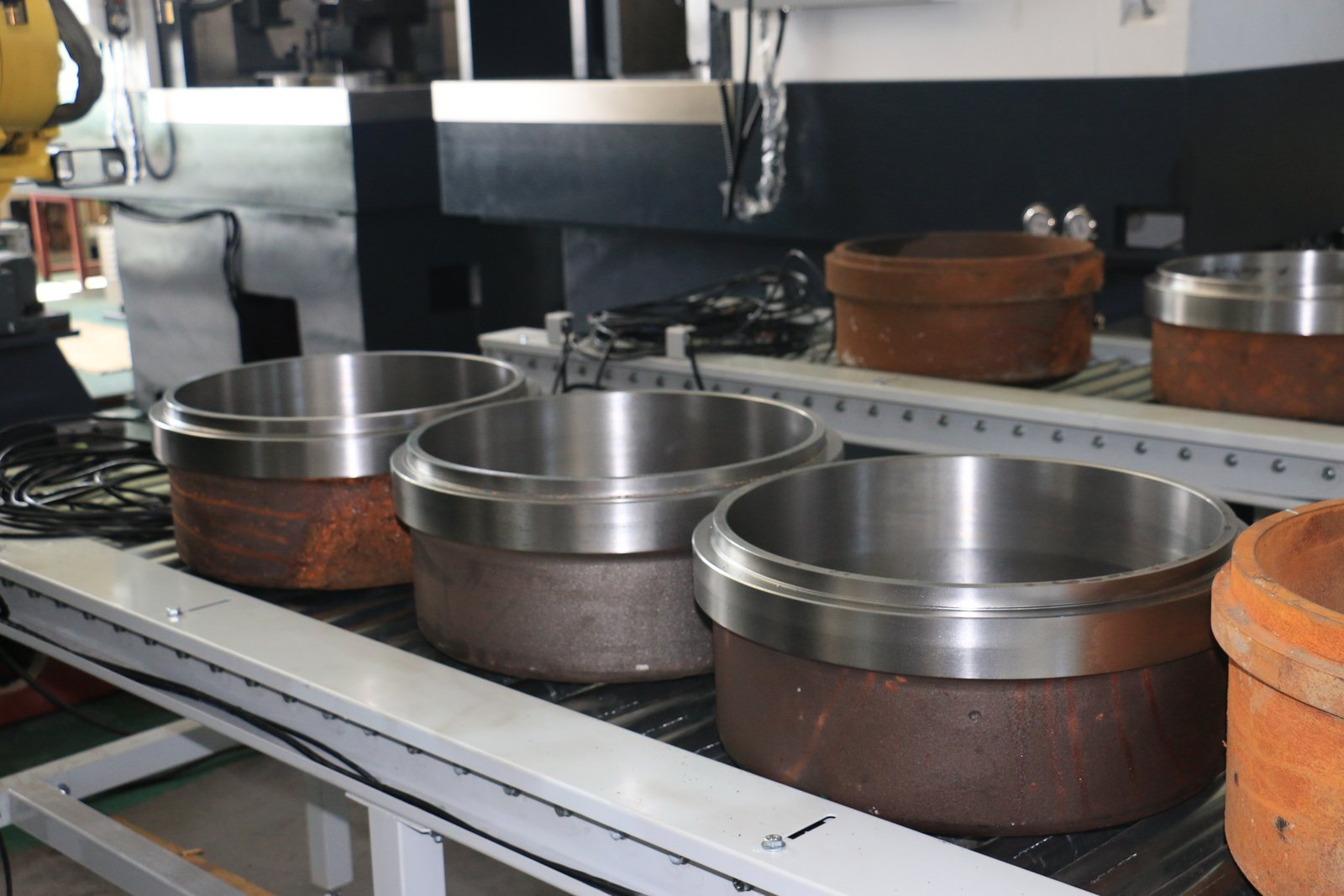

Nadun vertical CNC lathe is a kind of machine tool equipment with high precision and high efficiency. It adopts a vertical layout, where the spindle is perpendicular to the worktable, and the workpiece is clamped on the rotary worktable, which makes it convenient to clamp and align workpieces that are relatively heavy or have special shapes. It is equipped with an advanced CNC system that can precisely control the movement trajectory of the cutting tools and realize the automated processing of complex parts. The processing precision can reach the micron level. The structure of the machine tool is sturdy and can withstand relatively large cutting forces, maintaining good stability during the processing. It is applicable to numerous fields such as aerospace, automobile manufacturing, and shipbuilding industries. It can perform various machining operations like turning, boring, and drilling on all kinds of rotary parts, such as disc-shaped and shaft-shaped parts, effectively improving the quality and production efficiency of part processing, meeting the strict requirements of precision processing in modern manufacturing, and is one of the key processing equipment that promotes industrial production to move towards intelligence and high precision.

Parameters

Specification	Unit	VT45	VT65	VT75	VTS525	VTS527
Max.rotating diameter	mm	∮560	∮650	∮750	∮750	∮750
Max.turning diameter of workpiece	mm	∮450	∮600	∮700	∮550	∮700
Spindle end face form		Straight	Straight	Straight	Straight	Straight
Spindle speed	rpm	3000	100-1000	50-1500	50-1000	500-1000
Hydraulic chuck diameter	mm	500	500	630	500	630
Tool post type	pcs	eight-station	eight-station	eight-station	eight-station	eight-station
Tool shank diameter	mm	32	32	32	32	32
Inner diameter tool holder	mm	∮40	∮40		∮50	∮50
Center tool holder	mm			160
X axis travel	mm	400	450	700	280	450
Z axis travel	mm	500	600	700	500	700
Oil tank capacity	L	50	50	50	50	50
Oil pressure motor	kw	1.5	1.5	1.5	1.5	1.5
Water Capacity	L	180	200	200	200	200
Rotating water motor	w	250	450	450	450	450
Flush motor	kw	250	450	450	450	450
X axis servo motor torque	NM	12	18	18	15	15
Z axis servo motor torque	NM	22	30	18	15	15
Main Servo motor power	kw	11/15	18.5	22	18.5	22
Repeat positioning accuracy	mm	±0.005	±0.005	±0.005	±0.005	±0.005
Positioning accuracy	mm	±0.008	±0.008	±0.008	±0.008	±0.008
Dimension	mm	1700X1880X2500	2000X1950X3000	2450X1900X3200	3000X2400X2700	3200X2400X3200
Weight	kg	5500	8000	9500	7000	9000
Voltage		3￠-AC 380V 50Hz±5%
Electricity Leakage/outage protection		√
Three-color light indication		√
Long-term stable working conditions		environment Temperature 5～38°, humidity <85％
Noise meets national standards		√
☆The equipment adopts fully enclosed protection, and the protective device is safe and reliable and should comply with GB15760-1995 General Technical Regulations on Safety Protection of Metal Cutting Machine Tools. ☆Equipped with various hydraulic, gas and water pipeline direction signs, marking the working range of various instruments, and marking the grade of the medium used. ☆The diameter of the hydraulic chuck and the tool holder station can be selected according to the processing requirements.
