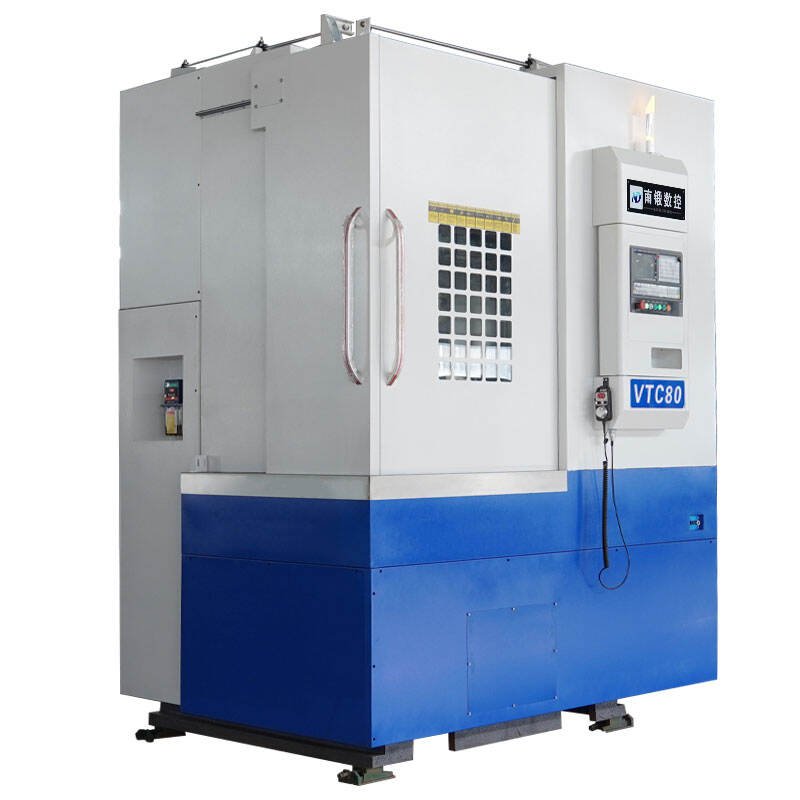

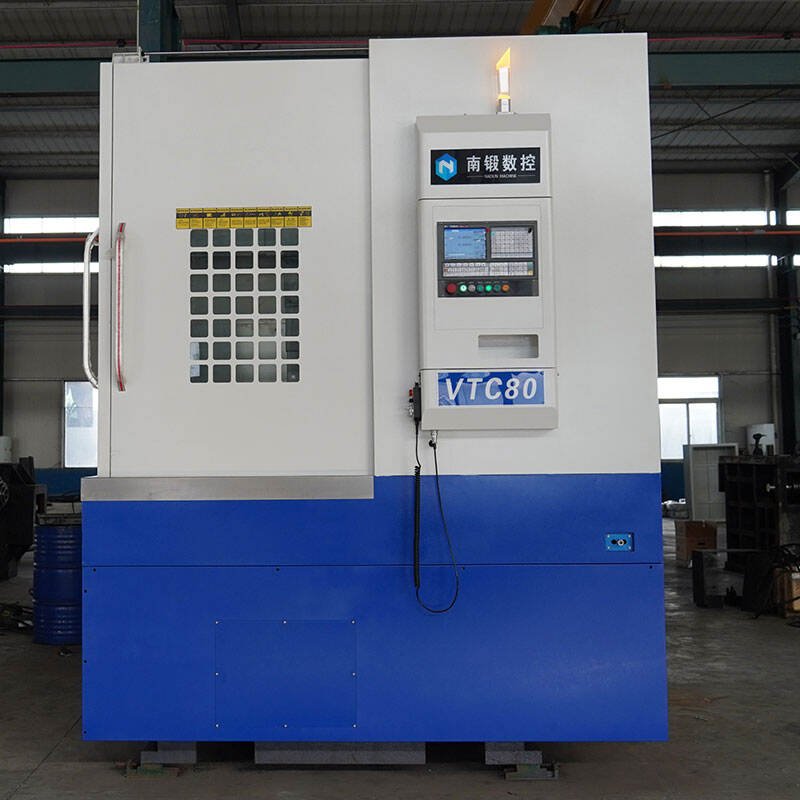

VTC800 آلة الخراطة CNC العمودية للمعادن

Place of Origin:	Tengzhou China
Brand Name:	Nadun
Model Number:	没有找到自定义文本
Certification:	CE ISO
Minimum Order Quantity:	1
Packaging Details:	The sample includes a hydraulic press and mold. Please contact us for more details.
Delivery Time:	15-45 day
Payment Terms:	L/C D/P D/A T/T
Supply Ability:	50set/m

Product Overview


VTC 800 CNC مخرطة عمودية لقطع الأعمدة القصيرة / أجزاء القرص / الأسطح المخروطية / الأسطح الأسطوانية الخارجية الداخلية

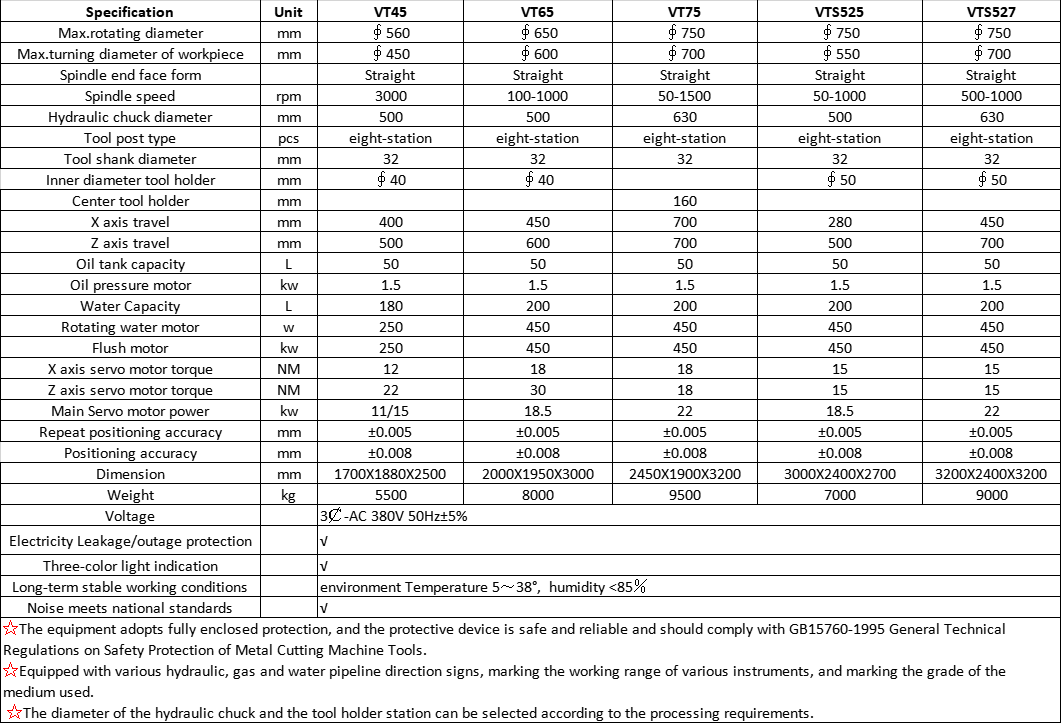

Parameters

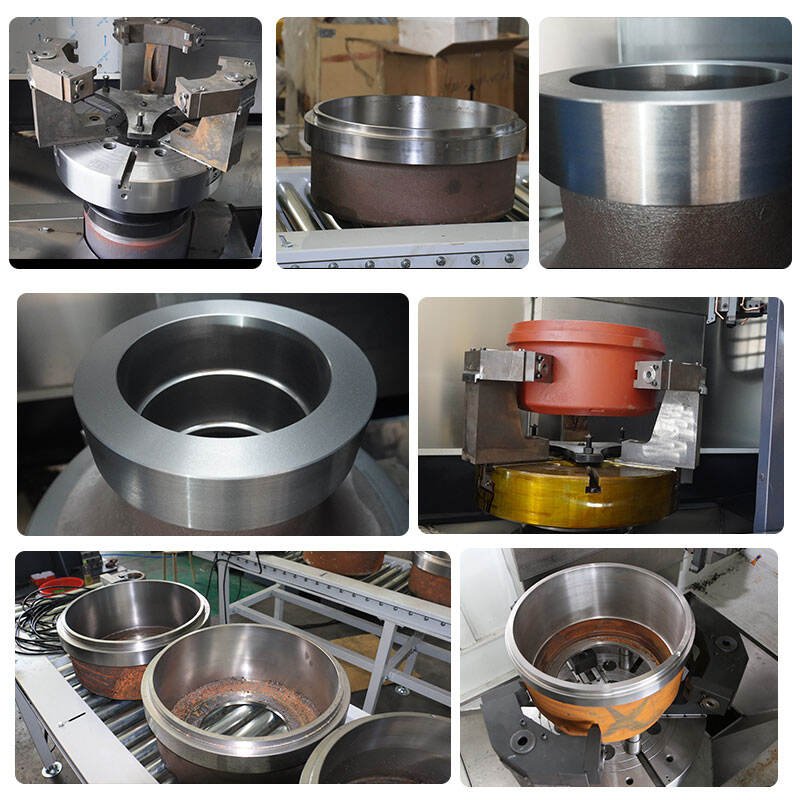

Pressed Product

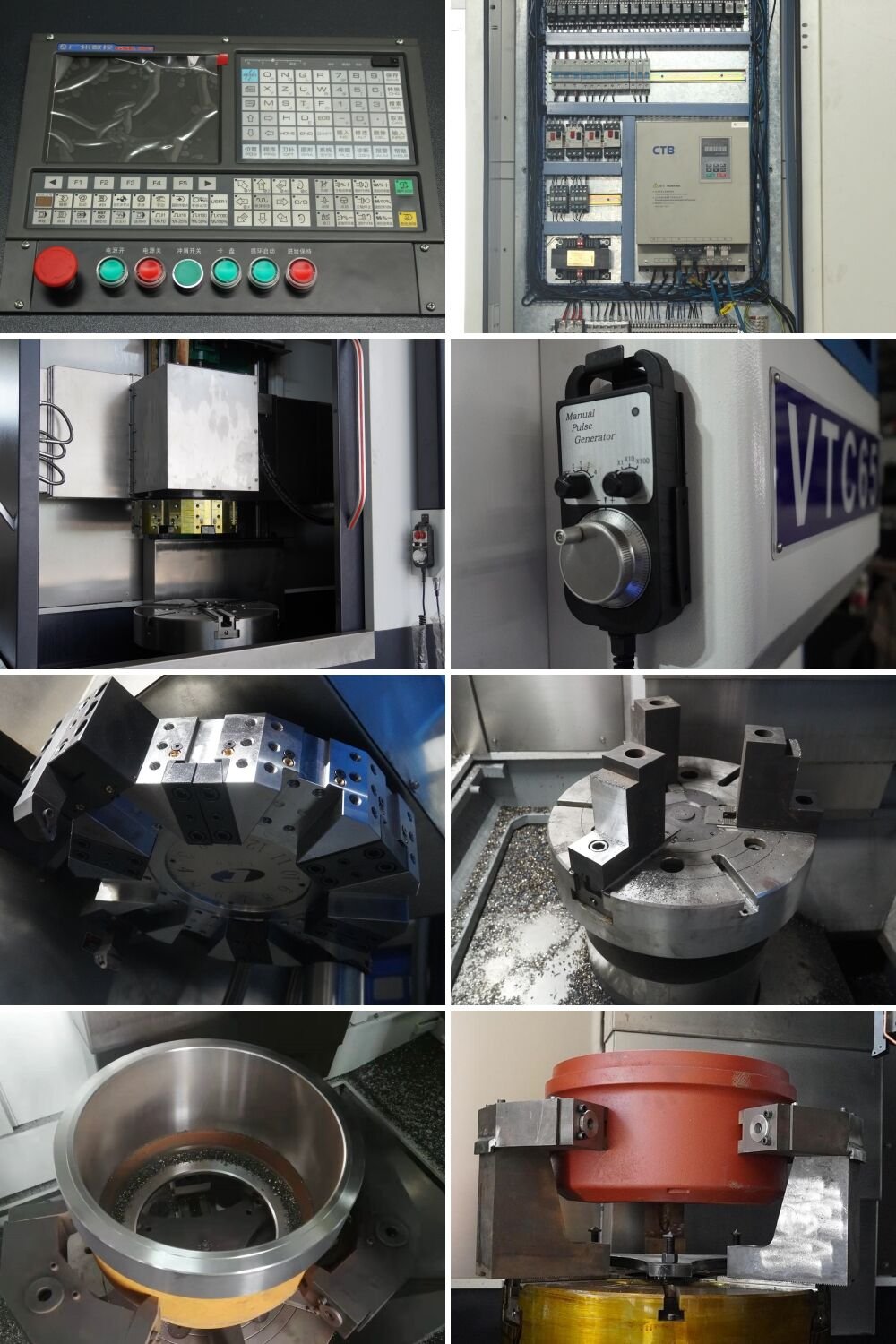

Equipment Details

Performance Characteristics

Main features of Nadun VTC 800 CNC vertical lathe: 1.Processing range: suitable for processing some medium and large-sized workpieces of short shafts and some workpieces' faces, such as conical face, inner cylindrical face, outer cylindrical face and chamfering. 2.CNC system: The standard configuration adopts GSK980 CNC system produced by Guangzhou CNC Company, with optional Siemens or domestic KND system. These systems can adapt to high-efficiency, high-speed, high-precision machining, and have the advantages of easy operation, full-featured and high reliability. 3.Servo system: the two servo axis system is a high-precision digital servo system with high-speed microprocessor and software servo control function, which can realize high-speed and high-precision servo control. 4.Electrical system: It has over-current and short-circuit protection, and the relevant actions of the machine tool have corresponding interlocks to protect the equipment and personal safety. At the same time, the electrical system has self-diagnosis function, the operator amaintenance personnel can observe the running status of each part of the machine tool at any time
according to the indicator and display. 5.Lubrication system: The centralized automatic lubrication system is made of domestic or joint-venture, and has the functions of liquid level alarm and pressure alarm.6.Hydraulic system: In order to balance the load weight of Z-axis, it is equipped with a balancing cylinder. The main hydraulic control components of the hydraulic system are of high quality to ensure the stability and reliability of the machine tool. 7.Safety protection: The machine tool adopts full protection design, which is beautiful and easy to use. Safety grating can be added to better take into account the safety.

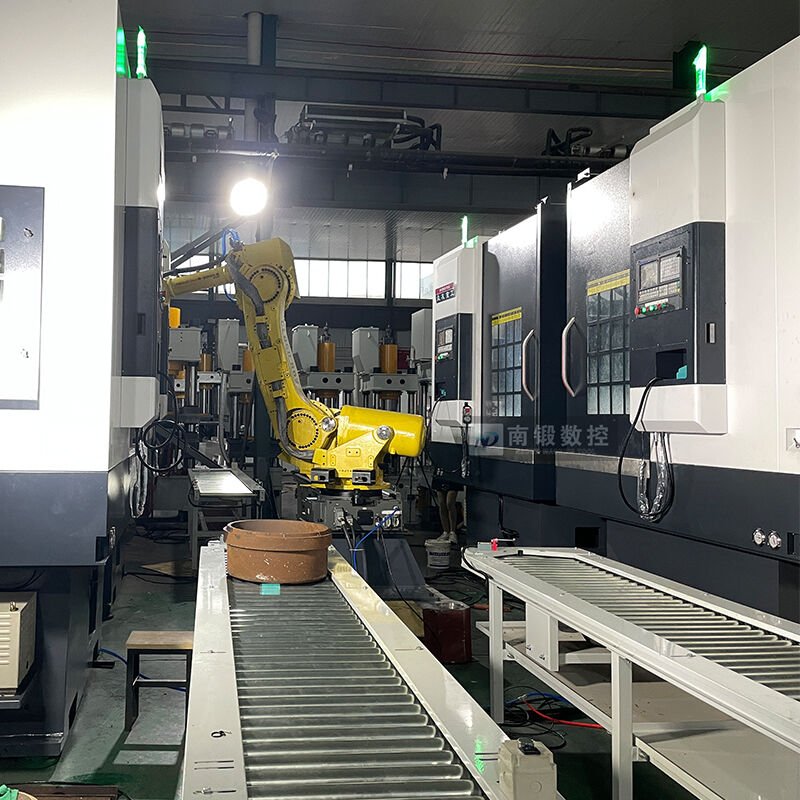

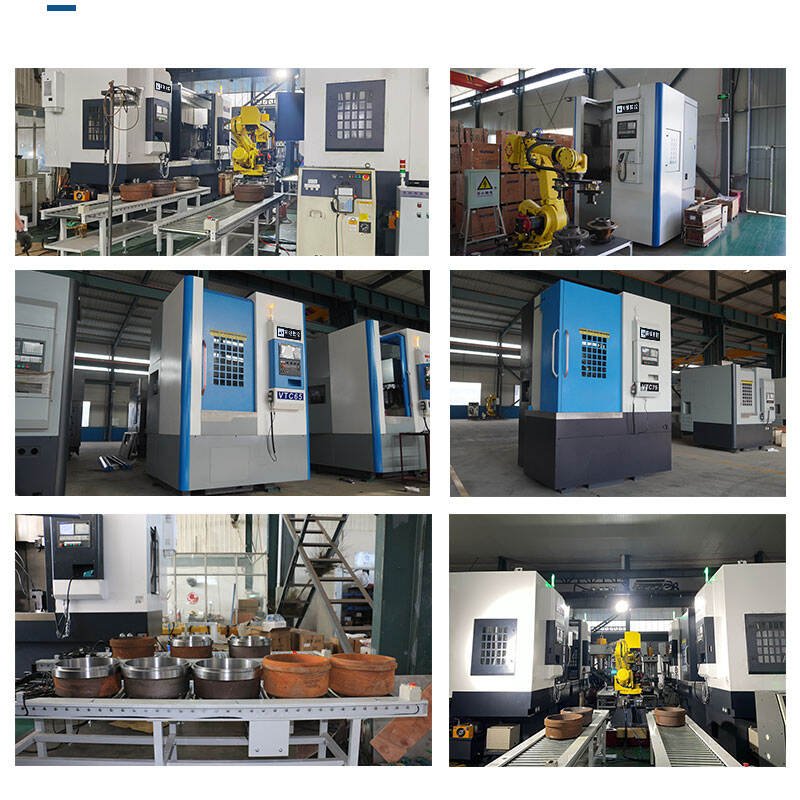

Automatic protection door is also optional, which is convenient for forming automatic production line and installing robots.

Nadun VTC 800 CNC Vertical Turning Machine is suitable for machining all kinds of short shafts and disk parts, as well as the faces of workpieces such as conical surfaces, internal cylindrical surfaces, external cylindrical surfaces and chamfers. Meanwhile, it can also turn all kinds of threads, arcs and rotary body's inner and outer surfaces, end faces, grooves and other complex shapes.
